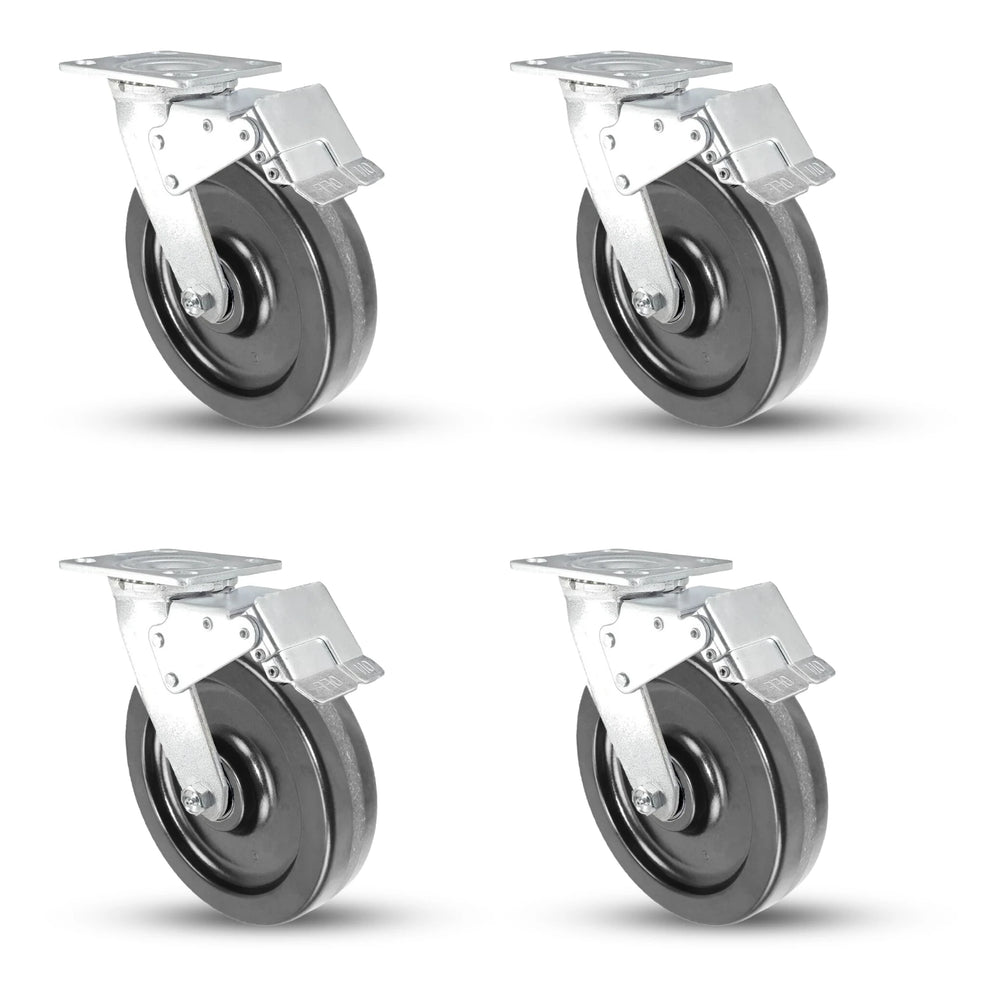

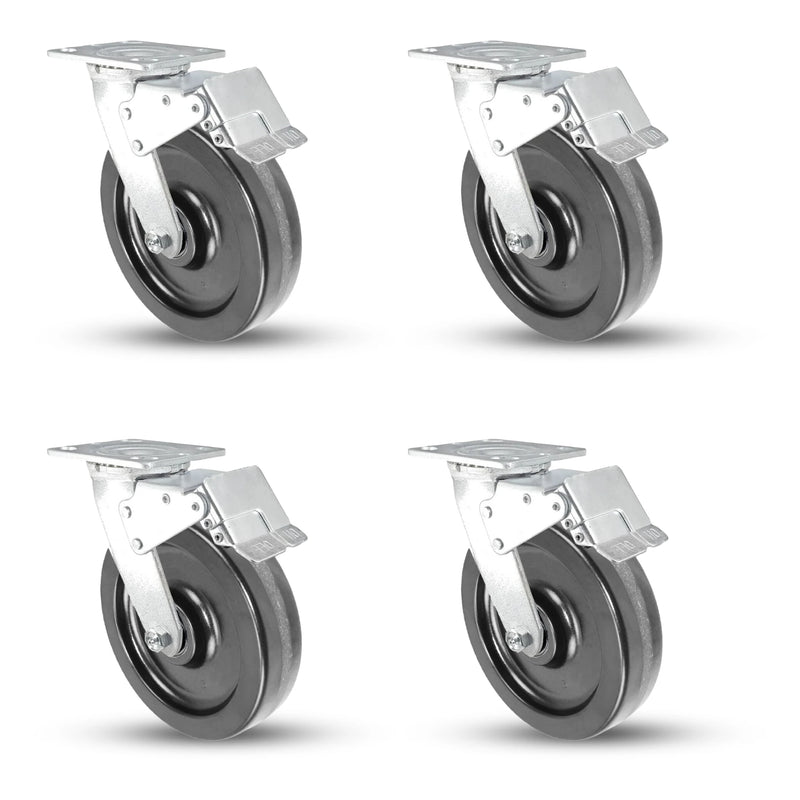

8 Inch x 2 Inch Phenolic Caster Set - 4 Pack with Total Locks | 4000 lbs Capacity Heavy Duty CasterHQ

8" x 2" Phenolic Total Lock Caster Set – 4000 lb | CasterHQ

Wheel

8" x 2"

Capacity

4000 lbs

Overall Height

9-1/2"

Plate Size

4" x 4-1/2"

Full specs Spec sheet (PDF)

$149.00 USD - $196.50 USD

Save 30%+ vs big-box distributors

In Stock · Ships 1-2 Business Days

Quantity

Add 49 more for 5% off

Order in 2h 14m for same-day processing

Your price per unit:

Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

✉️ Email a Caster Solutions Expert (Mon–Fri 8–5 CST)

PO Net 30 ACH Tax-Exempt

Business Purchasing

Purchase orders accepted for approved accounts
Net 30 terms for qualified businesses
ACH, credit card, and tax-exempt ordering
Bulk and contract pricing on fleet quantities

Upload a PO / Quote·Request bulk pricing·844-439-4335

Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.

Call now

Product Overview

At a glance

Load capacity4000 lbs

Wheel8" × 2" Phenolic

MountPlate — 4" x 4-1/2"

Overall height9-1/2"

Temperature-50°F to 250°F

8"x 2" Heavy-Duty Phenolic Caster Set - 4 Total Locks | 4,000 Lbs Capacity

The Strongest, Most Reliable Heavy-Duty Caster Set Available

Enhance your equipment’s mobility with the **industry’s top-rated 8"x2" Phenolic Caster Set**. Engineered for **extreme strength**, these casters **effortlessly handle 4,000 lbs** while ensuring **maximum stability** with **4 Total Locks**.

Why CasterHQ’s Phenolic Casters Are the Best:

Unmatched Durability: Phenolic wheels resist **impact, water, oil, and chemicals.**
Zero Maintenance: **Grease fittings** ensure long-lasting performance without downtime.
Total Lock Control: All four casters **lock both wheel & swivel** for 100% stability.
Industry Trusted: Used by **top manufacturers, warehouses, and logistics companies.**
NSF & RoHS Compliant: Built **above industry standards** for safety & performance.

Key Features

8"x 2" Heavy-Duty Phenolic Caster Set - Features

Top-Rated Phenolic Caster Set: **Trusted by Industry Leaders.**
4,000 LB Capacity (Per Set): Engineered for **maximum strength & longevity.**
Total Lock Mechanism (4 Casters): **Secures both wheel & swivel** for **ultimate stability.**
Phenolic Wheel Technology: **Outperforms rubber & polyurethane in durability & impact resistance.**
Maintenance-Free Design: **Grease fittings in raceway & axle ensure long-term performance.**
Superior Floor Protection: **Non-marking** for all industrial & commercial applications.
Weather & Chemical Resistant: Built to **withstand extreme environments.**
Universal Fit: **4"x 4-1/2" top plate** with **industry-standard bolt hole spacing.**

Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.

Payment & procurement terms

Purchase orders — accepted from approved accounts

Net 30 terms — available on approved credit

ACH & all major cards — Visa, MC, Amex, Discover

Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

8"x 2" Phenolic Wheel 4 Total Locks Caster Set

Designed for Heavy-Duty Industrial Power

This 8-inch by 2-inch caster set is **engineered for durability and control** with an **unmatched 4,000 lb weight capacity**. The **4 Total Locks** ensure **superior stability** for high-demand environments.

Trusted by Industry Leaders

Manufacturing plants, logistics, and **heavy-duty industrial carts**
Material handling, freight, and **warehouse operations**
Retail & commercial **mobile workstation solutions**

Unrivaled Strength & Performance

These casters **outperform standard wheels**, ensuring **maximum mobility, durability, and efficiency**.

Choose the Best in Industrial Mobility

Opt for **the strongest, longest-lasting casters** on the market. **Upgrade your equipment with the industry's best.**

Frequently Asked Questions

What is the load capacity of this caster?+

This 8" x 2" Phenolic Total Lock Caster Set – 4000 lb is rated to 4000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

What temperature range can this caster handle?+

Rated for -50°F to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

8" x 2" Phenolic Total Lock Caster Set – 4000 lb | CasterHQ

$149.00

Technical Specifications

Dimensions & Mounting
Wheel Diameter	8"
Wheel Tread Width	2"
Overall Height	9-1/2"
Plate Size	4" x 4-1/2"
Bolt Hole Pattern	2-5/8" x 3-3/8" slotted to 3" x 3"
Mount Style	Plate
Load & Performance
Wheel Capacity	4000 lbs
Temp Range	-50°F to 250°F
Materials & Finish
Wheel Material	Phenolic
Frame Material	Zinc Plated Steel

Reference Dimensions

Overall Height9-1/2"

Wheel8" x 2"

Top Plate4" x 4-1/2"

Bolt Pattern2-5/8" x 3-3/8" slotted to 3" x 3"

Wheel MaterialPhenolic

Illustrative caster profile drawn to this item's proportions — dimensions are manufacturer specification values. Confirm against the technical table before ordering.

Compare Similar

8" x 2" Phenolic Swivel & Rigid Caster Set – 4,000 lb | CasterHQ 8" x 2" · 4000 lbs · Direct fit $132

8" x 2" Phenolic Swivel Caster 4 Pack – 4000 lb | 4" x 4-1/2" Plate | CasterHQ 8" x 2" · 4000 lbs · Direct fit $134

8" x 2" Red Polyurethane Swivel & Rigid Caster – 5000 lb | CasterHQ 8" x 2" · 5000 lbs · Direct fit $171 View all 8′ x 2′ casters & wheels →

Will This Caster Handle Your Load?

Enter your loaded weight — we derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.

Rated capacity: 4000 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →

Fitment & Interchange

MountPlate

Plate Size4" x 4-1/2"

Bolt Pattern2-5/8" x 3-3/8" slotted to 3" x 3"

Slotted holes — fits multiple bolt patterns, ideal for retrofits

Replacing an existing caster? Match the bolt pattern first, then wheel size · more 4" x 4-1/2" plate casters →

Documentation

Spec sheet (PDF) 30-day pricing honored Request STEP / CAD fileour engineers email it same day Caster selection guide Caster University Fleet & contract pricing Net 30 available

30-day returns · manufacturer warranty · spec support: 844-439-4335 (Mon–Fri 8–5 CST)

Compare Similar Casters

View all total locking casters →

Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.

Casters (in stock)	Load capacity	Wheel	Type	Overall height	Price
8" x 2" Phenolic Swivel Caster – 1,400 lb	1400 lbsLighter duty	8" × 2"Cast Iron	Swivel	9-1/2"	$38.00	View →
8" x 2" Red Ductile Steel Swivel Caster – 1,500 lb	1500 lbsLighter duty	8" × 2"Ductile Iron	Swivel	9-1/2"	$89.00	View →
This item8" x 2" Phenolic Total Lock Caster Set – 4000 lb	4000 lbs	8" × 2"Phenolic	—	9-1/2"	$149.00	Viewing
Direct fit8" x 2" Phenolic Swivel & Rigid Caster Set – 4,000 lb	4000 lbsSame capacity	8" × 2"Phenolic	Swivel, Rigid	—	$132.00	View →
Direct fit8" x 2" Phenolic Swivel Caster 4 Pack – 4000 lb	4000 lbsSame capacity	8" × 2"Phenolic	Swivel	—	$134.00	View →
