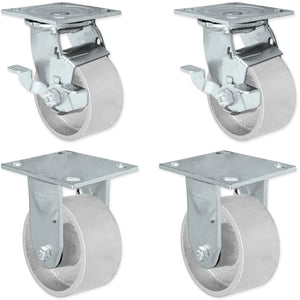

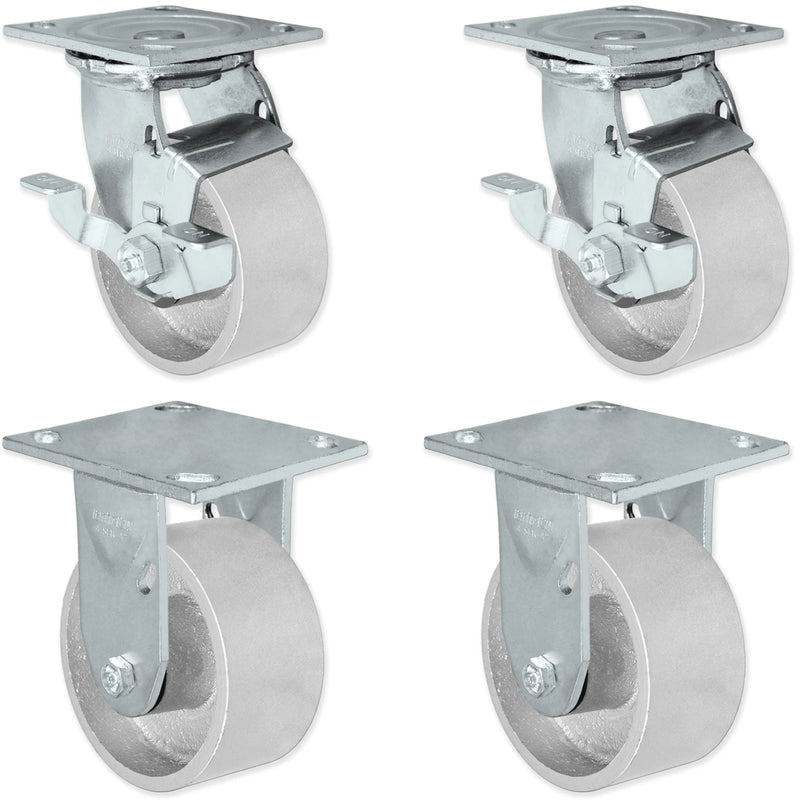

4" x 2" Heavy-Duty BBQ Pit Caster Set - 900 lb
Capacity Each, 3600 lbs Total - Steel Wheel Swivel & Rigid Combo Kit
#BBQ4x2HD3600-ComboKit
This
product listing is for CasterHQ's 4" x 2" Steel BBQ Pit
Casters. With a 900 lb capacity per caster and a total
of 3,600 lbs, these casters mean serious business. Our part #BBQ4x2HD3600-ComboKit includes
two swivel casters with brakes and two rigid casters, all with solid 4" x
2" cast iron steel wheels. This mix lets you steer your BBQ pit with ease.
Mounting
Hardware: (OPTIONAL ADD-ON)
If you need mounting hardware, choose the hardware option on the right-hand side of the product page. Mounting hardware includes 16 one-inch bolts (5/16), 16
nuts (5/16), and 16 washers. Bigger wheels? No problem. We also
have 5" x 2" and 6" x 2" BBQ
caster kits. Just remember, these casters will raise your pit by 5-5/8
inches from the ground if you are adding to a unit with no casters but if you currently have 5" wheels installed this will not increase your overall height.
Strong
Steel Wheels:
Our
heavy-duty cast iron wheels are tough. They're built for carrying heavy loads
like a BBQ pit, with thicker treads, stronger spokes, and bigger hubs. But keep
in mind, that cast iron can be tough on floors.
Universal
Applications:
And it's not just for BBQ pits. You can use this kit for toolboxes, tool carts, job boxes, gang boxes, and more. If you need to move something heavy, these casters can handle it. Trust CasterHQ to keep your heavy stuff rolling smoothly.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 4" x 2" Steel Swivel & Rigid BBQ Pit Caster Set – 3600 lb is rated to 2800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 800°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5-5/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$213.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5-5/8" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 2800 lbs |
| Temp Range | Up to 800°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
4" x 2" Semi-Steel Swivel Caster 4" x 4-1/2" Plate – 2800 lb | CasterHQ
4" x 2" · 2800 lbs
$121
4" x 2" Red Polyurethane Swivel & Rigid Caster Set – 2800 lb | CasterHQ
4" x 2" · 2800 lbs · Direct fit
$123
4" x 2" Red Poly Total Lock Caster Set 4 Pack – 2800 lb | CasterHQ
4" x 2" · 2800 lbs · Direct fit
$184
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2400 lbsLighter duty | 4" × 2"High Temp Phenolic | Swivel, Rigid | 5-5/8" | $216.00 | View → | |
| 2400 lbsLighter duty | 4" × 2"High Temp Phenolic | Swivel | 5-5/8" | $248.00 | View → | |
| 2800 lbs | 4" × 2"Cast Iron | Rigid | 5-5/8" | $213.00 | Viewing | |
| 2800 lbsSame capacity | 4" × 2"Polyurethane | Rigid | 5-5/8" | $123.00 | View → | |
| 2800 lbsSame capacity | 4" × 2"Polyurethane | Swivel with Total Lock Brake + brake | 5-5/8" | $184.00 | View → |
