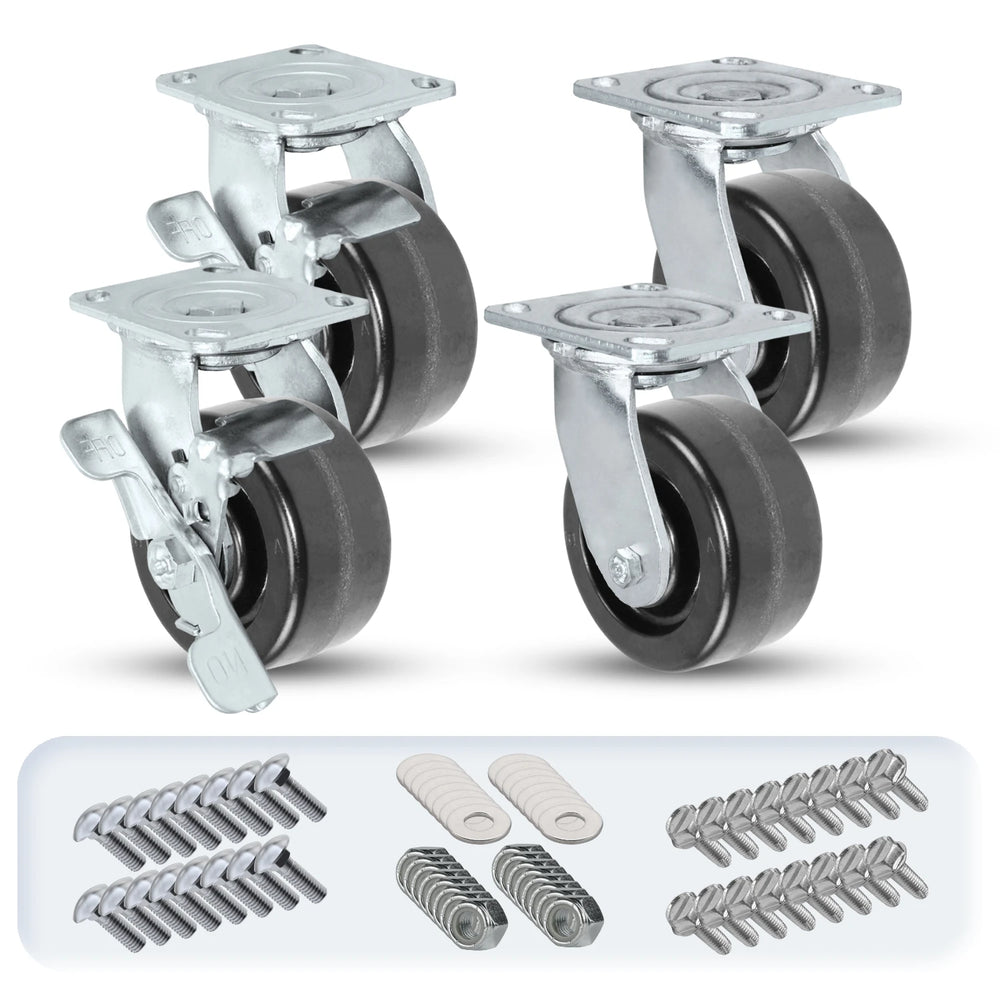

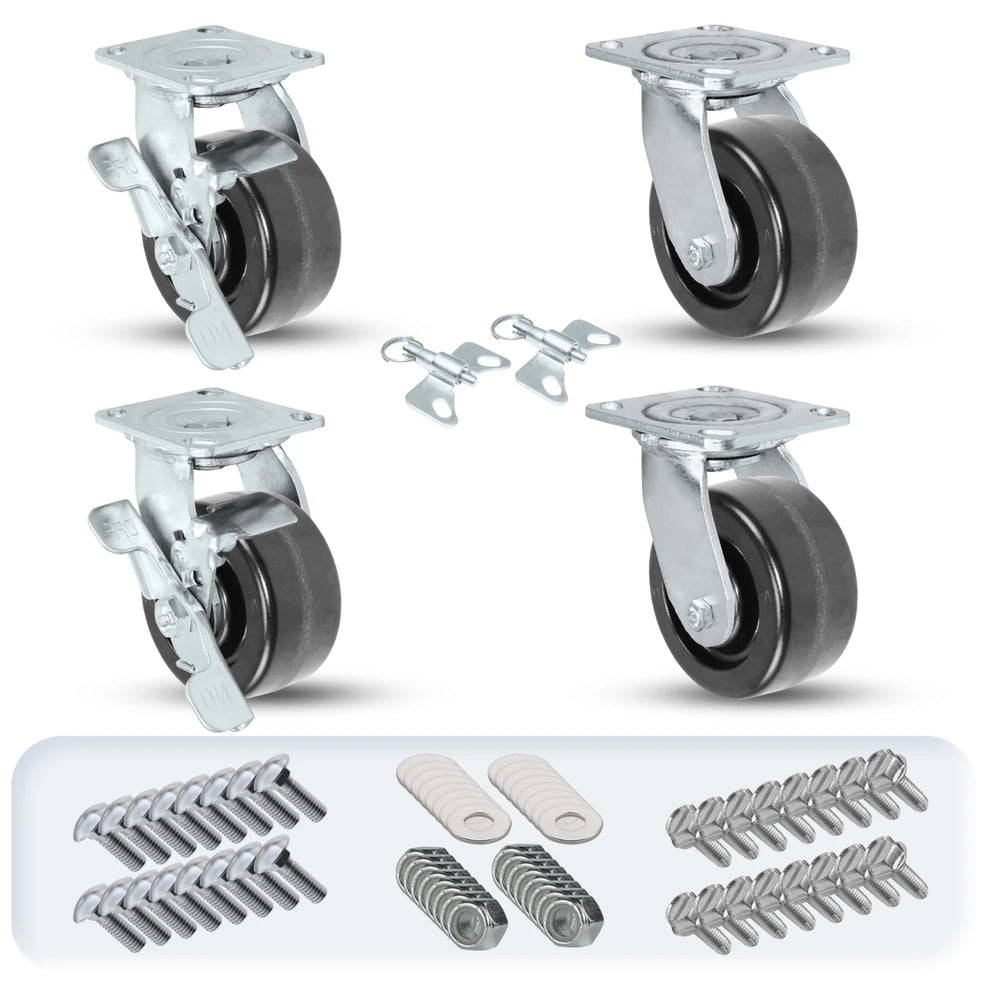

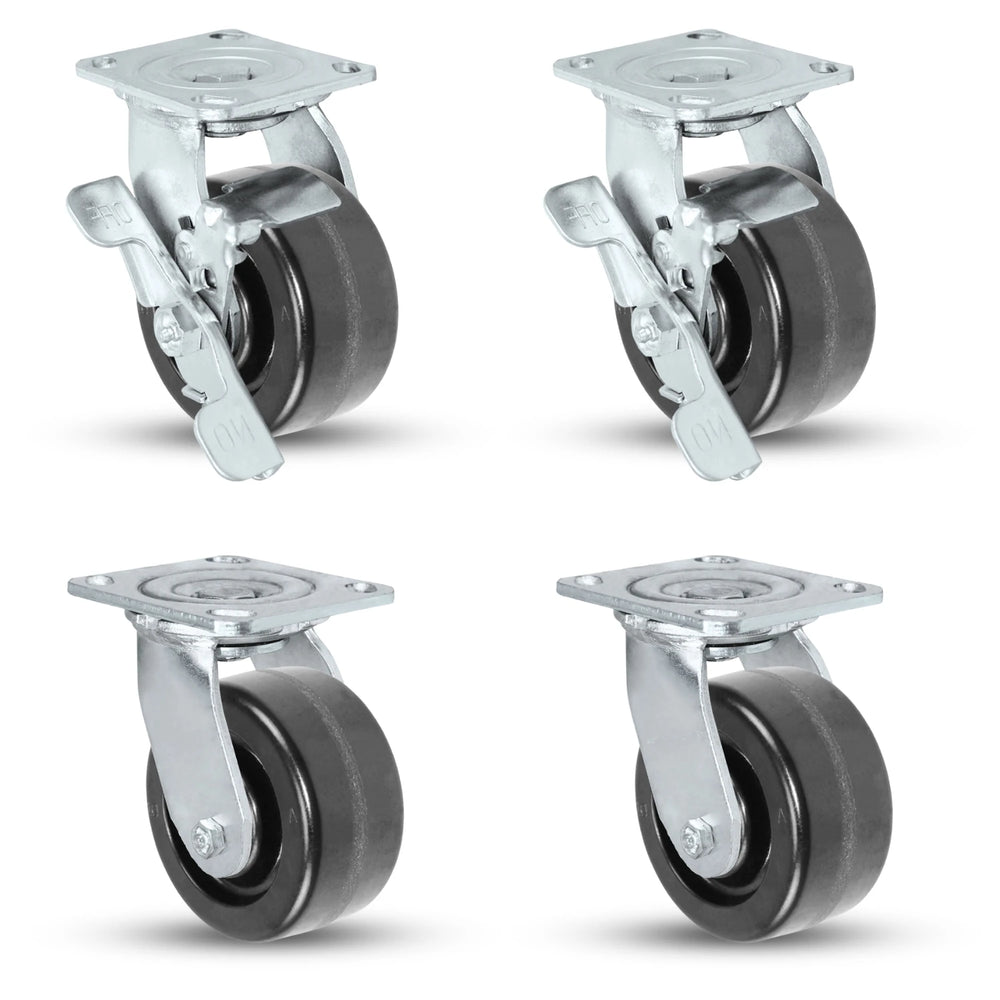

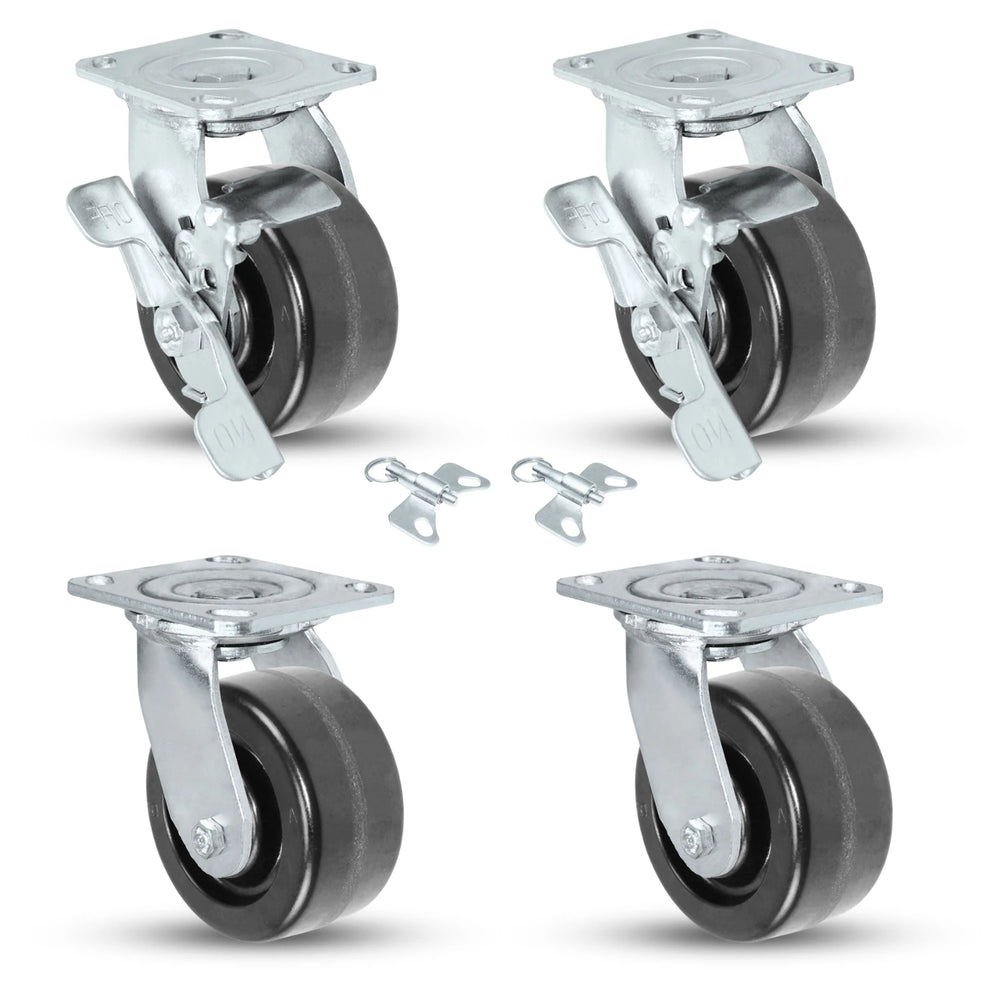

Experience the superior performance of our Medium Duty 'HD' Series Swivel Caster Set. Each set includes two swivel casters with brakes and two standard swivel casters, all equipped with durable phenolic wheels. This combination provides a robust solution for a multitude of medium-duty applications.
With an impressive combined load capacity of 3,200 lbs, these casters are suitable for various settings, from industrial equipment to retail display units. Their versatility makes them indispensable for efficient and reliable mobility.
Our commitment to fast delivery and competitive pricing ensures you receive the best value without compromising on quality. Trust our caster set to deliver the performance and reliability your business needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Our Medium Duty 'HD' Series offers unparalleled performance with its robust 5" x 2" phenolic wheels and sturdy brakes. Designed for a variety of industries, these casters provide a combined load capacity of 3,200 lbs, ensuring reliability for medium-duty applications.
The casters feature top-notch phenolic material, an optimal 5-inch wheel diameter, and a 2-inch tread width. The heavy-duty design supports up to 800 lbs per caster and includes a zinc-plated steel bracket for enhanced durability.
This OEM Preferred Series is NSF Listed and RoHS Compliant, adhering to the highest safety and environmental standards. Each caster boasts a double ball raceway for smooth swivel action and a total lock mechanism for secure immobilization.
Ideal for industrial equipment, warehousing, hospitality, institutional settings, food service, and retail displays, these casters offer versatility and efficiency in a multitude of environments.
We're committed to providing top-tier customer support and satisfaction. Our casters are not just products, but solutions designed to enhance your operational efficiency.
This 5" x 2" Phenolic Swivel Caster with Brake – 3,200 lb is rated to 3200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -50°F to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

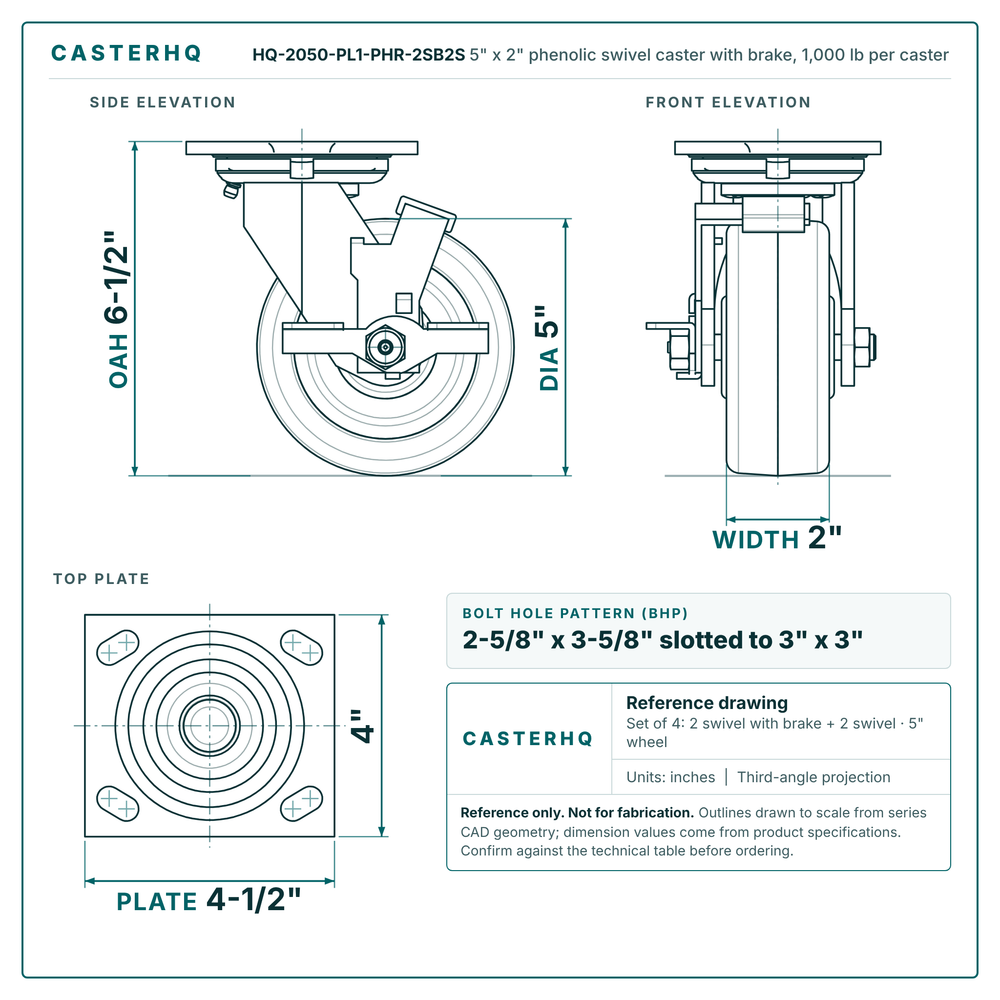

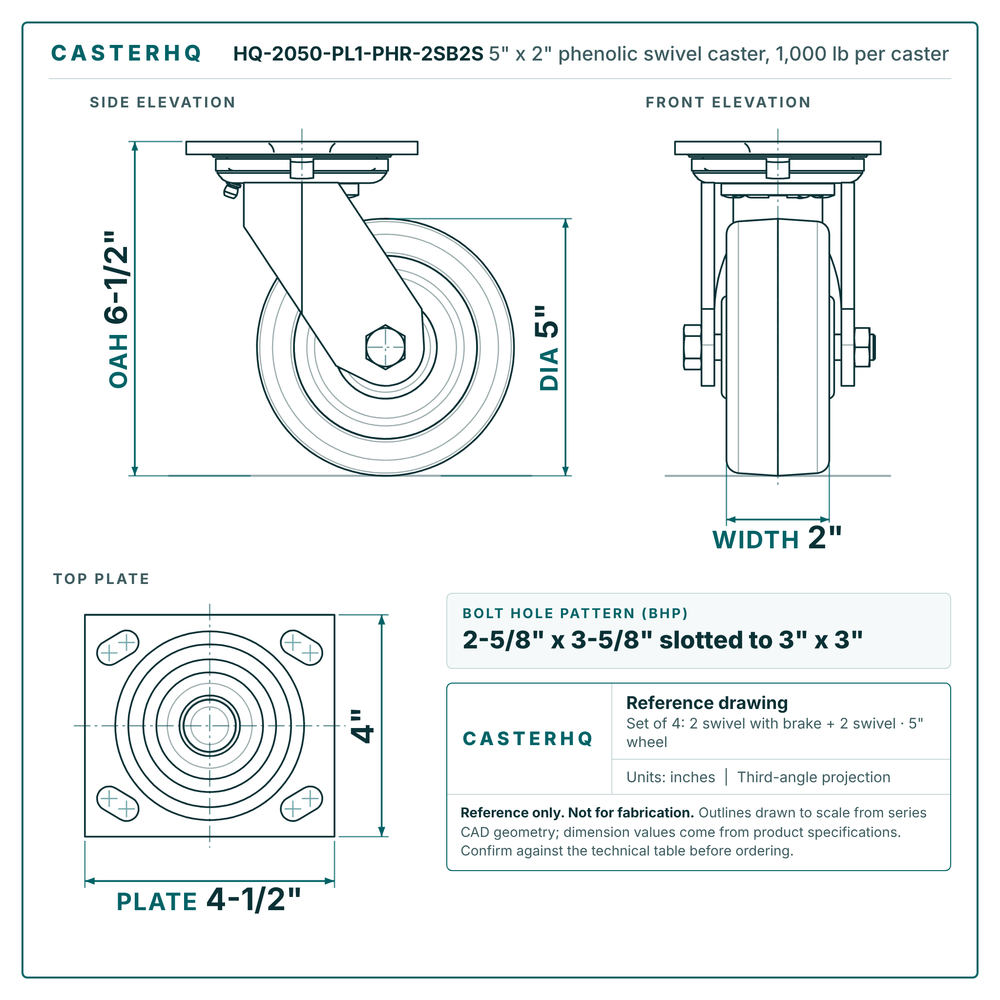

The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$126.00
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Brake |
| Load & Performance | |
| Wheel Capacity | 3200 lbs |
| Temp Range | -50°F to 250°F |
| Brake Type | Side Lock Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
5" x 2" Phenolic Wheel Swivel & Rigid Caster Set – 3,200 lb | CasterHQ
5" x 2" · 3200 lbs · Direct fit
$121
5" x 2" Phenolic Swivel Caster with Brake – 3,200 lb | 4" x 4-1/2" Plate | CasterHQ
5" x 2" · 3200 lbs · Direct fit
$141
5" x 2" Phenolic Swivel Caster Set 4" x 4-1/2" Plate – 3200 lb | CasterHQ
5" x 2" · 3200 lbs · Direct fit
$113
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1200 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $67.00 | View → | |
| 2600 lbsLighter duty | 5" × 2"Polyolefin | Rigid | 6-1/2" | $113.00 | View → | |
| 3200 lbs | 5" × 2"Phenolic | Swivel with Brake + brake | 6-1/2" | $126.00 | Viewing | |
| 3200 lbsSame capacity | 5" × 2"Phenolic | Swivel, Rigid | 6-1/2" | $121.00 | View → | |
| 3200 lbsSame capacity | 5" × 2"Phenolic | Swivel with Brake + brake | 6-1/2" | $141.00 | View → |
