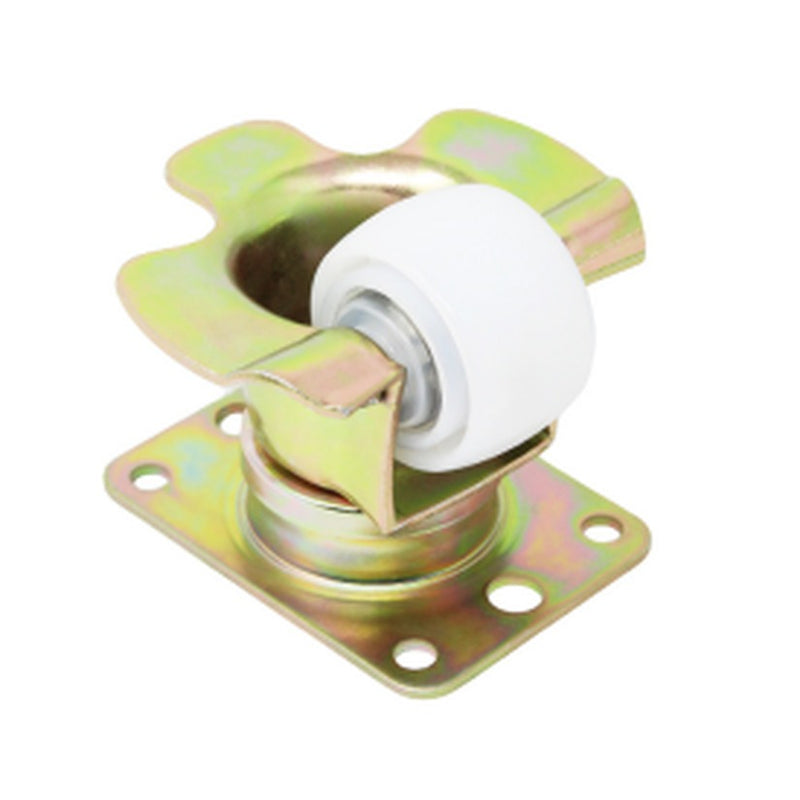

The CasterHQ HQ03XN02028S018 is a 2-1/4" x 1-3/8" nylon air cargo caster rated 450 lb per caster, with a 3-3/4" overall height, a 4-3/8" x 3.16" rectangular top plate, and an integral metal toe guard. It is a sealed, low-profile swivel caster built for cargo conveyor equipment, with double sealed precision ball bearings in both the wheel and the swivel section. It cross-references to manufacturer part numbers 03XN02028S018 and 03XN02028S001C. Ships in 3-5 business days from receipt of order.
| Specification | Value |
|---|---|
| Cross-reference part numbers | 03XN02028S018, 03XN02028S001C |
| CasterHQ SKU | HQ03XN02028S018 |
| Model | CasterHQ air cargo caster, toe guard model |
| Caster type | Swivel, rectangular top plate |
| Wheel diameter | 2-1/4" (58 mm) |
| Tread width | 1-3/8" (34 mm) |
| Wheel material | Shock resistant premium nylon |
| Load capacity | 450 lb per caster |
| Overall (mounting) height | 3-3/4" (96 mm) |
| Wheel bearing | Double sealed precision ball bearing |
| Swivel section | Sealed precision ball bearing with additional O-ring seal against contamination |
| Top plate size | 4-3/8" x 3.16" (111 mm x 80.3 mm) |
| Bolt hole spacing | 3-1/2" (88.9 mm) x 2-3/8" (60.45 mm) center to center |
| Toe guard | Integral formed metal toe guard |
| Construction | 1/8" formed steel |
| Finish | Yellow dichromate |
| Thread guards | Nylon |
| Brake | None |
| Approximate weight | 1-3/4 lb |
| Replacement wheel | 2-1/4" x 1-3/8" nylon, 5/16" bearing ID, 1.79" hub length. Order through CasterHQ. |
| Warranty | 3-year manufacturer warranty |
| Lead time to ship | 3-5 business days from receipt of order |
Before you order a rebuild quantity, check two numbers against your existing deck: the 3-3/4" overall height and the 3-1/2" x 2-3/8" bolt spacing. If both match, this is a drop-in swap for 03XN02028S001C with no plate or shim changes. If your drawing calls for more than 450 lb per caster, send it to us before you buy. That is a different caster, not a heavier-duty version of this one.
It is used in air cargo and cargo conveyor equipment, where a short, sealed swivel caster has to carry pallets and containers across a deck. The 3-3/4" overall height keeps deck profiles low, and the double sealed bearings plus the O-ring sealed swivel section keep out the dirt, de-icing residue, and moisture common on ramp and terminal equipment.
450 lb per caster. On a four-caster layout with even load distribution, that is 1,800 lb of total rated capacity. For uneven loads or impact at transfer points, size to the most heavily loaded caster, not the average.
No. This air cargo caster is offered without a brake. Conveyor and roller deck applications hold position with deck stops or locks, not caster brakes.
The two are the same 2-1/4" x 1-3/8" nylon, 450 lb, 3-3/4" height caster on the same 4-3/8" x 3.16" plate. The difference is the toe guard: HQ03XN02028S018 includes the integral metal toe guard, and the no-toe-guard version (cross-reference 03XN02028S004C) does not. Ask us for pricing on that version. Choose the toe guard version where hands, feet, or cargo straps can reach the wheel.
Yes. Part 03XN02028S001C has been superseded by 03XN02028S018, and CasterHQ HQ03XN02028S018 is the direct replacement. If your maintenance records, BOM, or drawings list either number, order HQ03XN02028S018.
Volume pricing applies on 150+ pieces, with a further break at 180+ pieces. Net 30 terms are available with an approved credit application, and tax-exempt and resale certificates are accepted. Send your quantity and ship-to and we will return a formal quote.
Request a Volume Quote3-3/4" (96 mm) from the mounting surface to the floor.
The rectangular plate is 4-3/8" x 3.16" (111 mm x 80.3 mm), with bolt hole spacing of 3-1/2" x 2-3/8" center to center.
A 2-1/4" x 1-3/8" nylon wheel with double sealed precision ball bearings, rated 450 lb. Replacement wheels are available through CasterHQ; request a quote with your quantity.
3-5 business days to ship from receipt of order.
Yes, with an approved credit application. Credit card orders ship on the standard lead time while terms are set up.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This HQ03XN02028S018 2-1/4" Air Cargo Caster w/ Toe Guard, 450 lb is rated to 450 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 1-3/8" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.
This caster uses a top-plate mount with a 4-3/8" x 3.16" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 3-3/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$54.99
| Dimensions & Mounting | |
| Wheel Diameter | 2-1/4" |
| Wheel Tread Width | 1-3/8" |
| Overall Height | 3-3/4" |
| Plate Size | 4-3/8" x 3.16" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 450 lbs |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Yellow Dichromate Steel |
