All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
PRODUCT CODE: 110FS04101SFBC

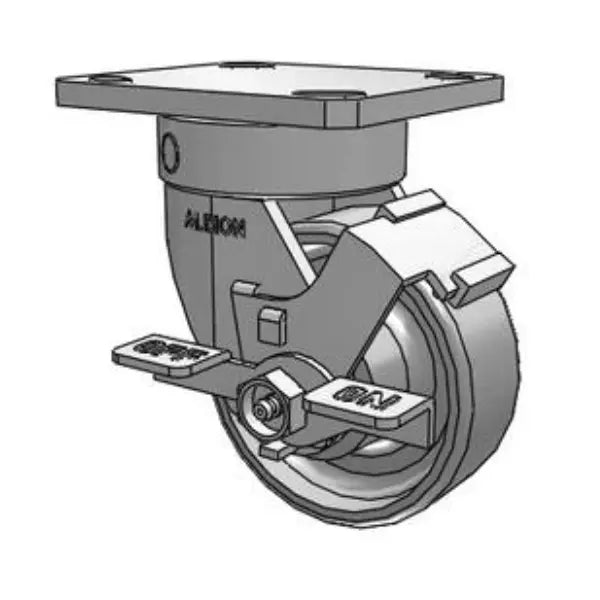

The Albion 110FS04101SFBC swivel caster with Side Locking brake is designed to conquer tough environments and manage heavy loads. This caster features a substantial 1400 lb capacity and boasts a robust build with a 4" x 1.5" wide forged steel wheel and a 4 1/2" x 4" top plate.
Need help finding the right caster? Our caster experts are available weekdays from 8 am to 5 pm to answer your questions and provide personalized recommendations for your project needs.
Got questions about casters? Our Caster Experts are here weekdays 8 am - 5 pm to provide expert advice for your project needs.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
Introducing the Kingpinless 4"x1.5" Forged Steel Wheel Side-Lock Caster – the ideal solution for industrial environments and heavy-duty equipment. This caster is built to withstand demanding applications, offering superior shock resistance and long-lasting performance.
Our caster specialists are here to help you find the perfect solution for your project needs. Contact us for expert advice on caster selection and configuration options.
$225.00
| Wheel Diameter | 4" |
| Wheel Tread Width | 1-1/2" |
| Wheel Capacity | 1400 lbs |
| Temp Range | Up to 800°F |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Rig Type | Swivel |
| Brake Type | Side Lock Brake |
Designed for engineers, manufacturers, and material handling professionals
