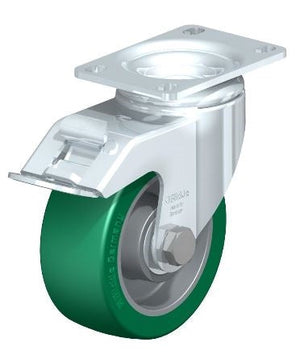

4" x 1-9/16" Polyurethane Swivel Caster with Brake – 550 lb | CasterHQ

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: L-ALST-100K-12-FI

Product Overview

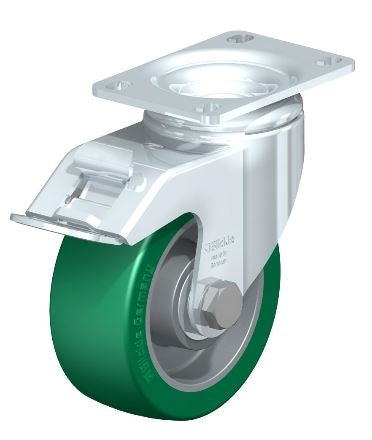

Blickle L-ALST 100K-12-FI 4" Swivel Caster with Brake: Premium Mobility Solution


Product ID: 869463

Key Features

  • Wheel Diameter: 4 inches
  • Wheel Width: 1-9/16 inches
  • Load Capacity: Up to 550 lbs
  • Bearing Type: Ball Bearing (C) for superior movement
  • Material: Blickle Softhane polyurethane elastomer on pressed steel
  • Brake System: Integrated brake for secure stopping

Experience the ultimate in mobility and safety with the Blickle 4" Swivel Caster. This caster features a double ball-bearing swivel head constructed from pressed steel for enhanced durability and ease of movement. The robust Blickle Softhane polyurethane wheels offer quiet operation and are perfect for moving heavy loads effortlessly. With a significant load capacity of 550 lbs and an efficient braking system, this caster is an ideal choice for industrial and commercial applications where reliable and smooth transportation is critical.

Secure and Smooth Mobility Starts Here

Upgrade your equipment's functionality and efficiency with Blickle's reliable swivel caster. Don’t let mobility challenges hold you back. Contact Easy Casters today to secure your solution and enhance your operational capacity.

Key Features

Blickle Medium Duty Pressed Steel Swivel Caster with Brake System 'Stop-Fix'


Key Features and Specifications

  • Material: Pressed steel, zinc-plated, blue-passivated, Cr6-free for enhanced durability and corrosion resistance.
  • Wheel Design: ALST series wheel with Blickle Softhane polyurethane tread, 75 Shore A hardness, green, non-marking and non-staining.
  • Wheel Center: Die-cast aluminium, silver-gray, combining strength with lightweight properties.
  • Bearing Type: Double ball bearing in the swivel head, ensuring smooth movement and increased service life.
  • Brake System: 'Stop-fix' brake system for secure stopping and stationary control.
  • Temperature Tolerance: Operates between -5 °F and +160 °F; up to +195 °F temporarily, with reduced load capacity over +105 °F.
  • Chemical Resistance: High resistance to many aggressive substances, suitable for challenging environments.

Upgrade your equipment with the Blickle L-Series swivel caster. This medium-duty caster is designed for reliability and performance, featuring advanced materials and engineering such as special dynamic Blickle riveting process which minimizes swivel head play and enhances smooth rolling characteristics. Ideal for a variety of applications in both industrial and commercial settings.

Enhance Mobility with Durable Solutions

Explore the benefits of our precision-engineered swivel casters today and boost the functionality and efficiency of your mobile equipment. Secure and reliable, our casters meet the highest standards of quality and performance.

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Extended Features of Blickle Medium Duty Pressed Steel Swivel Caster with Brake


Comprehensive Specifications

  • Non-Marking: Yes – Does not leave marks, ideal for clean rooms and smooth surfaces.
  • Non-Staining: Yes – Prevents damage and discoloration to flooring from contact.
  • Antistatic: No – Not suitable for environments where static discharge can occur.
  • Electrically Conductive: No – Does not provide protection against electrical charges.
  • Corrosion-Resistant: No – Recommended for dry environments; not for high moisture or chemical exposure.
  • Heat-Resistant: No – Should not be used in high-temperature settings.
  • Tread Hydrolysis-Resistant: No – Not suitable for environments with high levels of moisture and heat.
  • Suitable for Autoclaves: No – Cannot be sterilized using autoclave methods.
  • Suitable for Machine Washing: No – Manual cleaning recommended to preserve integrity of the materials.

The Blickle Medium Duty Pressed Steel Swivel Caster is expertly designed for reliability and ease of use in commercial and industrial applications. Its construction features Blickle Softhane polyurethane on a robust aluminium wheel center, offering a smooth, quiet operation suitable for a variety of flooring types. While the caster is designed for durability, its specific material composition does not support use in environments requiring high heat resistance, corrosion resistance, or static dissipation. This makes it an excellent choice for general, not specialized, industrial applications.

Product Suitability and Recommendations

Ideal for applications requiring a clean operational environment, the Blickle caster ensures minimal impact on floors with its non-marking and non-staining features. However, for applications involving high temperatures, chemical exposure, or the need for electrical conductivity, alternative models may be more suitable. Evaluate the specific needs of your environment to choose the most appropriate caster model from our extensive range.

4
4" x 1-9/16" Polyurethane Swivel Caster with Brake – 550 lb | CasterHQ

$167.00

Add 49 more for 5% off
10% off unlocked
1
Order in 2h 14m for same-day processing

Technical Specifications

Wheel Diameter 4"
Wheel Tread Width 1-9/16"
Wheel Capacity 550 lbs
Temp Range -20°F to 180°F
Wheel Material Polyurethane
Frame Material Zinc Plated Steel
Bolt Hole Pattern 1-3/4" x 2-13/16"
Mount Style Plate
Plate Size 2-1/2" x 3-5/8"
Rig Type Swivel with Brake
Brake Type Side Lock Brake
