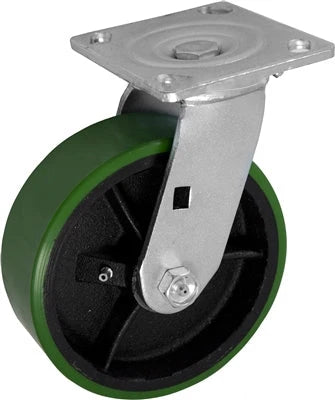

This 4" x 2" Green Polyurethane Swivel Caster 4" x 4-1/2" Plate – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$36.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Iron |
| Frame Material | Zinc Plated Steel |
5" x 2" Red Polyurethane Swivel Caster with Brake – 4000 lb | CasterHQ
5" x 2" · 4,000 lbs
$144
5" x 2" Red Polyurethane Swivel & Rigid Caster – 4000 lb | CasterHQ
5" x 2" · 4,000 lbs
$144
6" x 2" Polyurethane on Aluminum Swivel Caster – 1,250 lb | CasterHQ
6" x 2" · 1250 lbs
$76
View all plate casters →
Your selection is highlighted. Step up or down in load rating without leaving the page — all in-stock, ready to ship.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | — | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Polyurethane | Swivel | — | $36.00 | Viewing | |
| 800 lbsSame capacity | 4" × 2"Polyurethane | — | — | $26.00 | View → | |
| 800 lbsSame capacity | 4" × 2"Polyurethane | — | — | $14.00 | View → |
