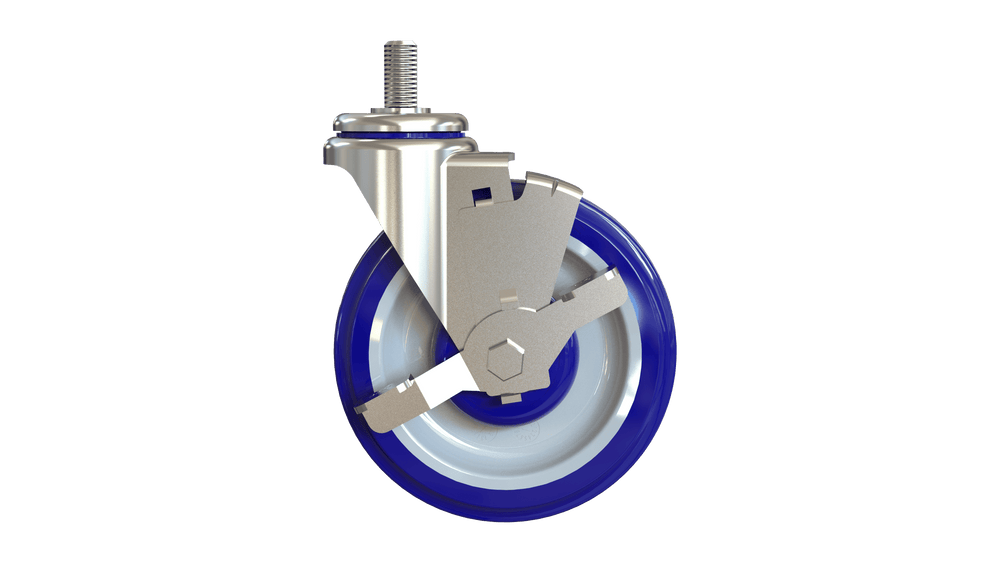

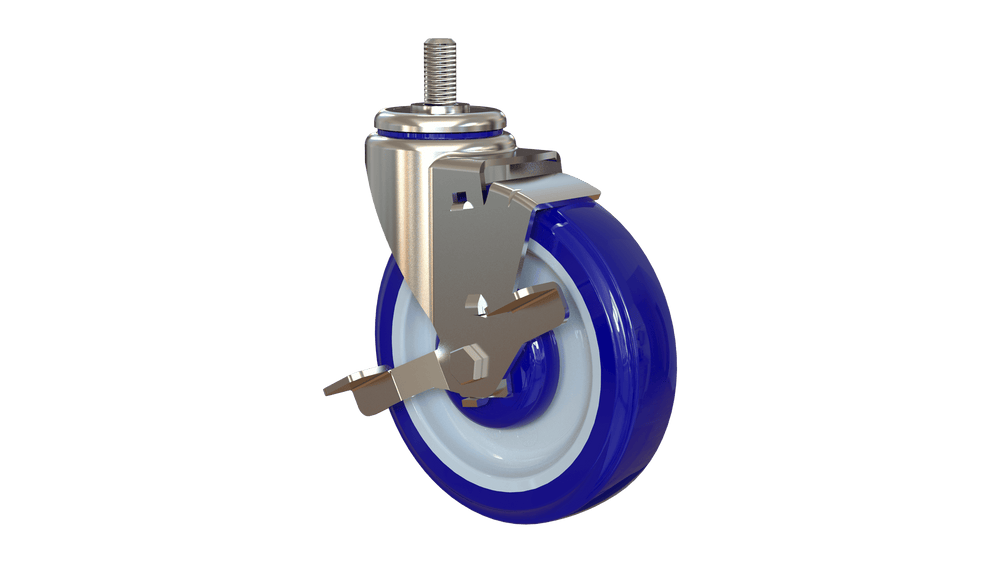

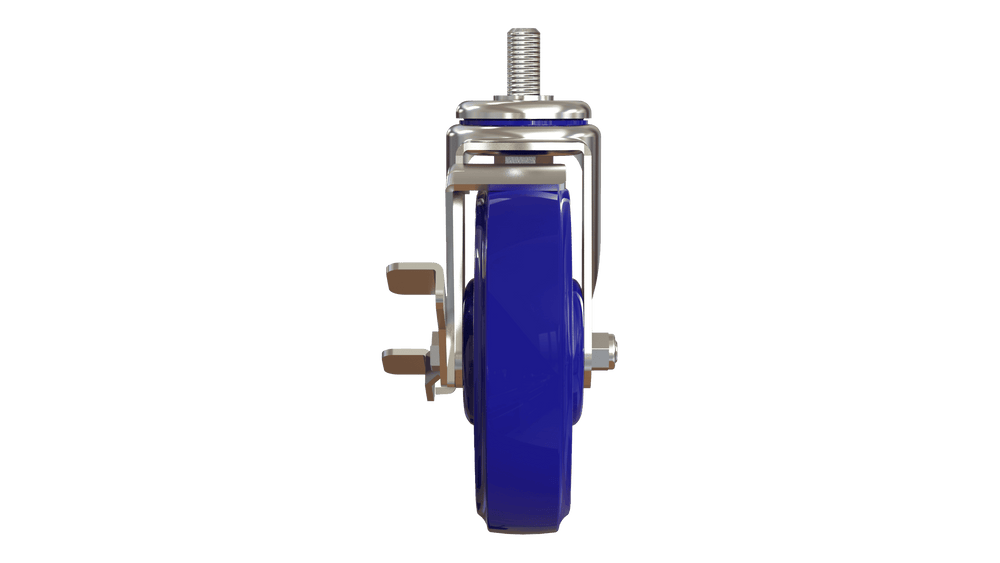

5" blue polyurethane swivel caster with dual precision bearings, zinc-plated steel finish, M12 threaded stem, and side brake. Built for material handling and industrial carts.
Cart · Distribution/Logistics · Equipment · Food Service · Food/Beverage · Healthcare
| Product Series | 20 |
| Series Types | 20-Light/Medium Duty |
| Caster Type | Swivel |
| Wheel Part No | WC2054LD |
| Wheel Diameter | 5" / 127mm |
| Wheel Tread Width | 1.26" / 32mm |
| Hub Width | 1.6" / 40.64mm |
| Wheel Profile | Crown |
| Wheel Durometer | Shore A70 |
| Wheel Material | Polyurethane |
| Bearing Type | Single Precision |
| Bearing Material | Steel |
| Bearing Size | 0.31" / 7.94mm |
| Axle Size | 0.31" / 8mm |
| Load Capacity | 150lbs / 68kg |
| Overall Height | 5.98" / 151.97mm |
| Attachment Method | Threaded Stem |
| Open Hole With Bolt Size | 0.31" / 7.94mm |
| Operating Temp | -20°F TO 140°F / -29°C to 60°C |
| Warranty Duration | 1 year |
| Caster Finish | Zinc Plated Steel with Lacquer Dip |
| Wheel Color | Blue On Silver |
| Threadguard | YES |
Manufactured by P&H Casters in Arlington, TX. CasterHQ is P&H's largest US master dealer, eight miles from the factory. For pricing, lead time, and bulk pricing, request a quote or call 844-439-4335.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This P&H Z20A054CLDEB 5" 20 Series Swivel 150lbs is rated to 150 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 1.26" (32 mm) tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a Bolt hole mount (5/16" stem). Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 140°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.98" (152 mm). Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$38.00
| Identification | |
|---|---|
| Part Number / SKU | Z20A054CLDEB |
| Core | |
| Load Capacity | 150 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 1.26" (32 mm) |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5.98" (152 mm) |
| Rig Type | Swivel with Brake |
| Brake | Side Lock Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 2.40" (61 mm) |
| Mounting | |
| Mount Style | Bolt hole |
| Stem Size | 5/16" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Polypropylene |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Shore A98 |
| Bearing Type | Dual Precision Ball Bearings |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -20°F to 140°F |
