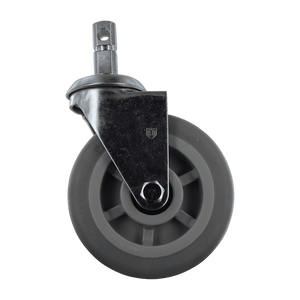

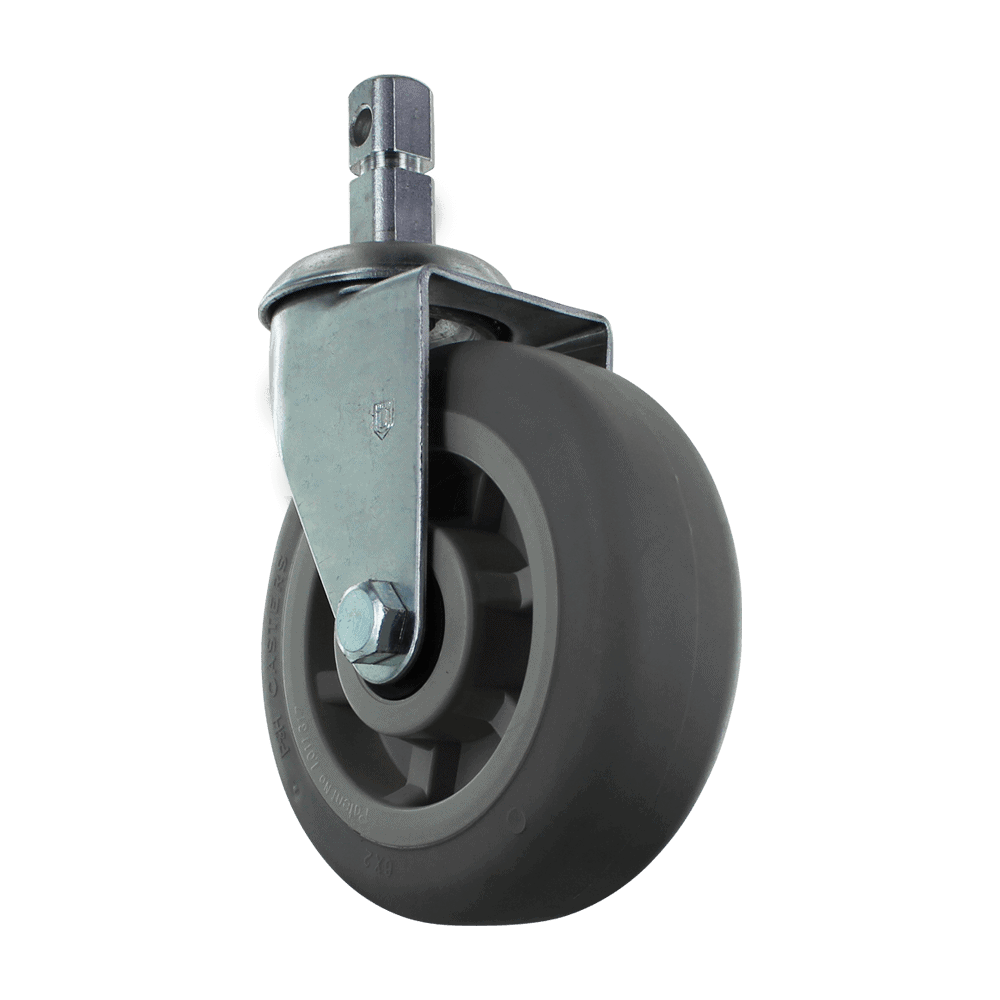

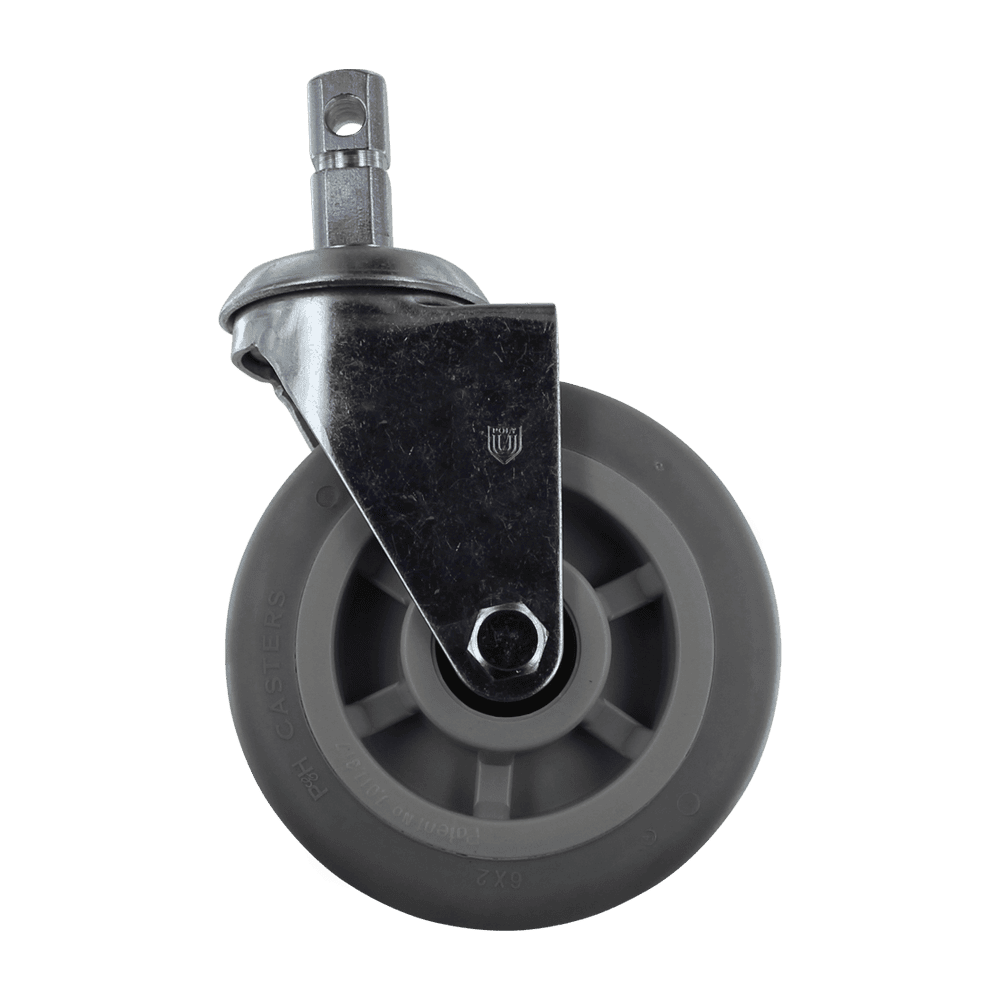

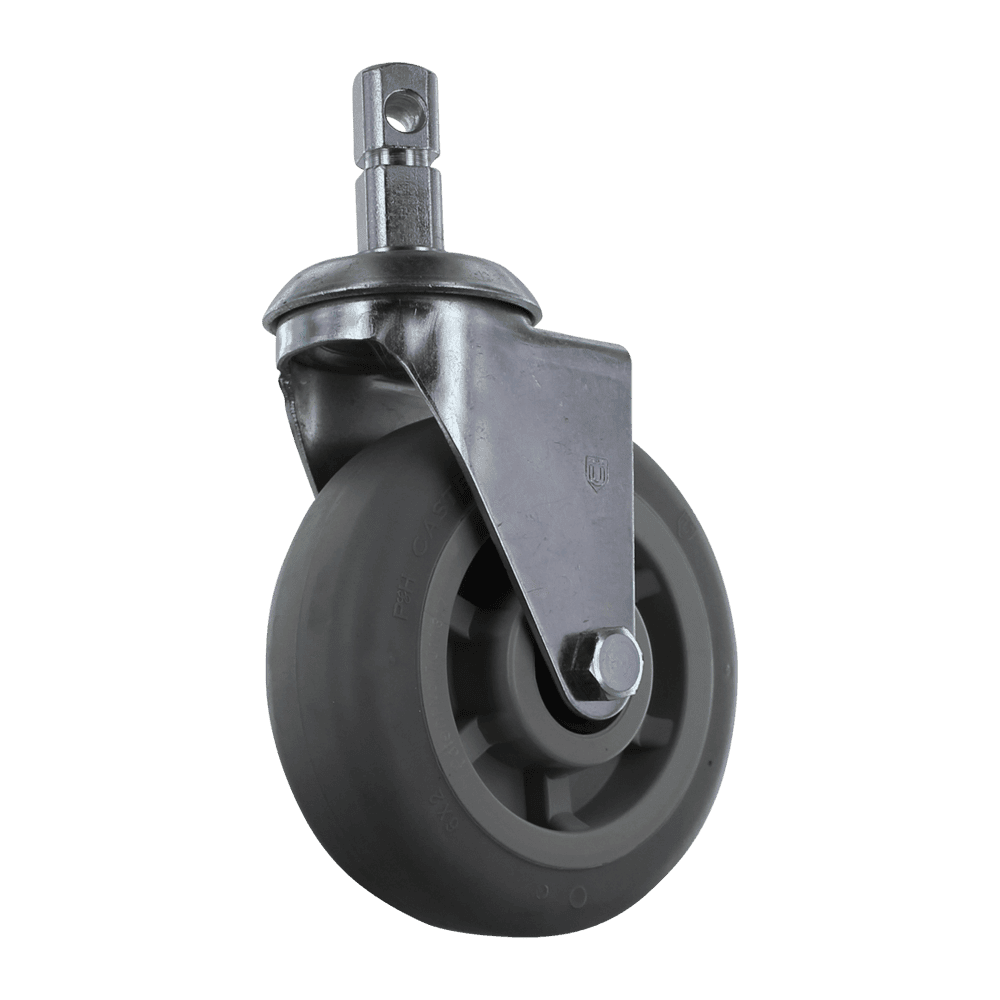

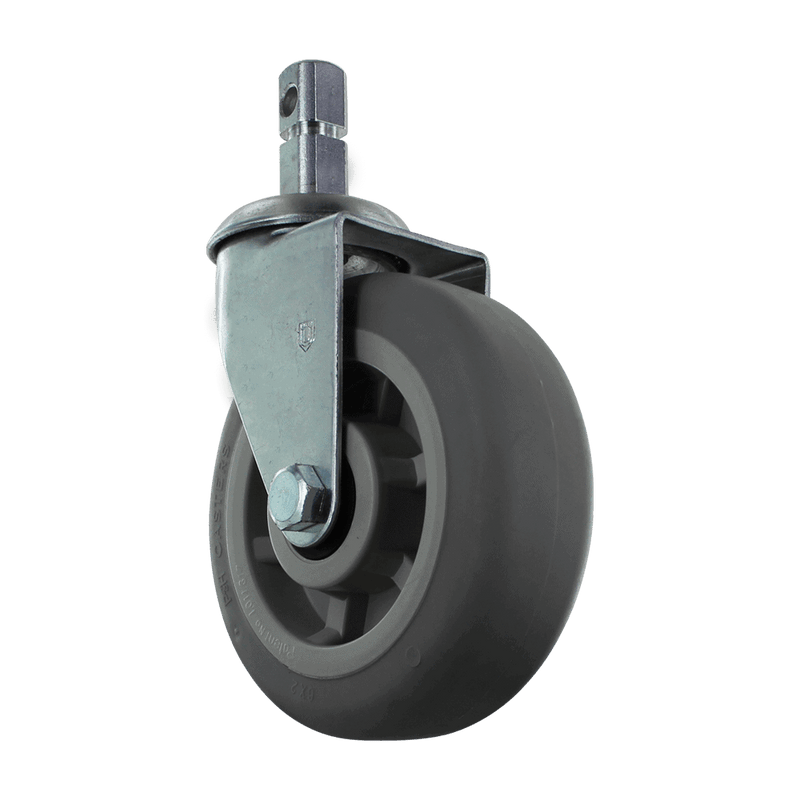

Medium/Heavy Duty Caster with Zinc Plated Steel with Lacquer Dip Yoke, 0.857" Square Mount, 6" X 2" TPR A70 Crown Tread Gray on Tan Wheel, 1/2" Bushing and 1/2" Axle and Nylon Lock Nut. With Side Brake.
Automotive · Cart · Distribution/Logistics · Equipment · Food/Beverage · Healthcare
| Product Series | 40 |
| Series Types | 40-Medium Heavy Duty |
| Caster Type | Swivel |
| Wheel Part No | WN4062GM |
| Wheel Diameter | 6" / 152.4mm |
| Wheel Tread Width | 2" / 50.8mm |
| Hub Width | 2.5" / 63.5mm |
| Wheel Profile | Crown |
| Wheel Durometer | Shore A70 |
| Wheel Material | TPR |
| Bearing Type | Plain Bore |
| Bearing Size | 0.5" / 12.7mm |
| Axle Size | 0.5" / 12.7mm |
| Load Capacity | 350lbs / 159kg |
| Swivel Radius | 4" / 101.6mm |
| Attachment Method | Square Stem |
| Imperial Plate Size | 4" x 4.5" / 101.6mm x 114.3mm |
| Plate Hole Centers | 3.13" x 2.06" / 79.38mm x 52.39mm |
| Square Stem Size | 0.86" / 21.77mm |
| Operating Temp | -30°F TO 140°F / -34°C to 60°C |
| Warranty Duration | 1 year |
| Caster Finish | Zinc Plated Steel with Lacquer Dip |
| Wheel Color | Gray/Gray |
Manufactured by P&H Casters in Arlington, TX. CasterHQ is P&H's largest US master dealer, eight miles from the factory. For pricing, lead time, and bulk pricing, request a quote or call 844-439-4335.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This P&H Z40S762NGML 6" 40 Series Swivel 350lbs is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Soft TPR wheel with a 2" tread width. This wheel material balances load capacity, rolling ease, and floor protection for the intended application.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -30°F to 140°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Soft TPR wheel performs best on smooth concrete and finished warehouse floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$38.00
| Identification | |
|---|---|
| Part Number / SKU | Z40S762NGML |
| Product Series | P&H 40 Series |
| Core | |
| Load Capacity | 350 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 4" |
| Wheel | |
| Wheel Material | Soft TPR |
| Wheel Core Material | Polypropylene |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Shore A70 |
| Hub Width | 2-1/2" |
| Bearing Type | Bushing |
| Bearing Material | Steel |
| Bearing Size | 1/2" |
| Axle Diameter | 1/2" |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -30°F to 140°F |
| Unit Weight | 6 lbs |
| Compliance | |
| Manufacturer certification | Manufactured by P&H Casters (ISO 9001:2015 certified) |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 250 lbsLighter duty | 6" × 2"Polyurethane | Swivel with Brake + brake | 7-1/2" | $76.00 | View → | |
| 350 lbs | 6" × 2"Soft TPR | Swivel | — | $38.00 | Viewing | |
| 350 lbsSame capacity | 6" × 2"Gray Rubber | Rigid | 7-1/2" | $46.00 | View → | |
| 350 lbsSame capacity | 6" × 2"Gray Rubber | Swivel | 7-1/2" | $53.00 | View → | |
| 410 lbsHeavier duty | 6" × 2"Polyurethane | — | — | $71.00 | View → |
