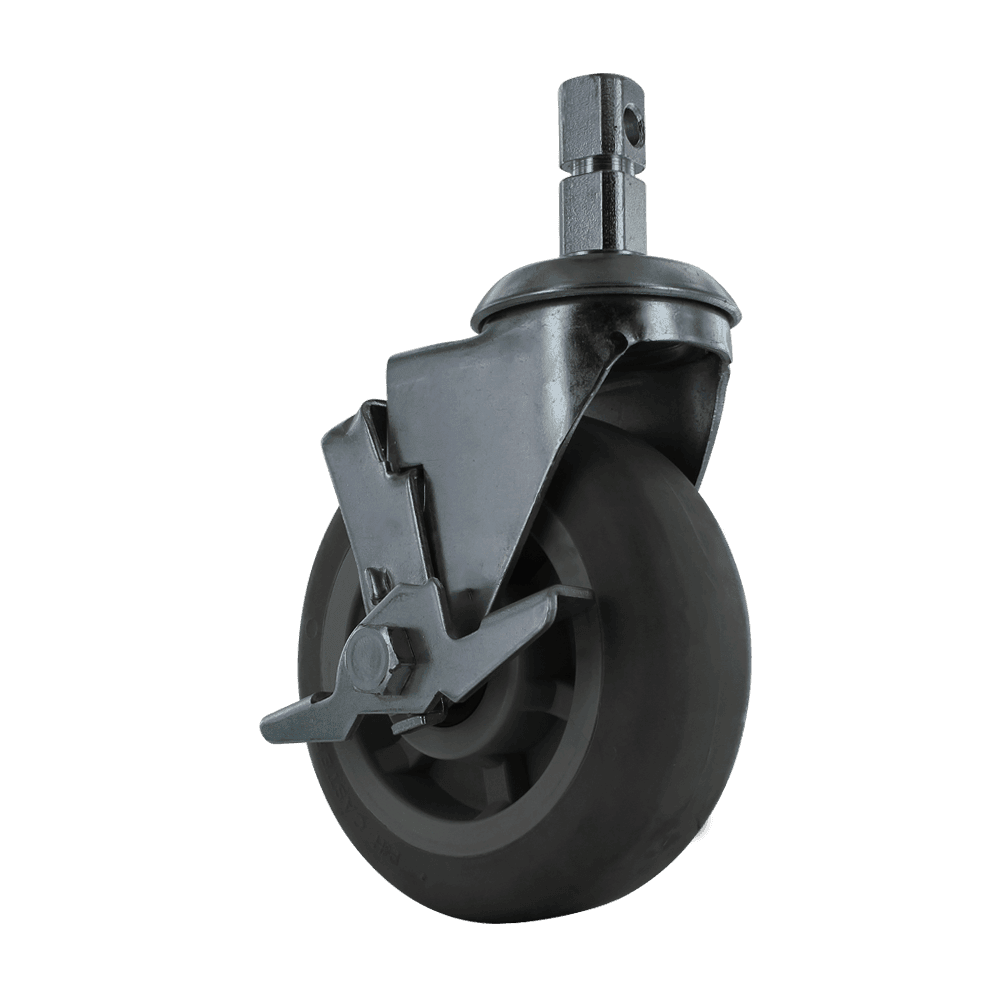

Medium/Heavy Duty Caster with Zinc Plated Steel with Lacquer Dip Yoke, 0.857" Square Mount, 6" X 2" TPR A70 Crown Tread Gray on Tan Wheel, 1/2" Bushing and 1/2" Axle and Nylon Lock Nut. With Side Brake.
Applications
Automotive · Cart · Distribution/Logistics · Equipment · Food/Beverage · Healthcare
Specifications
| Product Series |
40 |
| Series Types |
40-Medium Heavy Duty |
| Caster Type |
Swivel |
| Brake |
Side Brake |
| Wheel Part No |
WN4062GM |
| Wheel Diameter |
6" / 152.4mm |
| Wheel Tread Width |
2" / 50.8mm |
| Hub Width |
2.5" / 63.5mm |
| Wheel Profile |
Crown |
| Wheel Durometer |
Shore A70 |
| Wheel Material |
TPR |
| Bearing Type |
Plain Bore |
| Bearing Size |
0.5" / 12.7mm |
| Axle Size |
0.5" / 12.7mm |
| Load Capacity |
350lbs / 159kg |
| Swivel Radius |
4" / 101.6mm |
| Attachment Method |
Square Stem |
| Imperial Plate Size |
4" x 4.5" / 101.6mm x 114.3mm |
| Plate Hole Centers |
3.13" x 2.06" / 79.38mm x 52.39mm |
| Square Stem Size |
0.86" / 21.77mm |
| Operating Temp |
-30°F TO 140°F / -34°C to 60°C |
| Warranty Duration |
1 year |
| Caster Finish |
Zinc Plated Steel with Lacquer Dip |
| Wheel Color |
Gray/Gray |
| Side Brake |
1 |
Manufactured by P&H Casters in Arlington, TX. CasterHQ is P&H's largest US master dealer, eight miles from the factory. For pricing, lead time, and bulk pricing, request a quote or call 844-439-4335.
