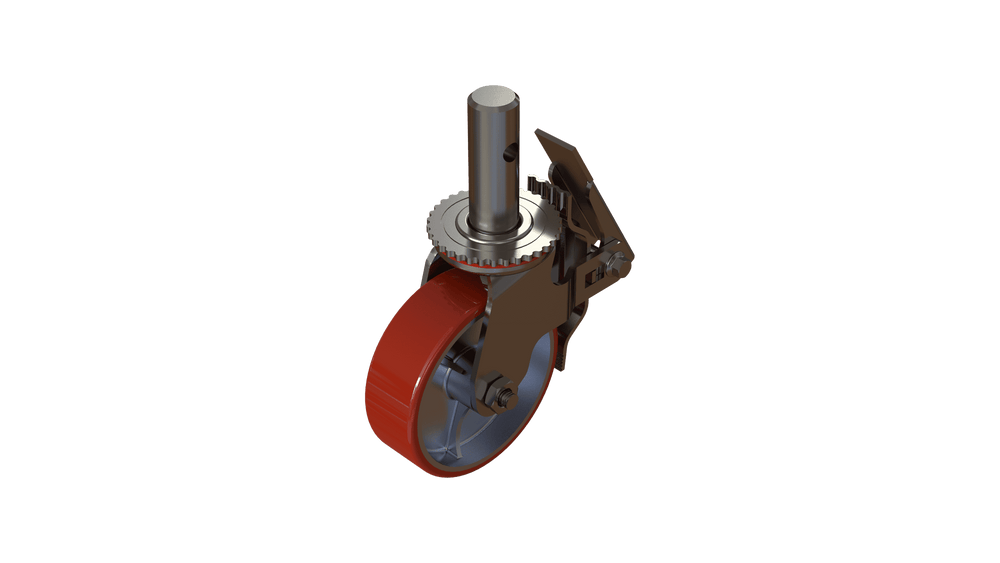

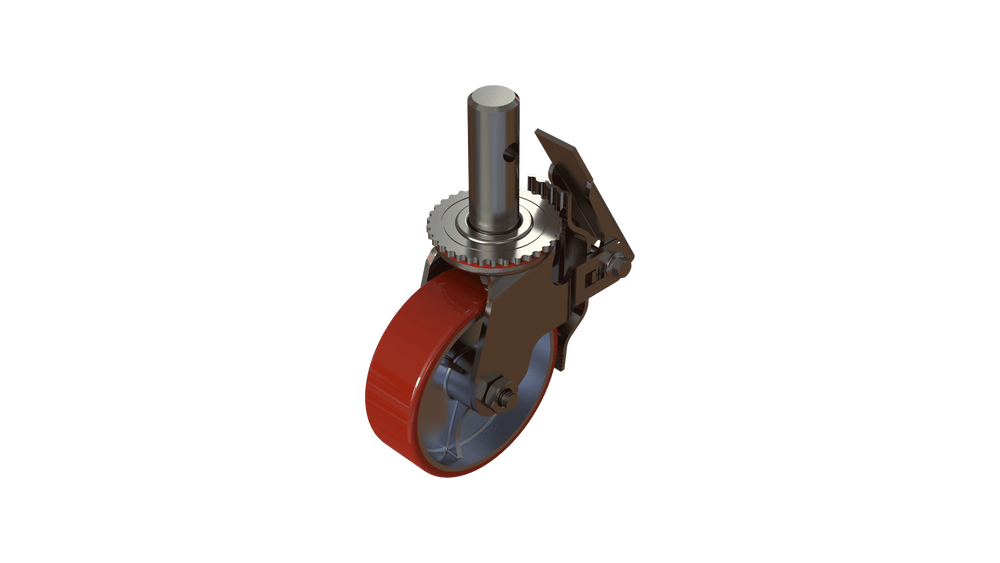

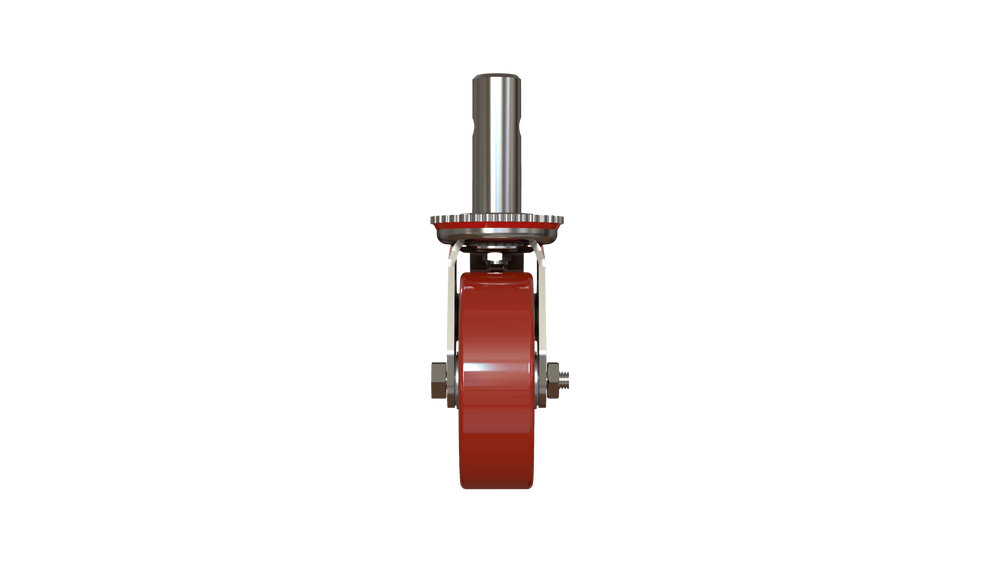

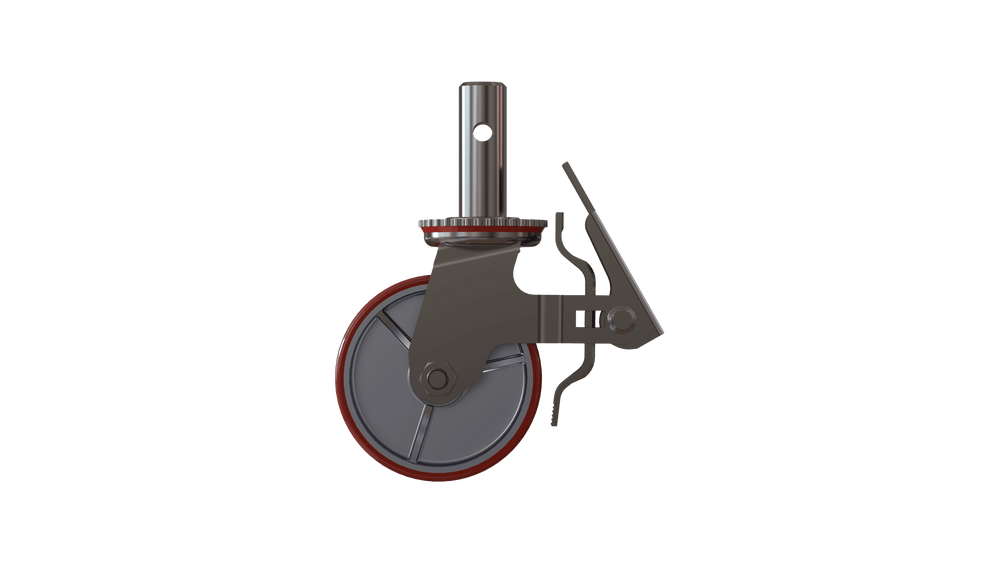

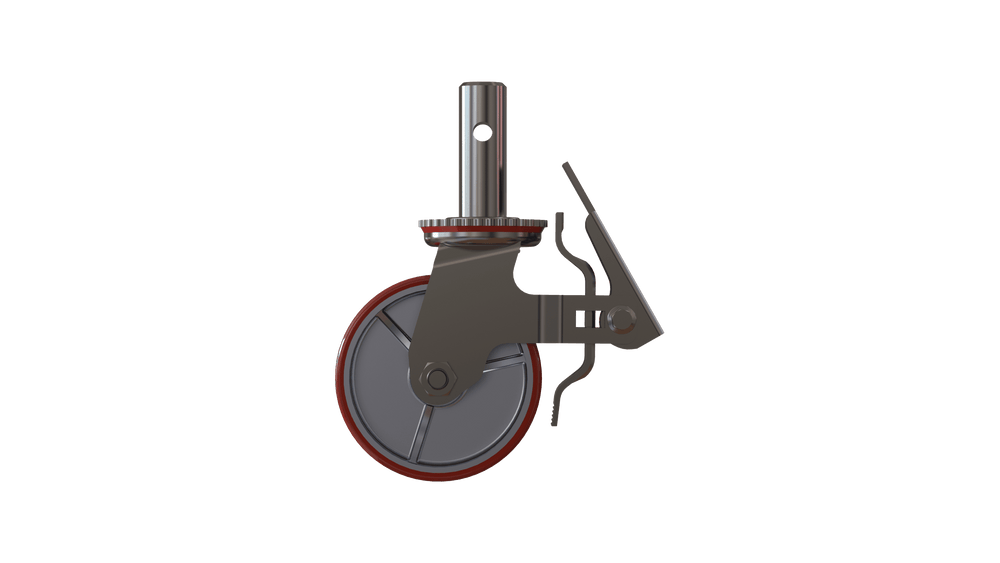

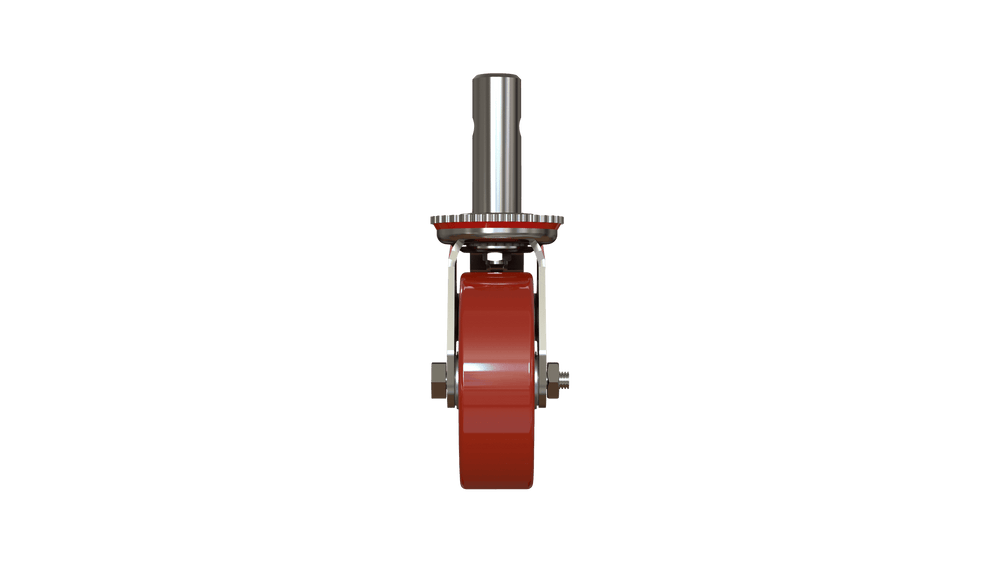

A high-performance 6-inch polyurethane-on-steel scaffolding caster engineered for durability, mobility, and secure locking. Featuring a dual precision bearing , a total lock brake system , and a zinc-plated steel yoke , this caster is built for heavy-duty applications across multiple industries.
Aerospace · Automotive · Back Room · Cart · Distribution/Logistics · Equipment
| Product Series | 40 |
| Series Types | 40-Medium Heavy Duty |
| Caster Type | Swivel |
| Brake | Total Lock Brake |
| Wheel Diameter | 6" / 152.4mm |
| Wheel Tread Width | 2" / 50.8mm |
| Hub Width | 2.5" / 63.5mm |
| Wheel Profile | Flat |
| Wheel Durometer | Shore A95 |
| Wheel Material | Polyurethane on Steel |
| Bearing Type | Dual Precision |
| Bearing Size | 0.5" / 12.7mm |
| Axle Size | 0.5" / 12.7mm |
| Load Capacity | 1200lbs / 544kg |
| Overall Height | 7.48" / 189.99mm |
| Attachment Method | Round Stem |
| Round Stem Size | 1.38" x 4" / 34.92mm x 101.6mm |
| Operating Temp | -30°F TO 140°F / -34°C to 60°C |
| Warranty Duration | 1 year |
| Caster Finish | Zinc Plated Steel with Lacquer Dip |
| Wheel Color | Red/Silver |
| Total Lock Brake | 1 |
Manufactured by P&H Casters in Arlington, TX. CasterHQ is P&H's largest US master dealer, eight miles from the factory. For pricing, lead time, and bulk pricing, request a quote or call 844-439-4335.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This P&H Z48RH62ZPULFT 6" 40 Series Swivel 1200lbs is rated to 1200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -30°F to 140°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

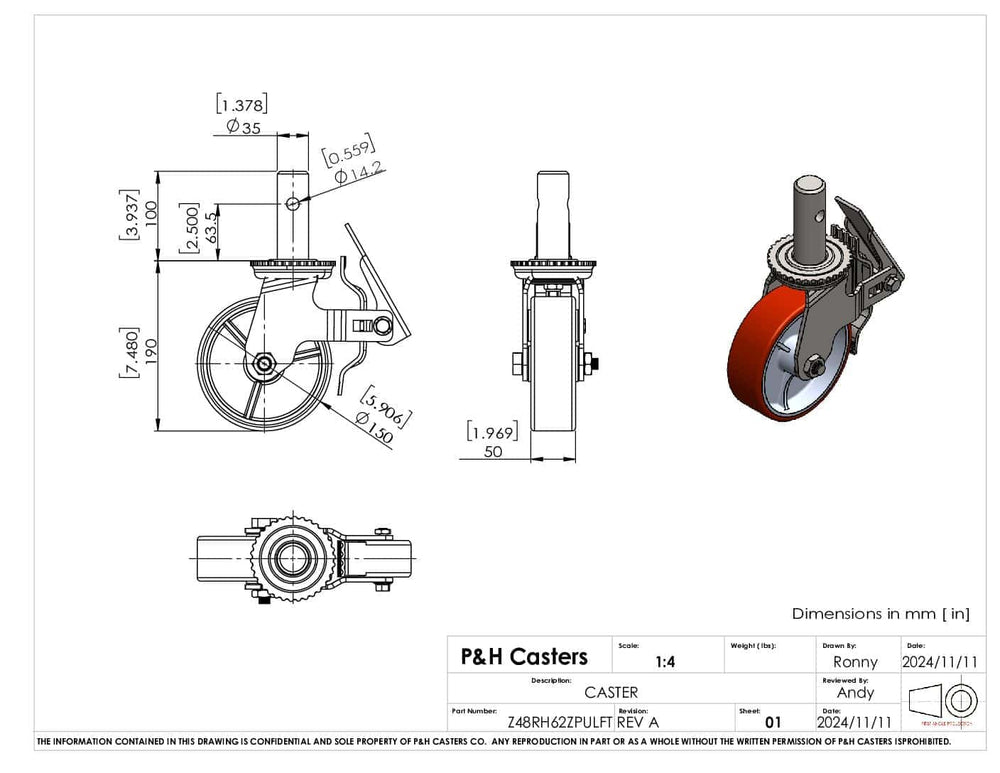

The overall height (floor to top of plate or stem) is 7.48" (190 mm). Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$38.00
| Identification | |
|---|---|
| Part Number / SKU | Z48RH62ZPULFT |
| Product Series | P&H 40 Series |
| Core | |
| Load Capacity | 1200 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 7.48" (190 mm) |
| Rig Type | Swivel with Total Lock Brake |
| Brake | Total Lock Brake (locks wheel and swivel) |
| Mounting | |
| Stem Size | 1-3/8" x 4" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Steel |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Shore A95 |
| Hub Width | 2-1/2" |
| Bearing Type | Dual Precision Ball Bearings |
| Bearing Material | Steel |
| Bearing Size | 1/2" |
| Axle Diameter | 1/2" |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -30°F to 140°F |
| Unit Weight | 6 lbs |
| Compliance | |
| Manufacturer certification | Manufactured by P&H Casters (ISO 9001:2015 certified) |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 6" × 2"Cast Iron | — | — | $26.00 | View → | |
| 1000 lbsLighter duty | 6" × 2"Blue Solid Polyurethane | — | 7-1/2" | $182.00 | View → | |
| 1200 lbs | 6" × 2"Polyurethane | Swivel with Total Lock Brake + brake | 7.48" (190 mm) | $38.00 | Viewing | |
| 1200 lbsSame capacity | 6" × 2"Polyurethane | — | — | $35.00 | View → | |
| 1200 lbsSame capacity | 6" × 2"Ductile Iron | — | — | $30.00 | View → |
