All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

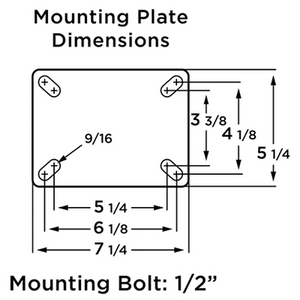

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Pronto Ship. All sales final.
Pronto Ship: Ships in 24-48 hours from Hamilton. Please confirm all specs before checkout, since Hamilton items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.
Free CAD files · no login, no email
STEP .step most common3D solid for SolidWorks, Inventor, Fusion 360, Creo, NXReference geometry. Free for design use; redistribution or resale prohibited.

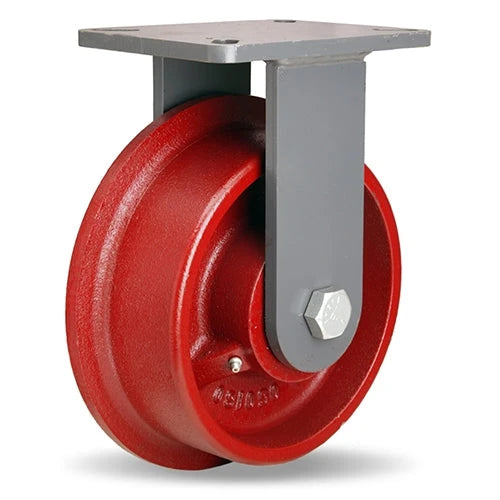

Introducing the R-CH-FT82H Hamilton Champion Caster: Engineered for excellence and unparalleled performance in industrial applications. With its 8-inch x 2 1/4-inch Single Flange Track Wheel and precision 1-inch Straight Roller Bearing, this caster is built for durability and smooth operations on track surfaces.
Whether you're setting up an advanced warehouse system or need reliable movement for heavy machinery, the R-CH-FT82H Hamilton Champion Caster is the gold standard. Experience smoother operations, reduced wear and tear, and the quality assurance of the Hamilton brand. Perfect for those who won't settle for anything less than the best!
Elevate your industrial setup with the R-CH-FT82H Hamilton Champion Caster.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The R-CH-FT82H Hamilton Champion Caster stands as a pinnacle of engineering excellence. Crafted meticulously for the demanding industrial environment, it seamlessly integrates the robustness of the Hamilton Champion series with advanced features ensuring unparalleled performance.
The Hamilton brand is synonymous with quality, and this caster exemplifies that reputation. However, it's the intricate blend of design, engineering, and usability that truly sets it apart. Whether setting up an advanced warehouse, optimizing a production line, or any industrial application demanding superior mobility, the R-CH-FT82H is the undeniable choice.
While its excellence can be summarized, its applications are vast. From high-tech warehouses to traditional manufacturing units, its presence enhances efficiency. The design ensures it's not just another caster; it becomes an integral part of any system it's introduced into, boosting both functionality and reliability.
Longevity isn't just a by-product; it's a feature. The R-CH-FT82H is designed for prolonged, intense usage. With reduced wear and tear, frequent replacements become a thing of the past. Experience a product built for the long haul.
This Hamilton R-CH-FT82H 8" x 2 1/4" Single Flange Wheel – 1" Roller is rated to 4000 lbs per wheel. Divide the total load across the number of wheels in your rig and keep working loads within about 75-80% of the rating for continuous use.
This is a Cast Iron wheel. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
8" diameter x 3" tread width. Verify your axle diameter and hub/bore length against your existing wheel before ordering.
Yes. Most wheels can be paired with a swivel or rigid rig to build a complete caster. Tell us your mount and load and we will spec the rig - request it on our bulk pricing page.
Rated for -30°F to 320°F. Operating outside the rated range can shorten wheel life and reduce capacity.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$361.00
| Identification | |
|---|---|
| Part Number / SKU | R-CH-FT82H |
| Core | |
| Load Capacity | 4000 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)?Floor to top of mounting plate (or stem shoulder). | 10-1/2" |
| Mounting | |
| Mount Style | Plate |
| Wheel | |
| Wheel Material | Cast Iron |
| Wheel Core Material | Cast Iron |
| Wheel Color | Crimson Red |
| Hub Width | 3-1/4" |
| Bearing Type | Straight Roller Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -30°F to 320°F |
| Unit Weight | 37 lbs |
| Compliance | |
| Buy American | Yes |
Free CAD files · no login, no email
STEP .step most common3D solid for SolidWorks, Inventor, Fusion 360, Creo, NXReference geometry. Free for design use; redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Wheels (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 3500 lbsLighter duty | 8" × 3"Polyurethane | Rigid | 10-1/2" | $353.00 | View → | |
| 3500 lbsLighter duty | 8" × 3"Polyurethane | Swivel | 10-1/8" | $252.00 | View → | |
| 4000 lbs | 8" × 3"Cast Iron | — | 10-1/2" | $361.00 | Viewing | |
| 4100 lbsHeavier duty | 8" × 3"Metal | Swivel | 10.13" | $218.00 | View → | |
| 5500 lbsHeavier duty | 8" × 3"Polyurethane | Swivel | 8" | $373.00 | View → |
