Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

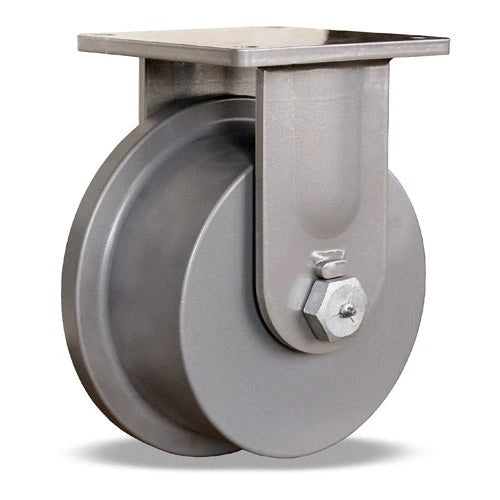

The R-MD-FT10SDT Hamilton Maxi-Duty Rigid Caster sets the industry standard for heavy-duty performance and durability. This top-of-the-line caster features a 10-inch x 4-inch Steeltest Ductile Iron Single Flange Track Wheel along with a 1 1/4-inch Sealed (CRS) Tapered Roller Bearing for optimal load-bearing capabilities.
The R-MD-FT10SDT is best suited for a variety of high-demand environments such as:
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The R-MD-FT10SDT Hamilton Maxi-Duty Rigid Caster is the epitome of engineering excellence, designed for superior load-bearing and high durability. With its 10x4-inch Steeltest Ductile Iron Single Flange Track Wheel and 1 1/4-inch Sealed (CRS) Tapered Roller Bearing, this caster is engineered to meet the most demanding industrial requirements.
This section elaborates on the top 10 features, providing you with comprehensive insights:
Given its robust design and high load-bearing capacity, this caster is ideal for:
If you're looking for a heavy-duty caster that delivers in terms of both quality and functionality, the R-MD-FT10SDT Hamilton Maxi-Duty Rigid Caster is your ultimate choice. Its unique combination of top-tier materials and engineering innovation sets it apart in the market.
This Hamilton R-MD-FT10SDT 10" x 4" Steeltest Rigid Caster – 1 1/4" Bearing is rated to 15000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Ductile Iron wheel with a 5" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 8-1/2" x 8-1/2" plate and a 7" x 7" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 800°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Ductile Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 13". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$2,051.00
| Identification | |
|---|---|
| Part Number / SKU | R-MD-FT10SDT |
| Core | |
| Load Capacity | 15000 lbs |
| Wheel Diameter | 10" |
| Wheel Width | 5" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 13" |
| Rig Type | Rigid |
| Brake | No Brake |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 8-1/2" x 8-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 7" x 7" |
| Recommended Mounting Bolt | 5/8" |
| Wheel | |
| Wheel Material | Ductile Iron |
| Wheel Core Material | Ductile Iron |
| Wheel Color | Platinum Gray |
| Hub Width | 5" |
| Bearing Type | Tapered Roller Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -20°F to 800°F |
| Unit Weight | 136 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 6500 lbsLighter duty | 10" × 5"Polyurethane | Rigid | 13" | $1,007.00 | View → | |
| 6500 lbsLighter duty | 10" × 5"Polyurethane | Swivel | 13" | $1,409.00 | View → | |
| 15000 lbs | 10" × 5"Ductile Iron | Rigid | 13" | $2,051.00 | Viewing | |
| 18000 lbsHeavier duty | 10" × 5"Ductile Iron | Rigid | 13" | $2,220.00 | View → |
