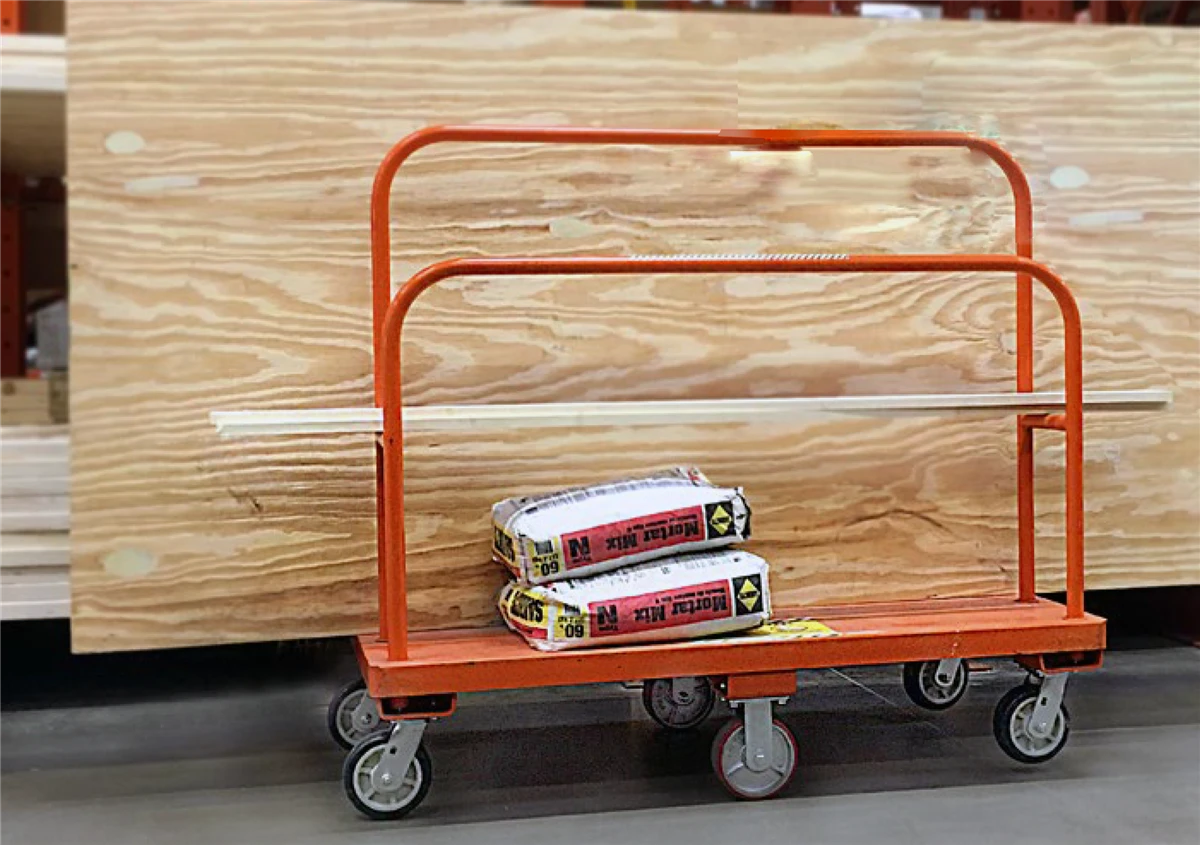

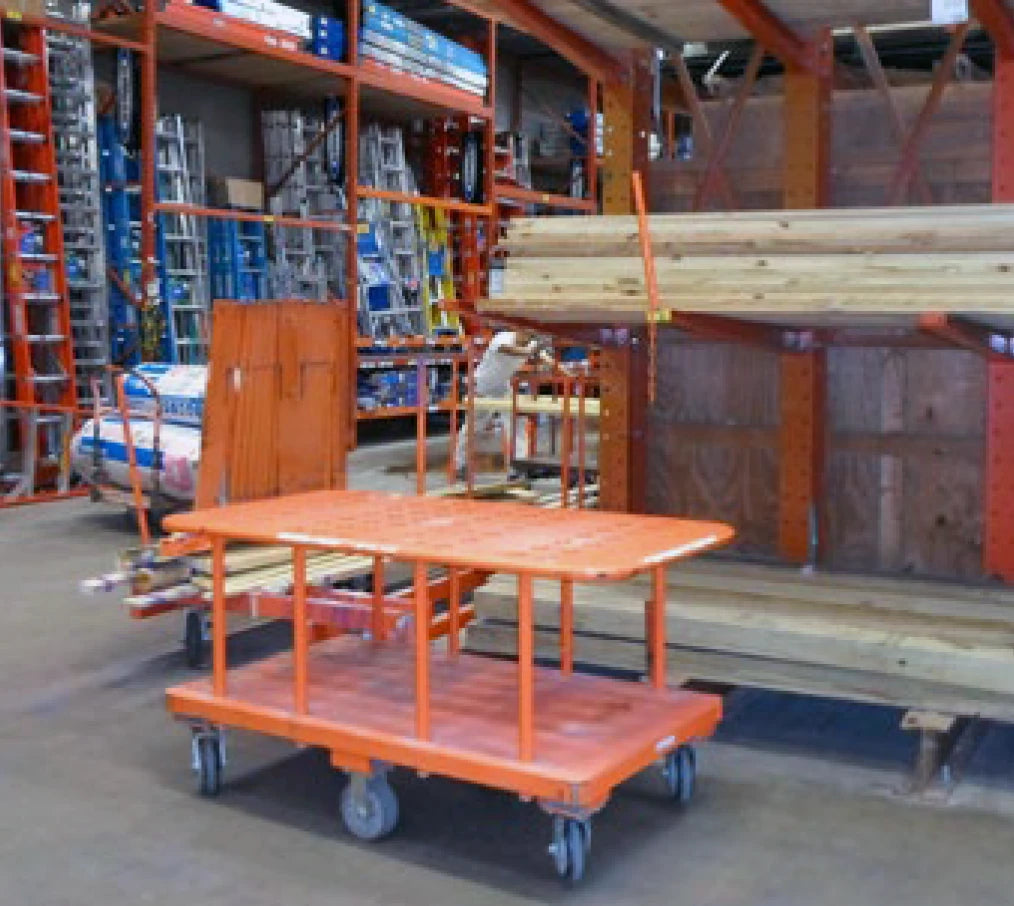

Are you tired of struggling with a wobbly, old lumber cart at Home Depot? Upgrading your cart's wheels can make all the difference in ease of use and maneuverability. But before you place an order for a new caster wheel replacement set, it's crucial to ensure that the wheel sizes and configuration match your current cart.

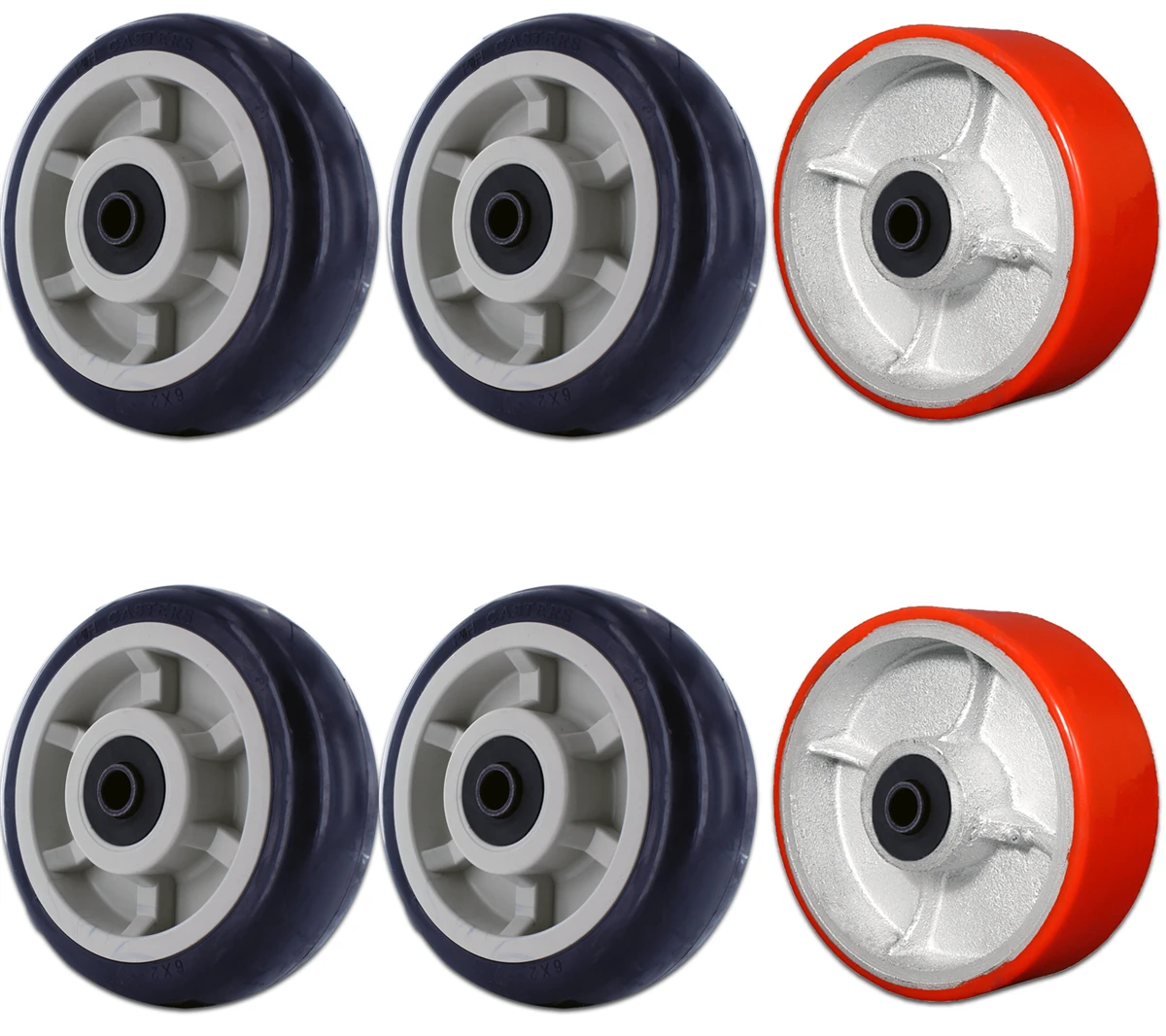

This listing offers a set of 6 high-quality caster wheels, specifically designed for Home Depot carts or U-boat carts. With 4 pieces of 6-inch wheels featuring polyurethane wheels for the corners of the cart and 2 pieces of special 6-inch wheels with a poly-on cast iron core wheel for the middle of the cart, your new wheels will provide optimal mobility and stability.
Keep in mind that the older carts may have different wheel sizes and configurations, including 8" wheels in the middle. But don't worry, we've got you covered - just click the link provided to find the perfect caster wheel replacement set for your older cart. Upgrade your lumber cart today and make your next trip to Home Depot a breeze!
Older Style Casters for Original Home Depot Carts
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 6" Polyurethane & Cast Iron Lumber Cart Caster Set of 6 is rated to 300 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$128.00
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 300 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Iron |
| Frame Material | Zinc Plated Steel |
6" x 2" Foam Filled Swivel Caster with Brake – 250 lb | CasterHQ
6" x 2" · 250 lbs · Direct fit
$76
6" ATX Solid Thermo Rubber Rigid Caster – 80 Shore A | CasterHQ
6" x 2" · 350 lbs · Direct fit
$46
6" x 2" Thermo Rubber Swivel Off Road Caster – -20° F to 160° F | CasterHQ
6" x 2" · 350 lbs · Direct fit
$53
View all 6′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 250 lbsLighter duty | 6" × 2"Polyurethane | Swivel with Brake + brake | 7-1/2" | $76.00 | View → | |
| 300 lbs | 6" × 2"Polyurethane | — | — | $128.00 | Viewing | |
| 350 lbsHeavier duty | 6" × 2"Gray Rubber | Rigid | 7-1/2" | $46.00 | View → | |
| 350 lbsHeavier duty | 6" × 2"Gray Rubber | Swivel | 7-1/2" | $53.00 | View → | |
| 500 lbsHeavier duty | 6" × 2"Gray Rubber | — | — | $25.00 | View → |
