Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

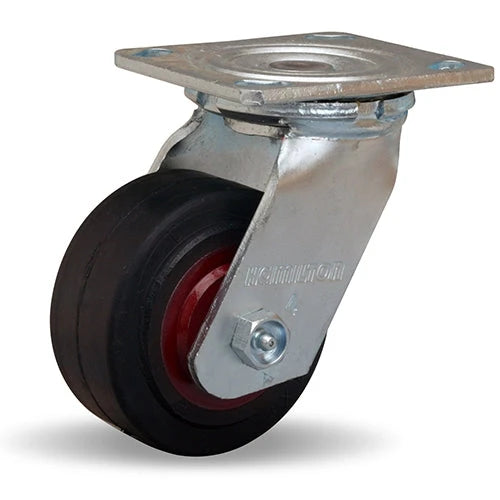

Explore the efficiency and reliability of the S-524-R Hamilton Standard Duty Swivel Caster, a perfect solution for a range of industrial and commercial applications. Featuring a durable 4" x 2" Mold-On Rubber (70A) on Cast Iron Wheel, this caster offers a smooth ride on various surfaces. The 3/4" straight roller bearing enhances mobility, making it ideal for equipment that requires frequent and easy movement.
The S-524-R Caster is engineered for durability and ease of use. Its rubber wheel provides excellent floor protection and noise reduction, making it suitable for both indoor and outdoor environments. This caster is an excellent choice for utility carts, store fixtures, and light-duty machinery.
Selecting the right caster for your application is crucial. Our team of experts is available to help you choose the best Hamilton caster for your specific requirements. Contact us for professional advice and support.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The S-524-R Hamilton Standard Duty Swivel Caster is a top-choice for professionals seeking reliability and efficiency in material handling. Its 4" x 2" Mold-On Rubber Wheel mounted on a sturdy cast iron core provides an optimal balance of durability and floor protection, making it ideal for a wide range of environments.
This caster's 3/4" straight roller bearing ensures smooth and controlled movement, essential for handling sensitive materials or navigating through tight spaces in industrial and commercial settings. Whether it's for utility carts, store fixtures, or light-duty machinery, the S-524-R delivers consistent performance.
With the S-524-R Hamilton Caster, you're not just purchasing a product; you're investing in a solution that brings efficiency and reliability to your operations. Contact our experts today for personalized recommendations and to explore our full range of caster products.
This Hamilton S-524-R 4" x 2" Mold-On Rubber Swivel Caster – 300 lb is rated to 300 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

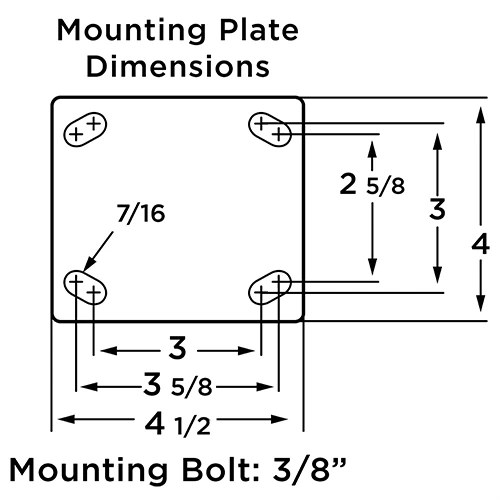

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" and 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -30°F to 160°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5-5/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$95.00
| Identification | |
|---|---|
| Part Number / SKU | S-524-R |
| Replacement Wheel Part No | W-420-R-3/4 |
| Core | |
| Load Capacity | 300 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5-5/8" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 3-1/2" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-1/4" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" and 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Rubber |
| Wheel Core Material | Cast Iron |
| Wheel Color | Black Rubber on Red Center |
| Bearing Type | Straight Roller Bearing |
| Construction | |
| Frame / Finish | Bright Zinc Plated |
| Temperature Range | -30°F to 160°F |
| Unit Weight | 8 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 200 lbsLighter duty | 4" × 2"Gray Rubber | Rigid | 5-5/8" | $39.00 | View → | |
| 250 lbsLighter duty | 4" × 2"Gray Rubber | Swivel | 5-5/8" | $40.00 | View → | |
| 300 lbs | 4" × 2"Rubber | Swivel | 5-5/8" | $95.00 | Viewing | |
| 300 lbsSame capacity | 4" × 2"Gray Rubber | Rigid | 5-5/8" | $26.00 | View → | |
| 350 lbsHeavier duty | 4" × 2"Gray Rubber | — | — | $14.00 | View → |
