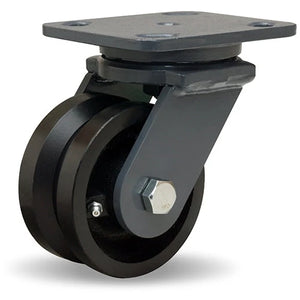

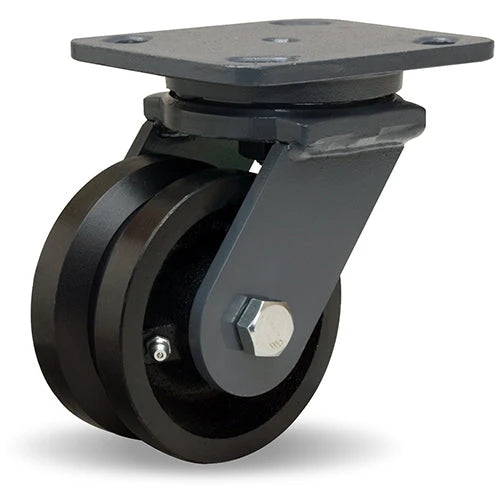

When demanding industrial tasks call for a caster that can handle it all, the S-WH-4V Hamilton Workhorse Swivel Caster stands out. Designed for efficiency, durability, and peak performance, this caster is a true workhorse in every sense. Here’s why.
The 4x2 inch V-Grooved Wheel ensures a fluid motion, even on challenging surfaces. This distinctive design caters to a multitude of industrial requirements, offering smooth, reliable transitions regardless of the environment.
The caster's 3/4 inch Straight Roller Bearing epitomizes precision engineering. Guaranteeing fluid swivels and turns, this bearing minimizes friction and wear, resulting in enhanced longevity and reduced maintenance needs.
As part of Hamilton's commitment to top-tier quality, the Workhorse Swivel Caster is more than just a piece of equipment—it's a testament to advanced engineering and impeccable craftsmanship. With a design that combines agility, reliability, and a robust build, it promises enhanced operational efficiency for industries.
The S-WH-4V Hamilton Workhorse Swivel Caster is a game-changer for those seeking the best in industrial mobility. Experience unmatched performance, longevity, and versatility with this exceptional caster.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Transform your industrial mobility with the Hamilton Workhorse S-WH-4V Swivel Caster. Renowned for its top-tier design, this swivel caster is the perfect blend of performance, durability, and precision.
Wheel Design: A 4x2 inch V-Grooved Wheel that ensures smooth movement across various terrains, making it highly versatile for diverse environments.
Bearing Type: Equipped with a 3/4 inch Straight Roller Bearing, this caster guarantees fluid motion and turns without the fuss.
The Hamilton Workhorse is designed for long-lasting use. Built robustly, it resists wear and tear, ensuring low maintenance and extended life.
Whether you're involved in heavy-duty tasks or require precision movement, this swivel caster is your go-to choice. Thanks to its design, it can effortlessly handle both.
Hamilton has always been a name synonymous with quality. With the S-WH-4V Swivel Caster, it continues its tradition of delivering premium products that exceed customer expectations.
This Hamilton S-WH-4V 4" x 2" V-Grooved Swivel Caster – 3/4" Roller Bearing is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4" x 5" plate and a 2-5/8" x 3-5/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5-5/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$215.00
| Identification | |
|---|---|
| Part Number / SKU | S-WH-4V |
| Replacement Wheel Part No | W-420-V-3/4 |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5-5/8" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-3/4" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 5" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Cast Iron |
| Wheel Core Material | Cast Iron |
| Wheel Color | Black |
| Bearing Type | Straight Roller Bearing |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -20°F to 180°F |
| Unit Weight | 11 lbs |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | — | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Cast Iron | Swivel | 5-5/8" | $215.00 | Viewing | |
| 800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → | |
| 800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
