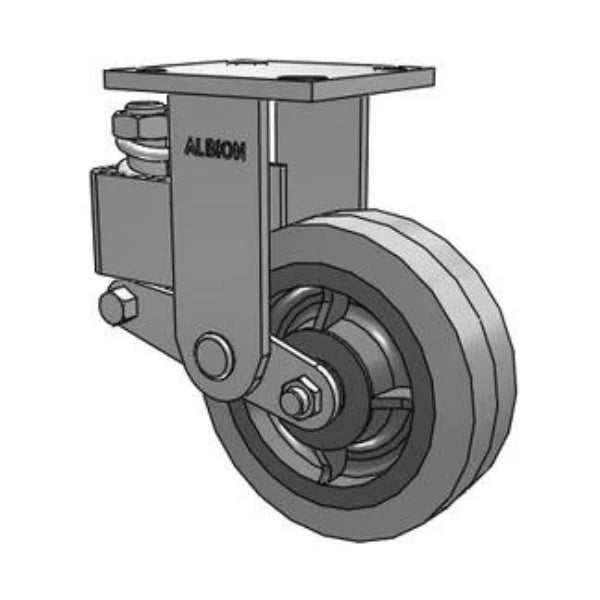

The Albion 40XS06201R is a premium rigid caster designed to deliver exceptional performance in demanding applications. This caster is ideal for situations where protecting your load and minimizing noise are critical.
Our caster specialists are available to answer your questions and help you choose the perfect caster for your needs. Contact us today!
These spring-loaded casters are built to tackle your toughest jobs. Here's why they stand out:
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Our casters and wheels are designed to handle a variety of floor conditions, protecting your equipment and ensuring smooth operation.
We offer a wide range of casters and wheels suitable for:
Have questions about choosing the right casters? Our team is here to help! Contact us weekdays 8 am - 5 pm for expert guidance.
This Albion 40XS06201R 6"x2" Rubber Rigid Spring Loaded Caster – 500 lb is rated to 500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.

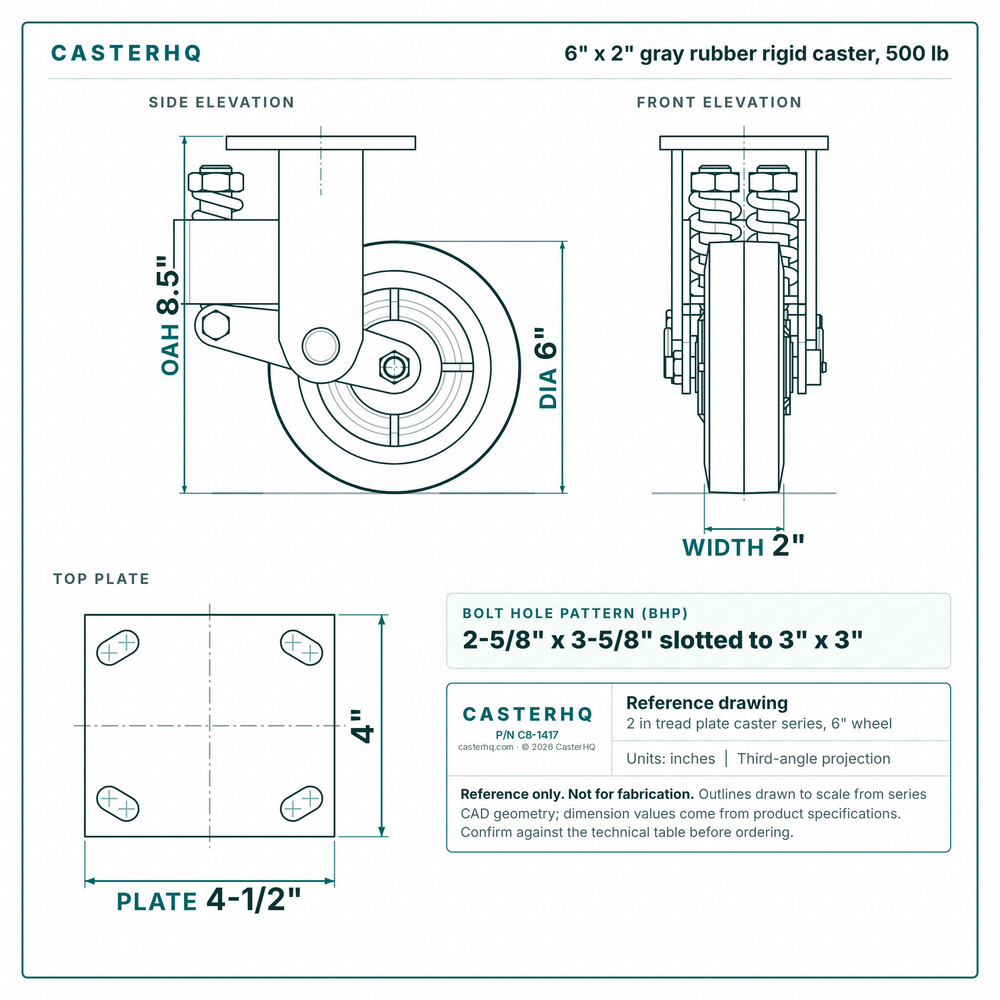

The overall height (floor to top of plate or stem) is 8.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$335.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Overall Height | 8.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 500 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Frame Material | Zinc Plated Steel |
6" x 2" Gray Thermo Rubber Polyolefin Industrial Wheel – 500 lb | CasterHQ
6" x 2" · 500 lbs
$25
6" x 2" Gray Thermo Rubber Polyolefin Industrial Wheel – 500 lb | CasterHQ
6" x 2" · 500 lbs
$25
6" x 2" Thermo Rubber Rigid Caster – 500 lb | 4" x 4-1/2" Plate | CasterHQ
6" x 2" · 500 lbs · Direct fit
$29
View all 6′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 350 lbsLighter duty | 6" × 2"Gray Rubber | Rigid | 7-1/2" | $46.00 | View → | |
| 350 lbsLighter duty | 6" × 2"Gray Rubber | Swivel | 7-1/2" | $53.00 | View → | |
| 500 lbs | 6" × 2"Gray Rubber | Rigid | 8.5" | $335.00 | Viewing | |
| 500 lbsSame capacity | 6" × 2"Gray Rubber | — | — | $25.00 | View → | |
| 500 lbsSame capacity | 6" × 2"Gray Rubber | — | — | $25.00 | View → |
