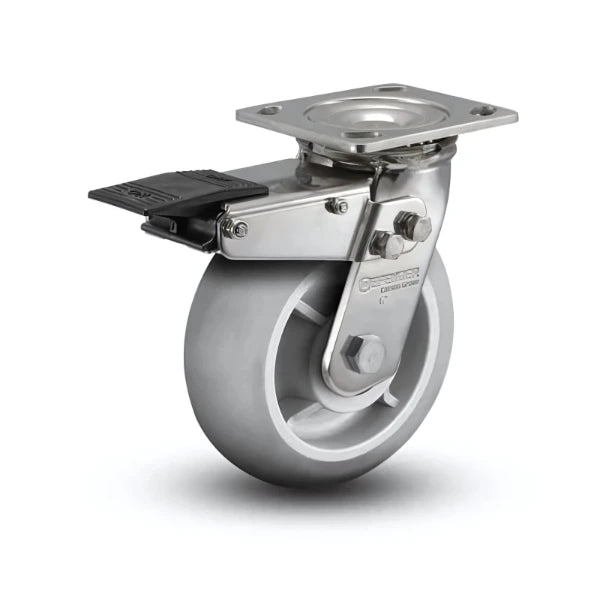

Colson 6" Stainless Total Lock Swivel Caster 4" x 4-1/2" Plate – 450 lb | CasterHQ

This Colson 6" Stainless Total Lock Swivel Caster 4" x 4-1/2" Plate – 450 lb is rated to 450 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

This caster runs a Gray Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

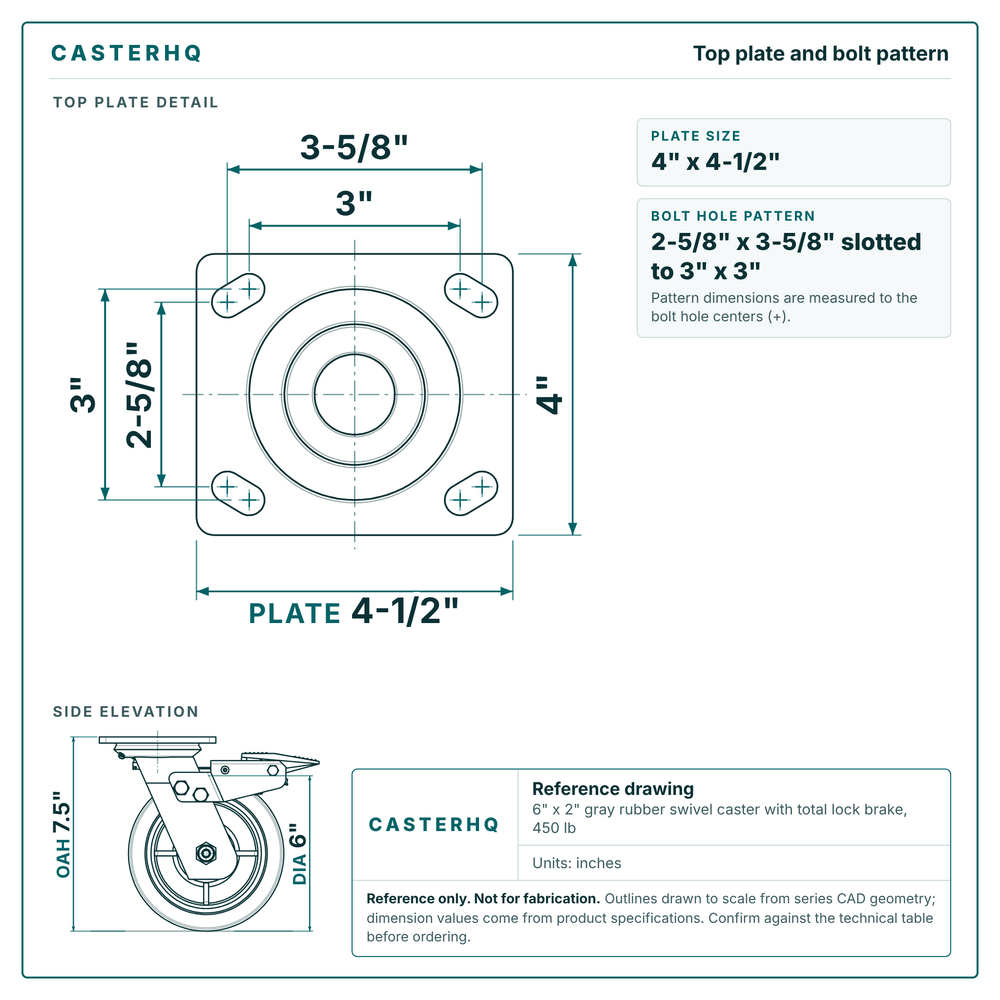

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.

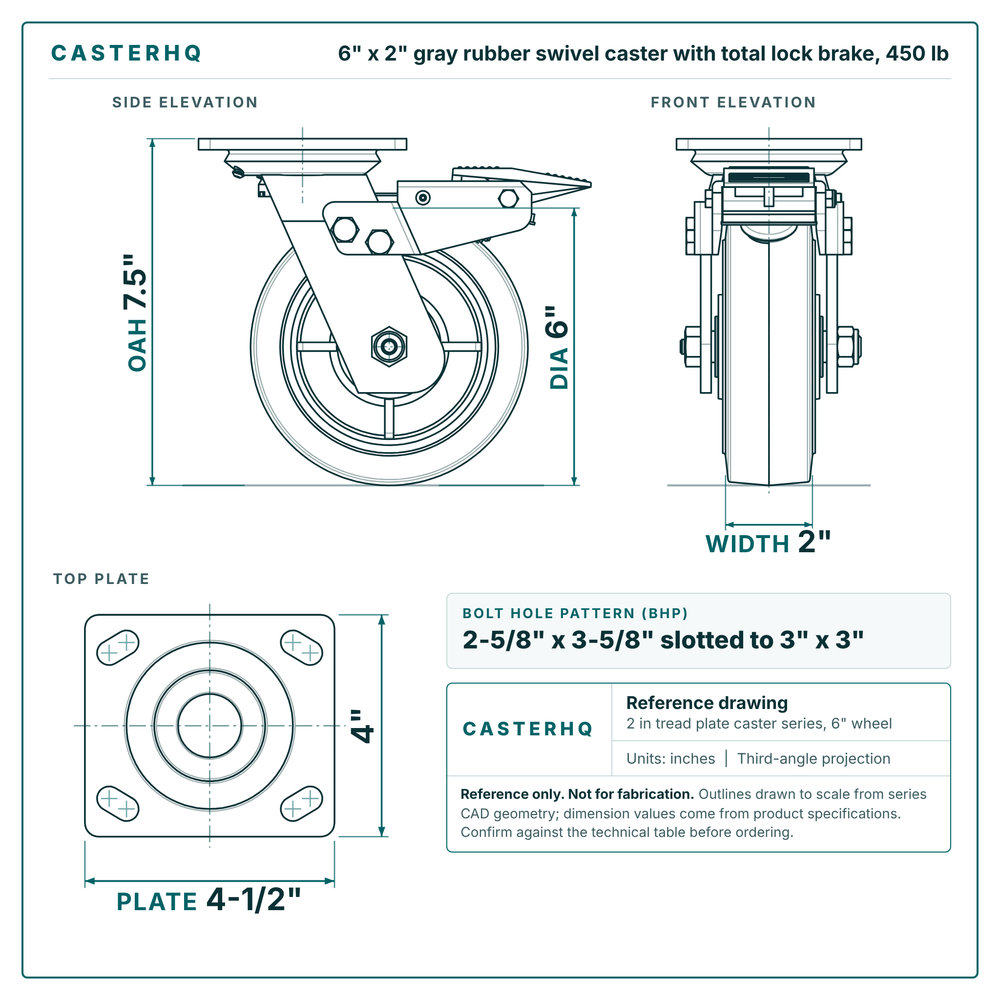

The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
