Retractable Leveling Casters 1.75 Inch Wheel - 4 Pack | 880 lbs Total Capacity Light Duty Machine Feet CasterHQ

1.75" x 13/16" Nylon Swivel Retractable Leveling Caster – 880 lb | CasterHQ

Wheel

1-3/4" x 13/16"

Capacity

880 lbs

Overall Height

2-13/16"

Mount

Plate

Full specs Spec sheet (PDF)

$159.00 USD

Save 30%+ vs big-box distributors

In Stock · Ships 1-2 Business Days

✉️ Email a Caster Solutions Expert (Mon–Fri 8–5 CST)

PO Net 30 ACH Tax-Exempt

Business Purchasing

Purchase orders accepted for approved accounts
Net 30 terms for qualified businesses
ACH, credit card, and tax-exempt ordering
Bulk and contract pricing on fleet quantities

Upload a PO / Quote·Request bulk pricing·844-439-4335

Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.

Call now

One-time purchase

AUTOMATIC REPLENISHMENT PROGRAM:

Deliver every month, 5% off
Deliver every 3 months, 7% off
Deliver every 6 months, 10% off

Auto-renews, skip or cancel anytime.

To add to cart, go to the product page and select a purchase option

Product Overview

At a glance

Load capacity880 lbs

Wheel1-3/4" × 13/16" Nylon

MountPlate

Overall height2-13/16"

Temperature-20°F to 180°F

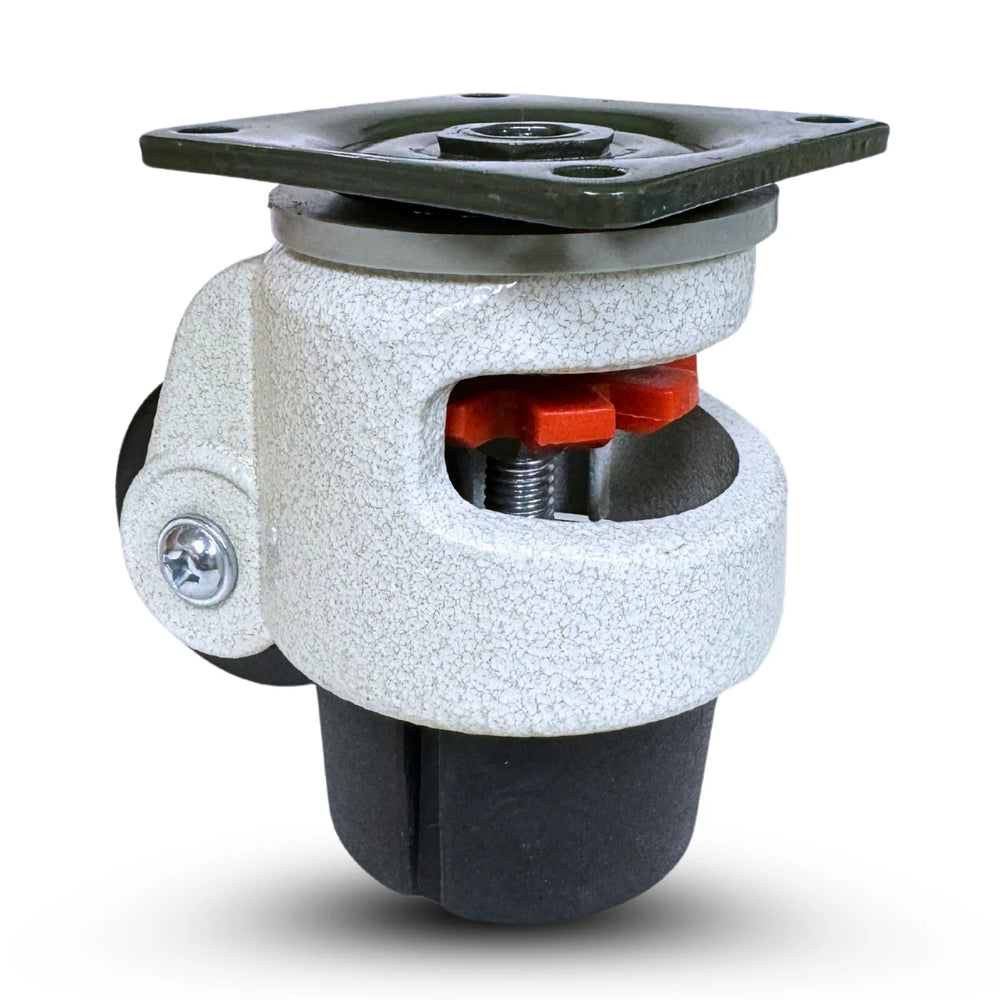

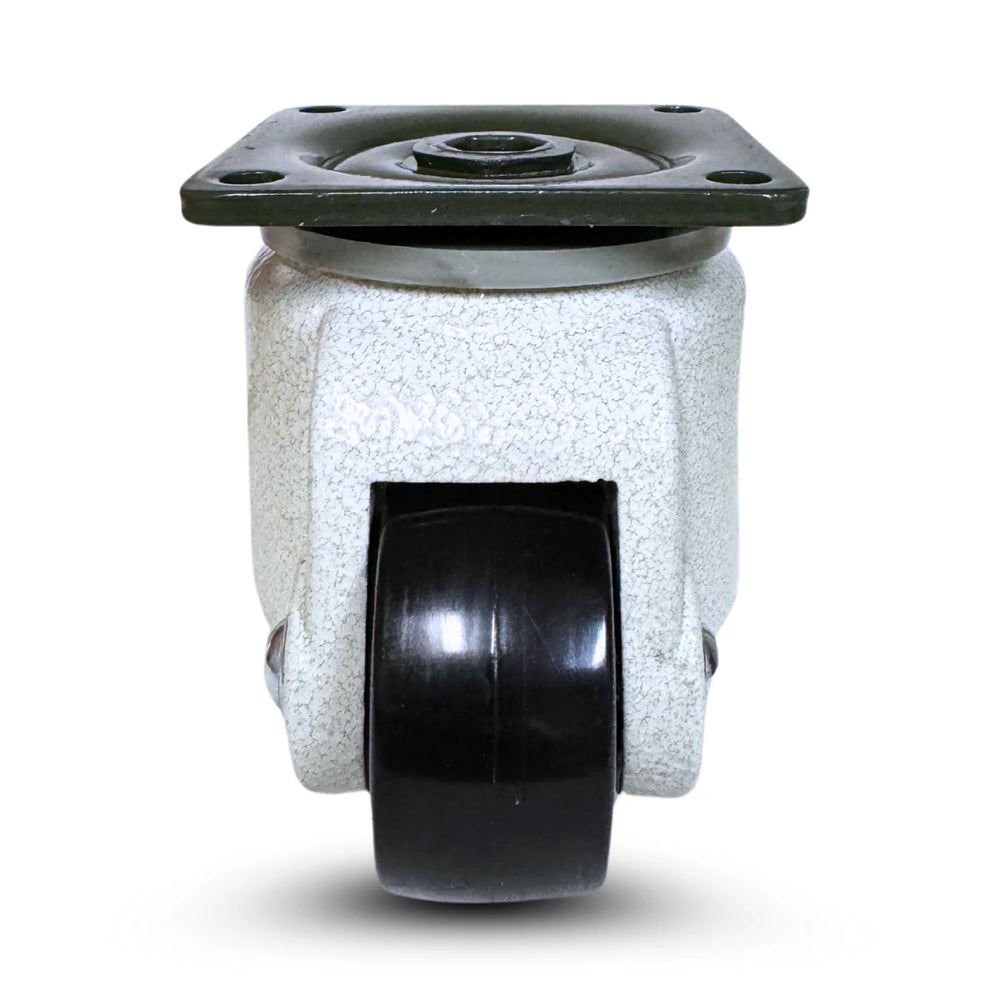

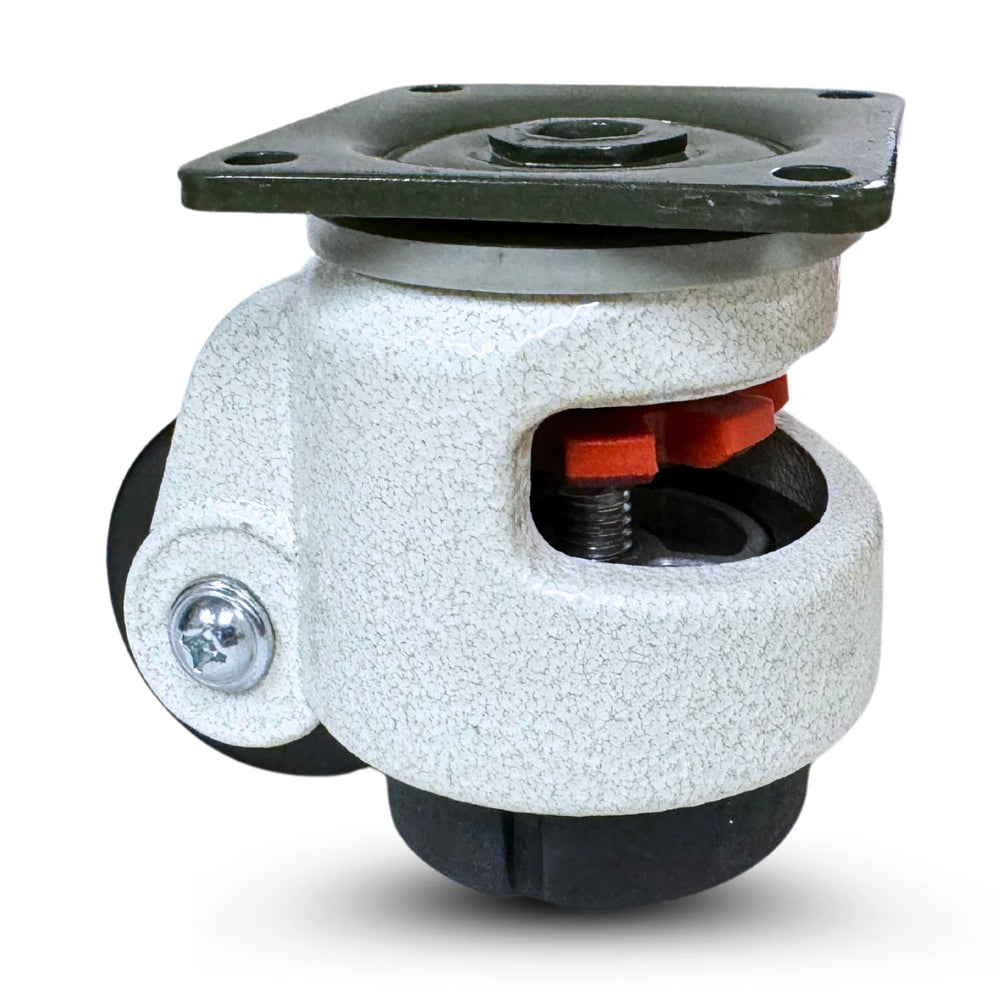

Light Duty 1.75" Retractable Leveling Machine Casters (LV Series)

Retractable leveling caster for equipment that must roll for positioning and then lock down for stable, level operation. Designed for compact footprints where retracted height and mounting pattern are critical.

Manufacturer Part #: TP9340-01-NYL-IPC

Wheel: 1.75" Dia

Plate Mount

Non-marking Nylon Wheel

Engineering Fit Check Specs Applications FAQs

Engineering Fit Check (read before checkout)

Most checkout drop-offs on leveling casters happen when buyers are unsure about capacity, mounting pattern, or pack quantity. Use this quick fit check to confirm compatibility.

1) Load (capacity)

Capacity per caster: 220 lbs
Capacity per set of 4: 880 lbs
Rule of thumb: design with a safety factor. If your load is near the limit or sees impacts/thresholds, step up to a heavier model.

2) Mounting + clearance

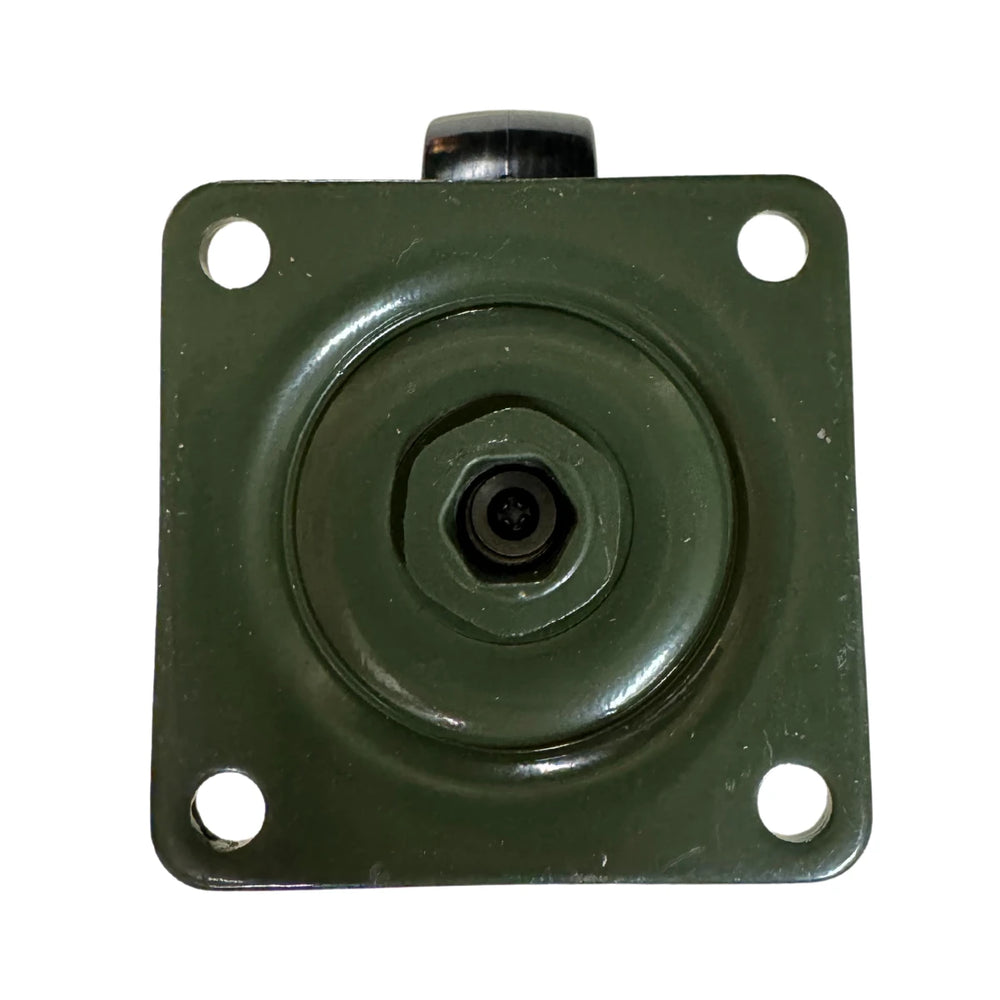

Plate: 2-5/32" × 2-5/32"
Bolt pattern: 1-21/32" × 1-21/32"
Bolt size: 1/4"
Retracted overall height: 2-13/16"

What’s included: 4 casters per box + mounting hardware (bolts & nuts). If you need a higher-capacity retractable leveling caster, use the heavier model page (TP-60F) you already sell.

Engineering Specifications

Wheel Diameter

1.75"

Tread Width

13/16"

Overall Height (Retracted)

2-13/16"

Mount Type

Plate mount

Mounting Interface

Plate size: 2-5/32" × 2-5/32"
Hole pattern: 1-21/32" × 1-21/32"
Bolt size: 1/4"
Hardware: Included

Construction

Frame: Die-cast aluminum, powder-coated
Swivel head: Steel
Wheel: Ultra-strong non-marking nylon
Footpad: Rubber (shock & vibration damping)

Mechanism

Type: Internal leveling mechanism
Adjustment: Hand dial + improved lever actuation
Protection: Nylon clear raceway seals (dust/debris resistance)

Capacity and performance depend on floor condition, duty cycle, obstacles/impacts, and load distribution. For critical equipment, use an engineering safety factor.

Recommended Applications (dropdown)

Industrial work tables / weld tables (light duty)

Roll into position, then deploy the leveling foot to stabilize the table and reduce vibration while working.

Modular framing, electronics enclosures, automation stands

Useful where compact mounting and low retracted height are important for clearance and stability.

Medical & lab equipment / diagnostic equipment

Non-marking wheel and leveling foot help keep equipment stable when stationary. Confirm chemical exposure requirements if applicable.

Racks, copiers/printers, vending & business machines

Common for equipment that must be moved for service and then locked down for daily operation.

FAQs

Is this sold as a single caster or a set?

Packaging is 4 casters per box and mounting hardware is included.

What is the load rating and is it per caster or per set?

Load ratings are specified per caster unless explicitly stated otherwise. For system capacity, consider load distribution, floor condition, and an engineering safety factor.

Action: Insert your exact capacity values in the Fit Check box above (per caster + per set).

Will this fit my existing hole pattern?

Confirm: Plate 2-5/32" × 2-5/32", bolt pattern 1-21/32" × 1-21/32", and 1/4" bolts. If your pattern differs, it will not be a direct replacement.

Does leveling mean the caster locks like a brake?

Leveling casters stabilize by transferring load to a rubber footpad. This reduces movement and vibration when deployed compared to relying on wheel friction alone.

What if my load is close to the rated limit?

If you are near capacity, have impacts/thresholds, or expect high duty-cycle rolling, step up to a heavier model. Use the higher-capacity retractable leveling caster listing (TP-60F) you already carry.

What surfaces is the nylon wheel best for?

Nylon wheels roll efficiently and are non-marking on many industrial floors. For delicate finishes or specialized floor coatings, verify compatibility and loading conditions.

Internal Note (remove if you want)

Replace the red placeholders in the Fit Check section with your confirmed load capacity values for TP9340-01-NYL-IPC (per caster and per set). This single change typically improves checkout conversion because it removes the biggest unknown.

Key Features

Key Engineering Features

Die-Cast Aluminum Frame + Steel Swivel Head: Structural aluminum body with steel swivel interface for controlled rotation under load.
Internal Mechanical Leveling System: Integrated adjustment dial deploys rubber footpad to transfer load from wheel to floor.
Stabilizing Rubber Footpad: Reduces movement and vibration when equipment is leveled and stationary.
Non-Marking Nylon Wheel: Durable nylon tread designed for smooth rolling and reduced floor marking on industrial surfaces.
Powder-Coated Finish: Corrosion-resistant coating for improved durability in shop and plant environments.
Plate Mount Configuration: Compact mounting footprint for equipment frames, enclosures, and work tables.

Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts

Net 30 terms — available on approved credit

ACH & all major cards — Visa, MC, Amex, Discover

Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Frequently Asked Questions

What is the load capacity of this caster?+

This 1.75" x 13/16" Nylon Swivel Retractable Leveling Caster – 880 lb is rated to 880 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Nylon wheel with a 13/16" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

What temperature range can this caster handle?+

Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 2-13/16". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

1.75" x 13/16" Nylon Swivel Retractable Leveling Caster – 880 lb | CasterHQ

$159.00

Technical Specifications

Dimensions & Mounting
Wheel Diameter	1-3/4"
Wheel Tread Width	13/16"
Overall Height	2-13/16"
Mount Style	Plate
Load & Performance
Wheel Capacity	880 lbs
Temp Range	-20°F to 180°F
Materials & Finish
Wheel Material	Nylon
Frame Material	Zinc Plated Steel

Reference Dimensions

Overall Height2-13/16"

Wheel1-3/4" x 13/16"

Wheel MaterialNylon

Illustrative caster profile drawn to this item's proportions — dimensions are manufacturer specification values. Confirm against the technical table before ordering.

Compare Similar

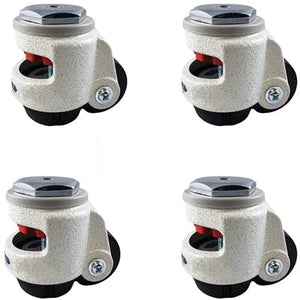

1.75" x 13/16" Nylon Swivel Retractable Leveling Caster – 440 lb | CasterHQ 1-3/4" x 13/16" · 440 lbs $159

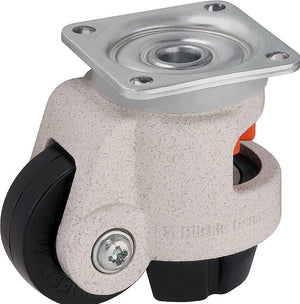

1-3/4" x 11/16" Nylon Swivel Leveling Caster – 400 lb | CasterHQ 1-3/4" x 11/16" · 400 lbs $124.50 View all leveling casters & retractable pop-up casters →

Will This Caster Handle Your Load?

Enter your loaded weight — we derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.

Rated capacity: 880 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →

Documentation

Spec sheet (PDF) 30-day pricing honored Request STEP / CAD fileour engineers email it same day Caster selection guide Caster University Fleet & contract pricing Net 30 available

30-day returns · manufacturer warranty · spec support: 844-439-4335 (Mon–Fri 8–5 CST)

Compare Similar Casters

View all leveling casters & retractable pop-up casters →

Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.

Casters (in stock)	Load capacity	Wheel	Type	Overall height	Price
1-3/4" x 11/16" Nylon Swivel Leveling Caster – 400 lb	400 lbsLighter duty	1-3/4" × 11/16"Nylon	—	—	$124.50	View →
1.75" x 13/16" Nylon Swivel Retractable Leveling Caster – 440 lb	440 lbsLighter duty	1-3/4" × 13/16"Nylon	—	2-13/16"	$159.00	View →
This item1.75" x 13/16" Nylon Swivel Retractable Leveling Caster – 880 lb	880 lbs	1-3/4" × 13/16"Nylon	—	2-13/16"	$159.00	Viewing
