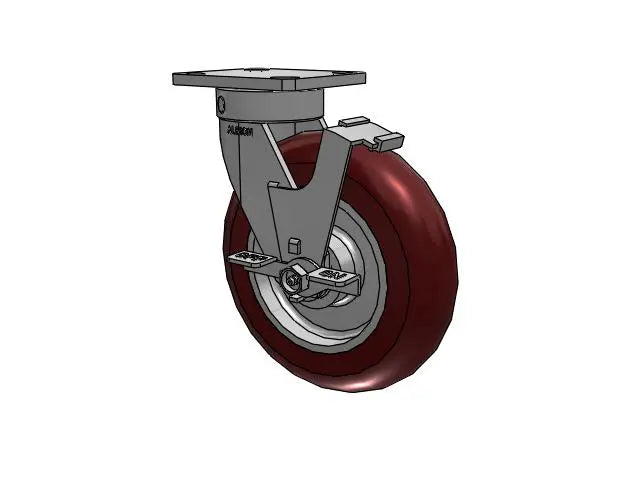

The Albion Casters 9.5" Height Kingpinless MAX-Efficiency Caster, with an 8" x 2" maroon wheel, combines robust construction with advanced performance. Its kingpinless design ensures smooth and quiet operation, while the side-lock feature adds extra stability when stationary. With a mount height of 9.5 inches and a swivel radius of 6.25 inches, this caster supports up to 1500 lb, making it ideal for demanding applications. The durable 4" x 4.5" plate provides a secure mounting option, enhancing versatility and strength in various industrial settings.
Optimize your equipment's performance and stability with the Albion Casters 9.5" Height Kingpinless 8" x 2" MAX-Efficiency Caster. Designed for heavy-duty use, it offers exceptional reliability and efficiency.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Discover the exceptional quality and performance of the Albion Casters 9.5" Height Kingpinless 8" x 2" MAX-Efficiency Maroon Side-Lock Caster. Designed for superior durability and efficiency, this caster is perfect for a variety of demanding industrial and commercial applications. Its robust construction and high load capacity ensure reliable performance, while the maroon poly material provides high visibility and long-lasting use.
For optimal performance, ensure the caster is properly mounted using the 4" x 4.5" plate and verify that all components are securely fastened. Regularly check for signs of wear and tear to maintain functionality. Use the side-lock feature to stabilize the caster when stationary to prevent accidental movement.
This Albion 110AX08228S01FBC 8"x2" Polyurethane Side Lock Caster – 1500 lb is rated to 1500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$216.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1500 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
