All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Wheels only

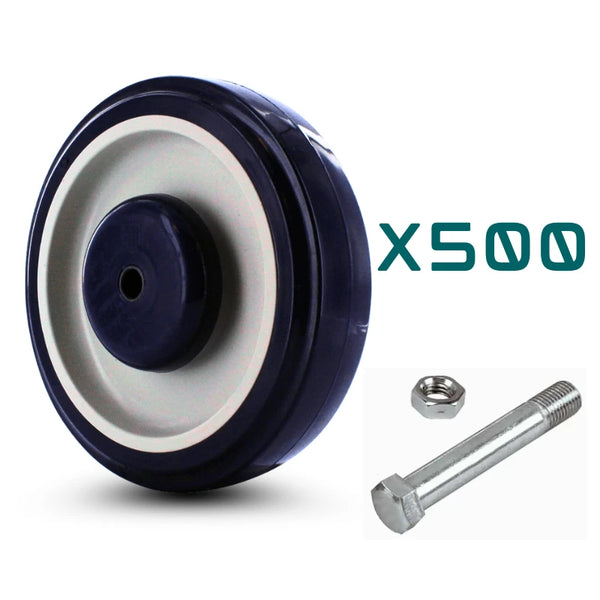

Genuine P&H 5″ × 1-1/4″ shopping cart replacement wheels with the 5/16″ bore that drops onto the standard cart axle. Singles, sets, and fleet packs from 50 to 1,000 wheels, shipped from Mansfield, Texas.
These are wheels only. Match the bore (5/16″ standard) to your existing axle and fork. Fork loose or bent? Shop complete swivel casters instead.











Fleet packs price per wheel is shown on each tile. Need 250+ wheels or a mixed order across stores? Request fleet pricing or call 844-439-4335.
Spin the wheel and rock the fork. If the tread is worn flat or chunked but the fork still swivels smoothly with no play, replace the wheel only. If the swivel grinds, wobbles, or the fork is bent, replace the complete swivel caster. Rear positions on most carts are rigid forks, so they almost always take a wheel-only replacement.
Four. Two front swivel positions and two rear rigid positions. Front swivel casters take the curb hits and the turning load, so they usually wear first. Order by position count, not cart count: a 100-cart fleet is 400 wheel positions.
A single store re-wheeling a 100-cart fleet needs 400 wheels for a full swap, or roughly 200 for fronts only. The 50-, 100-, 250-, 500-, and 1,000-packs on this page are priced per wheel on each tile so you can compare. For 250 wheels and up, or mixed orders across multiple stores, request fleet pricing and we will quote it with freight.
Polyurethane (including TPU) is the retail standard: non-marking, quiet on sealed concrete and tile, and the longest wearing. Soft rubber and TPR treads are quieter and softer over expansion joints and rough asphalt, at the cost of faster wear. Either tread on the 5″ × 1-1/4″ wheel with a 5/16″ bore fits the same axle.
| Wheel | Tread | Bearing | Rating | Packs |
|---|---|---|---|---|
| P&H WC2054LD | Polyurethane on polyolefin core | 5/16 in | 250 lb | 1, 2, 4, 50, 100, 250, 500, 1,000 |
| P&H WC2054LD TPU | TPU on polypropylene core | 5/16 in | 250 lb | Single |
| P&H SuperWheel | Soft gray rubber on polypropylene core | 5/16 in Quad X friction | 250 lb | Single |
| Universal 5 in wheel | Polyurethane | 250 lb | Single |
From product titles and spec fields [S1]. The P&H wheels list -30 to 140°F.
If the swivel is rough or the fork is bent, a new wheel will not fix the pull. Replace the whole caster instead.
Each cart has four wheels. A 4-pack does one cart, a 100-pack does 25 carts, and a 500-pack does 125 carts. Replacing only the front pair doubles the number of carts each pack covers.
Our 19 minute video walks through telling a worn wheel from a worn caster, pulling the axle, and fitting a new wheel: How to fix shopping cart wheels.
Complete casters: 5 in shopping cart swivel casters. All cart parts: shopping cart wheels and casters.
