All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Wheel = wheel diameter · capacity is per caster.








| Unit | Ball | Mount | Rating |
|---|---|---|---|
| Nylon ball transfer | 1-1/2 in nylon | Drop-in | 250 lb |
| Carbon steel ball transfer | 1-1/2 in carbon steel | Drop-in | 250 lb |

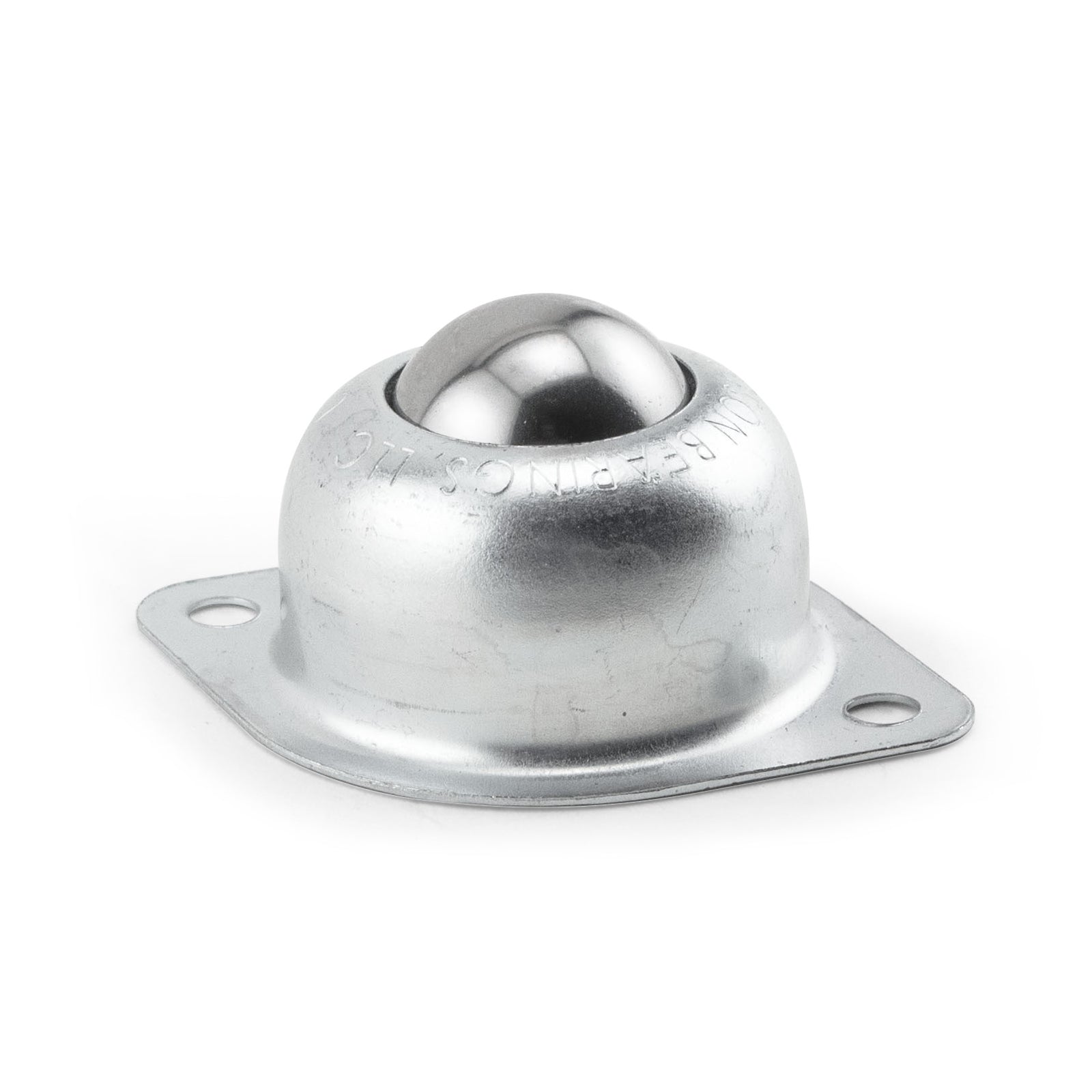

| Stainless ball transfer, flange | 1-1/2 in stainless | Flange | 250 lb |
| Stainless ball transfer, flange mounted | 1-1/2 in stainless | Flange | 250 lb |
From product titles and listings [S1].
Related: Hudson Bearings ball transfers and ball transfers.
Each unit here is rated 250 lb.
The two stainless steel units.
