Medium-Heavy Stainless Plate Casters

These stainless steel casters stand up to washdown, moisture, and cleaning chemicals. Casters in this collection range from 300 to 1,250 lb per caster. Wheels in this category range from 4 up to 8 in in solid polyurethane, poly on aluminum, and more. Common uses include food processing, pharmaceutical, and wet plant areas. Softer polyurethane or soft rubber or TPR tread is the better pick when the floor has chips or grit. Match plate size, bolt pattern, and overall height before you order. Choose swivel casters when the cart must turn in place, rigid casters for straight travel, and add a brake when the cart needs to stay put. Capacities below are per caster unless a listing says set. Confirm the load rating printed on the title before you order. Read the listing for the exact wheel size, overall height, and mount shown. Measure the old wheel or caster before you buy. Stainless aisle: stainless steel casters. Food service aisle: food service casters.

Shop by wheel material

4 types

Rubber and polyurethane favor floor protection; phenolic and steel favor heavy capacity. Compare materials →

Medium-heavy stainless plate casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits

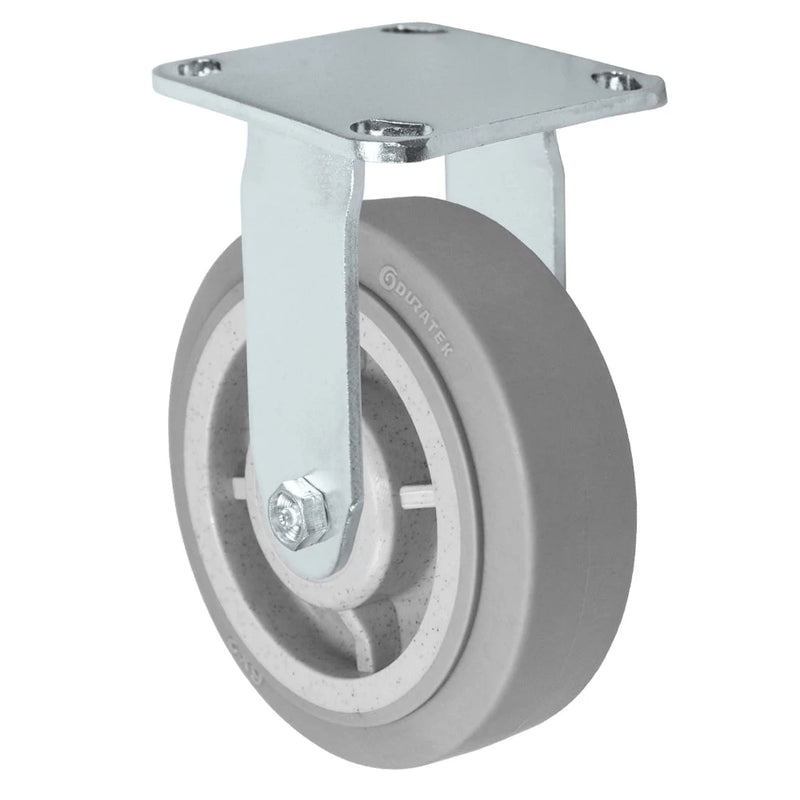

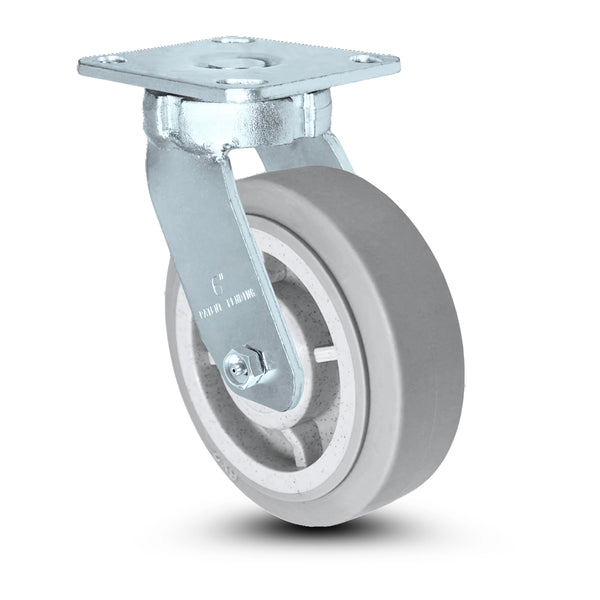

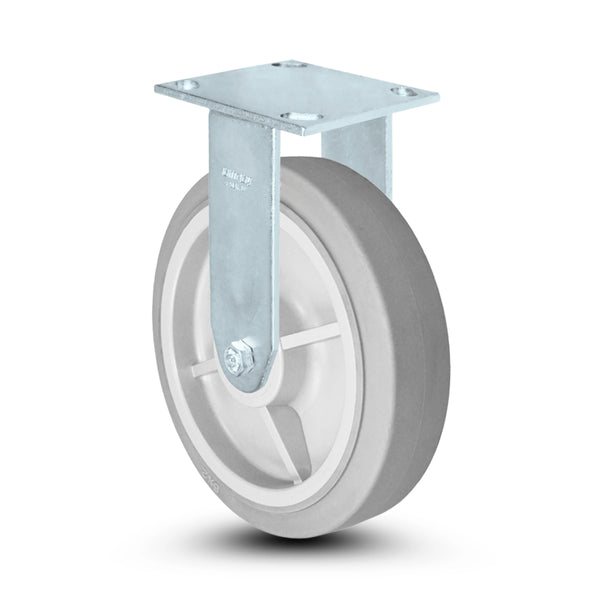

Rubber	Polyolefin	4, 5, 6 and 8 in	300 to 675 lb		cushioned and quiet on finished floors

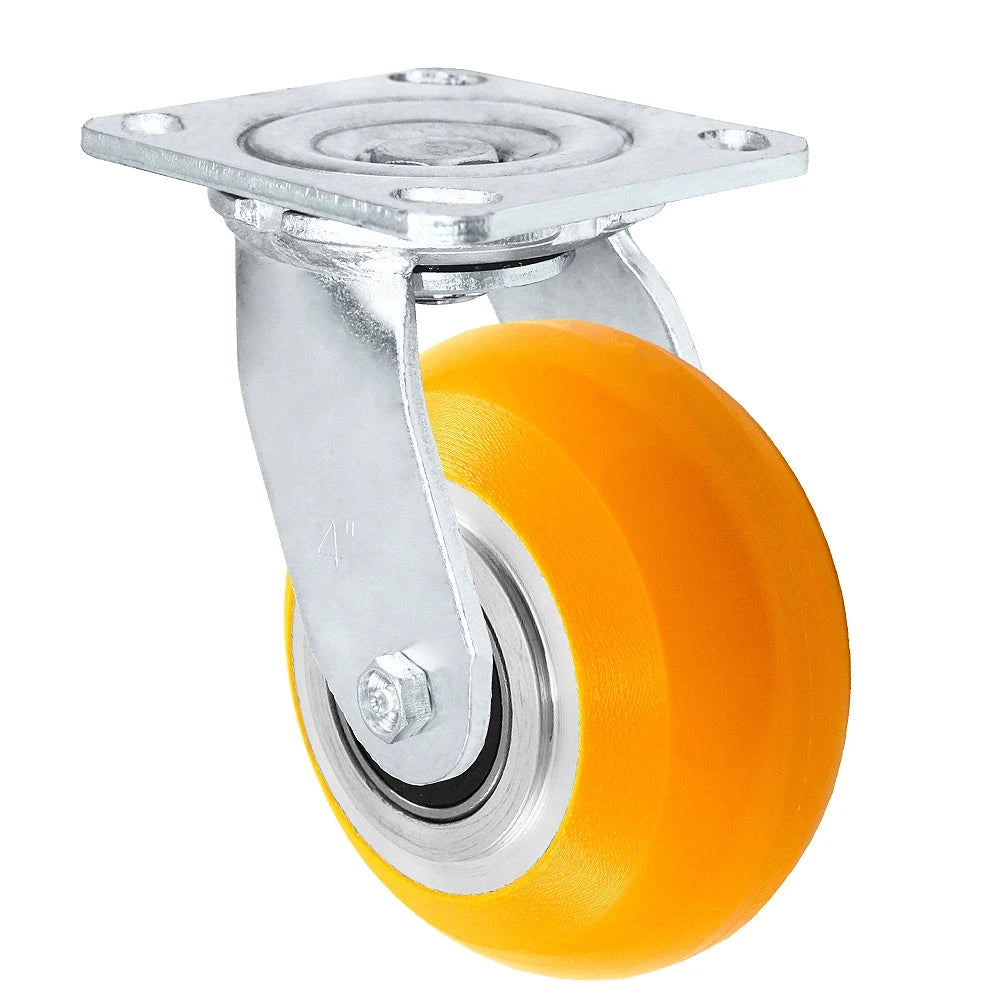

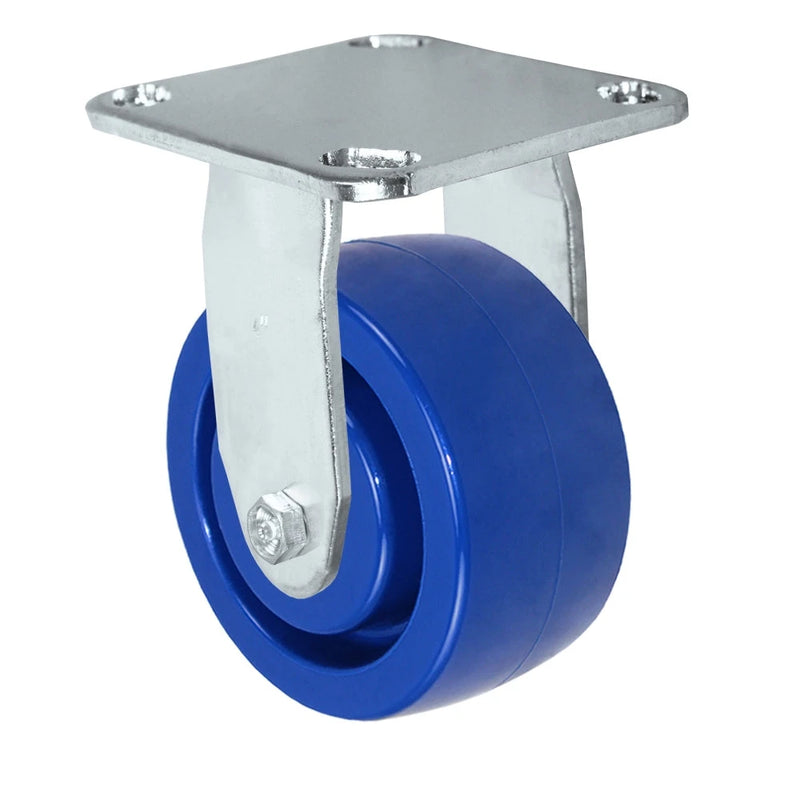

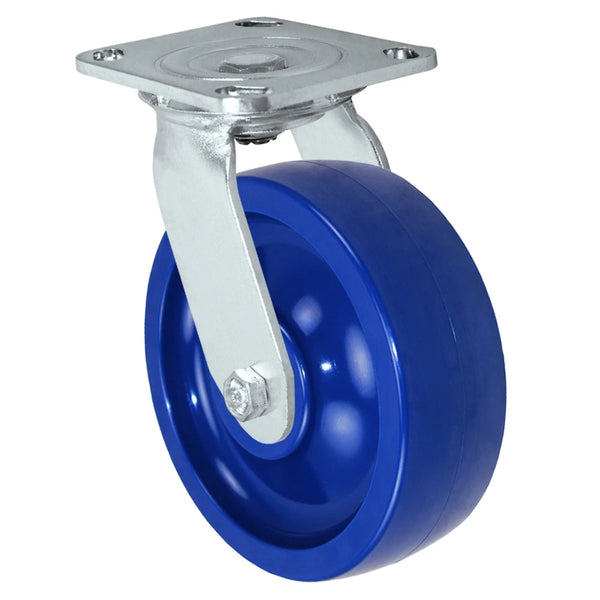

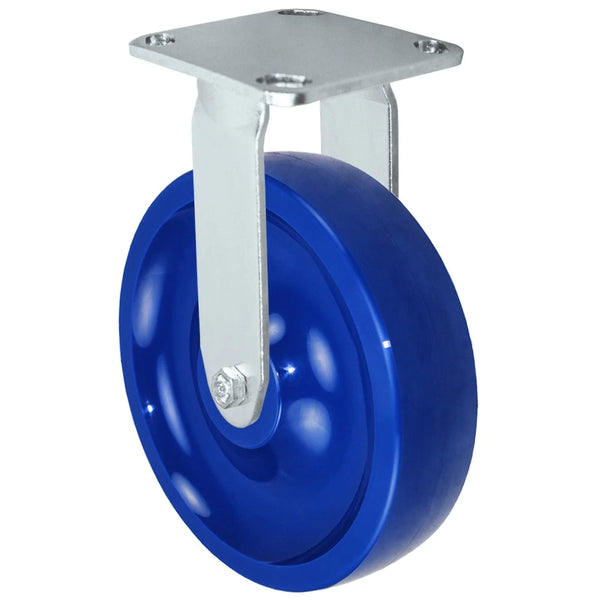

Polyurethane	Aluminum	4, 5, 6 and 8 in	800 to 1,250 lb	-45°F to 180°F	quiet, floor-friendly and long wearing

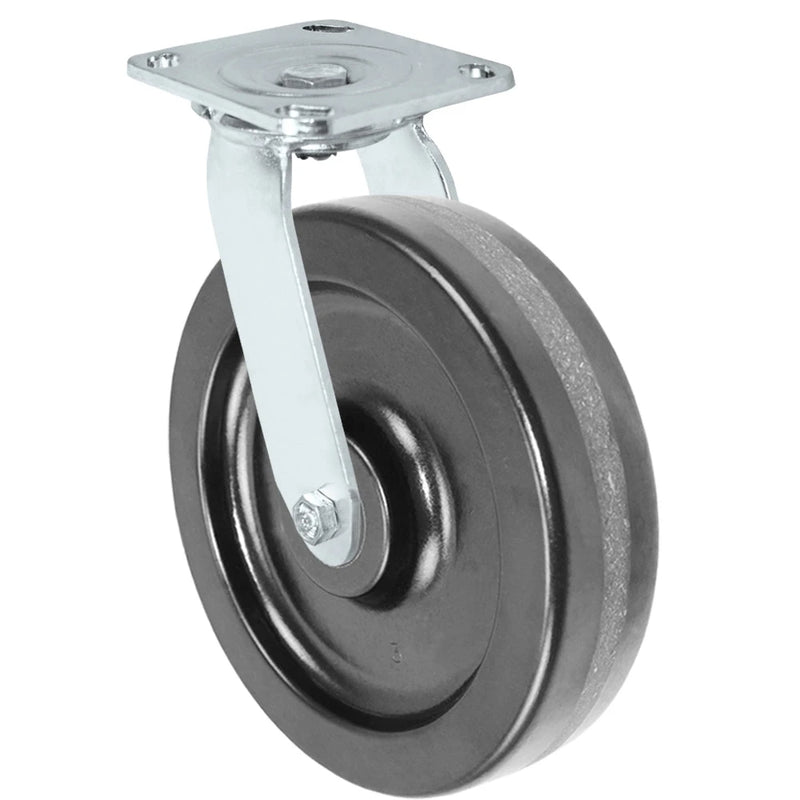

Phenolic		4, 5, 6 and 8 in	800 to 1,250 lb	Up to 250°F	hard and easy rolling on smooth, dry floors

Ratings are for single casters of medium-heavy stainless plate casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated
4 x 2 in	rubber, phenolic and polyurethane	300 to 1,000 lb
5 x 2 in	phenolic, rubber and polyurethane	300 to 1,200 lb
6 x 2 in	rubber, phenolic and polyurethane	450 to 1,250 lb
8 x 2 in	rubber, phenolic and polyurethane	550 to 1,250 lb

Choosing medium-heavy stainless plate casters

Load: plan on three casters carrying a four-caster cart [S2]; at 1,200 lb each, a common rating here, that is about 3,600 lb, and the 1,250 lb top rating covers about 3,750 lb.
Mount: most medium-heavy stainless plate casters use a 4 x 4-1/2 in top plate; match the bolt holes on your frame to the plate before ordering.
Floor: on medium-heavy stainless plate casters, rubber and polyurethane are kinder to tile and finished floors; phenolic rolls easier under heavy loads on smooth concrete.
Rig: swivel and rigid medium-heavy stainless plate casters are listed, with side lock brake and top lock brake options.

Related to medium-heavy stainless plate casters: caster wheels.

Medium-heavy stainless plate casters questions

How much weight can medium-heavy stainless plate casters carry?

Single medium-heavy stainless plate casters are rated 300 to 1,250 lb; most fall between 600 and 1,200 lb.

What top plate do medium-heavy stainless plate casters use?

Most medium-heavy stainless plate casters use 4 x 4-1/2 in.

What wheel material is most common on medium-heavy stainless plate casters?

Rubber leads on medium-heavy stainless plate casters, rated 300 to 675 lb per caster. Among medium-heavy stainless plate casters, polyurethane is next at 800 to 1,250 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
