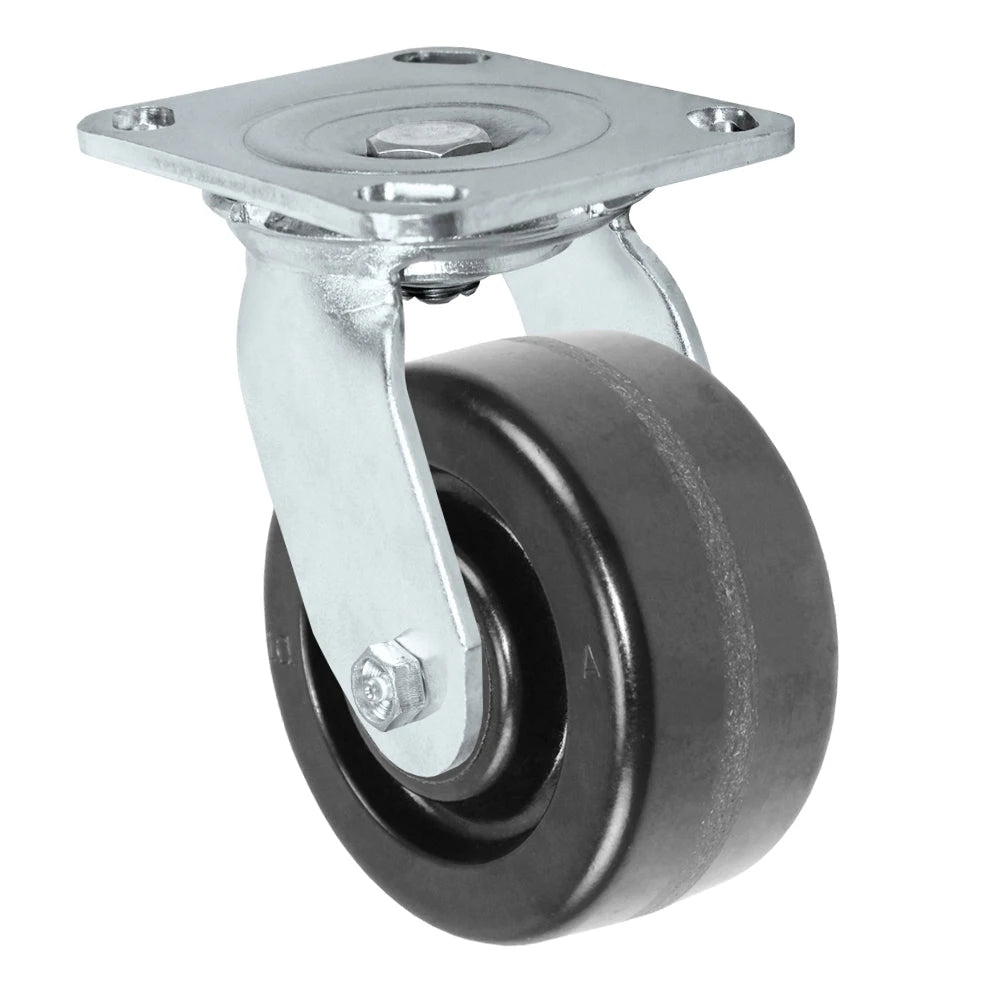

This page is for our 5" X 2" stainless steel (S304) swivel caster and is considered a medium to heavy-duty caster series in the industry and combined with a Hard tread Phenolic Wheel. The stainless steel is 304 Stainless steel, double ball swivel raceway with a grease fitting, and 1/2" cold-forged stainless steel top plate & yoke legs. This is the highest quality stainless steel caster in the industry and is commonly used in the Food Service industry, Platform trucks, industrial, and commercial applications. The mounting plate size on this series is 4" x 4-1/2" with many upgradeable options available including stainless bearings, Delrin bearings, and multiple stainless steel brake options as well. Load Capacities up to 1,250 lbs per caster depending on the size. The wheel is a Phenolic Wheel which is a very strong and hard wheel that is going to be easy to roll and will not flat spot under heavy static loads. Phenolic wheels are great for long-term storage solutions and they are very affordable wheels. Phenolic wheels are not the best wheels to be used around heavy washdown applications long term but are a very resistant wheel to oils, chemicals, mild acids, and other harsh substances.
Stainless Steel 3/4" Roller Bearing and Spanner Included - To upgrade to a stainless steel precision bearing use the menu on the right-hand side. Precision bearings are easier to roll, quieter, and sealed which means they are maintenance-free and do not require grease.
Wheel Diameter: 5"
Tread Width: 2"
Wheel Type: Phenolic
Load Capacity: 1,000 lbs
Overall Height: 6-1/2"
Swivel Radius: 3-7/8"
Brake Options: Stainless Top locking Brake Available as an add-on
Mounting Plate Size: 4" x 4-1/2"

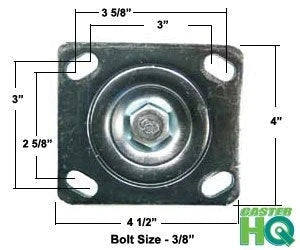

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Attaching Bolt Size: 3/8"
Certifications: NSF & ROHS
304 STAINLESS STEEL
DOUBLE BALL BEARING RACEWAY
5/8" DIAMETER NUT & BOLT KINGPIN
1/4" COLD-FORGED STEEL TOP PLATE & YOKE LEGS
GREASE FITTING IN SWIVEL RACEWAY
NSF CERTIFIED
ROHS COMPLIANT
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 5" x 2" Phenolic Swivel Stainless Caster – 1,000 lb is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$123.00
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Brake |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | Up to 250°F |
| Brake Type | Side Lock Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Stainless Steel |

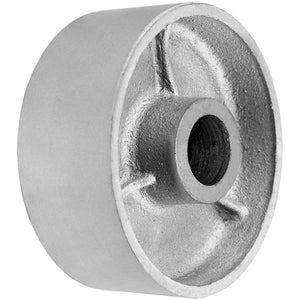

5" x 2" Semi-Steel Swivel Caster – 1000 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 1000 lbs
$52
5" x 2" Phenolic Swivel Caster – 1,000 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 1000 lbs
$28
5" x 2" Semi-Steel Rigid Caster 4" x 4-1/2" Top Plate – 1000 lb | CasterHQ
5" x 2" · 1000 lbs
$31
View all plate casters →
Your selection is highlighted. Step up or down in load rating without leaving the page — all in-stock, ready to ship.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 900 lbsLighter duty | 5" × 2"Polyurethane | — | — | $62.00 | View → | |

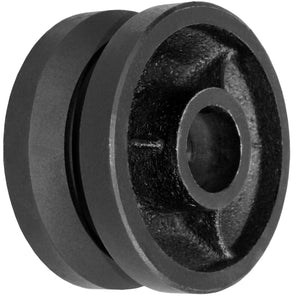

| 900 lbsLighter duty | 5" × 2"Cast Iron | — | — | $25.00 | View → | |
| 1000 lbs | 5" × 2"Phenolic | Swivel with Brake + brake | 6-1/2" | $123.00 | Viewing | |
| 1000 lbsSame capacity | 5" × 2"Ductile Iron | — | — | $24.00 | View → | |

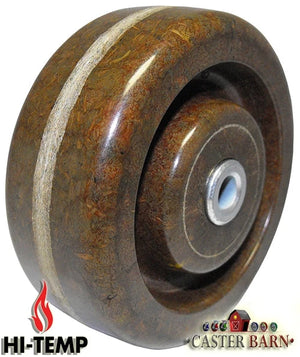

| 1000 lbsSame capacity | 5" × 2"High Temp Phenolic | — | — | $44.00 | View → |
