The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size. When replacing existing casters, select the closest plate size and verify bolt-hole compatibility. BHP = Bolt Hole Pattern, shown under each plate.
What Are Expanding Stem Casters and When Should You Use Them?
Expanding adapter stem casters insert directly into hollow tubular legs and expand to grip the inside wall — no tools for some designs, minor tools for others. The most adjustable solution for accommodating tube diameter variations. Common on office chairs, furniture, and light equipment with hollow square or round tube legs. Available with 2”–5” wheels handling loads up to 350 lbs per caster. CasterHQ stocks expanding stem configurations with 94% same–day shipping from our U.S. warehouse network backed by $100M+ in caster inventory.
JW
Jordan Wilson
Industrial Caster Specialist · 15+ Years in Caster Engineering
Access to $100M+ in–stock U.S. caster inventory
Application Engineers On Staff · ISO–Certified Facility · Trusted by 50,000+ Businesses Nationwide
☑Reviewed by CasterHQ Engineering — 100+ Combined Years in Caster Design, Selection & Application
350 lbs
Max Per–Caster Capacity
2”–5”
Standard Wheel Diameter
50K+
Businesses Served
✓
Is an Expanding Stem the Right Mount for Your Equipment?
✓
Your equipment has hollow tubular legs — Square or round tubes with open ends are perfect for expanding stem adapters, which grip from the inside
✓
You need adjustable fit for diameter variations — Expanding adapters compress when tightened, so they work across multiple tube sizes within a range
✓
You want tool–free or minimal–tool installation — Many expanding designs use wing nuts or simple bolts for hand–tightening, no power tools needed
✓
You’re replacing casters on modern furniture — Expanding stems are standard on contemporary office chairs, restaurant seating, and fixture bases with hollow legs
What Load Capacity Do Expanding Stem Casters Support?
Expanding stem casters range from 75–350 lbs per caster depending on wheel diameter, material, and bearing type. Use the N–1 method to calculate: divide total load by (number of casters − 1), then multiply by safety factor 1.15.
For example, if your total equipment weight is 180 lbs and you have 5 casters: (180 ÷ 4) × 1.15 = 51.75 lbs minimum per caster. Always purchase casters rated for or above this minimum.
How Do I Measure My Tube for an Expanding Stem Caster?
Measure the INSIDE diameter (ID) of your hollow tube leg using calipers or a tape measure. Expanding adapters fit specific ID ranges: common sizes are 3/4”, 7/8”, 1”, 1–1/4”, 1–3/16”, 1–1/2”, and 1–5/8”.
When you tighten the bolt on top of the expanding adapter, the rubber or nylon insert compresses and expands radially, gripping the tube wall. This compression provides a secure, non–slip hold even as the tube diameter varies slightly due to manufacturing tolerances.
How Do Expanding Stem Casters Install?

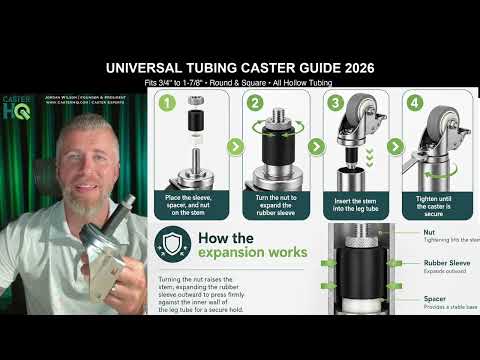

Insert the rubber or nylon expanding adapter into the open end of your hollow tube leg, then tighten the bolt on top. As the bolt tightens, the adapter compresses and expands to grip the inside tube wall securely. Some designs use a wing nut for completely tool–free tightening by hand.
Installation typically takes 30 seconds per caster. No drilling, no threading required. For removal, simply loosen the bolt and pull the caster straight out. This makes expanding stems ideal for temporary installations or frequent caster replacements.
Expanding Stem vs. Grip Ring vs. Threaded Stem — Which Mount Do I Need?
Choose Expanding Stem if your equipment has hollow tubular legs with no pre–installed socket or threads. Choose Grip Ring for round metal sockets (most common on office chairs). Choose Threaded Stem for tapped holes or threaded inserts.
Expanding stems excel when you need flexibility across tube size variations, when you want tool–free installation, or when you’re retrofitting furniture with hollow legs that lack factory sockets. They’re the most forgiving mount style for modern hollow–leg furniture.
💡Pro Tip: Polyurethane wheels are best for hard floors (tile, concrete), while rubber offers slightly better grip on carpet. Nylon is the most economical choice for light–duty applications.
Application GuideIndustries & equipment types where expanding stems excel
Office Seating
Modern office chairs with hollow tube base legs (square or round)
Commercial Furniture
Desks, tables, cabinets, and fixtures with expandable tube legs
Restaurant & Hospitality
Seating, food carts, and service equipment with hollow structural legs
Wire Shelving & Displays
Retail shelving units with expandable tube corner posts
Expanding vs. Grip Ring vs. ThreadedSide–by–side comparison of three common mount types
Feature
Expanding Stem
Grip Ring Stem
Threaded Stem
Install Speed
Tighten bolt, 30 sec
Push in, 2 sec
Screw in, 60 sec
Required Tools
Wrench or wing nut
None
Screwdriver or hex key
Tube Fit Range
Adjustable ±1/8”
Fixed (7/16” only)
Fixed (threaded insert)
Removal
Pull out after loosen
Pull straight out
Unscrew
Best For
Hollow tubes, variety
Factory sockets
Tapped holes
Cost
$18–$35
$12–$25
$14–$28
Selection TipsExpert guidance for choosing the right expanding stem caster
1
Measure tube ID precisely. Use calipers for accuracy; tape measures can be off by 1/16”. Most expanding adapters have a tolerance window of ±1/8”.
2
Check tube wall thickness. Expanding adapters grip the inside wall, so thicker walls provide better hold. Extremely thin–wall tubing may deform slightly during tightening.
3
Choose wheel material for your floor. Polyurethane for tile and concrete, rubber for mixed surfaces, nylon for general light duty and cost savings.
4
Replace all casters at once. Mixing new and worn casters creates uneven rolling and can stress the furniture frame. Replace as a full set.
Frequently Asked QuestionsCommon questions about expanding stem casters answered
Can I use expanding stems in solid (non–hollow) legs?
No. Expanding adapters require an open tube to insert into. For solid wood or solid metal legs, use a plate mount or threaded stem option instead.
Will the expanding adapter damage my tube?
No, if properly sized. The rubber or nylon adapter is designed to grip without cutting or deforming the tube. Under–sized adapters may fall out; oversized adapters may pinch or mark the tube slightly.
How tight should I tighten the bolt?
Snug, but not overtight. Tighten until the adapter grips firmly and the caster doesn’t spin when you try to twist it. Overtightening can compress the adapter excessively and stress the bolt.
Can I use expanding stems on square tubes?
Yes, many adapters work on both square and round tubes, as long as the inside dimension falls within the adapter’s tolerance range. Always measure the inside dimension (width for square, diameter for round).
⚠
What to Avoid
Solid (non–hollow) legs — Expanding adapters require a tube cavity to insert into. Use plate mount or threaded stem casters instead.
Tubes with pre–existing round sockets — If your equipment already has a factory–installed round socket, use grip ring stem casters, which snap in directly.
Loads exceeding 350 lbs — Expanding stems max out at 350 lbs per caster in light duty. Upgrade to medium or heavy duty plate casters for heavier equipment.
Extremely thin–wall tubing — Expanding adapters can slightly deform thin walls when tightened. Verify wall thickness ≥ 1/16” for reliable grip.
Need help choosing the right expanding stem caster?
Our application engineers will match you to the right caster for your exact tube size and equipment.
