All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Rubber and polyurethane favor floor protection; phenolic and steel favor heavy capacity. Compare materials →
























| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Polyurethane | Polyolefin | 3, 4 and 5 in | 275 to 350 lb | -45°F to 180°F | quiet, floor-friendly and long wearing |

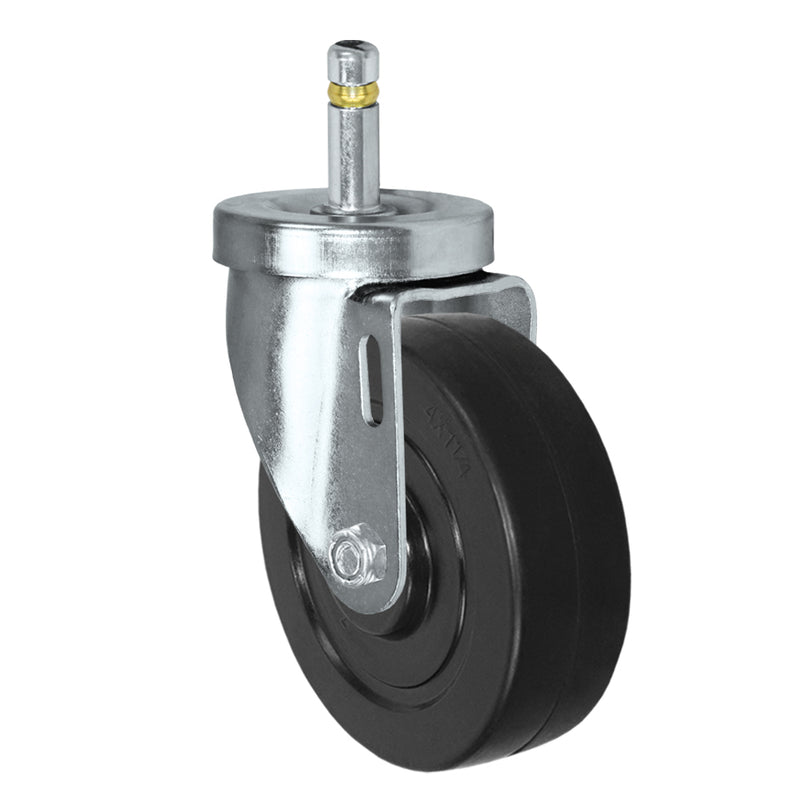

| Rubber | Polyolefin | 2, 3, 4 and 5 in | 80 to 315 lb | -45°F to 180°F | cushioned and quiet on finished floors |
| Nylon | 3, 4 and 5 in | 300 to 350 lb | -40°F to 210°F | low rolling effort on smooth floors, handles wet areas | |

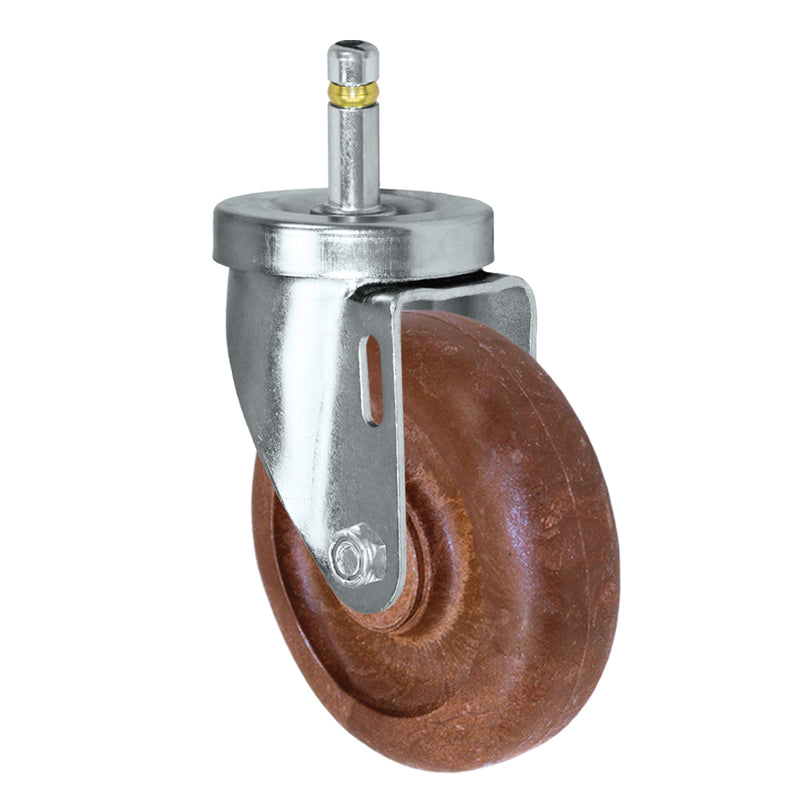

| Phenolic | 3, 4 and 5 in | 350 lb | -50°F to 250°F | hard and easy rolling on smooth, dry floors | |

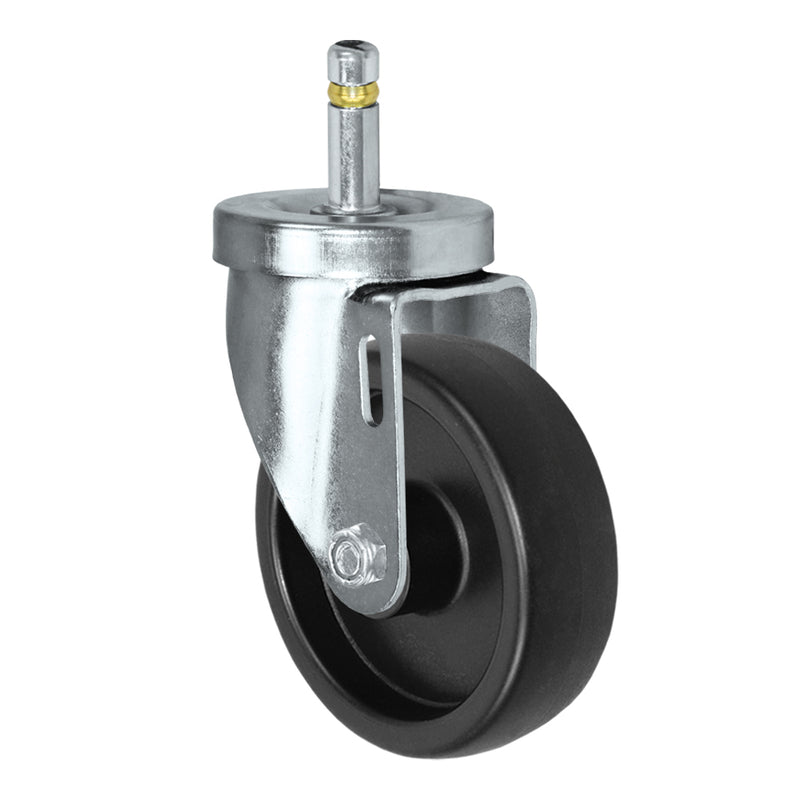

| Polyolefin | 2, 3 and 4 in | 200 to 300 lb | -20°F to 160°F | wet and chemical areas, light to medium loads | |
| Semi-steel | 3 in | 350 lb | -40°F to 400°F | rough floors, heat and heavy loads |
Ratings are for single casters of 7/16 x 1-3/8 in grip ring stem casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 3 x 1-1/4 in | rubber, polyurethane and phenolic | 225 to 350 lb |

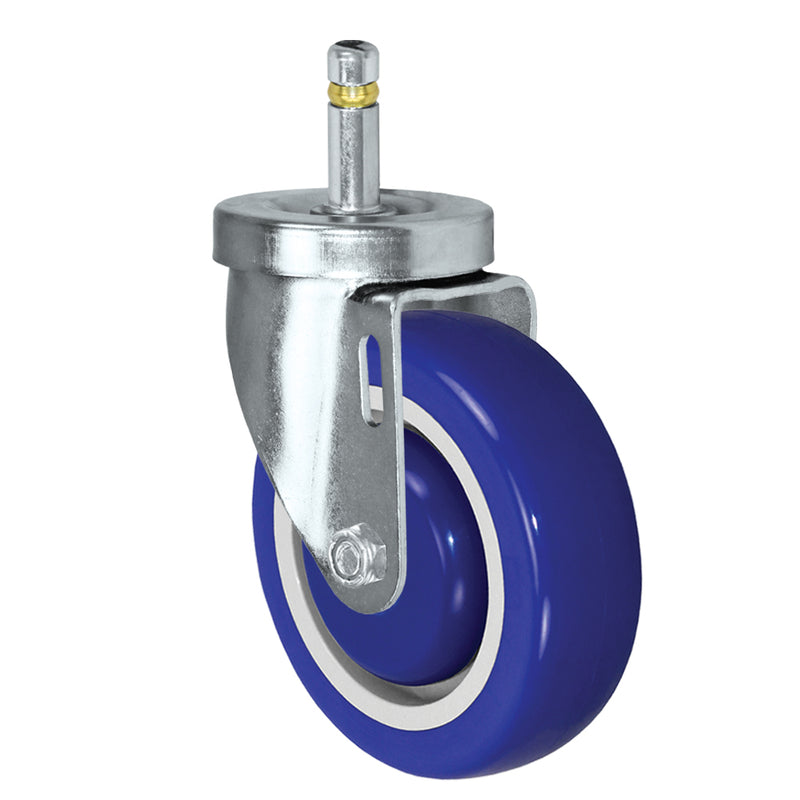

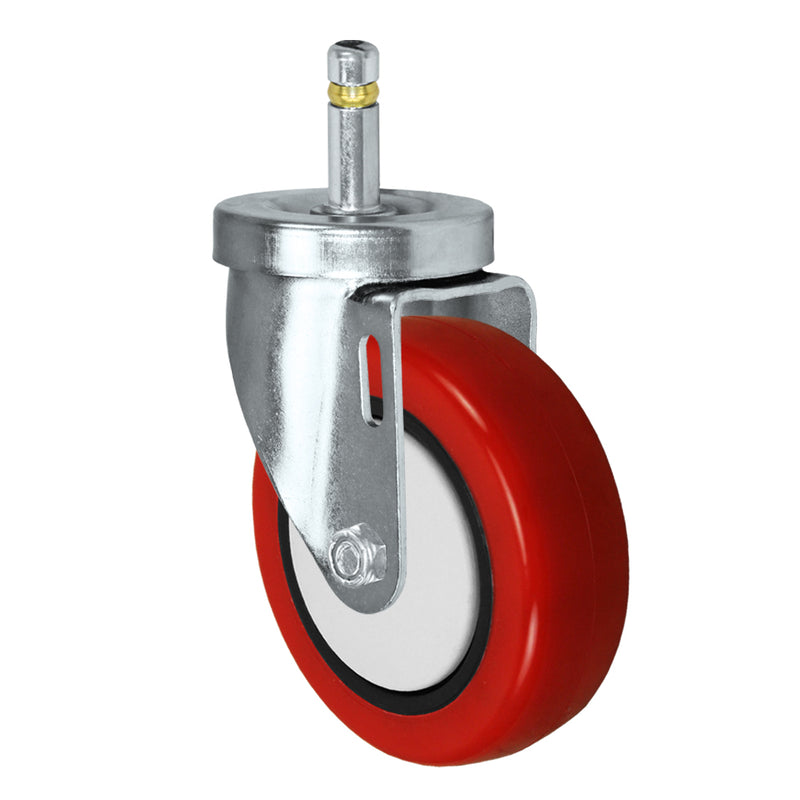

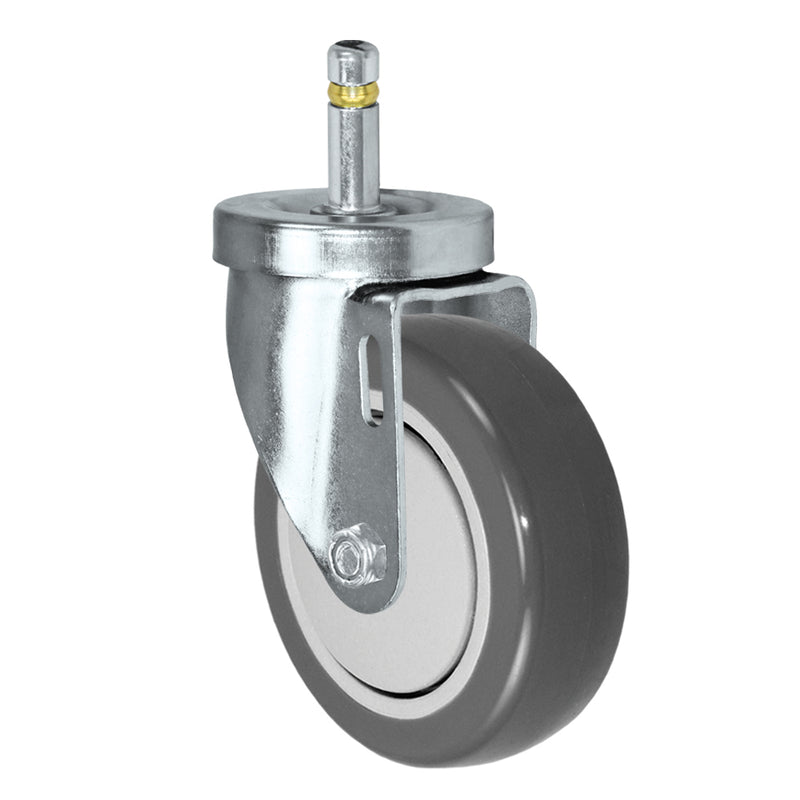

| 4 x 1-1/4 in | polyurethane, rubber and nylon | 300 to 350 lb |

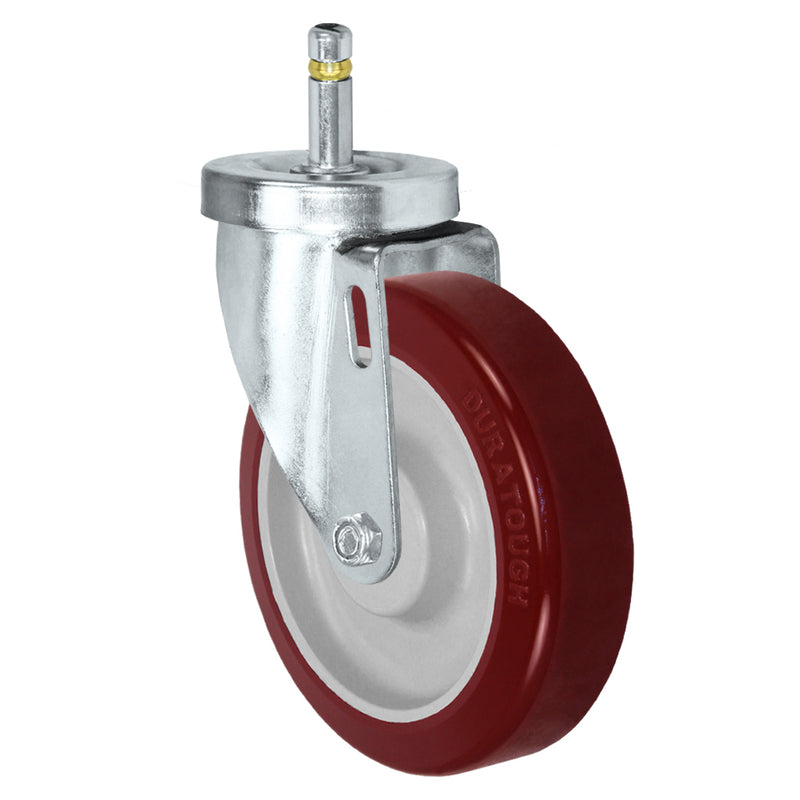

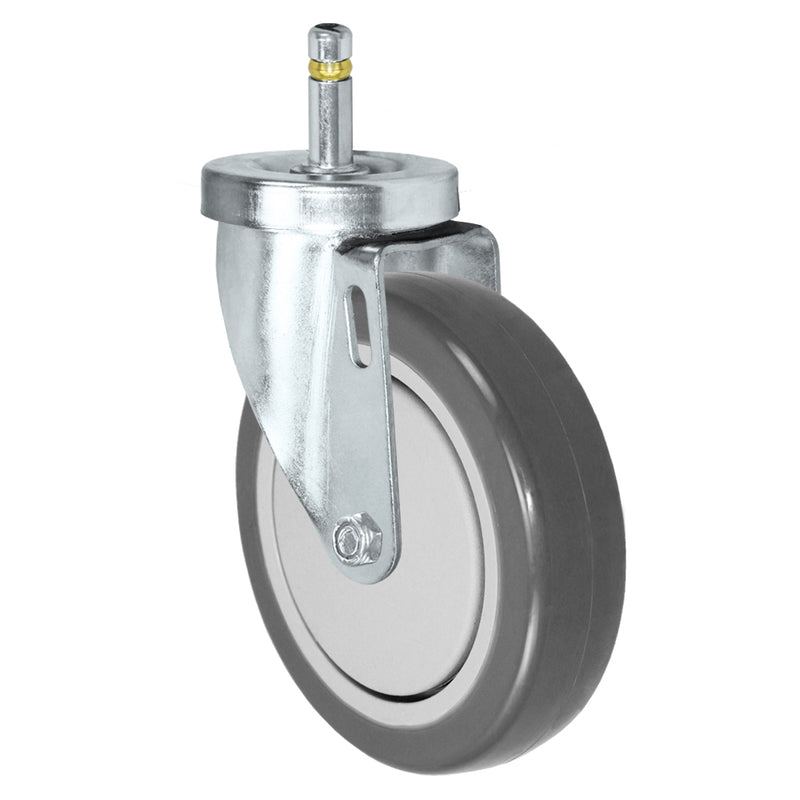

| 5 x 1-1/4 in | polyurethane, rubber and phenolic | 315 to 350 lb |
Single 7/16 x 1-3/8 in grip ring stem casters are rated 80 to 350 lb; most fall between 300 and 350 lb.
Most 7/16 x 1-3/8 in grip ring stem casters list 7/16 x 1-3/8 in. Others: 7/16 x 7/8 in.
Polyurethane leads on 7/16 x 1-3/8 in grip ring stem casters, rated 275 to 350 lb per caster. Among 7/16 x 1-3/8 in grip ring stem casters, rubber is next at 80 to 315 lb.
