Up to 350 lbs
Up to 7,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
Shock absorbing
Outdoor / rough terrain
View All Specialty Casters
Browse all specialty caster types
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Wheel = wheel diameter · capacity is per caster.










| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Cast iron | 4, 6, 8, 10 and 12 in | 1,000 to 3,500 lb | Up to 800°F | heat, chips and heavy loads on rough floors | |
| Phenolic | 4, 6, 8, 10 and 12 in | 800 to 3,500 lb | Up to 250°F | hard and easy rolling on smooth, dry floors | |
| Rubber | Cast iron | 6, 8, 10 and 12 in | 750 to 1,200 lb | -40°F to 180°F | cushioned and quiet on finished floors |
| Polyurethane | Cast iron | 6 and 8 in | 2,900 to 3,500 lb | -40°F to 180°F | quiet, floor-friendly and long wearing |
Ratings are for single casters of Albion industrial value line casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|

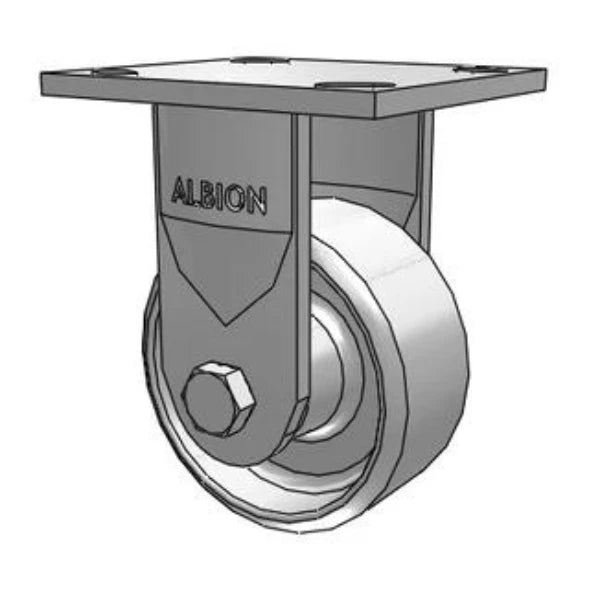

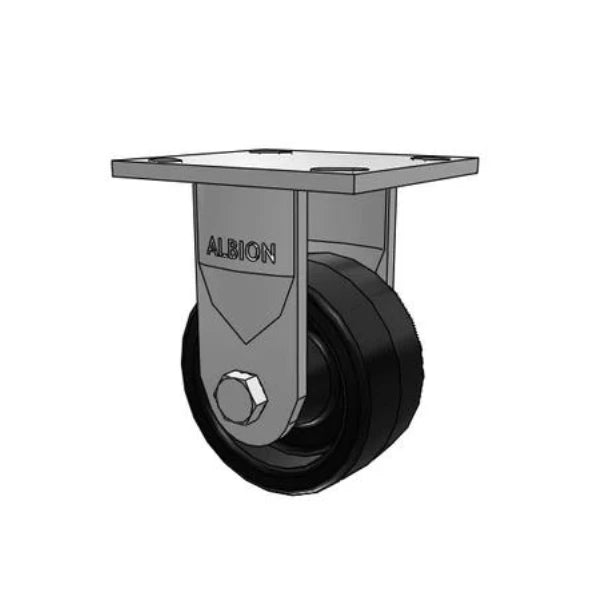

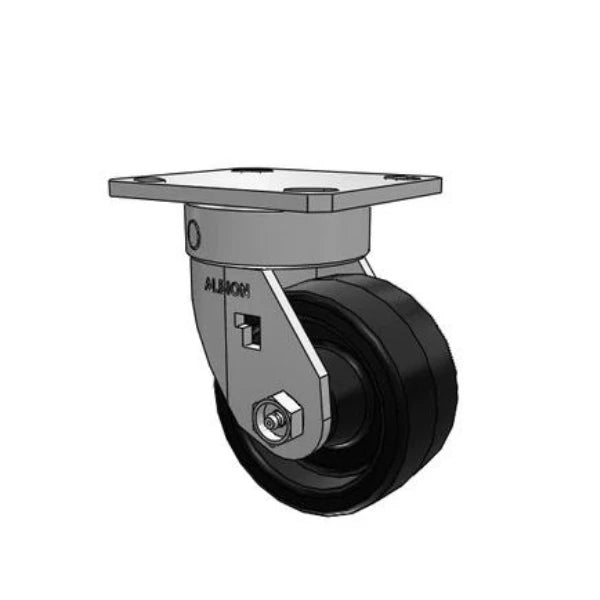

| 4 x 2 in | cast iron and phenolic | 800 to 1,000 lb |

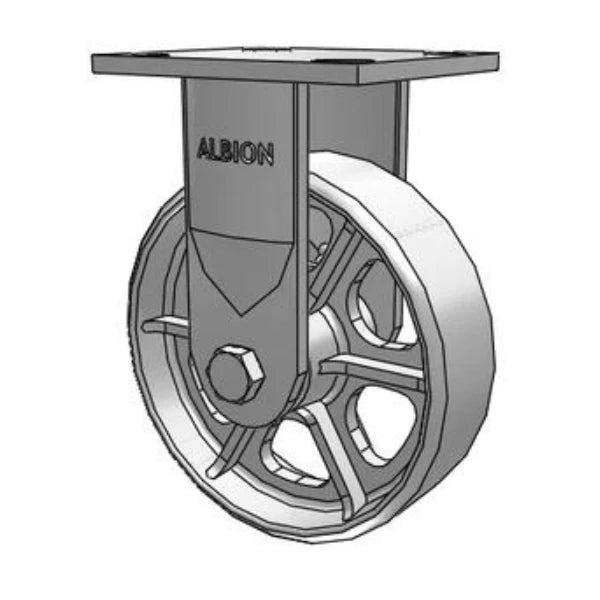

| 6 x 2 in | phenolic and cast iron | 1,200 to 1,400 lb |
| 6 x 3 in | cast iron, phenolic and rubber | 750 to 2,900 lb |
| 8 x 2 in | phenolic | 1,400 lb |
| 8 x 3 in | cast iron, phenolic and rubber | 900 to 3,500 lb |
| 10 x 3 in | cast iron, phenolic and rubber | 1,000 to 3,500 lb |
| 12 x 3 in | cast iron, phenolic and rubber | 1,200 to 3,500 lb |

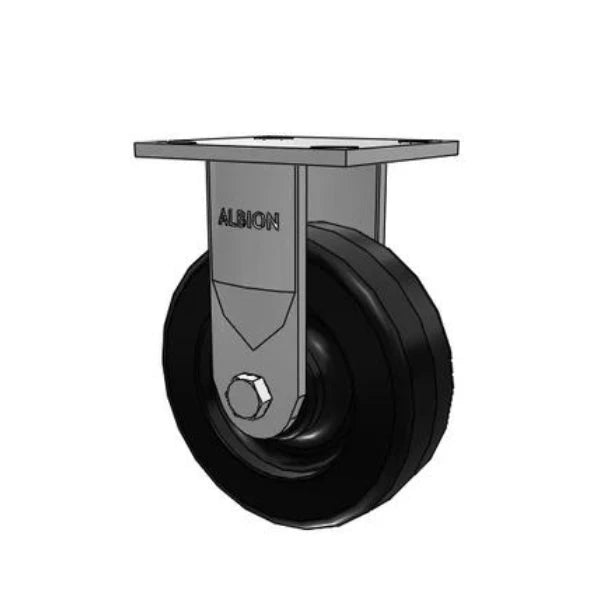

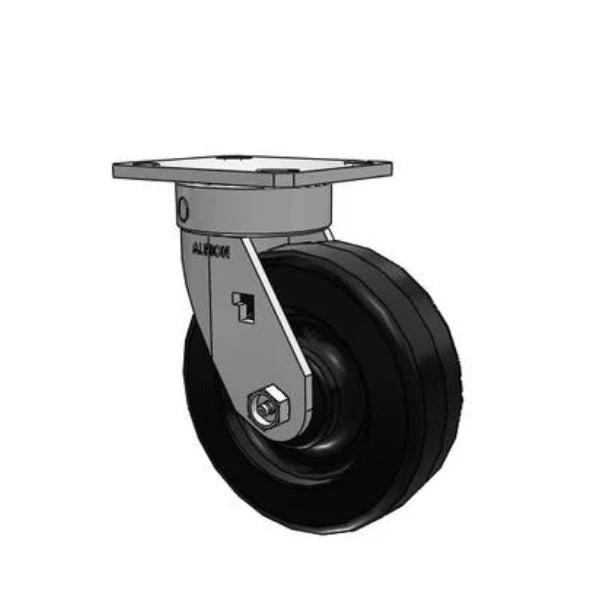

Related to Albion industrial value line casters: 6 x 2 in phenolic casters, 370 series and 470 series.
Single Albion industrial value line casters are rated 750 to 3,500 lb; most fall between 1,200 and 2,900 lb.
Most Albion industrial value line casters use 5-1/4 x 7-1/4 in. Other plates on Albion industrial value line casters: 4-1/2 x 6-1/4 in and 4 x 4-1/2 in.
Cast iron leads on Albion industrial value line casters, rated 1,000 to 3,500 lb per caster. Among Albion industrial value line casters, phenolic is next at 800 to 3,500 lb.
Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com
