All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Capacity shown is per caster (per wheel for wheels). How to measure a stem →
























| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|

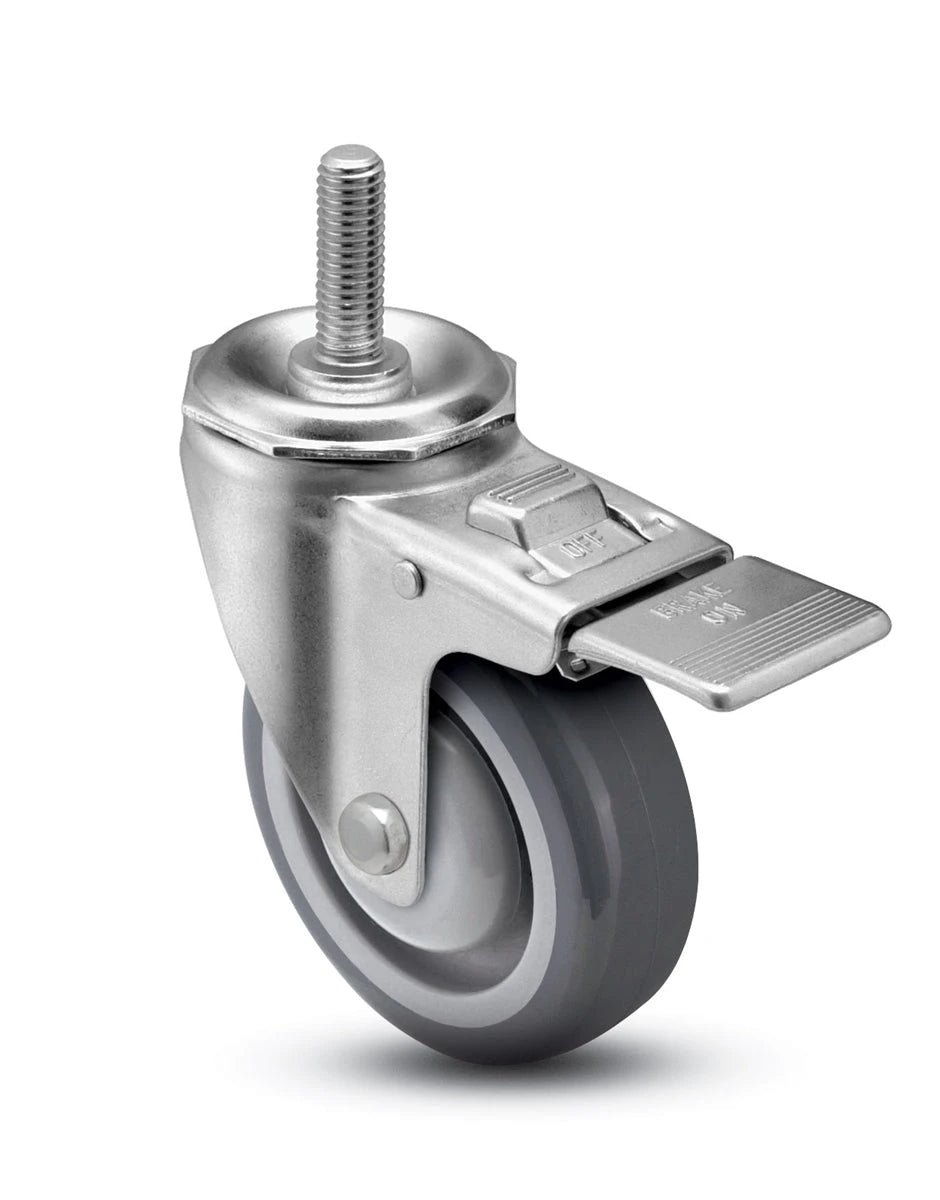

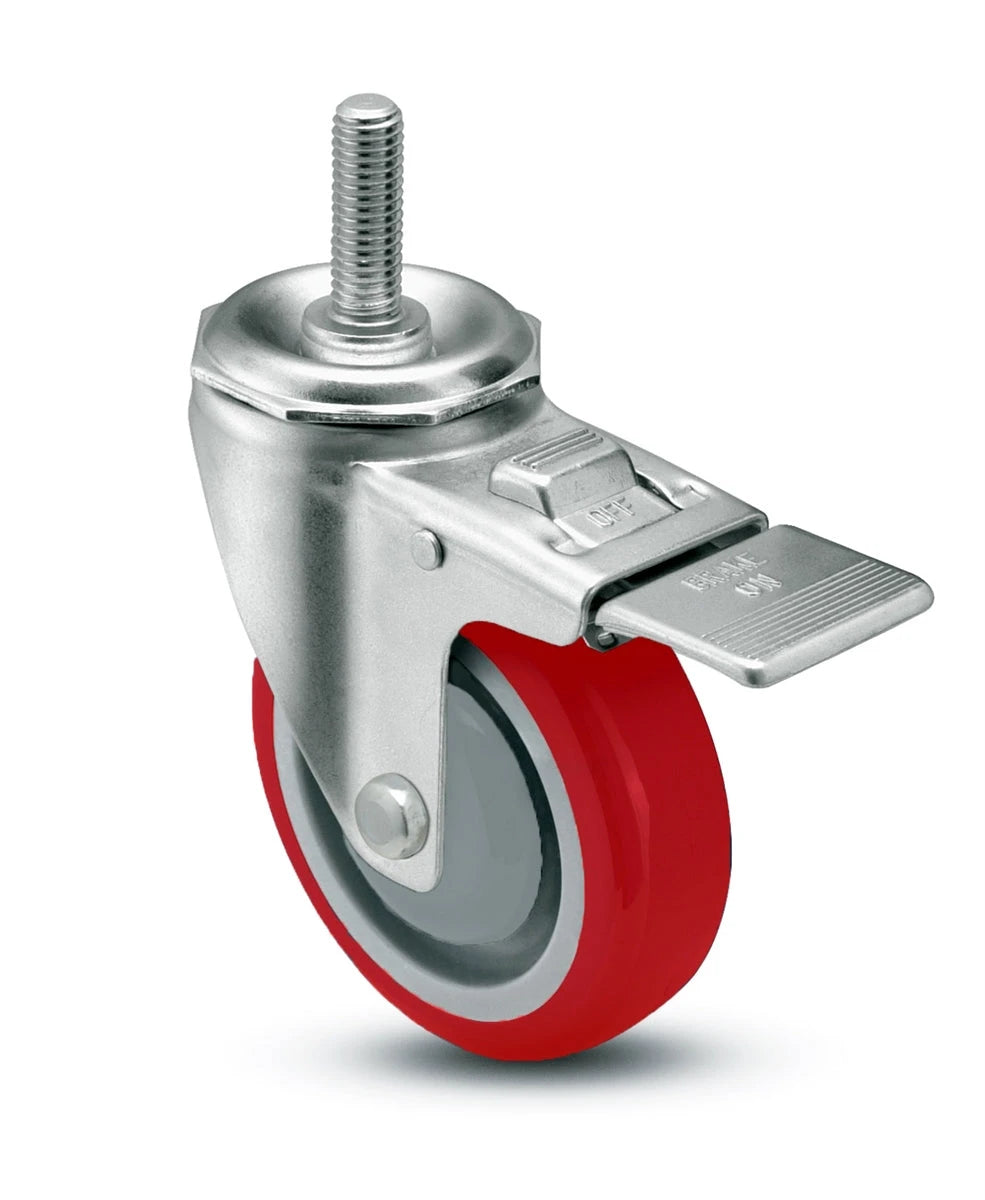

| Polyurethane | Polyolefin | 3, 3-1/2, 4 and 5 in | 250 to 350 lb | -45°F to 180°F | quiet, floor-friendly and long wearing |

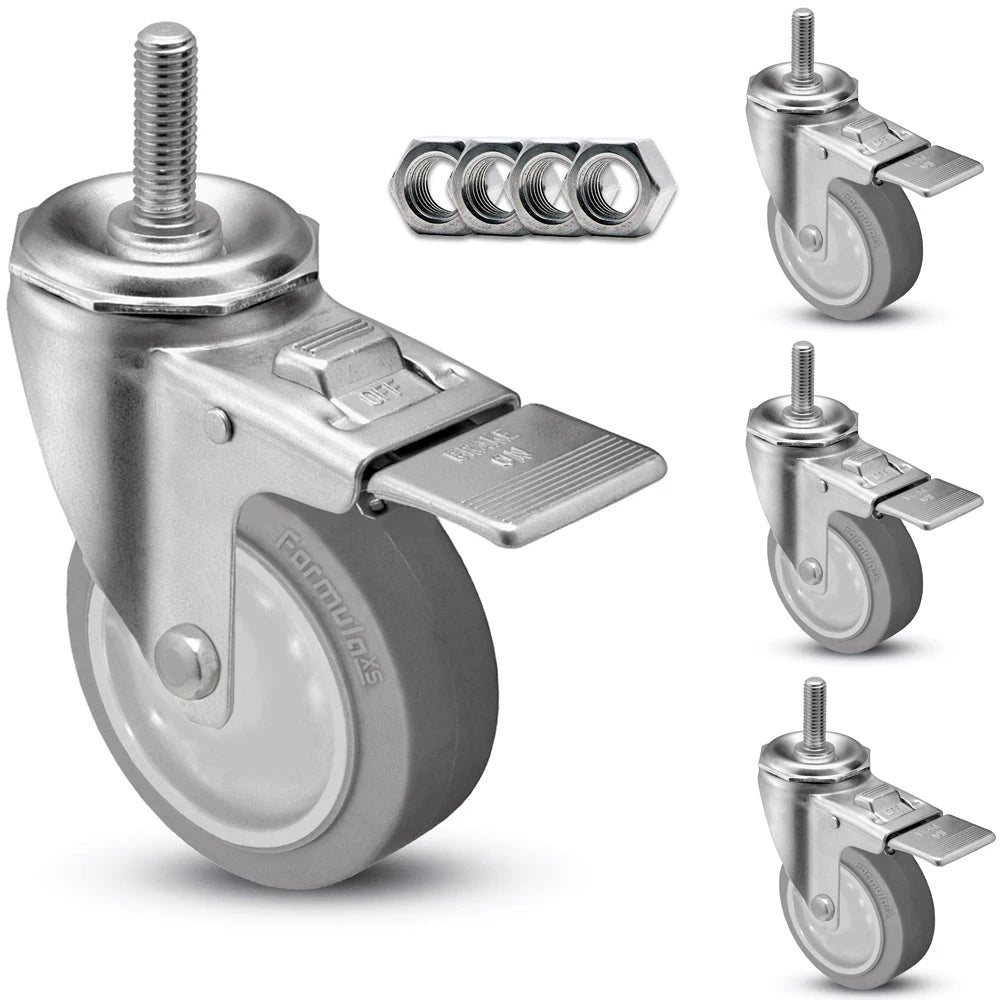

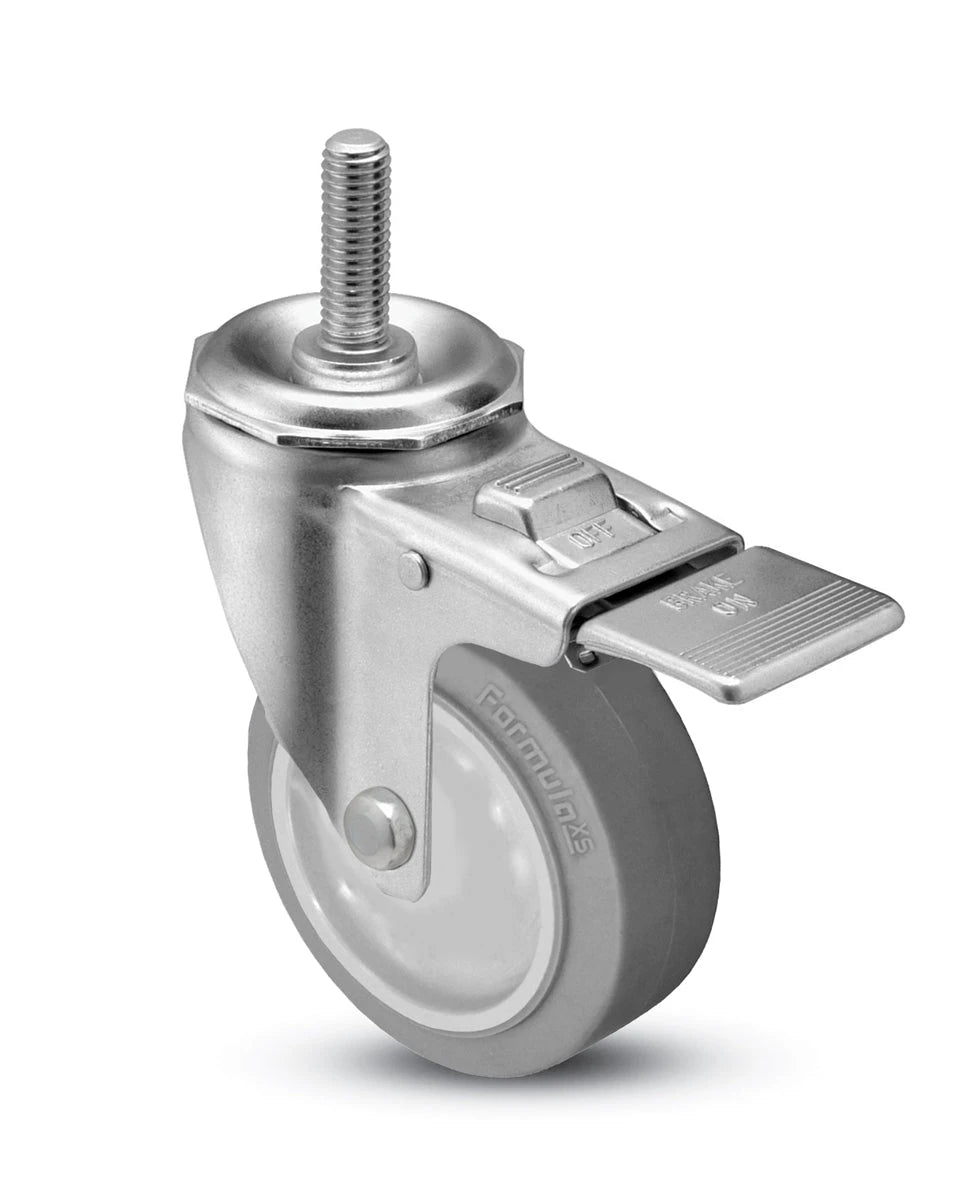

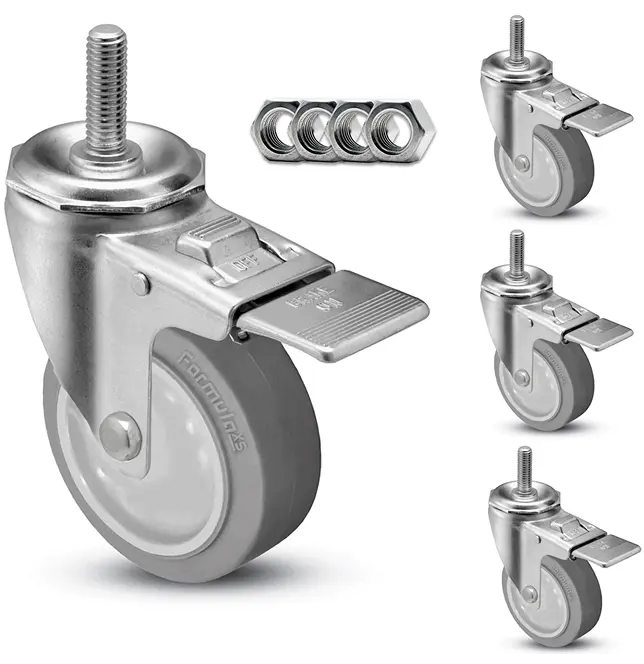

| Rubber | Polyolefin | 3, 3-1/2, 4 and 5 in | 190 to 1,400 lb | cushioned and quiet on finished floors | |

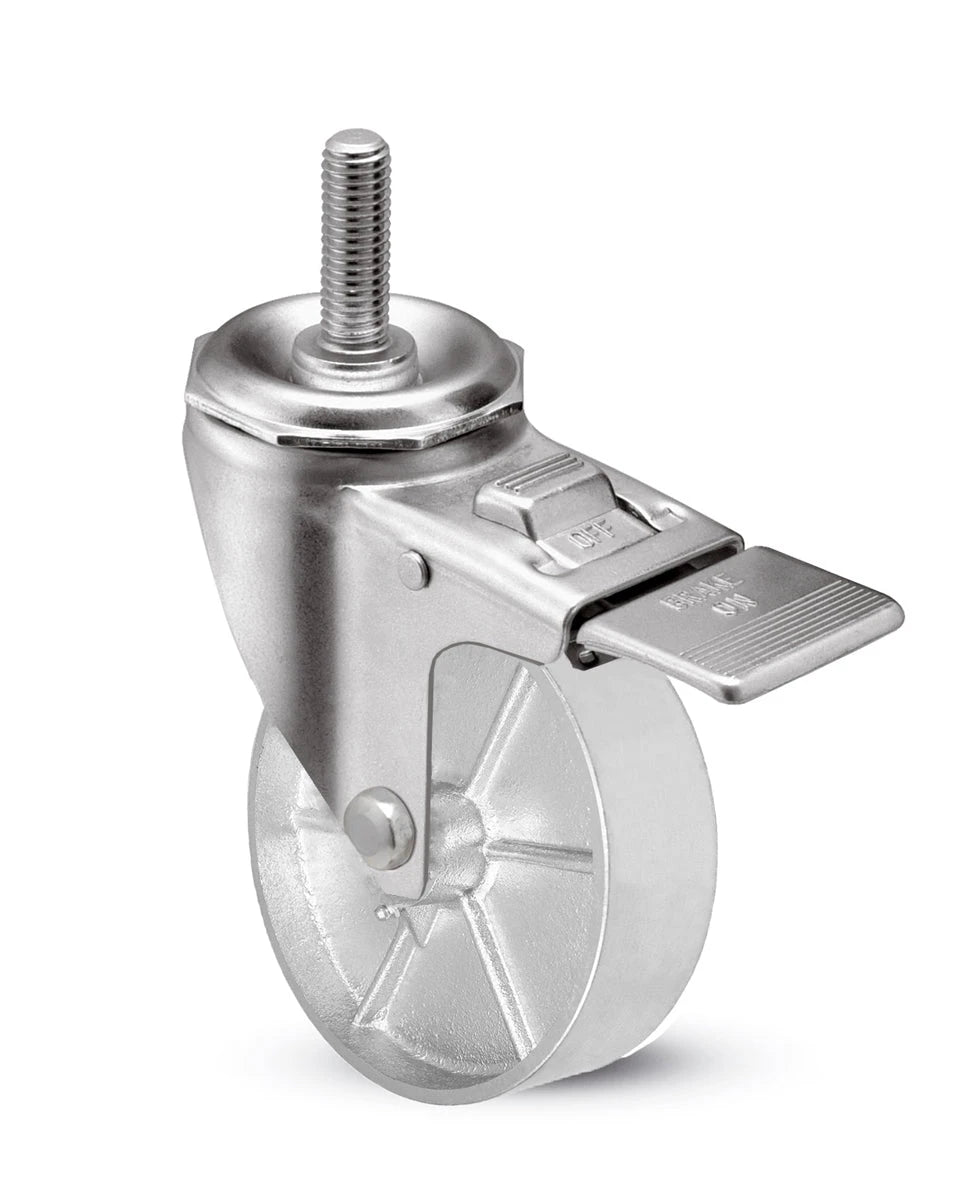

| Semi-steel | 4 and 5 in | 300 to 350 lb | -45°F to 600°F | rough floors, heat and heavy loads | |

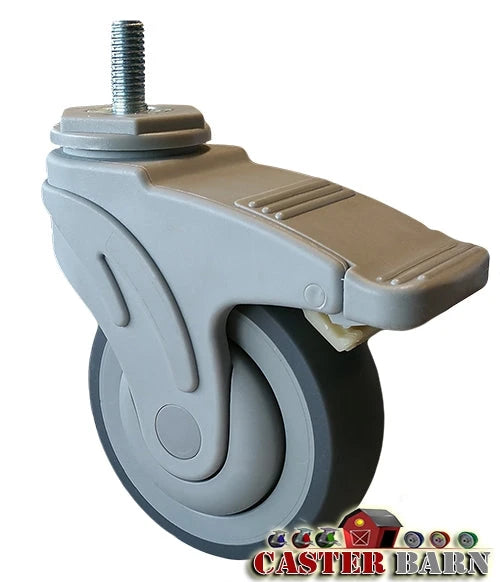

| Nylon | 4 in | 275 lb | Up to 160°F | low rolling effort on smooth floors, handles wet areas |
Ratings are for single casters of total lock stem casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 3 x 1-1/4 in | polyurethane and rubber | 190 to 300 lb |
| 3-1/2 x 1-1/4 in | polyurethane and rubber | 250 to 1,200 lb |
| 4 x 1-1/4 in | polyurethane, nylon and semi-steel | 250 to 350 lb |
| 5 x 1-1/4 in | polyurethane, rubber and semi-steel | 300 to 1,400 lb |
Related: total lock casters, total lock stem and total lock stem.
Single total lock stem casters are rated 190 to 1,400 lb; most fall between 300 and 350 lb.

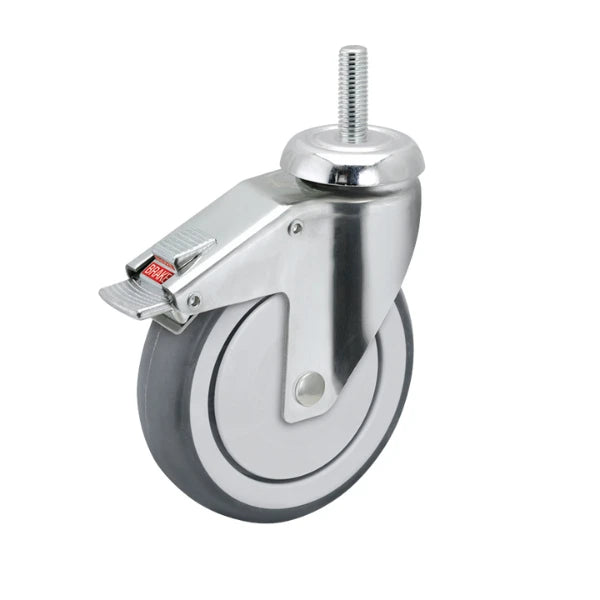

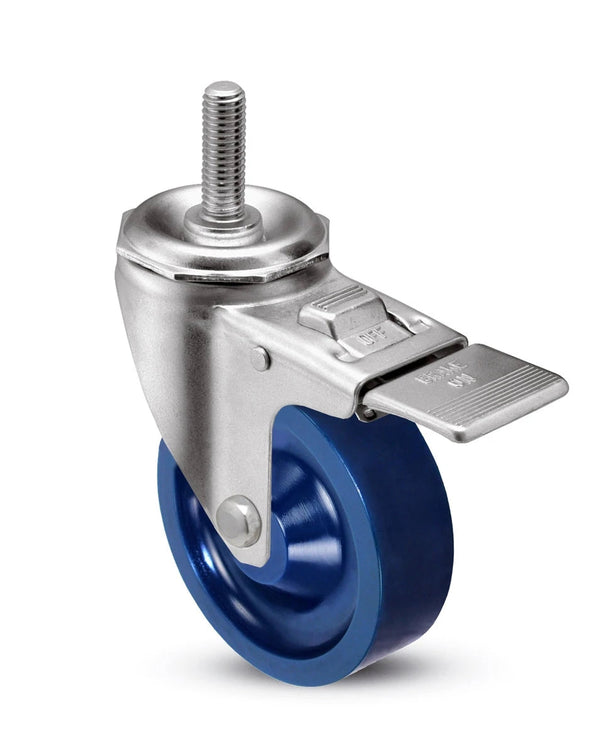

Most total lock stem casters list 1/2-13 x 1-1/2 in. Others: 1/2-13 x 1 in.
Polyurethane leads on total lock stem casters, rated 250 to 350 lb per caster. Rubber is next at 190 to 1,400 lb.
