CasterHQ's 'LD' NYLON PEDAL TOTAL LOCKING Series swivel casters with 3 inch Polyurethane on Polyolefin core (PP) wheels feature a heat treated ball bearing raceway and a bright zinc plated finish. These casters are ideal for light and medium duty material handling, carts, equipment, and shop projects.
Polyurethane wheels provide great protection for floors in commercial and industrial settings. Polyurethane on Polyolefin wheels feature an extreme resistance to water, oil, and grease. Being non-metallic, these polyurethane wheels are also spark proof.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

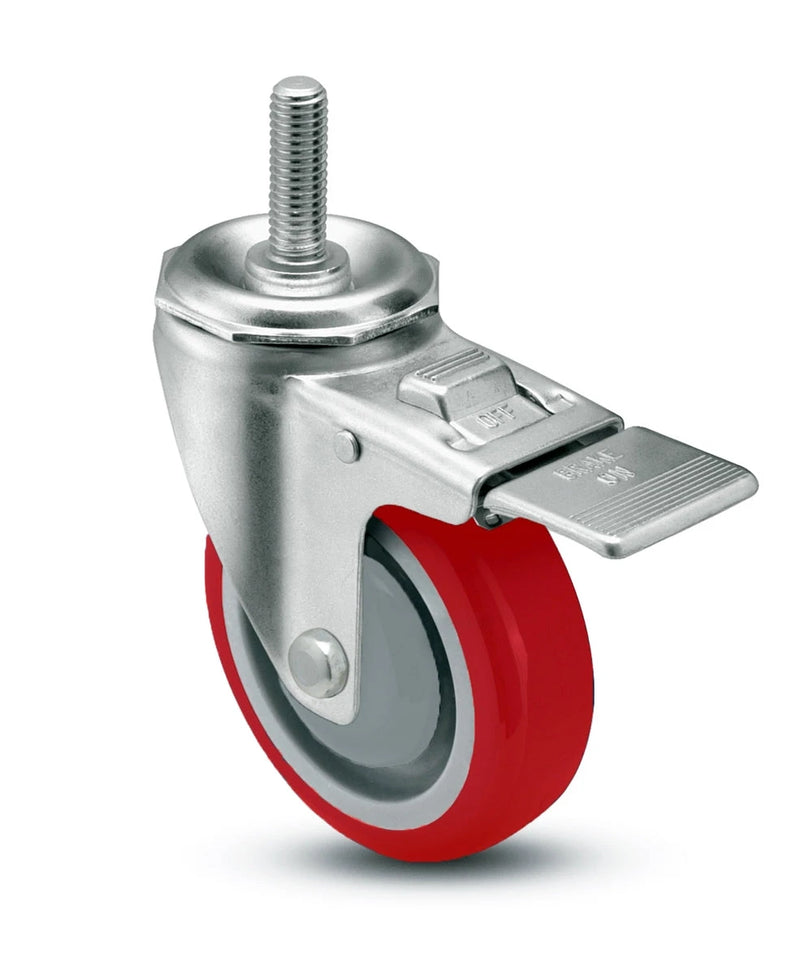

This 4" x 1.25" Polyurethane Total Lock Swivel Caster – 350 lb is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 1-1/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

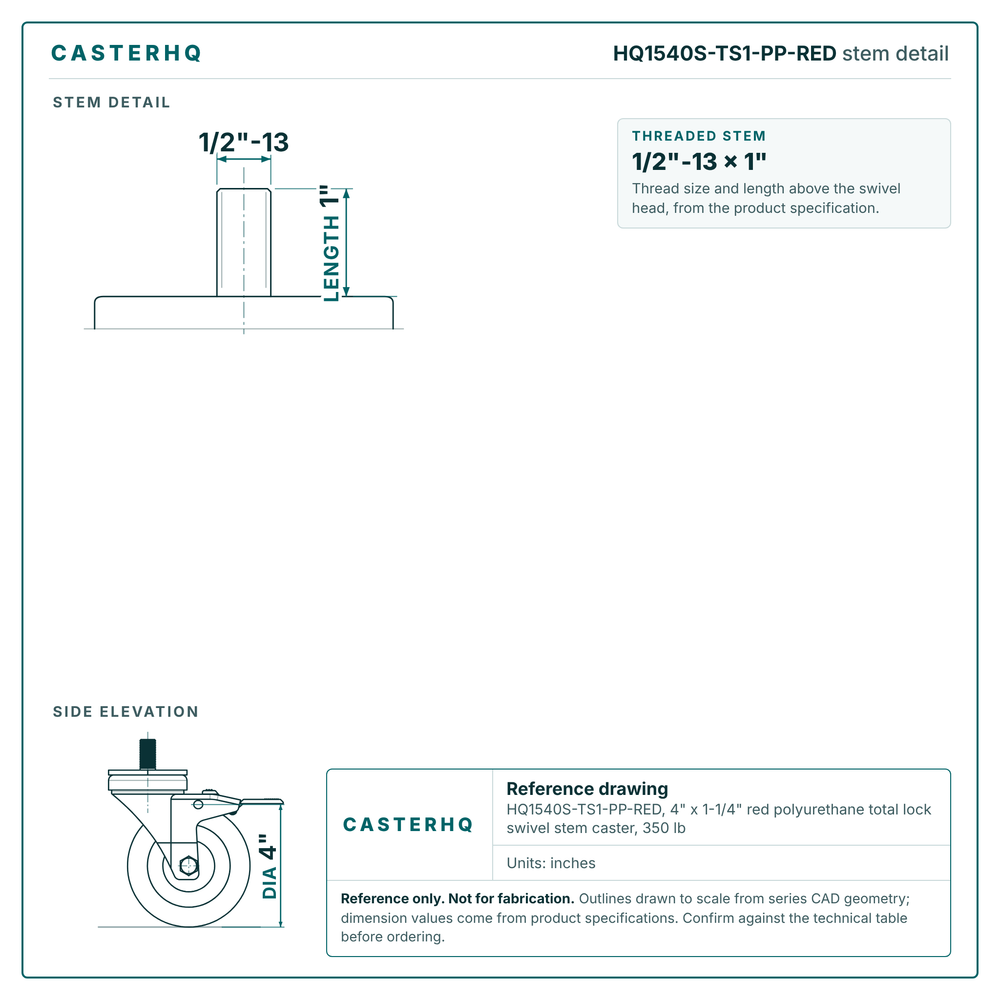

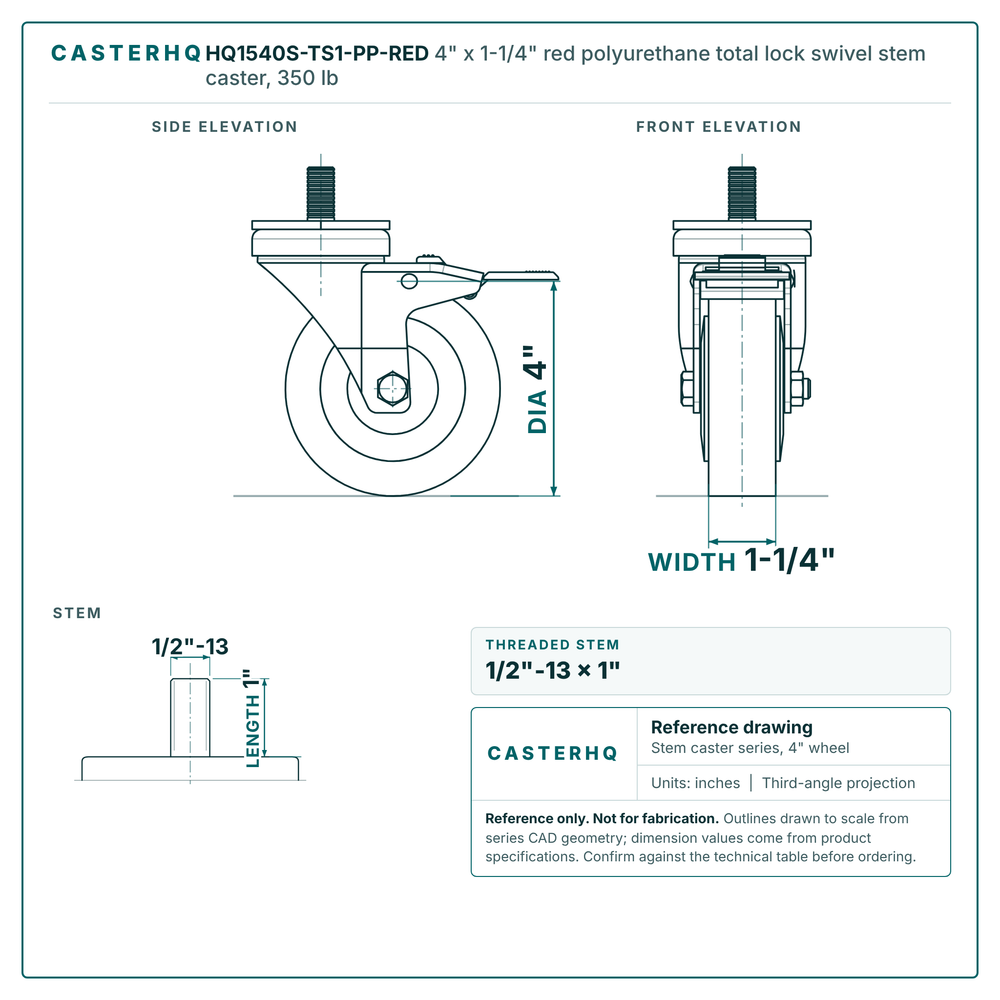

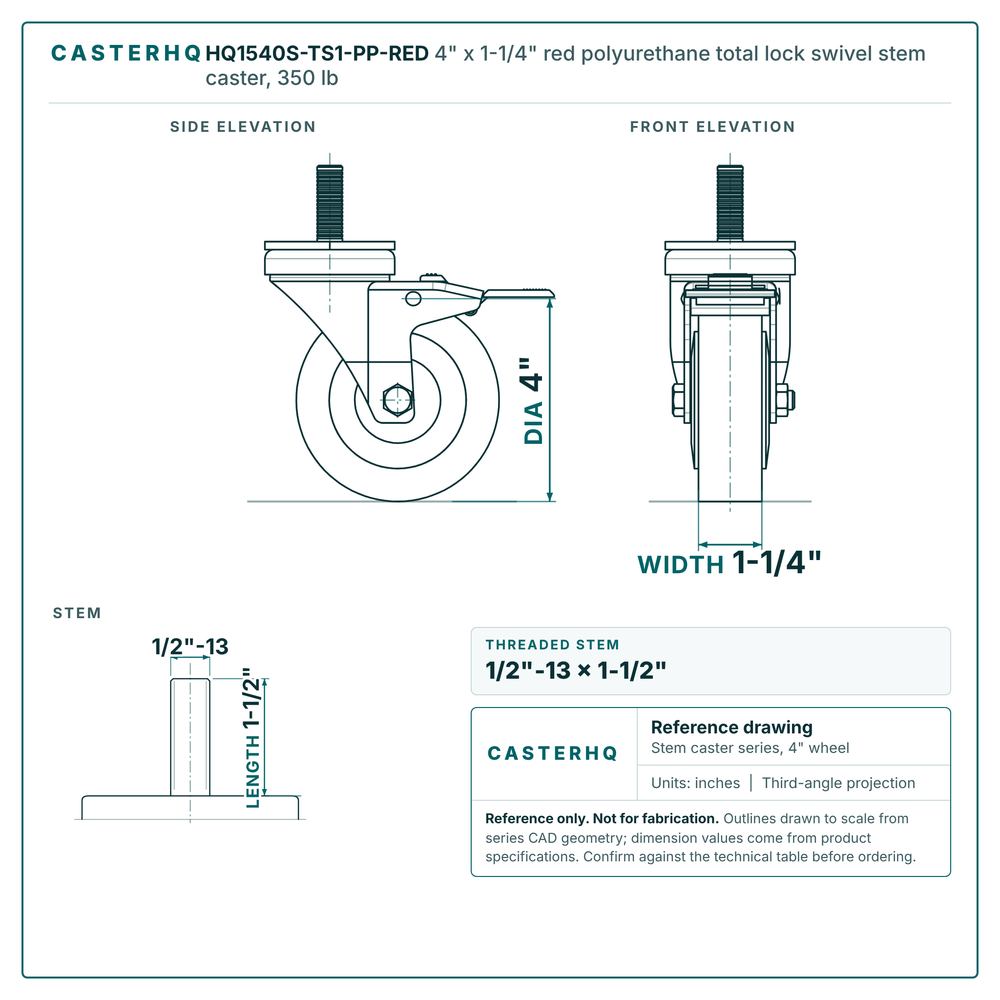

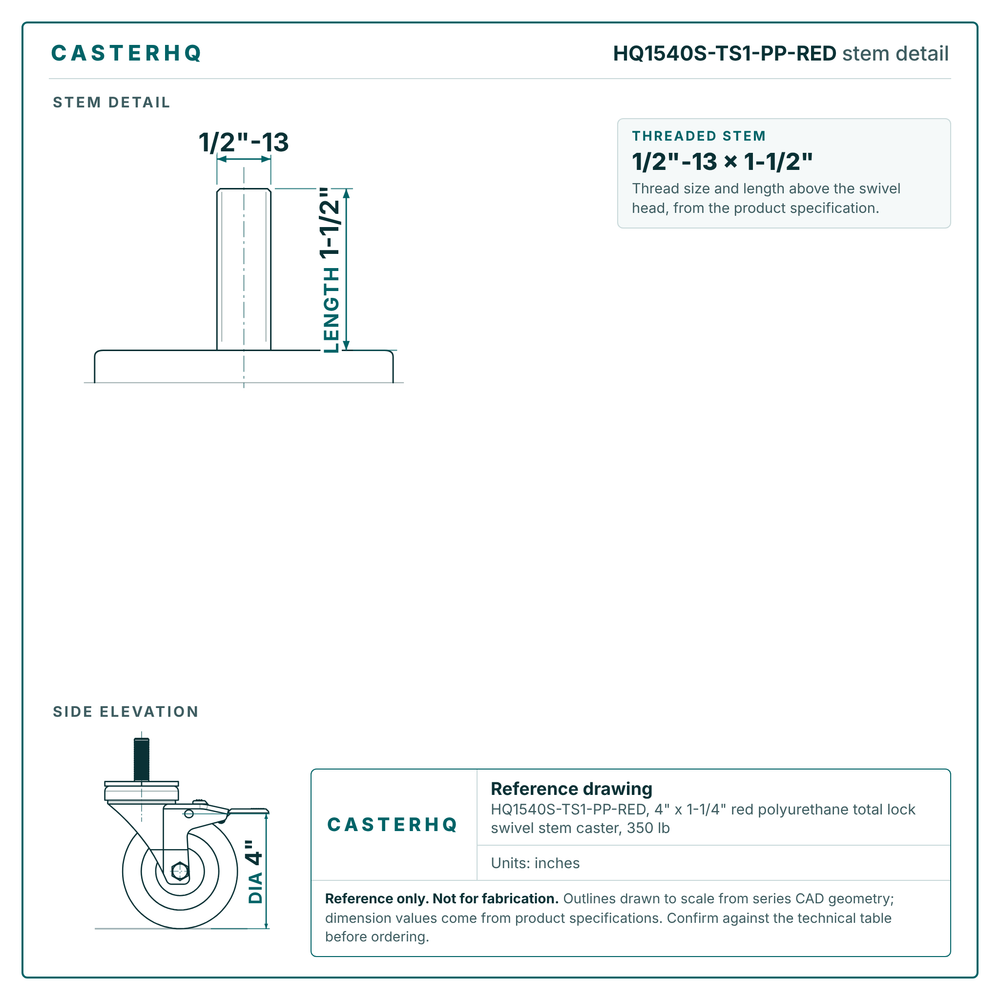

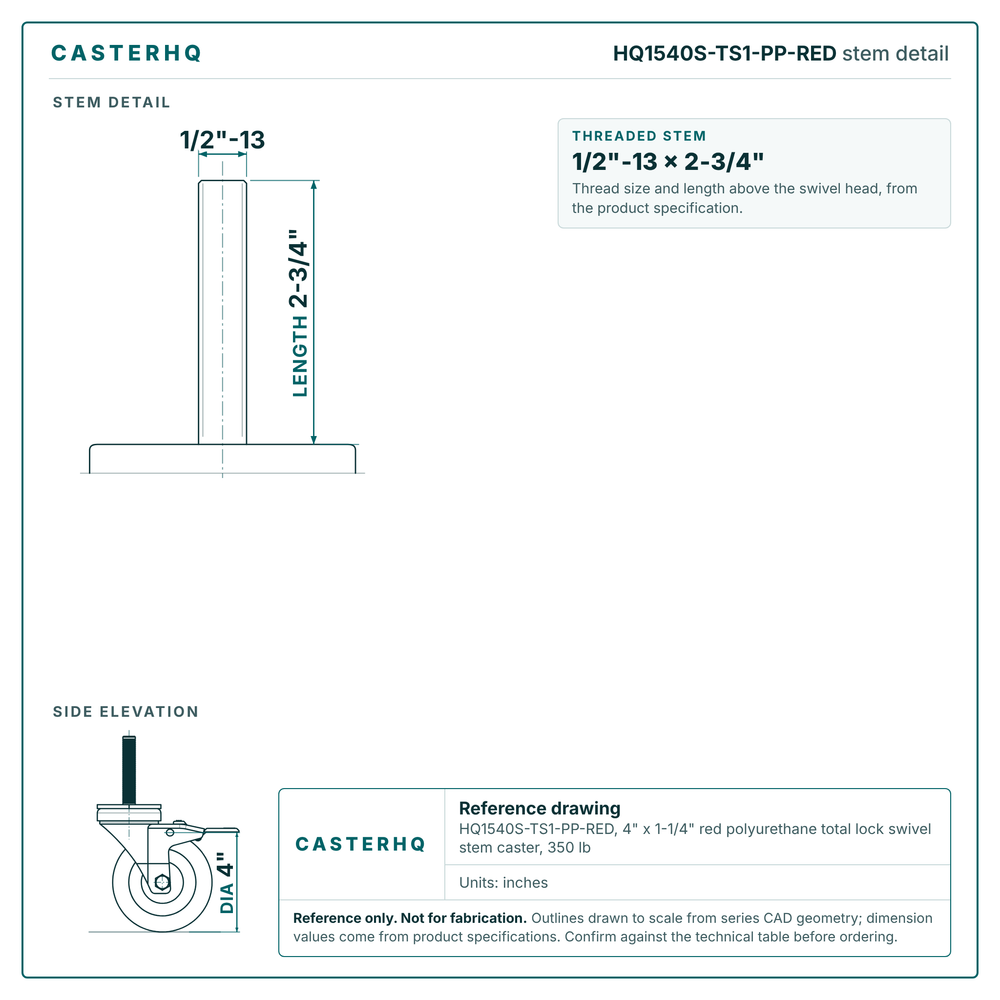

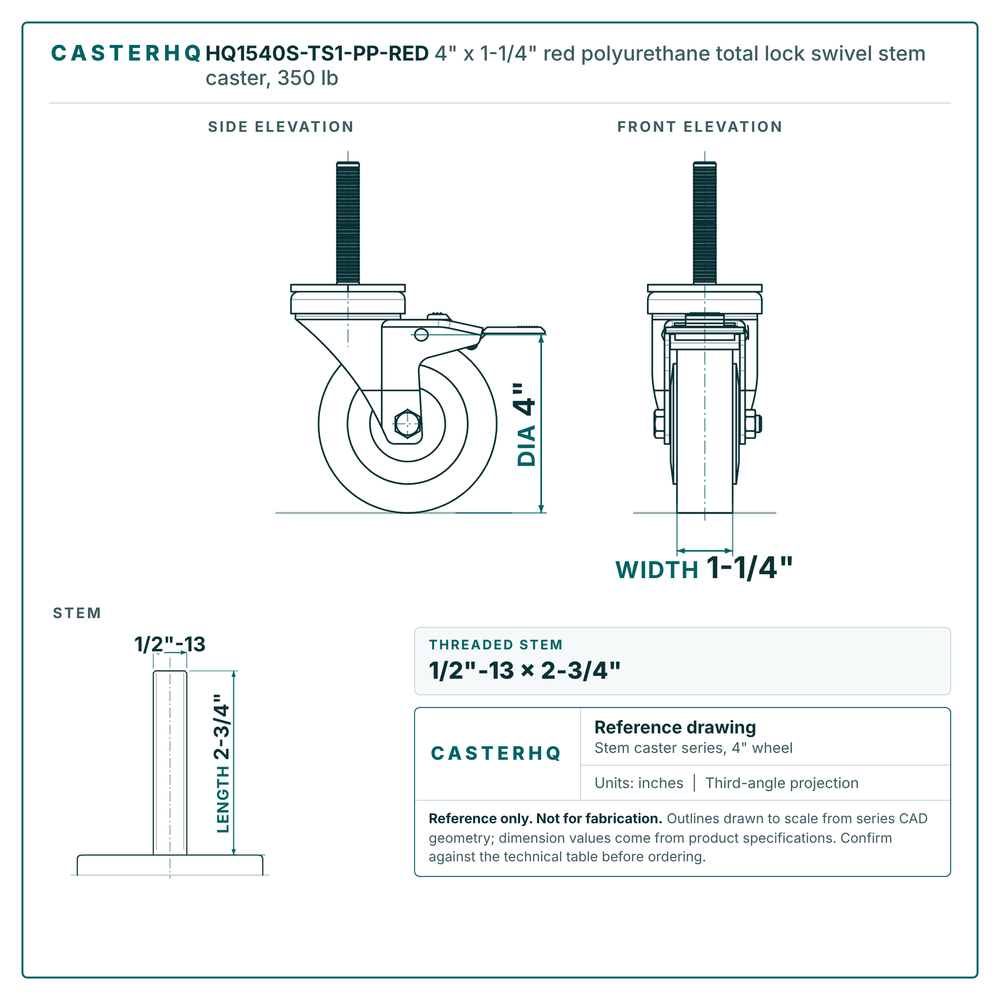

This caster uses a Threaded Stem mount. Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$37.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 1-1/4" |
| Mount Style | Threaded Stem |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 350 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
4" Polyurethane Swivel Caster – 350 lb | 1/2" x 1-1/2" Threaded Stem | CasterHQ
4" x 1-1/4" · 350 lbs
$23
4" High Temp Nylon Swivel Caster – 350 lb | 1/2" x 1-1/2" Threaded Stem
4" x 1-1/4" · 350 lbs
$31
4" Phenolic Swivel Caster – 350 lb | 1/2" x 1-1/2" Threaded Stem | CasterHQ
4" x 1-1/4" · 350 lbs
$23
View all 4′ x 1-1/4′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 325 lbsLighter duty | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $26.00 | View → | |
| 325 lbsLighter duty | 4" × 1-1/4"Polyurethane | Swivel | 6-1/4" | $29.00 | View → | |
| 350 lbs | 4" × 1-1/4"Polyurethane | Swivel with Total Lock Brake + brake | — | $37.00 | Viewing | |
| 350 lbsSame capacity | 4" × 1-1/4"Blue Solid Polyurethane | Swivel | 5-1/8" | $23.00 | View → | |
| 350 lbsSame capacity | 4" × 1-1/4"High Temp Phenolic | Swivel | 5-1/8" | $31.00 | View → |
