All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Safe & Applicance Dollies

Safe & Applicance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

3.5" x 1.25" Stainless Steel Casters

Plate sizes: 2-1/2 x 3-5/8Bolt holes: 1-3/4 x 2-13/16Diameter: 1-3/4, 3.5, 3-1/2 inTread: 1-1/4, 1-5/16 inCapacity: up to 250 lb
Casters on the 2-1/2 x 3-5/8 plate pattern suit light institutional and furniture-grade frames. Catalog chips cover wheel diameters 1-3/4, 3.5, 3-1/2 in, steel and stainless treads, and capacities 210 to 250 lb. Replace worn corners in matched sets when possible so the cart tracks straight under load. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. These light-duty options cover everyday light institutional and furniture-grade frames without jumping to extreme forged series.
210 lbs
TieredPricing
3.5" x 1.3125" Stainless Performa Delrin Bearing Rigid Caster - Durable High-Performance Caster with 2.5" x 3.625" Plate for Industrial Applications - Model 2.03408.564 colson-header1
Ships in 1-3 Business Days
3.5" x 1.3125" Performa Rigid Stainless Caster – CasterHQ
Part # 2.03408.564
$63.00
Volume pricing available
Gray RubberPlate
Load rating
210 lbs
Diameter 3-1/2"
Capacity 210 lbs
Wheel Gray Rubber
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-5/16"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
3.5" x 1.3125" Stainless Performa Delrin Bearing Rigid Caster with 2.5" x 3.625" Plate...
Shop Product
250 lbs
TieredPricing
3.5" x 1.25" Stainless Performa Delrin Bearing Rigid Caster with 2.5" x 3.625" Plate - High-Quality, Durable, and Stable Mobility Solution for Industrial Applications - 2.03408.444 colson-header1
Ships in 1-3 Business Days
Colson 2.03408.444 3.5" x 1.25" Performa Rigid Stainless Caster – CasterHQ
Part # 2.03408.444
from $59.00
Volume pricing available
Gray RubberPlate
Load rating
250 lbs
Diameter 3-1/2"
Capacity 250 lbs
Wheel Gray Rubber
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-1/4"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
3.5" x 1.25" Stainless Performa Delrin Bearing Rigid Caster with 2.5" x 3.625" Plate...
Shop Product
210 lbs
TieredPricing
3.5" x 1.3125" Stainless Performa Delrin Bearing Caster with Total Lock | Heavy-Duty 1.3125-Inch Wheel and 2.5 x 3.625-Inch Plate - Model 2.03456.564 BRK4 for Industrial Applications colson-header1
Ships in 1-3 Business Days
Colson 2.03456.564-BRK4 3.5" x 1.31" Performa Caster — 210 lb
Part # 2.03456.564-BRK4
$149.00
Volume pricing available
Gray RubberPlate
Load rating
210 lbs
Diameter 3-1/2"
Capacity 210 lbs
Wheel Gray Rubber
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-5/16"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel with Total Lock Brake
Brake Total Lock Brake
Frame Zinc Plated Steel
The Colson 2.03456.564-BRK4 is a 3.5" x 1.31" performa plate-mount caster rated 210 lbs,...
Shop Product
210 lbs
TieredPricing
Stainless Steel 3" Performa Delrin Bearing Swivel Side-Lock Caster with 2.5" Plate colson-header1
Ships in 1-3 Business Days
Colson 3" Performa Swivel Stainless Side-Lock Caster – 2.5" Plate
Part # 2.03456.564-BRK1
$134.00
Volume pricing available
Gray RubberPlate
Load rating
210 lbs
Diameter 1-3/4"
Capacity 210 lbs
Wheel Gray Rubber
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-5/16"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Stainless Steel Swivel Casters with Delrin Bearings Heavy-Duty & Long-Lasting | Shop Now &...
Shop Product
210 lbs
TieredPricing

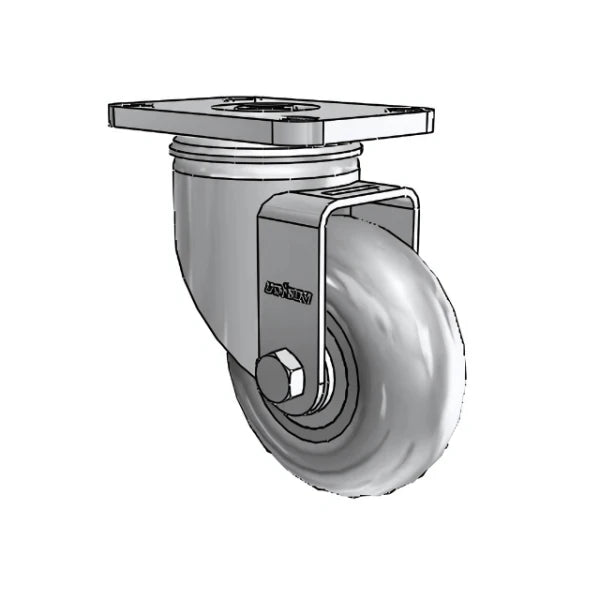

Colson Casters Stainless 3.5" x 1.3125" Performa Delrin Bearing Caster - 210 lbs Capacity, Durable Design with 2.5" x 3.625" Plate for Industrial & Medical Use (2.03456.564) colson-header
Ships in 1-3 Business Days
Colson 2.03456.564 3.5" x 1.3125" Performa Stainless Caster – 210 lb
Part # 2.03456.564
$93.00
Volume pricing available
Gray RubberPlate
Load rating
210 lbs
Diameter 3-1/2"
Capacity 210 lbs
Wheel Gray Rubber
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-5/16"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Colson Casters | Stainless 3.5" x 1.3125" Performa Delrin Bearing Caster Key Features Robust...
Shop Product
250 lbs
TieredPricing
3.5" x 1.25" Stainless Performa Delrin Bearing Caster with Total Lock, Durable and Corrosion-Resistant - 2.03456.444 BRK4 colson-header1
Ships in 1-3 Business Days
Colson 2.03456.444 BRK4 3.5" x 1.25" Performa Stainless Total Lock Caster
Part # 2.03456.444-BRK4
from $144.00
Volume pricing available
Gray RubberPlate
Load rating
250 lbs
Diameter 3.5"
Capacity 250 lbs
Wheel Gray Rubber
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-1/4"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel with Total Lock Brake
Brake Total Lock Brake
Frame Zinc Plated Steel
3.5" x 1.25" Stainless Performa Delrin Bearing Caster with Total Lock and 2.5" x...
Shop Product
250 lbs
TieredPricing
3.5" x 1.25" Stainless Performa Delrin Bearing Caster with 2.5" x 3.625" Plate - Durable and Reliable Mobility Solution for Industrial and Commercial Applications | Model 2.03456.444 colson-header1
Ships in 1-3 Business Days
Colson 2.03456.444 3.5" x 1.25" Performa Stainless Caster – 2.5" x 3.625" Plate
Part # 2.03456.444
from $93.00
Volume pricing available
Gray RubberPlate
Load rating
250 lbs
Diameter 3-1/2"
Capacity 250 lbs
Wheel Gray Rubber
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-1/4"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Core Polyolefin
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
3.5" x 1.25" Stainless Performa Delrin Bearing Caster with 2.5" x 3.625" Plate -...
Shop Product
225 lbs
TieredPricing
3.5" x 1.25" Stainless High-Temp TPE Precision Ball Caster with Total Lock, 2.5" x 3.625" Plate – Durable Industrial Caster for High-Heat Environments - 2.03456.414 H BRK4 colson-header1
Ships in 1-3 Business Days
Colson 2.03456.414-H-BRK4 3.5" x 1.25" High Caster — 225 lb
Part # 2.03456.414-H-BRK4
from $161.00
Volume pricing available
Plate
Load rating
225 lbs
Diameter 3.5"
Capacity 225 lbs
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-1/4"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Temp Range -20°F to 180°F
Rig Type Swivel with Total Lock Brake
Brake Total Lock Brake
Frame Zinc Plated Steel
The Colson 2.03456.414-H-BRK4 is a 3.5" x 1.25" high plate-mount caster rated 225 lb,...
Shop Product
225 lbs
TieredPricing
Stainless Steel 3.5" High-Temp Precision Bearing Swivel Side-Lock Caster with 2.5" Plate colson-header1
Ships in 1-3 Business Days
Colson 3.5" Stainless Steel Swivel Side-Lock Caster – 2.5" Plate
Part # 2.03456.414-H-BRK1
from $147.00
Volume pricing available
Plate
Load rating
225 lbs
Diameter 1-3/4"
Capacity 225 lbs
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-1/4"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Upgrade Your Equipment with Premium Casters Heavy-Duty Performance | Unbeatable Selection Discover a World...
Shop Product
225 lbs
TieredPricing
3.5" x 1.25" Stainless High-Temp TPE Precision Ball Rigid Caster - Durable, Heat-Resistant with 2.5" x 3.625" Plate - Model 2.03408.414 H for Industrial and Commercial Use colson-header1
Ships in 1-3 Business Days
Colson 2.03408.414 H 3.5" x 1.25" TPE Rigid Stainless Caster – 2.5" x 3.625" Plate
Part # 2.03408.414-H
from $76.00
Volume pricing available
Plate
Load rating
225 lbs
Diameter 3-1/2"
Capacity 225 lbs
Mount Plate
Plate Size 2-1/2" x 3-5/8"
More Details Less Details
Width 1-1/4"
Height 4.69"
Bolt Pattern 1-3/4" x 2-13/16"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
3.5" x 1.25" Stainless High-Temp TPE Precision Ball Rigid Caster with 2.5" x 3.625"...
Shop Product
