PRODUCT CODE: 2.03456.564-BRK4
The Colson 2.03456.564-BRK4 is a 3.5" x 1.31" performa plate-mount caster rated 210 lbs, ideal for heavy per caster, mounted on a 2-1/2" x 3-5/8" Top Plate for easy mounting. plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 3.5" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The 2.03456.564-BRK4 earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 3.5" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 2.03456.564-BRK4 is decoded by your CasterHQ engineer at order time — call us at 877-721-7837 for a full breakdown.
210 lbs, ideal for heavy per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 3.5" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

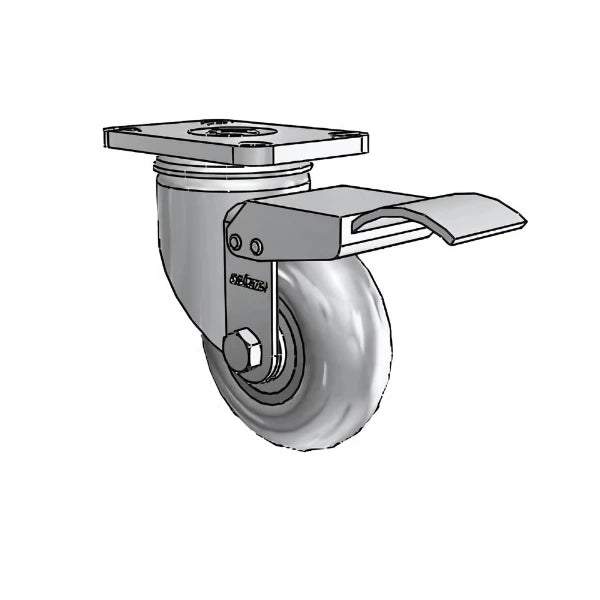

The 3.5" x 1.3125" Stainless Performa Delrin Bearing Caster with Total Lock is meticulously engineered for enhanced mobility and stability in industrial settings. With its robust stainless steel construction and advanced Delrin bearings, this caster ensures seamless operation even under heavy loads.
This caster is perfect for a variety of applications, including:
To ensure optimal performance and longevity of your caster:
The caster comes with a 3-year warranty, reflecting our commitment to quality and customer satisfaction. Additionally, it is RoHS compliant and an NSF component (less thread guards), ensuring that it meets industry standards for safety and environmental responsibility.
$149.00
| Wheel Diameter | 3-1/2" |
| Wheel Tread Width | 1-5/16" |
| Overall Height | 4.69" |
| Wheel Capacity | 210 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 1-3/4" x 2-13/16" |
| Mount Style | Plate |
| Plate Size | 2-1/2" x 3-5/8" |
| Rig Type | Swivel with Total Lock Brake |
| Brake Type | Total Lock Brake |
