The Colson 2.03456.414-H-BRK4 is a 3.5" x 1.25" high plate-mount caster rated 225 lb, designed for medium per caster, mounted on a standard plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 3.5" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The 2.03456.414-H-BRK4 earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 3.5" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 2.03456.414-H-BRK4 is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
225 lb, designed for medium per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 3.5" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

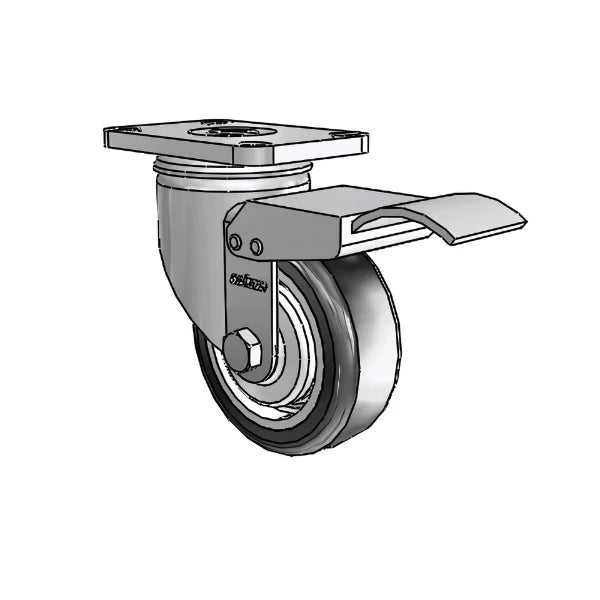

The 3.5" x 1.25" Stainless High-Temp TPE Precision Ball Caster with Total Lock is a premium solution for industrial and high-heat environments. Featuring a durable stainless steel frame and high-temperature-resistant Thermoplastic Elastomer (TPE) wheel, this caster ensures both exceptional performance and durability under extreme conditions. The precision ball bearings provide smooth, quiet mobility, making it ideal for a range of heavy-duty applications, from manufacturing plants to food processing facilities.
Designed with industrial-grade full double ball hardened raceways, this caster provides superior strength and extended lifespan, even in high-traffic areas. The multi-temp grease used in the raceways enables optimal performance in extreme hot and cold temperatures, ensuring reliable operation in a variety of environments. With a load capacity of 225 lbs, this caster is well-suited for medium-duty equipment and applications.
The Total Lock Brake (BRK4) provides both wheel and swivel lock, ensuring the caster stays securely in place when needed. This brake system is particularly useful in industrial environments where precise equipment positioning is critical for safety and efficiency. Whether it's on a workbench, cart, or machinery, the total lock feature helps maintain control and stability, reducing potential accidents.
Engineered with high-temperature Thermoplastic Elastomer (TPE) wheels, this caster can operate in temperatures ranging from -40°F to +180°F. This makes it perfect for extreme conditions such as high-heat industrial facilities or refrigerated environments. The wheel tread has a flat profile that provides stability on smooth surfaces, while the wheel hardness of 65 Shore A strikes the ideal balance between durability and grip.
The caster's 2.5" x 3.625" top plate allows for easy installation on various types of equipment. The flexible bolt hole pattern (1-3/4" x 2-13/16" to 3-1/16") ensures compatibility with a range of equipment designs, making this caster a versatile choice for industrial carts, shelving units, and workstations. The recommended bolt size for secure attachment is 5/16".
The stainless steel finish provides excellent resistance to corrosion, ensuring the caster withstands harsh environments such as wet or humid conditions. This caster is built to last, featuring a 3/8" 304-grade stainless steel axle for enhanced strength and durability. Whether in food processing, chemical plants, or other harsh environments, this caster maintains performance and integrity over time.
This product is RoHS compliant and features NSF component certification (excluding thread guards), making it a reliable choice for industries that prioritize regulatory compliance and product safety. Additionally, the caster comes with a 3-year warranty, ensuring peace of mind and long-term value for your investment.
This Colson 2.03456.414-H-BRK4 3.5" x 1.25" High Caster — 225 lb is rated to 225 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 4.69". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$161.00
| Identification | |
| Brand | colson header1 |
| Dimensions & Mounting | |
| Wheel Diameter | 3.5" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 4.69" |
| Plate Size | 2-1/2" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-13/16" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 225 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
