Albion V-Groove Casters, 4 x 4-1/2 Plate

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4, 5, 6 inTread: 2, 3 inCapacity: up to 2,800 lb
Casters on the 4 x 4-1/2 plate pattern suit V-groove track and guided rail systems. Typical builds show wheel diameters 4, 5, 6 in, cast iron treads, and capacities 800 to 2,800 lb. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade. Larger plates spread bolt stress on thick frames under continuous tow abuse. These heavy-duty options cover everyday V-groove track and guided rail systems without jumping to extreme forged series.
800 lbs
TieredPricing
Albion Casters 4"x2" Rigid Caster with V-Groove Cast Iron Wheel - USA-Rig Model 16VG04201R for Industrial Equipment Albion-Casters
Ships in 1-3 Business Days
Albion 16VG04201R 4"x2" V-Groove Cast Iron Rigid Caster – 4"x4-1/2" Plate
Part # 16VG04201R
from $44.00
Volume pricing available
Cast IronPlate
Load rating
800 lbs
Diameter 4"
Capacity 800 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5.63"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Albion Casters 4"x2" USA-Rig Rigid Caster with V-Groove Cast Iron Wheel - 16VG04201R Product...
Shop Product
1400 lbs
TieredPricing

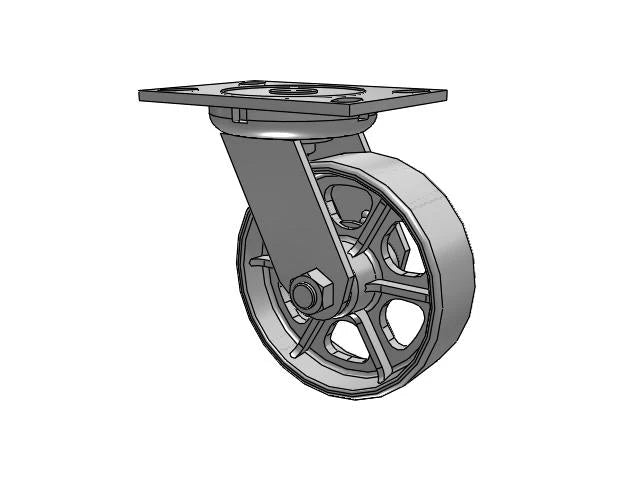

Albion Casters 6" x 2" Cast Iron Wheel Caster with 3/4" King-Bolt and 6.25" x 4.5" Plate - Heavy-Duty Performance for Industrial Use Albion-Casters
Ships in 1-3 Business Days
Albion 62CA06201S 6" x 2" Cast Iron King-Bolt Caster 6.25" x 4.5" Plate
Part # 62CA06201S
from $114.00
Volume pricing available
Cast IronPlate
Load rating
1400 lbs
Diameter 6"
Capacity 1400 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4-1/2" x 6-1/4"
More Details Less Details
Width 2"
Height 7.5"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Albion Casters 3/4" King-Bolt 6" x 2" Cast Iron Wheel Caster with 6.25" x...
Shop Product
1400 lbs
TieredPricing

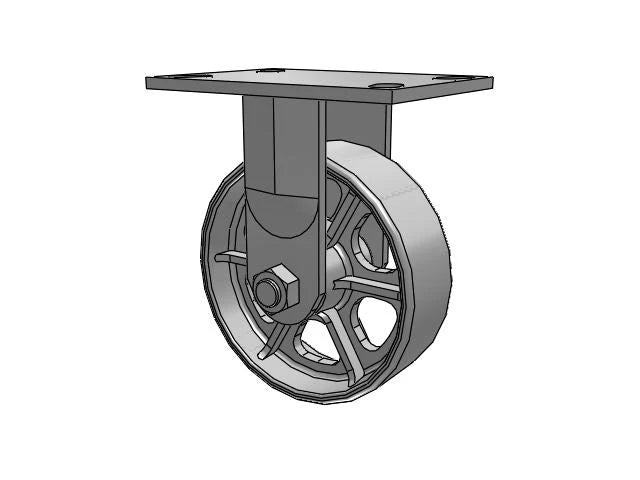

Albion Casters 3/4" King-Bolt 6" x 2" Cast Iron Wheel Rigid Caster with 6.25" x 4.5" Plate - Heavy-Duty Performance for Industrial Use Albion-Casters
Ships in 1-3 Business Days
Albion 62CA06201R 6" x 2" Cast Iron Rigid Caster – 6.25" x 4.5" Plate
Part # 62CA06201R
from $73.00
Volume pricing available
Cast IronPlate
Load rating
1400 lbs
Diameter 6"
Capacity 1400 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4-1/2" x 6-1/4"
More Details Less Details
Width 2"
Height 7.5"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Albion Casters 3/4" King-Bolt 6" x 2" Cast Iron Wheel Rigid Caster with 6.25"...
Shop Product
2800 lbs
TieredPricing
6x3 Heavy-Duty Kingpinless Swivel Caster with Cast Iron Wheel, 2800 lb Load Capacity Albion-Casters
Ships in 1-3 Business Days
Albion 6" x 3" Cast Iron Swivel Kingpinless Caster – 2800 lb
Part # 310CA06501S
from $189.00
Volume pricing available
Cast IronPlate
Load rating
2800 lbs
Diameter 6"
Capacity 2800 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 3"
Height 7.5"
Temp Range Up to 800°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Heavy-Duty Casters for Industrial ApplicationsUnmatched Strength & Durability | Shop Now & Save!Built to...
Shop Product
2800 lbs
TieredPricing
6x3 Heavy-Duty Kingpinless Rigid Caster with Cast Iron Wheel, 2800 lb Load Capacity Albion-Casters
Ships in 1-3 Business Days
Albion 6" x 3" Cast Iron Rigid Kingpinless Caster – 2800 lb
Part # 310CA06501R
from $129.00
Volume pricing available
Cast IronPlate
Load rating
2800 lbs
Diameter 6"
Capacity 2800 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 3"
Height 7.5"
Temp Range Up to 800°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Heavy-Duty Casters for Industrial ApplicationsUnmatched Strength & Durability | Shop Now & Save!Built to...
Shop Product
1000 lbs
TieredPricing

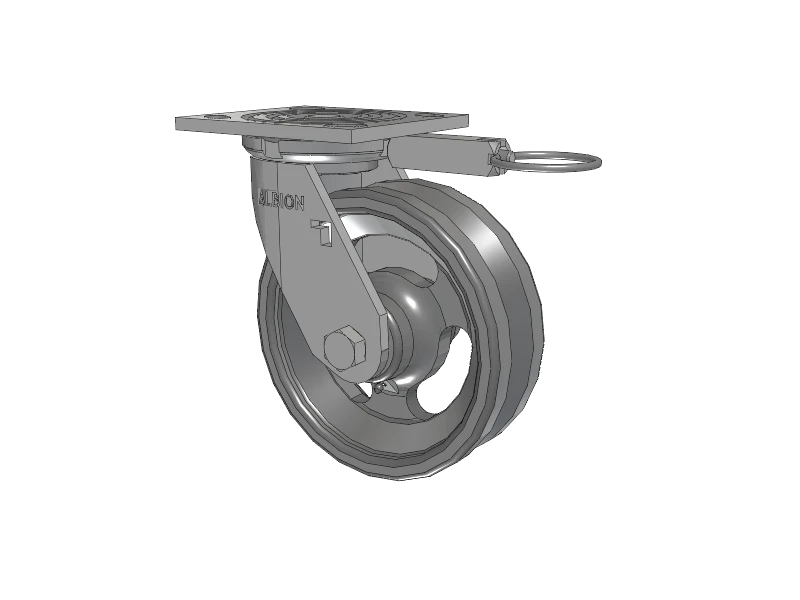

Albion Casters USA-Rig 6" x 2" Cast Iron V-Groove Wheel Caster with Swivel Lock - Durable and Reliable 4" x 4.5" Plate for Industrial Applications (Model: 16VG06201SL) Albion-Casters
Ships in 1-3 Business Days
Albion 16VG06201SL 6" x 2" Cast Iron Swivel V-Groove Caster – CasterHQ
Part # 16VG06201SL
from $146.00
Volume pricing available
Cast IronPlate
Load rating
1000 lbs
Diameter 6"
Capacity 1000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7.25"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Albion Casters USA-Rig 6" x 2" Cast Iron V-Groove Wheel Caster with 4" x...
Shop Product
1000 lbs
TieredPricing
Albion Casters 6"x2" USA-Rig Swivel Caster with V-Groove Cast Iron Wheel – 7.5" High, Heavy-Duty Model 16VG06201SHS60 for Industrial Applications Albion-Casters
Ships in 1-3 Business Days
Albion 16VG06201SHS60 6"x2" Cast Iron Swivel V-Groove Caster
Part # 16VG06201SHS60
from $64.00
Volume pricing available
Cast IronPlate
Load rating
1000 lbs
Diameter 6"
Capacity 1000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7.5"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Albion Casters 6"x2" USA-Rig Swivel Caster with V-Groove Cast Iron Wheel - 7.5" High...
Shop Product
1000 lbs
TieredPricing
Albion Casters 6"x2" USA-Rig Rigid Caster with V-Groove Cast Iron Wheel - 7.5" Height, Heavy-Duty, Model 16VG06201RHR60 Albion-Casters
Ships in 1-3 Business Days
Albion 16VG06201RHR60 6"x2" V-Groove Cast Iron Rigid Caster
Part # 16VG06201RHR60
from $61.00
Volume pricing available
Cast IronPlate
Load rating
1000 lbs
Diameter 6"
Capacity 1000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7.5"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Albion Casters 6"x2" USA-Rig Rigid Caster with V-Groove Cast Iron Wheel - 16VG06201RHR60: Superior...
Shop Product
1000 lbs
TieredPricing
Albion Casters 6x2 USA-Rig Rigid Caster with V-Groove Cast Iron Wheel – Heavy-Duty Industrial Caster, Model 16VG06201R Albion-Casters
Ships in 1-3 Business Days
Albion 16VG06201R 6"x2" V-Groove Cast Iron Rigid Caster – 4"x4-1/2" Plate
Part # 16VG06201R
from $61.00
Volume pricing available
Cast IronPlate
Load rating
1000 lbs
Diameter 6"
Capacity 1000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 7.25"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Albion Casters 6"x2" USA-Rig Rigid Caster with V-Groove Cast Iron Wheel - 16VG06201R: Superior...
Shop Product
800 lbs
TieredPricing
Albion Casters USA-Rig 5" x 2" Cast Iron V-Groove Wheel Caster with Swivel Lock and 4" x 4.5" Plate - Heavy-Duty Industrial Solution for Smooth Mobility Albion-Casters
Ships in 1-3 Business Days
Albion 16VG05201SL 5" x 2" Cast Iron Swivel Caster – 4" x 4.5" Plate
Part # 16VG05201SL
from $132.00
Volume pricing available
Cast IronPlate
Load rating
800 lbs
Diameter 5"
Capacity 800 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6.5"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Albion Casters USA-Rig 5" x 2" Cast Iron V-Groove Wheel Caster with 4" x...
Shop Product
800 lbs
TieredPricing
Albion Casters 5"x2" USA-Rig Swivel Caster with V-Groove Cast Iron Wheel - Heavy-Duty Industrial Caster for Enhanced Mobility and Durability Albion-Casters
Ships in 1-3 Business Days
Albion 16VG05201S 5"x2" V-Groove Cast Iron Swivel Caster – 4"x4-1/2" Plate
Part # 16VG05201S
from $58.00
Volume pricing available
Cast IronPlate
Load rating
800 lbs
Diameter 5"
Capacity 800 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6.5"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Albion Casters 5"x2" USA-Rig Swivel Caster with V-Groove Cast Iron Wheel - 16VG05201S: Superior...
Shop Product
800 lbs
TieredPricing
Albion Casters 5"x2" USA-Rig Rigid Caster with V-Groove Cast Iron Wheel - High-Durability Industrial Caster for Heavy-Duty Applications - Model 16VG05201R Albion-Casters
Ships in 1-3 Business Days
Albion 16VG05201R 5"x2" V-Groove Cast Iron Rigid Caster – CasterHQ
Part # 16VG05201R
from $52.00
Volume pricing available
Cast IronPlate
Load rating
800 lbs
Diameter 5"
Capacity 800 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 6.5"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Albion Casters 5"x2" USA-Rig Rigid Caster with V-Groove Cast Iron Wheel - 16VG05201R: Superior...
Shop Product
800 lbs
TieredPricing
Albion Casters USA-Rig 4" x 2" Cast Iron V-Groove Wheel Caster with Swivel Lock - Heavy-Duty 4" x 4.5" Plate for Enhanced Mobility and Stability Albion-Casters
Ships in 1-3 Business Days
Albion 16VG04201SL 4" x 2" Cast Iron Swivel Lock Caster – 4" x 4.5" Plate
Part # 16VG04201SL
from $119.00
Volume pricing available
Cast IronPlate
Load rating
800 lbs
Diameter 4"
Capacity 800 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5.63"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Albion Casters | USA-Rig 4" x 2" Cast Iron V-Groove Wheel Caster with 4"...
Shop Product
800 lbs
TieredPricing
Albion Casters USA-Rig 4" x 2" Cast Iron V-Groove Wheel Side-Lock Caster with 4" x 4.5" Plate - Heavy-Duty Mobility Solution for Industrial Applications Albion-Casters
Ships in 1-3 Business Days
Albion 16VG04201SFBA 4" x 2" Cast Iron Side Lock Caster – 4" x 4.5" Plate
Part # 16VG04201SFBA
from $85.00
Volume pricing available
Cast IronPlate
Load rating
800 lbs
Diameter 4"
Capacity 800 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5.63"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Frame Zinc Plated Steel
Albion Casters USA-Rig 4" x 2" Cast Iron V-Groove Wheel Side-Lock Caster with 4"...
Shop Product
800 lbs
TieredPricing
Albion Casters 4x2 USA-Rig Swivel Caster with V-Groove Cast Iron Wheel - Heavy-Duty Industrial Caster for Track Systems and Rails - Model 16VG04201S Albion-Casters
Ships in 1-3 Business Days
Albion 16VG04201S 4"x2" V-Groove Cast Iron Swivel Caster – 4"x4-1/2" Plate
Part # 16VG04201S
from $52.00
Volume pricing available
Cast IronPlate
Load rating
800 lbs
Diameter 4"
Capacity 800 lbs
Wheel Cast Iron
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 2"
Height 5.63"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Albion Casters 4"x2" USA-Rig Swivel Caster with V-Groove Cast Iron Wheel - 16VG04201S: Superior...
Shop Product

Search
