![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-418-top-plate-drawing_100x.png?v=1792418040)
The Albion Casters 5"x2" USA-Rig Rigid Caster with V-Groove Cast Iron Wheel - 16VG05201R combines exceptional durability with high performance. Designed for heavy-duty applications, this rigid caster features a robust cast iron wheel with a V-Groove design, providing superior stability and smooth movement on rails and tracks. The 5-inch diameter and 2-inch width offer optimal load-bearing capacity, while its rigid design ensures reliable performance in demanding environments. Proudly manufactured in the USA, this caster is built to meet stringent quality standards, making it an ideal choice for industrial and commercial use.
Enhance the efficiency and durability of your equipment with the Albion Casters 5"x2" USA-Rig Rigid Caster. Engineered for high performance and built to last, this caster is the perfect solution for demanding industrial applications.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

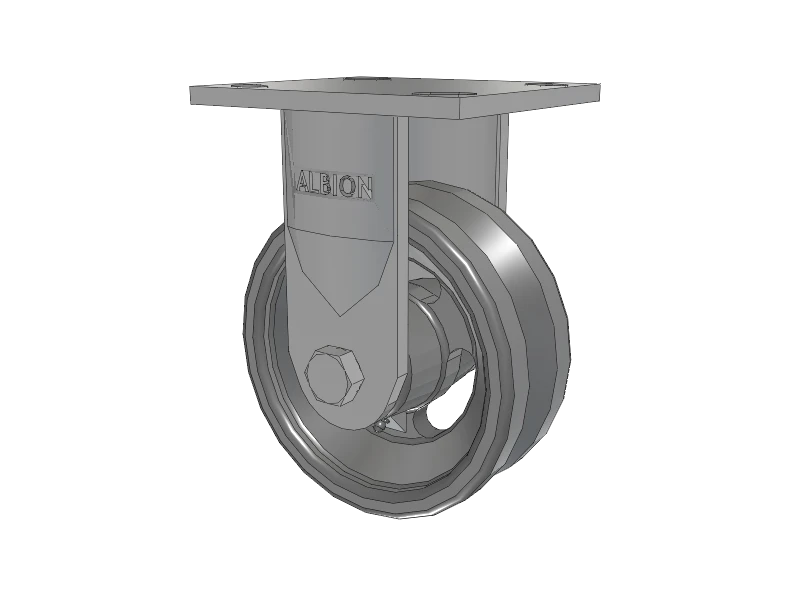

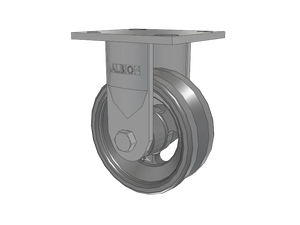

The Albion Casters 5"x2" USA-Rig Rigid Caster with V-Groove Cast Iron Wheel - Model 16VG05201R is engineered for high durability and exceptional performance in heavy-duty industrial settings. Featuring a robust cast iron wheel with a V-Groove design, this caster provides smooth and stable movement on rails and tracks, making it an ideal choice for demanding applications.
With a 5-inch diameter and 2-inch width, the caster balances load capacity and maneuverability, making it suitable for a range of equipment and machinery. Its rigid design ensures reliable performance in stationary setups, while its high load capacity supports substantial weights, ideal for industrial carts and other heavy-duty uses.
Proudly manufactured in the USA, this caster adheres to rigorous quality standards, ensuring you receive a product that combines reliability with high performance. The easy installation process and versatile application make it a valuable addition to any industrial setup, enhancing both efficiency and safety.
Improve the performance and durability of your industrial equipment with the Albion Casters 5"x2" USA-Rig Rigid Caster. Designed for heavy-duty applications, this high-quality caster is the perfect solution for enhancing your equipment's efficiency and reliability. Order now to experience the benefits of superior craftsmanship and robust design.
This Albion 16VG05201R 5"x2" V-Groove Cast Iron Rigid Caster – CasterHQ is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

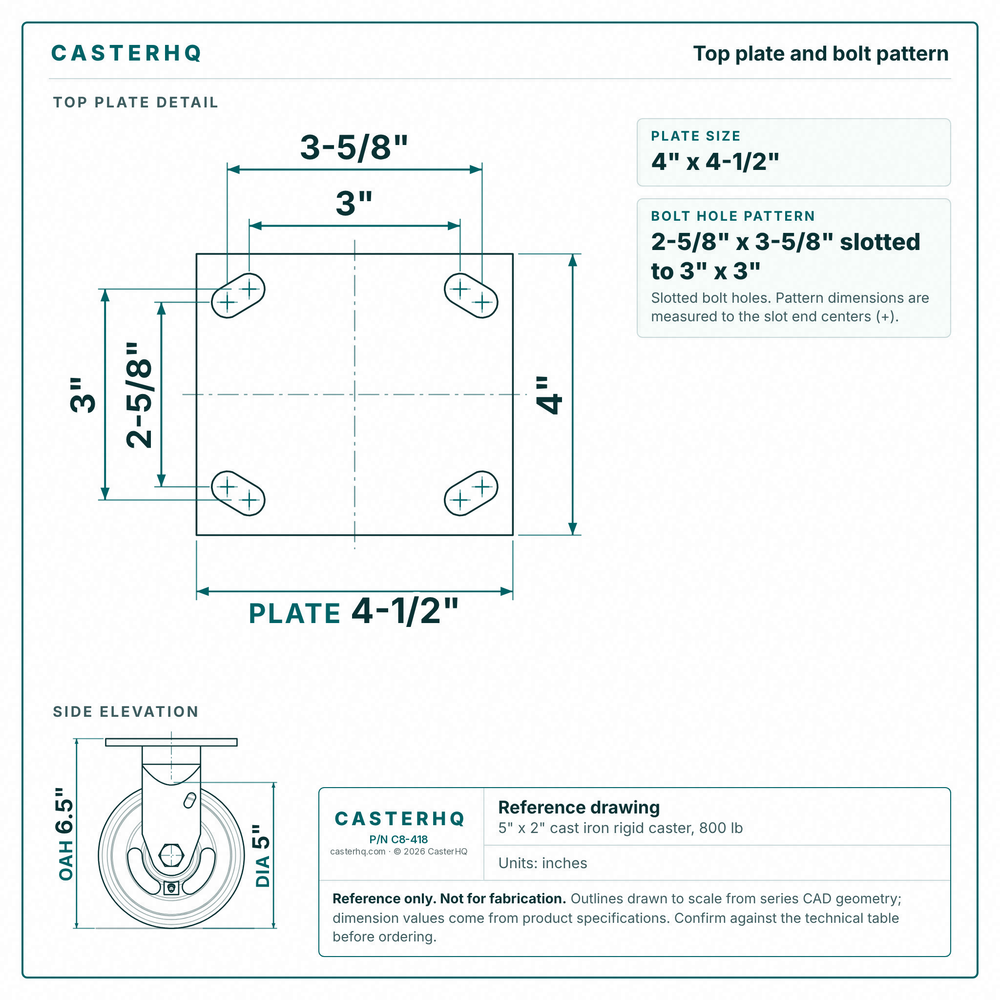

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 350°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$52.00
| Identification | |
|---|---|
| Part Number / SKU | 16VG05201R |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6.5" |
| Rig Type | Rigid |
| Brake | No Brake |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Cast Iron |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Brinell 145 |
| Wheel Color | Silver Enamel Paint |
| Bearing Type | Roller Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 350°F |
| Warranty | 3 Years |

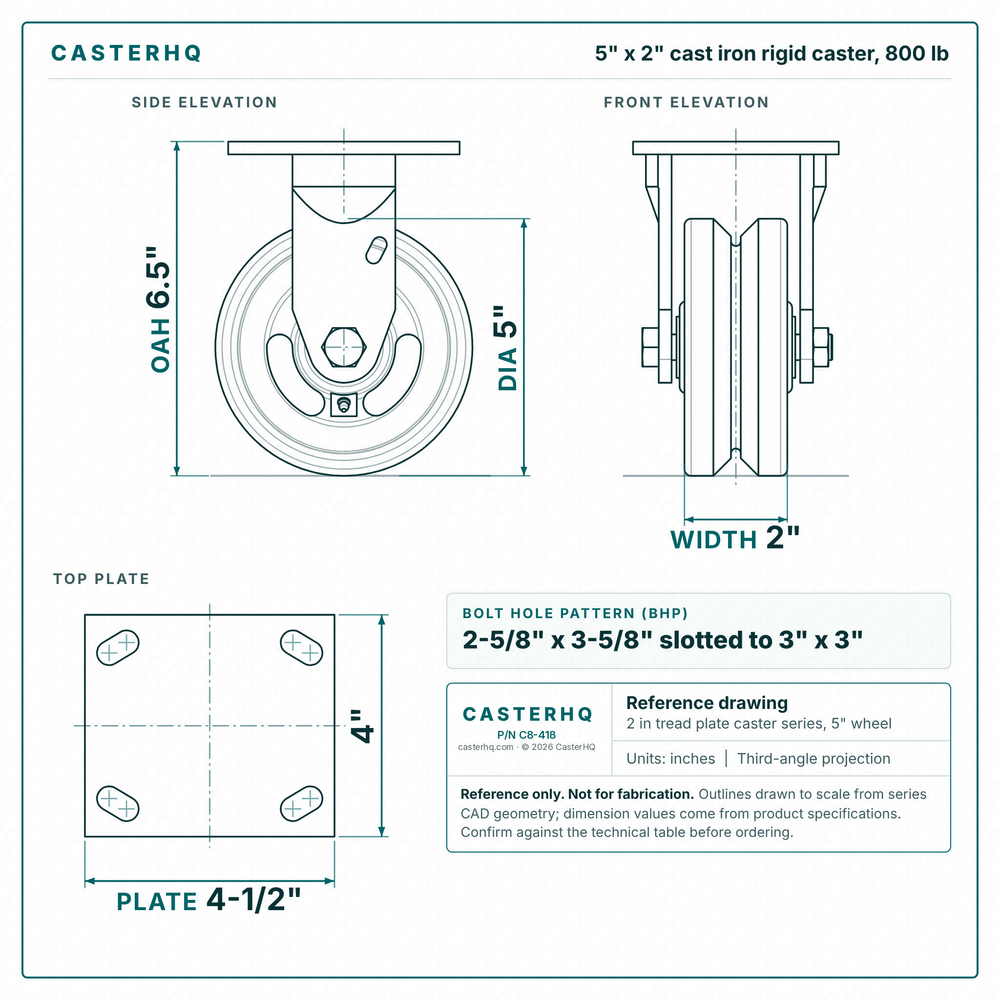

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 750 lbsLighter duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 750 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $24.00 | View → | |
| 800 lbs | 5" × 2"Cast Iron | Rigid | 6.5" | $52.00 | Viewing | |
| 800 lbsSame capacity | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsSame capacity | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → |
