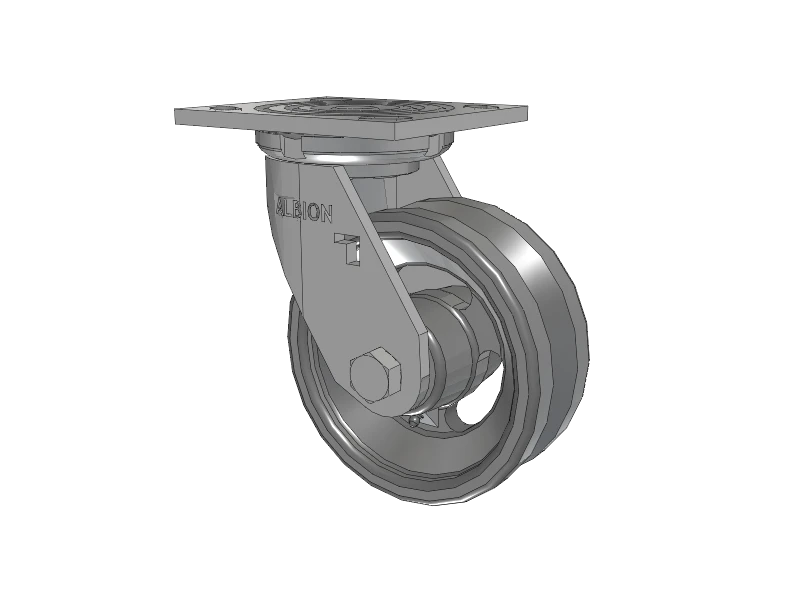

The Albion Casters 5"x2" USA-Rig Swivel Caster with V-Groove Cast Iron Wheel - 16VG05201S is engineered for exceptional durability and smooth operation in demanding environments. Featuring a robust cast iron wheel with a V-Groove design, this caster is ideal for industrial applications requiring precise tracking and heavy load support. The USA-Rig swivel mechanism allows for superior maneuverability, making it an excellent choice for carts, machinery, and equipment that require reliable performance and stability.
Enhance the efficiency and durability of your industrial equipment with the Albion Casters 5"x2" USA-Rig Swivel Caster. Experience unmatched strength and mobility today.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5"x2" USA-Rig Swivel Caster with V-Groove Cast Iron Wheel - 16VG05201S is engineered to provide exceptional performance in industrial settings. With a robust design and durable materials, this caster is built to handle demanding tasks while ensuring smooth and reliable operation.
The Albion Casters 5"x2" USA-Rig Swivel Caster is a high-performance component that enhances the mobility and stability of your industrial equipment. Its high-strength cast iron construction and V-Groove design ensure durability and smooth operation, even under heavy loads. The USA-Rig swivel mechanism allows for precise movement, making it ideal for use in environments where maneuverability is crucial. Whether you need to upgrade your carts, machinery, or other industrial equipment, this caster delivers the reliability and efficiency you need.
Invest in the Albion Casters 5"x2" USA-Rig Swivel Caster with V-Groove Cast Iron Wheel for superior performance and durability. Enhance your equipment’s efficiency and maneuverability with this high-quality industrial caster. Order now and experience the difference in mobility and stability.

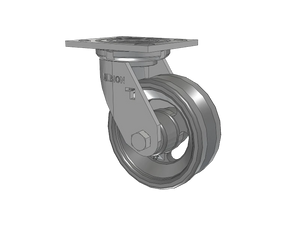

This Albion 16VG05201S 5"x2" V-Groove Cast Iron Swivel Caster – 4"x4-1/2" Plate is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 3" x 3" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

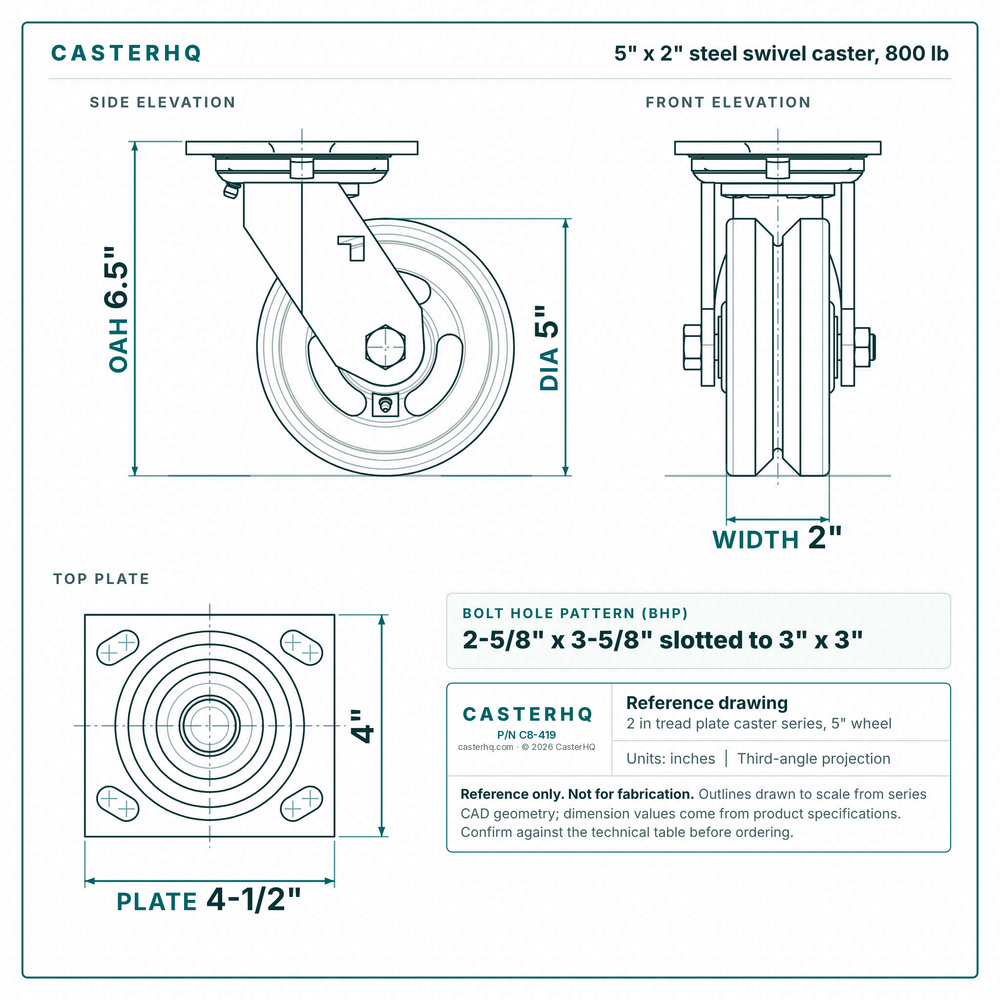

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$58.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
