Industrial Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 12 inTread: 3 inCapacity: 1,800 to 2,800 lb per casterPlate sizes: 5-1/4 x 7-1/4

This page lists eight polyurethane casters with 6 to 12 in wheels, rated 1,800 to 2,800 lb each, made by Hamilton. Every one uses a 5-1/4 x 7-1/4 in top plate, with swivel and rigid versions and without brakes. Picks range from a Hamilton 6 x 3 in Ergo-Glide rigid caster rated 1,800 lb to a Hamilton R-CH-12SPB 12 x 3 in Ergo-Glide rigid caster rated 2,800 lb.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

2000 lbs

TieredPricing

Hamilton Champion Swivel Caster with 8" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Download CAD (step file) Request CAD File PDF Datasheet Hamilton

Made to Order · 4-6 Wk

Hamilton S-CH-83SPB 8" x 3" Ergo-Glide Swivel Caster – 2000 lb

Part # S-CH-83SPB

from $453.00

Volume pricing available

PolyurethanePlate

Load rating

2000 lbs

Size8" x 3"

Capacity2000 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 8" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

1800 lbs

TieredPricing

Hamilton Champion Swivel Caster with 6" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton 6" x 3" Ergo-Glide Swivel Caster – 1800 lb

Part # S-CH-63SPB

from $377.00

Volume pricing available

PolyurethanePlate

Load rating

1800 lbs

Size6" x 3"

Capacity1800 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 8"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 6" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

2400 lbs

TieredPricing

Hamilton Champion Swivel Caster with 10" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton CH-13SPB 10" x 3" Ergo-Glide Swivel Caster – 2400 lb

Part # S-CH-13SPB

from $507.00

Volume pricing available

PolyurethanePlate

Load rating

2400 lbs

Size10" x 3"

Capacity2400 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 10" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

2800 lbs

TieredPricing

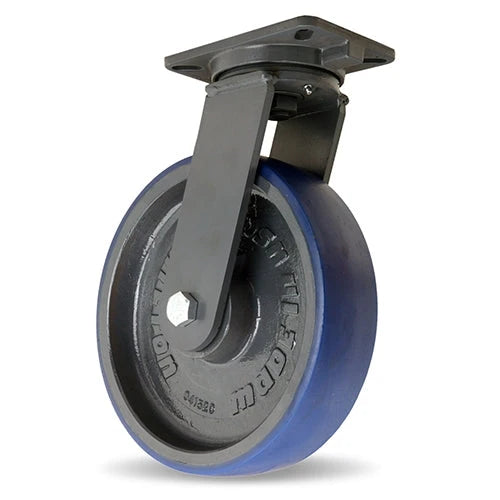

Hamilton Champion Swivel Caster with 12" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton CH-12SPB 12" x 3" Ergo-Glide Swivel Caster – 2800 lb

Part # S-CH-12SPB

from $670.00

Volume pricing available

PolyurethanePlate

Load rating

2800 lbs

Size12" x 3"

Capacity2800 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 15-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 12" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

2000 lbs

TieredPricing

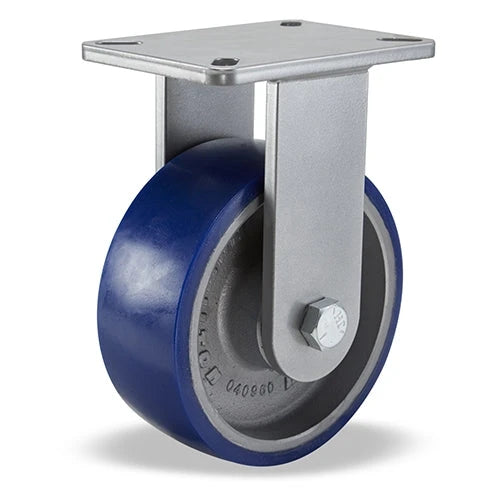

Hamilton Champion Rigid Caster with 8" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Download CAD (step file) Request CAD File PDF Datasheet Hamilton

Made to Order · 4-6 Wk

Hamilton R-CH-83SPB 8" x 3" Ergo-Glide Rigid Caster – 2000 lb

Part # R-CH-83SPB

$336.00

Volume pricing available

PolyurethanePlate

Load rating

2000 lbs

Size8" x 3"

Capacity2000 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 8" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

1800 lbs

TieredPricing

Hamilton Champion Rigid Caster with 6" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton 6" x 3" Ergo-Glide Rigid Caster – 1,800 lb

Part # R-CH-63SPB

$254.00

Volume pricing available

PolyurethanePlate

Load rating

1800 lbs

Size6" x 3"

Capacity1800 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 8"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 6" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

2400 lbs

TieredPricing

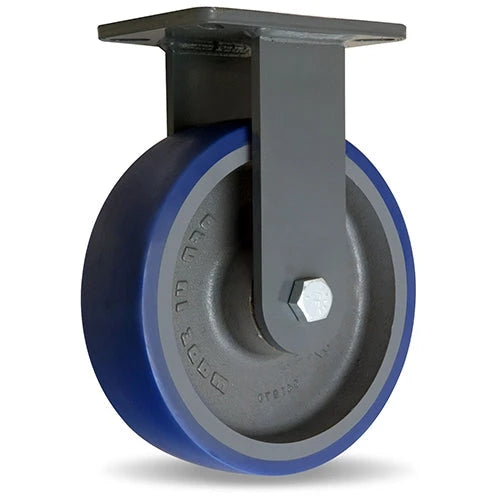

Hamilton Champion Rigid Caster with 10" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton CH-13SPB 10" x 3" Ergo-Glide Rigid Caster – 2,400 lb

Part # R-CH-13SPB

$391.00

Volume pricing available

PolyurethanePlate

Load rating

2400 lbs

Size10" x 3"

Capacity2400 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 10" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

2800 lbs

TieredPricing

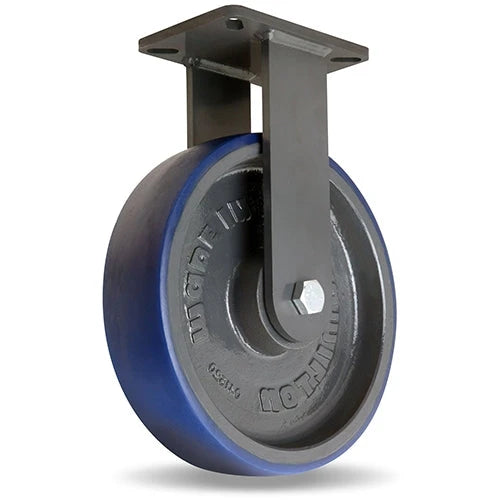

Hamilton Champion Rigid Caster with 12" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-CH-12SPB 12" x 3" Ergo-Glide Rigid Caster – 2,800 lb

Part # R-CH-12SPB

$549.00

Volume pricing available

PolyurethanePlate

Load rating

2800 lbs

Size12" x 3"

Capacity2800 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 15-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 12" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron...

Shop Product

Champion Caster Series with Ergo-Glide Wheels

As the name infers, the Ergo-Glide® wheel (formerly named Poly-Soft®) is well suited for ergonomic applications due to it's low startup and maintain push/pull force. This wheel is also the employee favorite and our wheel of choice for internal operations for it's balance of excellent rollability and durability. Other ergonomic wheels may roll slightly better, but the Ergo-Glide's heavy duty cast iron center and high tensile strength poly will likely outlast the others in its class. If a low push/pull force is top priority and durability is of lesser value, check out our Ergo-Tech™ wheels.

The Ergo-Glide® (formerly named Poly-Soft®) wheel is formulated for a quieter operation and greater resistance to foreign objects and debris (F.O.D.). Ergo-Glide® wheels have a softer tread hardness measuring 82-85 (Shore A scale) vs. the harder Duralast® 90-95 (Shore A) and is is well suited for rougher floors. The wheel has found popularity among automotive plants and those customers wanting to increase rollability, lower factory noise levels, and improve floor protection.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
