Industrial Casters - Swivel

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 12 inTread: 2-1/2 to 3 inCapacity: 2,200 to 2,600 lb per casterPlate sizes: 5-1/2 x 7-1/2, 6-1/8 x 7-1/2
This page lists 14 cast iron casters with 6 to 12 in wheels, rated 2,200 to 2,600 lb each, made by Hamilton. Most mount on a 5-1/2 x 7-1/2 in plate, with 6-1/8 x 7-1/2 in also offered, in both swivel and rigid, and none has a brake. Two examples are a Hamilton R-EHD-63MB 6 x 3 in metal rigid caster rated 2,500 lb and a Hamilton S-EHD-83MB 8 x 3 in metal swivel sealed caster rated 2,600 lb. The usual temperature rating here is -40°F to 320°F.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

2500 lbs
TieredPricing
Hamilton Extra Heavy Duty Swivel Caster with 8" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-EHD-8MH 8" x 2 1/2" Metal Swivel Caster – 2500 lb
Part # S-EHD-8MH
from $478.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size8" x 2-1/2"
Capacity2500 lbs
WheelCast Iron
MountPlate 6-1/8" x 7-1/2"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 10-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Swivel Caster with 8" x 2 1/2" Metal Wheel with...
Shop Product
2600 lbs
TieredPricing
Hamilton Extra Heavy Duty Swivel Caster with 8" x 3" Metal Wheel with 3/4" Sealed Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-EHD-83MB 8" x 3" Metal Swivel Sealed Caster – 2600 lb
Part # S-EHD-83MB
from $413.00
Volume pricing available
Cast IronPlate
Load rating
2600 lbs
Size8" x 3"
Capacity2600 lbs
WheelCast Iron
MountPlate 6-1/8" x 7-1/2"
TypeSwivel
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Swivel Caster with 8" x 3" Metal Wheel with 3/4"...
Shop Product
2200 lbs
TieredPricing
Hamilton Extra Heavy Duty Swivel Caster with 6" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-EHD-6MH 6" x 2 1/2" Metal Swivel Caster – 2200 lb
Part # S-EHD-6MH
from $443.00
Volume pricing available
Cast IronPlate
Load rating
2200 lbs
Size6" x 2-1/2"
Capacity2200 lbs
WheelCast Iron
MountPlate 6-1/8" x 7-1/2"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 8-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Swivel Caster with 6" x 2 1/2" Metal Wheel with...
Shop Product
2500 lbs
TieredPricing
Hamilton Extra Heavy Duty Swivel Caster with 6" x 3" Metal Wheel with 3/4" Sealed Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-EHD-63MB 6" x 3" Metal Swivel Sealed Caster – 2500 lb
Part # S-EHD-63MB
from $408.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size6" x 3"
Capacity2500 lbs
WheelCast Iron
MountPlate 6-1/8" x 7-1/2"
TypeSwivel
More Details Less Details
Width 3"
Height 8-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Swivel Caster with 6" x 3" Metal Wheel with 3/4"...
Shop Product
2600 lbs
TieredPricing
Hamilton Extra Heavy Duty Swivel Caster with 10" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-EHD-13MH 10" x 3" Metal Swivel Caster – 2600 lb
Part # S-EHD-13MH
from $467.00
Volume pricing available
Cast IronPlate
Load rating
2600 lbs
Size10" x 3"
Capacity2600 lbs
WheelCast Iron
MountPlate 6-1/8" x 7-1/2"
TypeSwivel
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Swivel Caster with 10" x 3" Metal Wheel with 1"...
Shop Product
2500 lbs
TieredPricing

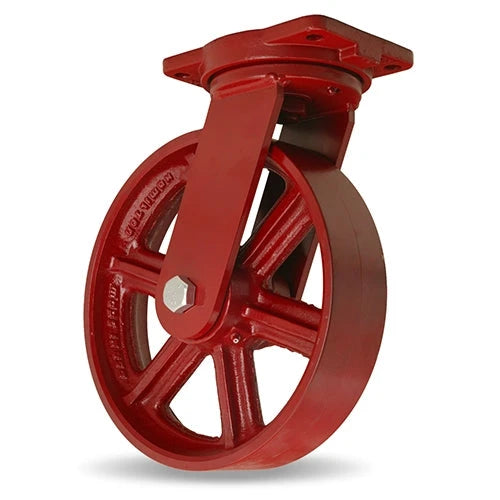

Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-EHD-12MH 12" x 3" Metal Swivel Caster – 2500 lb
Part # S-EHD-12MH
from $593.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size12" x 3"
Capacity2500 lbs
WheelCast Iron
MountPlate 6-1/8" x 7-1/2"
TypeSwivel
More Details Less Details
Width 3"
Height 14-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" Metal Wheel with 1"...
Shop Product
2500 lbs
TieredPricing

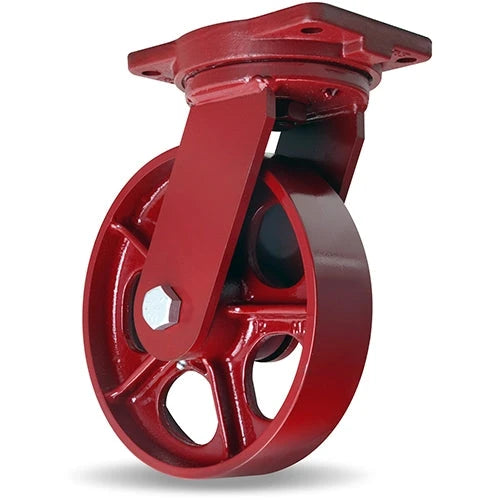

Hamilton Extra Heavy Duty Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-EHD-10MH 10" x 2 1/2" Metal Swivel Caster – 2500 lb
Part # S-EHD-10MH
from $527.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size10" x 2-1/2"
Capacity2500 lbs
WheelCast Iron
MountPlate 6-1/8" x 7-1/2"
TypeSwivel
More Details Less Details
Width 2-1/2"
Height 12-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Swivel Caster with 10" x 2 1/2" Metal Wheel with...
Shop Product
2500 lbs
TieredPricing

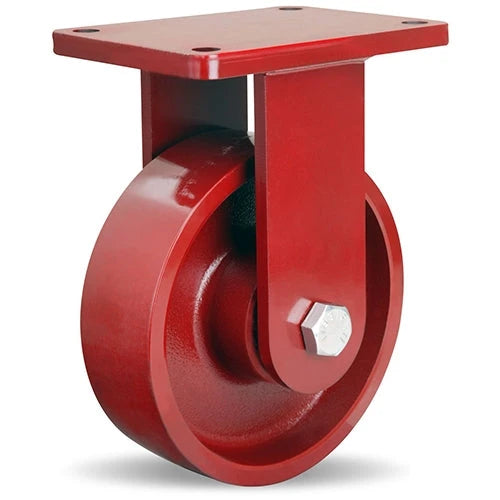

Hamilton Extra Heavy Duty Rigid Caster with 8" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-EHD-8MH 8" x 2 1/2" Metal Rigid Caster – 2500 lb
Part # R-EHD-8MH
$306.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size8" x 2-1/2"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 10-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Rigid Caster with 8" x 2 1/2" Metal Wheel with...
Shop Product
2600 lbs
TieredPricing

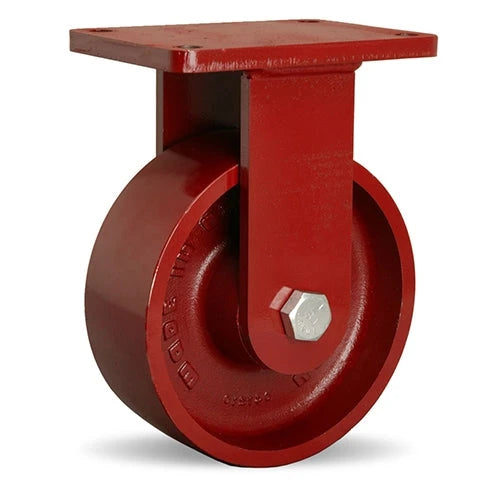

Hamilton Extra Heavy Duty Rigid Caster with 8" x 3" Metal Wheel with 3/4" Sealed Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-EHD-83MB 8" x 3" Metal Rigid Caster – 2600 lb
Part # R-EHD-83MB
$265.00
Volume pricing available
Cast IronPlate
Load rating
2600 lbs
Size8" x 3"
Capacity2600 lbs
WheelCast Iron
MountPlate 5-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Rigid Caster with 8" x 3" Metal Wheel with 3/4"...
Shop Product
2200 lbs
TieredPricing

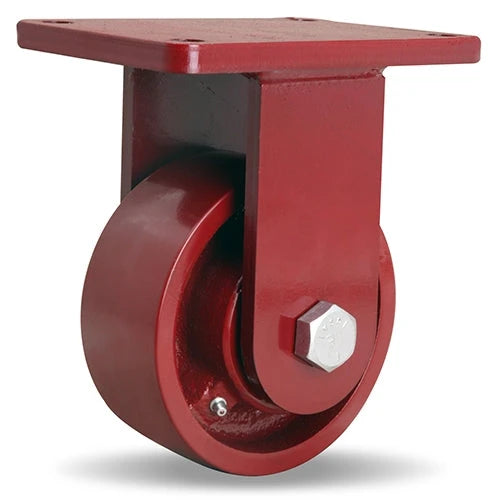

Hamilton Extra Heavy Duty Rigid Caster with 6" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-EHD-6MH 6" x 2 1/2" Metal Rigid Caster – 2200 lb
Part # R-EHD-6MH
$276.00
Volume pricing available
Cast IronPlate
Load rating
2200 lbs
Size6" x 2-1/2"
Capacity2200 lbs
WheelCast Iron
MountPlate 5-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 8-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Rigid Caster with 6" x 2 1/2" Metal Wheel with...
Shop Product
2500 lbs
TieredPricing
Hamilton Extra Heavy Duty Rigid Caster with 6" x 3" Metal Wheel with 3/4" Sealed Precision Ball Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-EHD-63MB 6" x 3" Metal Rigid Caster – 2500 lb
Part # R-EHD-63MB
$255.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size6" x 3"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 3"
Height 8-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Rigid Caster with 6" x 3" Metal Wheel with 3/4"...
Shop Product
2600 lbs
TieredPricing
Hamilton Extra Heavy Duty Rigid Caster with 10" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-EHD-13MH 10" x 3" Metal Rigid Caster – 2600 lb
Part # R-EHD-13MH
$261.00
Volume pricing available
Cast IronPlate
Load rating
2600 lbs
Size10" x 3"
Capacity2600 lbs
WheelCast Iron
MountPlate 5-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Rigid Caster with 10" x 3" Metal Wheel with 1"...
Shop Product
2500 lbs
TieredPricing
Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-EHD-12MH 12" x 3" Metal Rigid Caster – 2500 lb
Part # R-EHD-12MH
$400.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size12" x 3"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 3"
Height 14-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" Metal Wheel with 1"...
Shop Product
2500 lbs
TieredPricing
Hamilton Extra Heavy Duty Rigid Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-EHD-10MH 10" x 2 1/2" Metal Rigid Caster – 2500 lb
Part # R-EHD-10MH
$264.00
Volume pricing available
Cast IronPlate
Load rating
2500 lbs
Size10" x 2-1/2"
Capacity2500 lbs
WheelCast Iron
MountPlate 5-1/2" x 7-1/2"
TypeRigid
More Details Less Details
Width 2-1/2"
Height 12-1/2"
Bolt Pattern 4-1/8" x 6-1/8"
Core Cast Iron
Temp Range -40°F to 320°F
Rig Type Rigid
Brake No Brake
Frame Crimson Powder
Hamilton Extra Heavy Duty Rigid Caster with 10" x 2 1/2" Metal Wheel with...
Shop Product

Extra Heavy Duty Caster Series with Metal Wheels

With one of the industry's largest lines of metal wheels (most are cast iron, a few of the smaller sizes sintered iron), Hamilton has come to be known as the first place to go for new or replacement metal wheels. In the last three years, the most popular metal wheel sizes have been upgraded with larger hubs and less scrap metal content to represent the most durable and highest quality metal wheels in the industry.

Search
