10" x 3" Poly-on-Iron Casters

Plate sizes: 5-1/4 x 7-1/4, 6-1/4 x 7-1/2, 8-1/2 x 8-1/2Bolt holes: 3-3/8 x 5-1/4 slotted to 4-1/8 x 6-1/8; 7 x 7Diameter: 8, 10, 12 inTread: 3, 4, 5 inCapacity: up to 8,400 lb
5-1/4 x 7-1/4 inch top-plate casters for warehouse carts on epoxy and smooth concrete. Typical builds show wheel diameters 8, 10, 12 in, polyurethane and cast iron treads, and capacities 2,000 to 8,400 lb. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. Larger plates spread bolt stress on thick frames under continuous tow abuse. Replace worn corners in matched sets when possible so the cart tracks straight under load.
3000 lbs
TieredPricing
Albion Casters 10"x3" Kingpinless Poly-on-Iron Spring-Loaded Caster - Heavy-Duty 7.5"x6.25" Plate, Model S610PY10509S Albion-Casters
Ships in 1-3 Business Days
Albion S610PY10509S 10" x 3" Cast Iron Caster — 3000 lb
Part # S610PY10509S
from $1,961.00
Volume pricing available
Cast IronPlate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 6-1/4" x 7-1/2"
More Details Less Details
Width 3"
Height 14.88"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
The Albion S610PY10509S is a 10" x 3" cast iron plate caster rated 3000...
Shop Product
3000 lbs
TieredPricing
Spring-Loaded Kingpinless 10x3 Inch Poly-on-Iron Rigid Caster - Heavy Duty 7.5x6.25 Inch Plate | Model S610PY10509R Albion-Casters
Ships in 1-3 Business Days
Albion S610PY10509R 10" x 3" Poly-on-Iron Rigid Spring Loaded Caster
Part # S610PY10509R
from $1,851.00
Volume pricing available
Cast IronPlate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Wheel Cast Iron
Mount Plate
Plate Size 6-1/4" x 7-1/2"
More Details Less Details
Width 3"
Height 14.88"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Spring-Loaded Kingpinless 10" x 3" Poly-on-Iron Rigid Caster with 7.5" x 6.25" Plate -...
Shop Product
3000 lbs
TieredPricing
Spring-Loaded Kingpinless 10"x3" Poly-on-Iron Caster - Albion Casters SKU S410PY10509S | 3000 lb Load Capacity | 7.25"x5.25" Top Plate | 14" Mount Height | 9.88" Swivel Radius CasterHQ
In Stock · Same/Next Day
Albion S410PY10509S 10" x 3" Caster — 3000 lb
Part # S410PY10509S
from $1,547.00
Volume pricing available
Plate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 9.88"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
The Albion S410PY10509S is a 10" x 3" plate caster rated 3000 lbs per...
Shop Product
3000 lbs
TieredPricing
Spring-Loaded Kingpinless 10"x3" Poly-on-Iron Rigid Caster by Albion Casters - High Capacity 3000 lb, 7.25"x5.25" Plate, 14" Mount Height CasterHQ
In Stock · Same/Next Day
Albion S410 10"x3" Poly-on-Iron Rigid Spring Loaded Caster – 3000 lb
Part # S410PY10509R
from $1,377.00
Volume pricing available
Plate
Load rating
3000 lbs
Diameter 10"
Capacity 3000 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 14"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Spring-Loaded Kingpinless 10"x3" Poly-on-Iron Rigid Caster High Capacity 3000 lb | Albion Casters Product...
Shop Product
6600 lbs
TieredPricing
Albion Casters Ultimate Kingpinless Caster - 12" x 5" Polyurethane-on-Iron Wheel with 8.5" x 8.5" Plate & Swivel Lock - Heavy-Duty Industrial Caster for Smooth Operation and Stability Albion-Casters
Ships in 1-3 Business Days
Albion 700PX12809SL 12" x 5" Cast Iron Caster — 6600 lb
Part # 700PX12809SL
$2,162.00
Volume pricing available
Cast IronPlate
Load rating
6600 lbs
Diameter 12"
Capacity 6600 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 15.5"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
The Albion 700PX12809SL is a 12" x 5" cast iron plate caster rated 6600...
Shop Product
6600 lbs
TieredPricing
Albion Casters Ultimate Kingpinless Rigid Caster - 12" x 5" Polyurethane-on-Iron Wheel with 8.5" x 8.5" Plate | Heavy-Duty Industrial Caster for Enhanced Durability and Shock Absorption Albion-Casters
Ships in 1-3 Business Days
Albion 700PX12809R 12" x 5" Poly-on-Iron Rigid Kingpinless Caster
Part # 700PX12809R
$1,404.00
Volume pricing available
Cast IronPlate
Load rating
6600 lbs
Diameter 12"
Capacity 6600 lbs
Wheel Cast Iron
Mount Plate
Plate Size 8-1/2" x 8-1/2"
More Details Less Details
Width 5"
Height 15.5"
Bolt Pattern 7" x 7"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Albion Casters Ultimate Kingpinless 12" x 5" Thick Polyurethane-on-Iron Wheel Rigid Caster with 8.5"...
Shop Product
8400 lbs
TieredPricing
Dual-Wheel 10"x4" Kingpinless Green Poly-on-Iron Swivel Caster | 8400 lb Capacity | 7.5"x6.25" Plate | 615NX06528S Albion-Casters
Ships in 1-3 Business Days
Albion 615PY10709S 10" x 4" Caster — 8400 lb
Part # 615PY10709S
$1,532.00
Volume pricing available
Plate
Load rating
8400 lbs
Diameter 10"
Capacity 8400 lbs
Mount Plate
Plate Size 6-1/4" x 7-1/2"
More Details Less Details
Width 4"
Height 13"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
The Albion 615PY10709S is a 10" x 4" plate caster rated 8400 lbs per...
Shop Product
2000 lbs
TieredPricing

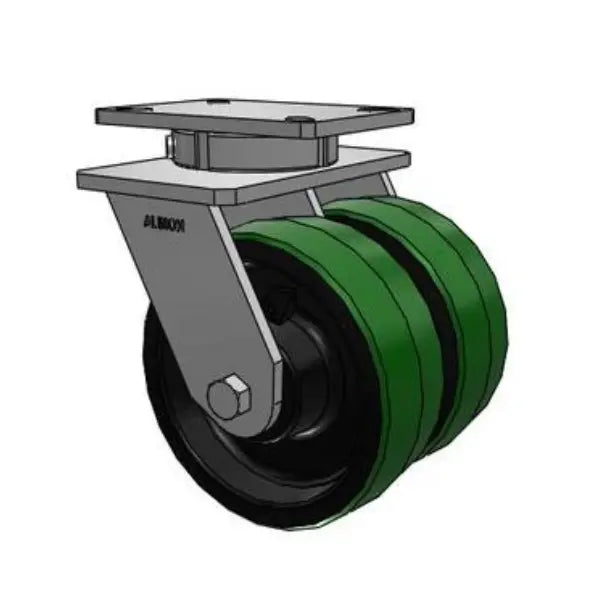

Dual-Wheel 8"x3" Kingpinless Green Poly-on-Iron Swivel Caster | 2000 lb Capacity | 7.25"x5.25" Plate | 415PY08509S Albion-Casters
Ships in 1-3 Business Days
Albion 415PY08509S 8"x3" Poly-on-Iron Swivel Dual Wheel Kingpinless Caster – 2000 lb
Part # 415PY08509S
from $724.00
Volume pricing available
PolyurethanePlate
Load rating
2000 lbs
Diameter 8"
Capacity 2000 lbs
Wheel Polyurethane
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Dual-Wheel Kingpinless Casters: Unmatched Performance for Industrial UseHeavy-Duty Solution | Shop NowUnparalleled Performance You...
