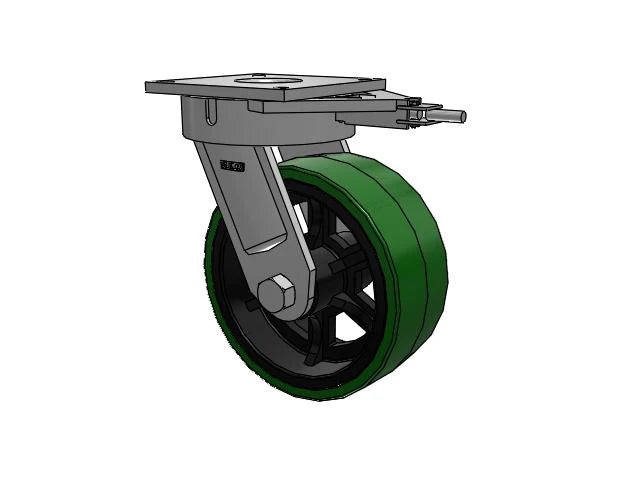

Albion Casters Ultimate Kingpinless Caster - 12" x 5" Polyurethane-on-Iron Wheel with 8.5" x 8.5" Plate & Swivel Lock - Heavy-Duty Industrial Caster for Smooth Operation and Stability Albion-Casters

Albion 700PX12809SL 12" x 5" Cast Iron Caster — 6600 lb | CasterHQ

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

$2,162.00 USD

Status: In Stock · Ships in 1-3 Business Days

Typically Ships in 1-3 Business Days. Same-day processing for orders received before 12pm CT (Mon–Fri).

PRODUCT CODE: 700PX12809SL

Product Overview

The Albion 700PX12809SL is a 12" x 5" cast iron plate caster rated 6600 lbs per caster, mounted on a 8-1/2" x 8-1/2" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 12" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.

6600 lbsCapacity per caster

12" x 5"Wheel size

8-1/2" x 8-1/2"Mount type

Same-DayMansfield TX ship

Author: Jordan Wilson, President & Owner, CasterHQ · 18 years in industrial caster & material handling distribution · Last reviewed: April 28, 2026

Where the 700PX12809SL fits in your application

Foundry tooling and pattern carts
AGV drive and trailing positions
Steel mill maintenance carts
Heavy motor bases and generator platforms
Aerospace tooling fixtures (≥1,500 lb)
MRO carts on rough concrete

Engineer Tip — Jordan Wilson

I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 700PX12809SL earns its place when rough concrete and shock loading are the controlling spec. Pair 12" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.

FAQs

What does the Albion part number 700PX12809SL mean?

Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 700PX12809SL is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.

What is the load capacity of the 700PX12809SL?

6600 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.

Will the 700PX12809SL work on rough concrete?

Yes for cast iron and steel wheels. 12" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.

Is the 700PX12809SL made in the USA?

Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.

What is the lead time?

In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.

Related collections & resources

All Albion Casters Cast Iron Casters 12" × 5" Casters Heavy-Duty Casters All Plate Casters Industrial Casters Hub

Key Features

Top 10 Features of Albion Casters Ultimate Kingpinless Caster

Wheel Diameter: 12 inches – Ideal for heavy-duty applications and increased load capacity.
Wheel Width: 5 inches – Provides a wide surface for stability and smooth rolling.
Plate Size: 8.5 inches x 8.5 inches – Ensures secure mounting and robust support.
Type: Kingpinless Swivel Caster – Enhances maneuverability and durability without a central pin.
Material: Polyurethane-on-Iron – Combines durability with shock absorption for a quieter, smoother ride.
Swivel Lock: Includes Swivel Lock – Allows for secure positioning and prevents unwanted movement.
Load Capacity: Heavy-duty design – Suitable for industrial environments with high load demands.
Design: Kingpinless Design – Reduces wear and maintenance with a long-lasting construction.
Performance: Superior Shock Absorption – Minimizes vibrations and impacts, improving overall stability.
Application: Industrial and Commercial – Perfect for equipment and machinery requiring reliable, high-performance casters.

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

Flat-rate shipping by order size. Final shipping cost shown before payment.
No post-checkout shipping adjustments or re-billing.
Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Additional Information

Albion Casters Ultimate Kingpinless Caster Overview

The Albion Casters Ultimate Kingpinless Caster is engineered to meet the highest standards of durability and performance in industrial environments. This caster features a substantial 12" x 5" polyurethane-on-iron wheel, designed to handle heavy loads while ensuring smooth, quiet operation. Its kingpinless swivel design eliminates the central pin, reducing maintenance and enhancing overall reliability.

Key Benefits

The Albion Casters Ultimate Kingpinless Caster offers numerous benefits, including reduced maintenance due to its kingpinless design, enhanced durability with polyurethane-on-iron construction, and the convenience of a swivel lock for secure positioning. These features collectively ensure reliable performance in high-demand environments, making it an excellent choice for both industrial and commercial applications.

Why Choose Albion Casters?

Albion Casters stands out for its commitment to quality and innovation. By choosing the Ultimate Kingpinless Caster, you benefit from a product designed to deliver exceptional performance, durability, and ease of use. Whether you’re managing heavy equipment or optimizing workflow efficiency, this caster meets the demanding needs of modern industrial operations.

Albion 700PX12809SL 12" x 5" Cast Iron Caster — 6600 lb | CasterHQ

$2,162.00

Add 49 more for 5% off

Order in 2h 14m for same-day processing

Technical Specifications

Wheel Diameter	12"
Wheel Tread Width	5"
Overall Height	15.5"
Wheel Capacity	6600 lbs
Temp Range	-20°F to 180°F
Wheel Material	Cast Iron
Frame Material	Zinc Plated Steel
Bolt Hole Pattern	7" x 7"
Mount Style	Plate
Plate Size	8-1/2" x 8-1/2"
Rig Type	Swivel
Brake Type	No Brake
