PRODUCT CODE: HRLK-ALTH-80K-HN
Rig:

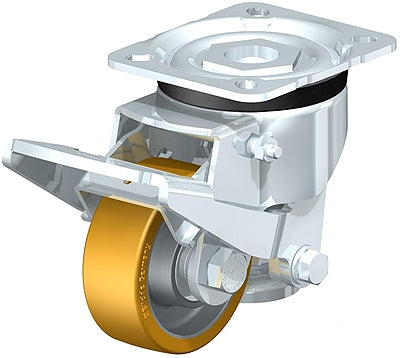

Made of heavy pressed steel, with heavy fork and top plate fitting, very strong bolted and secured central kingpin, double ball bearing in the swivel head, additionally reinforced by the integration of four specially shaped and hardened bearing seats resulting in a very high resistance to shock and impact loads. Steel truck lock. Height adjustment with flat spanner. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free.
Wheels: Made of high-quality, reaction-injected polyurethane-elastomer Blickle Extrathane®, low-noise operation, low rolling resistance, good floor preservation, very high abrasion resistance, high cut and tear propagation resistance, very good chemical connection with the wheel center.
Tread/tire: Made of high-quality, reaction-injected polyurethane-elastomer Blickle Extrathane®
Wheel center/rim: Made of die-cast aluminum. Casted tread.
Wheel center color: Silver

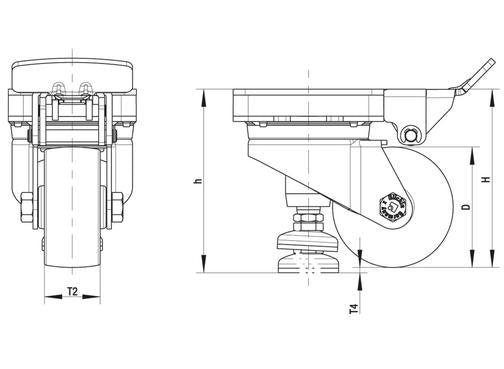

| Plate size | 100 x 85 |
| Bolt hole spacing | 80 x 60 |
| Bolt hole Ø | 9 |
| Wheel Ø | 80 mm (D) |
| Wheel width | 30 mm (T2) |
| Load capacity | 180 kg |
| Total height | 117 mm (H) |
| Max. total height | 121 mm (h) |
| Lifting distance | 4 mm T4 |
| Max foot floor | 12 mm T3 |
| Offset swivel caster | 56 mm |
| Temperature resistance to | -25 ° C |
| Temperature resistance to | 70 ° C |
| tread and tire hardness | 92° Shore A |
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
$538.00
| Wheel Diameter | 3-1/8" |
| Wheel Tread Width | 1-1/8" |
| Wheel Capacity | 400 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
| Mount Style | Plate |
| Plate Size | 85" x 100" |
| Rig Type | Rigid |
| Brake Type | No Brake |
