The Colson 2.03456.52-HT-BRK4 is a 3.5" x 1.25" thermo plastic plate-mount caster rated 300 lbs, ideal for light to medium per caster, mounted on a 2.5" x 3.625" top plate for secure attachment plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 3.5" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Colson on standard-duty industrial carts where bearing life and quiet roll matter more than maximum capacity. The 2.03456.52-HT-BRK4 earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 3.5" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Colson encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 2.03456.52-HT-BRK4 is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
300 lbs, ideal for light to medium per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 3.5" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Colson's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

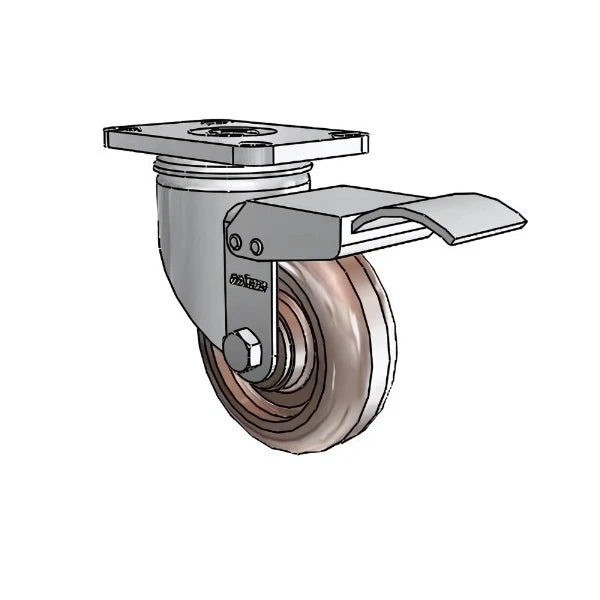

The 3.5" x 1.25" Thermo Plain Caster with Total Lock and 2.5" x 3.625" Plate is designed to deliver reliable, durable mobility for light to medium-duty applications. With a focus on performance and safety, this caster is perfect for industrial, commercial, and even institutional use. Whether you need seamless movement or a secure, locked position, this caster provides the flexibility to meet the demands of your environment.
Built for consistent, high-performance use, the full double ball hardened raceways in this caster ensure smoother operation, enhanced durability, and superior load-bearing capabilities. With multi-temperature grease, this caster performs in extreme conditions, making it highly versatile for both hot and cold environments. Its 300 lb load capacity ensures that it can handle a variety of tasks without compromising on performance.
The Total Lock Brake system (BRK4) locks both the wheel and swivel, offering maximum security when stationary positioning is required. This safety feature prevents unwanted movement, making it ideal for environments where stability is critical. Whether on uneven surfaces or in high-traffic areas, this caster ensures both mobility and safety.
The 3.5" x 1.25" wheel is constructed from thermo plastic, offering long-lasting wear resistance and smooth operation across a variety of surfaces. Its crowned tread design ensures that movement is both stable and efficient, making it easier to navigate even in tight spaces. The stainless steel finish provides corrosion resistance, ensuring that the caster can withstand harsh working environments.
Installation is straightforward, thanks to the 2.5" x 3.625" top plate and versatile bolt hole pattern (1.75" x 2.813" to 3.063"). This caster is compatible with a wide range of equipment and can be securely fastened using the recommended 5/16" bolts. Its 4.69" mounting height and 5" swivel radius offer ideal proportions for most commercial and industrial setups, ensuring efficient functionality.
With an operating temperature range of -70°F to +480°F, this caster is designed to perform in a wide range of extreme conditions. From cold storage facilities to high-temperature environments, its thermo plastic material and stainless steel components ensure that it maintains performance and durability. The caster is also RoHS compliant and NSF certified, adhering to important safety and environmental standards.
When choosing a caster for demanding environments, the 3.5" x 1.25" Thermo Plain Caster with Total Lock is a top choice for professionals. Its superior build quality, reliable brake system, and impressive temperature tolerance make it ideal for light to medium-duty industrial and commercial applications. Additionally, with a 3-year warranty, this caster offers peace of mind and dependable long-term performance.
This Colson 2.03456.52-HT-BRK4 3.5" x 1.25" Thermo Plastic Caster — 300 lb is rated to 300 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

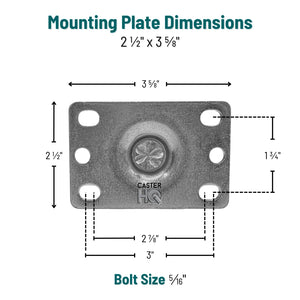

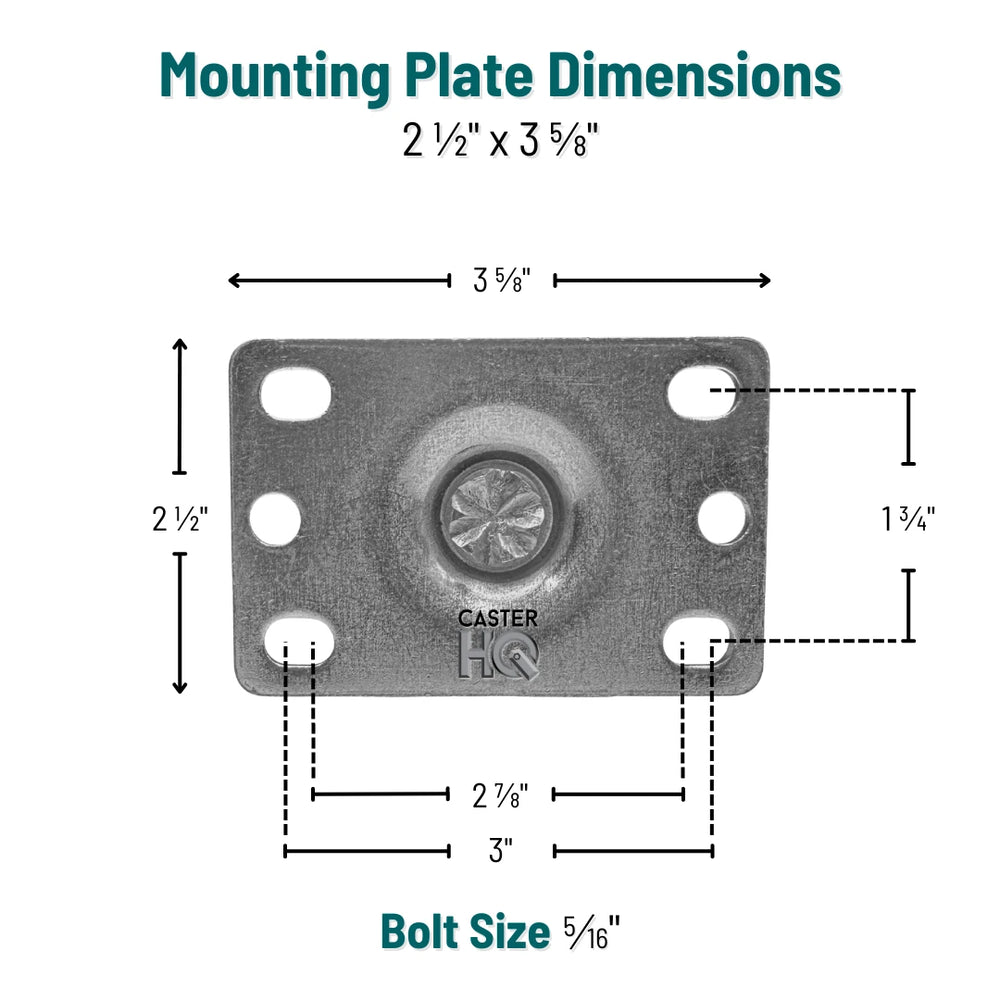

This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 4.69". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$157.00
| Identification | |
| Brand | colson header |
| Dimensions & Mounting | |
| Wheel Diameter | 3.5" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 4.69" |
| Plate Size | 2-1/2" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-13/16" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 300 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
