How many casters does one 3/8" caster mounting hardware kit mount?

One 64-piece 3/8"-16 caster mounting hardware kit mounts a set of four plate-mount casters.

Will 3/8" caster bolts fit different plate sizes?

This 3/8" kit fits caster top plates designed for 3/8" bolt-hole diameters. For other plates, use the 5/16, 3/8, or 1/2 kit that matches your bolt-hole spec.

Is 3/8" caster mounting hardware stainless?

Standard 3/8" caster mounting hardware is zinc-plated low-carbon steel. Stainless 304 or 316 hardware is available via custom quote for washdown, food-grade, or marine environments.

What is the difference between caster carriage bolts and thread-cutting screws?

Carriage bolts pass through a pre-drilled hole and secure with a nut and washer on the back side, ideal for wood or fabricated steel with two-sided access. Thread-cutting screws self-tap into thin-gauge steel and require access from only the caster side.

3/8" Caster Plate Mounting Hardware Combo Pack - 16 Pieces of Each CasterHQ

3/8"-16 Caster Mounting Hardware Kit — 64-Piece Set for 4 Casters | CasterHQ

$44.00 USD

Save 30%+ vs big-box distributors

In Stock · Ships 1-2 Business Days

✉️ Email a Caster Solutions Expert (Mon–Fri 8–5 CST)

PO Net 30 ACH Tax-Exempt

Business Purchasing

Purchase orders accepted for approved accounts
Net 30 terms for qualified businesses
ACH, credit card, and tax-exempt ordering
Bulk and contract pricing on fleet quantities

Upload a PO / Quote·Request bulk pricing·844-439-4335

Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.

Call now

Product Overview

What this kit is

A 64-piece, zinc-finish steel mounting kit that secures a set of 4 plate-mount casters to a 3/8"-16 bolt-pattern equipment frame. Includes 16 carriage bolts, 16 hex thread-cutting screws, 16 SAE flat washers, and 16 nylon-insert lock nuts. Engineered for industrial cart, dolly, tool-box, and material-handling applications where a 3/8" bolt diameter matches the caster top plate.

Kit Specifications

Pieces per kit	64 (16 of each component)
Mounts	4 plate-mount casters
Thread spec	3/8"-16 UNC
Bolt length	1"
Material	Low-carbon steel
Finish	Zinc plated
Bolt grade	ASTM A307 Grade A (carriage bolts)
Nut type	Grade 2 nylon-insert lock nut
Washer type	SAE general-purpose flat washer
Application	Indoor industrial; dry environments

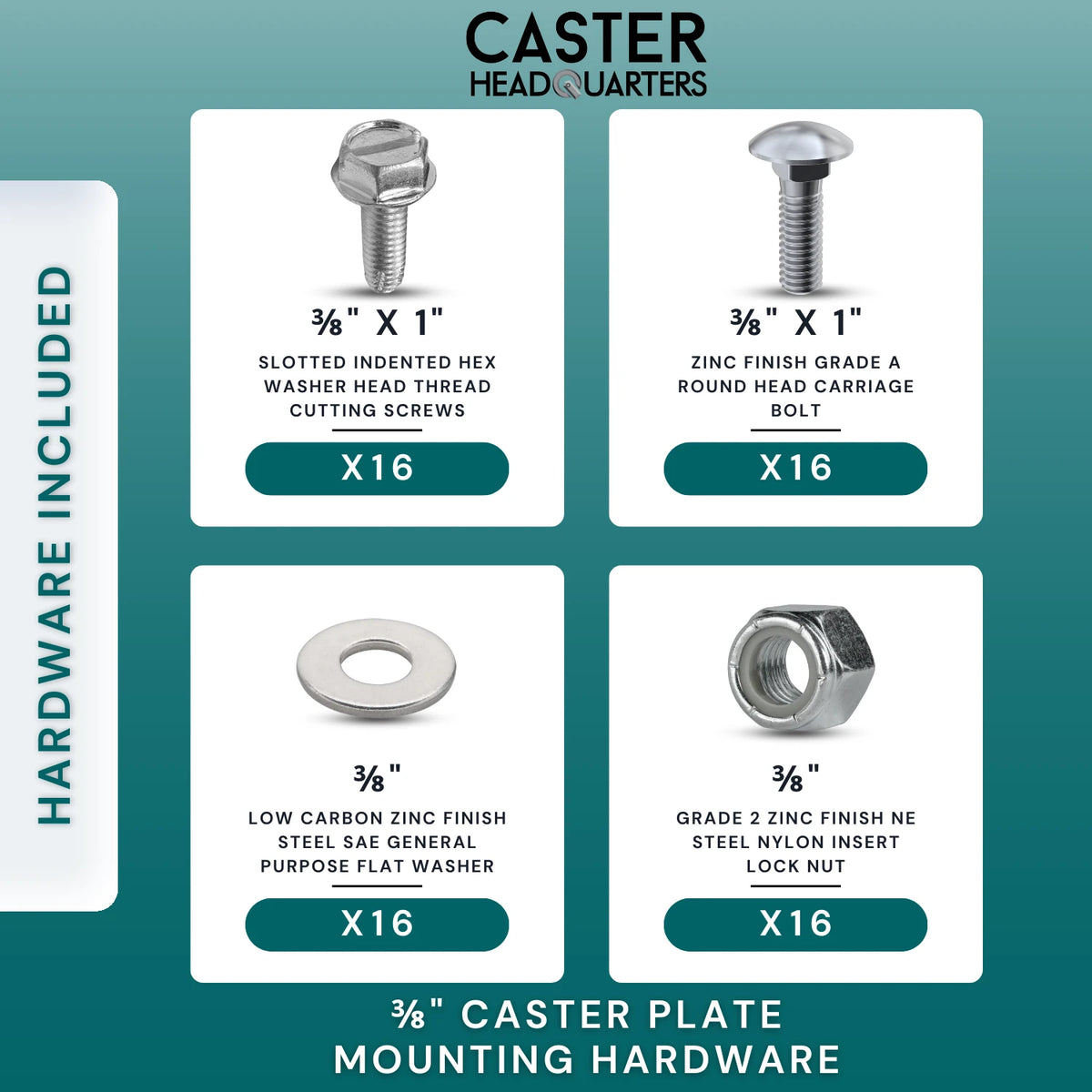

What's Included (64 pieces total)

16 × 3/8"-16 × 1" hex-slotted drive indented hex washer head Type F point thread-cutting screws, zinc finish, low-carbon steel — for self-tapping installation into thin-wall steel frames
16 × 3/8"-16 × 1" round-head carriage bolts, zinc finish, ASTM A307 Grade A — for through-bolting to wood, fabricated steel, or pre-drilled equipment
16 × 3/8" SAE general-purpose flat washers, zinc finish, low-carbon steel — for load distribution under the nut
16 × 3/8"-16 nylon-insert lock nuts, zinc finish, Grade 2 — vibration-resistant retention

Which casters does this kit fit?

Fits any plate-mount caster with a 3/8" bolt-hole diameter — typically:

2" wide casters with 4" × 4-1/2" top plates
Standard-duty casters rated up to ~1,500 lb capacity per caster
Standard industrial cart, material-handling, manufacturing, and warehouse applications

For 4-1/2" × 6-1/4" or larger plates with 1/2" bolt holes, use our 1/2"-13 kit instead.

Engineer Tip

If you're mounting to thin-gauge steel (≤14 ga.), the thread-cutting screws self-tap and skip the need to drill clearance holes. For wood platforms or fabricated steel ≥1/8" thick, use the carriage bolts with a square hole punched or drilled to 3/8" — the square shoulder seats and prevents bolt rotation while you tighten the lock nut.

Common Applications

Industrial dollies, material-handling carts, and warehouse trucks
Manufacturing line carts, fabrication shop bases, and assembly fixtures
Plate-mount casters in 4-1/2" × 6-1/4" or smaller heavy-duty plate sizes
Tool boxes, parts cabinets, and rolling work platforms
Most 2" wide casters with 4" × 4-1/2" plates

Frequently Asked Questions

How many casters does one kit mount?
One kit (64 pieces) mounts a set of 4 plate-mount casters. For a 16-piece single (mounts 1 caster) alternative, see our 16-piece single (mounts 1 caster).

Will these bolts fit a different caster top plate size?
This kit is sized for 3/8" bolt-hole diameter, which matches caster plates listed above. For other plate sizes, choose the 5/16", 3/8", or 1/2" kit that matches your bolt-hole diameter.

Are these stainless?
No — these are zinc-plated low-carbon steel. For washdown, food-grade, marine, or chemical environments, request stainless 304 or 316 hardware via our quote desk.

What's the difference between the carriage bolts and the thread-cutting screws?
Carriage bolts pass through a pre-drilled or punched 3/8" hole and secure with a nut and washer on the back side — best for wood or steel where you have access to both sides. Thread-cutting screws self-tap into thin steel and only need access from the caster side. The kit ships both so you can choose the right method per installation.

Are these grade 5 or grade 8?
The carriage bolts are ASTM A307 Grade A (commercial grade, ~60 ksi tensile). For higher-load critical applications, request Grade 5 or Grade 8 via the quote desk.
