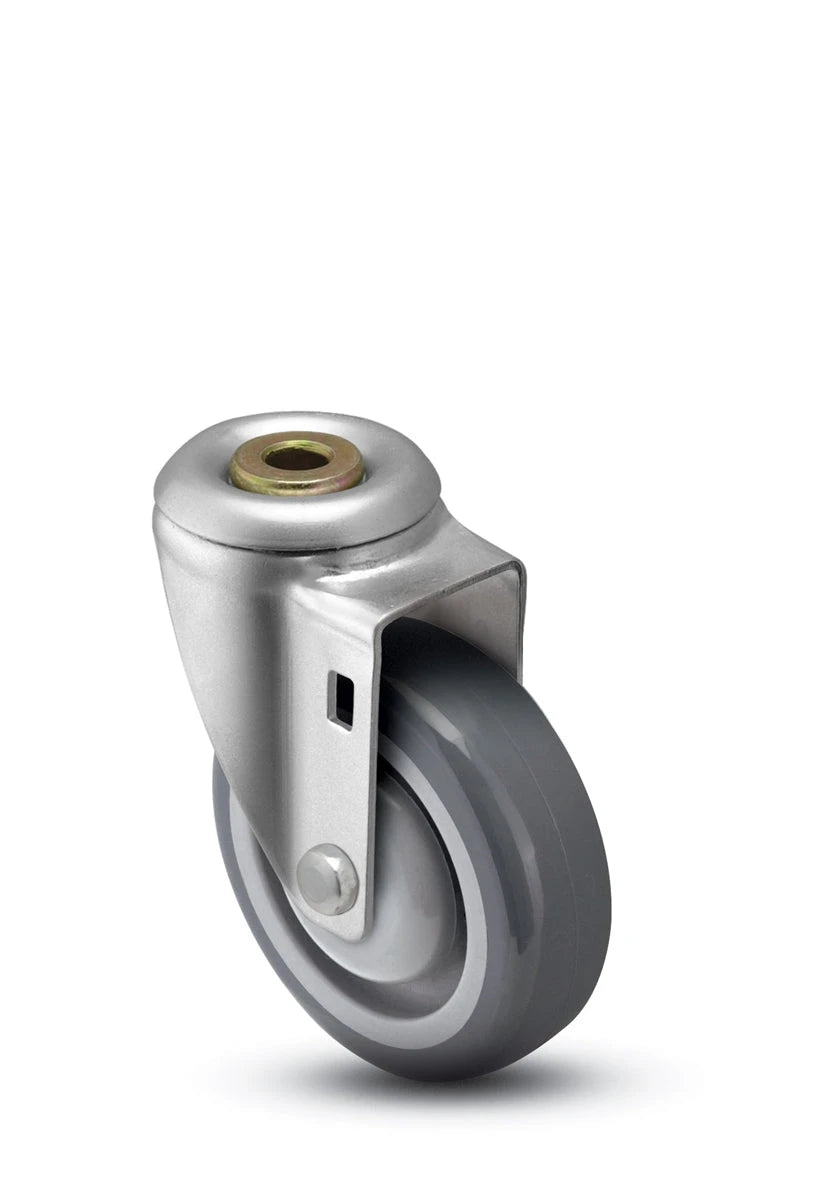

This listing is for a 5" x 1-1/4" Hollow Kingpin Caster, also known as a Stemless Caster or a Bolt Hole Caster. This caster has a tubular rivet in the center of the caster to allow any stem type and size 1/2" diameter and under. This is made to accommodate your custom or unique stem size so you can quickly adapt and attach casters to your equipment or cart.
Wheel Type:
Polyurethane on Polyolefin Wheels is non-marking, non-marring, and will protect your equipment or cart. Polyurethane Wheels are easy to roll, quiet, and great for smooth concrete floors, wood, tile, linoleum, carpet, and most floor types. Polyurethane Wheels are resistant to chemicals, mild acids, oils, and water.
| CASTER TYPE: | HOLLOW KINGPIN / STEMLESS CASTER / BOLT HOLE CASTER |
| WHEEL DIAMETER: | 5" |
| WHEEL TREAD WIDTH: | 1-1/4" |
| HOLLOW KINGPIN BOLT-HOLE SIZE: | 1/2" INNER DIAMETER BOLT HOLE (FITS ANY STEM 1/2" AND UNDER) |
| OVERALL HEIGHT: | 6-1/4" (FROM BOTTOM OF WHEEL TO TOP OF RACEWAY AFTER INSTALLATION) |
| SWIVEL RADIUS: | 4-7/8" |
| WEIGHT CAPACITY: | 350 LBS PER WHEEL |
| BEARING TYPE: | SEALED PRECISION BALL BEARING |
| RACEWAY STYLE: | DOUBLE BALL RACEWAY |
| WHEEL MATERIAL: | POLYURETHANE TREAD ON POLYOLEFIN CORE |
| THREAD GUARDS: | YES |
| TEMPERATURE RANGE: | -20°F to 180°F |
| WHEEL DUROMETER/HARDNESS: | SHORE D 60 (+/-5) |
| CHEMICAL RESISTANCE: | RESISTANT TO CHEMICALS, SOLVENTS, OILS, ACIDS, ALCOHOL, AND WATER |
| WHEEL CHARACTERISTICS | NON-MARKING FLOOR-PROTECTING POLY WHEEL |
| STEMLESS CASTER | 1/2" INNER DIAMETER HOLE FOR YOUR CUSTOM STEM |
| ZINC PLATED: | BRIGHT ZINC-PLATED FINISH FOR EXTRA RUST AND CORROSION RESISTANCE |
| NSF LISTED: | NSF LISTED AND CERTIFIED CASTER SERIES |
| DOUBLE BALL RACEWAY: | DUAL RACEWAY DESIGN FOR ADDED STRENGTH AND EASY MOBILITY |
| SWIVEL VERSION | SWIVEL 360° DEGREES WITH EASE |
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 5" x 1-1/4" Polyurethane Swivel Hollow Kingpin Caster – 350 lb is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 1-1/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$26.00
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 6-1/4" |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 350 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
