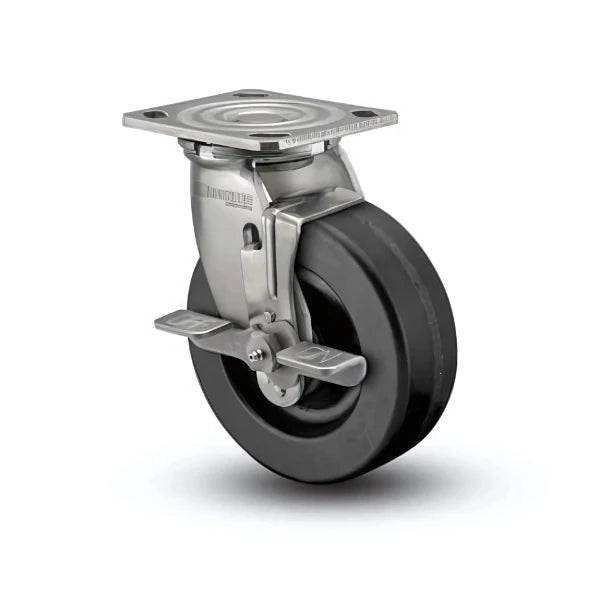

The 5" x 2" Stainless Phenolic Delrin Bearing Top-Lock Caster with 4" x 4.5" Plate (D4.05109.331 BRK7 SS) is engineered for seamless performance and durability in demanding environments. Constructed with a stainless steel housing and a phenolic core, this caster is perfect for applications that require heavy-duty strength, smooth rolling, and corrosion resistance. The Delrin bearing ensures reliable and efficient movement, while the top-lock mechanism allows for secure positioning during use. The caster’s robust 4" x 4.5" plate makes installation and maintenance simple and efficient. This caster is a great choice for industrial settings, carts, and trolleys where reliability, ease of movement, and secure locking are essential.
Our 5" x 2" Stainless Phenolic Delrin Bearing Top-Lock Caster with 4" x 4.5" Plate (D4.05109.331 BRK7 SS) is built to meet the highest standards of quality and performance. Each caster is rigorously tested to ensure long-lasting durability and optimal functionality. Designed for heavy-duty industrial use, this caster is ideal for handling high loads and providing reliable service in demanding conditions. With our commitment to quality, this product is backed by dependable customer support and a satisfaction guarantee, ensuring peace of mind for your business.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 5" x 2" Stainless Phenolic Delrin Bearing Top-Lock Caster with 4" x 4.5" Plate (model D4.05109.331 BRK7 SS) is designed for high-performance and durability in industrial and commercial environments. Whether you're looking to enhance the mobility of heavy-duty equipment or secure your carts and trolleys in place, this caster offers a perfect blend of strength, smooth movement, and long-lasting reliability.
Thanks to its combination of high-strength materials, smooth movement, and secure locking features, the 5" x 2" Stainless Phenolic Delrin Bearing Top-Lock Caster is perfect for various applications, including:
When it comes to selecting the right caster for your business, it's essential to choose one that not only offers reliable performance but also meets industry standards. The 5" x 2" Stainless Phenolic Delrin Bearing Top-Lock Caster stands out as an exceptional choice due to its robust construction, superior performance under heavy loads, and corrosion-resistant features. Whether you're upgrading your equipment or replacing worn-out casters, this product ensures that your operations run smoothly and efficiently.
With its top-quality construction, excellent performance under heavy loads, and proven reliability in demanding environments, this caster provides an exceptional return on investment for industrial and commercial users alike. Backed by a 3-year warranty and full compliance with industry standards, this caster will help you keep your equipment moving efficiently while maintaining safety and stability in your workspace.
We take pride in offering products that meet the highest standards of quality and reliability. Our 5" x 2" Stainless Phenolic Delrin Bearing Top-Lock Caster with 4" x 4.5" Plate (D4.05109.331 BRK7 SS) is rigorously tested to ensure it can withstand the demands of high-weight applications and offer dependable service over time. With a 3-year warranty and responsive customer support, we are committed to ensuring your complete satisfaction.
This Colson D4.05109.331 BRK7 SS 5" x 2" Phenolic Stainless Caster with Wheel Lock Brake is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

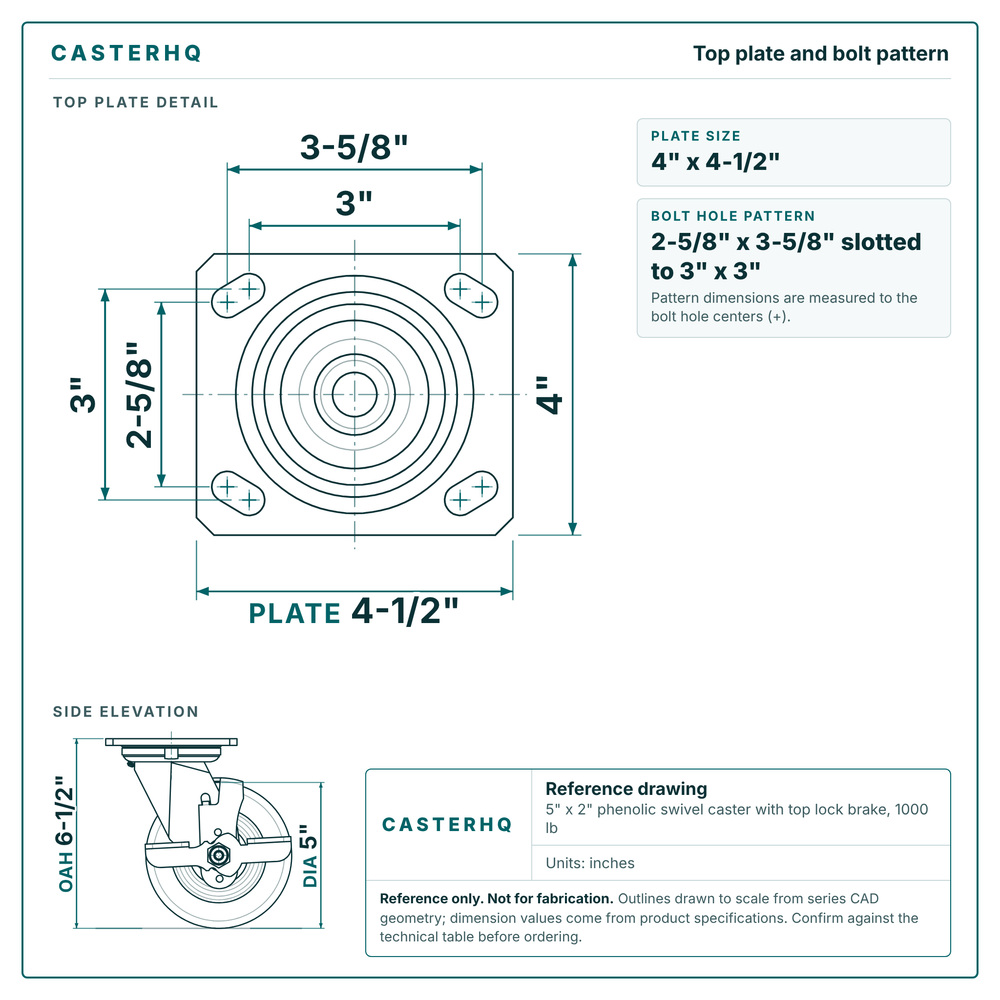

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$210.00
| Identification | |
|---|---|
| Part Number / SKU | D4.05109.331-BRK7-SS |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6-1/2" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-1/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Phenolic |
| Bearing Type | Delrin Bearing |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | -40°F to 600°F |
| Warranty | 3 Years |
| Compliance | |
| Conformity | RoHS compliant; NSF component (less thread guards) |
| Buy American | Yes |

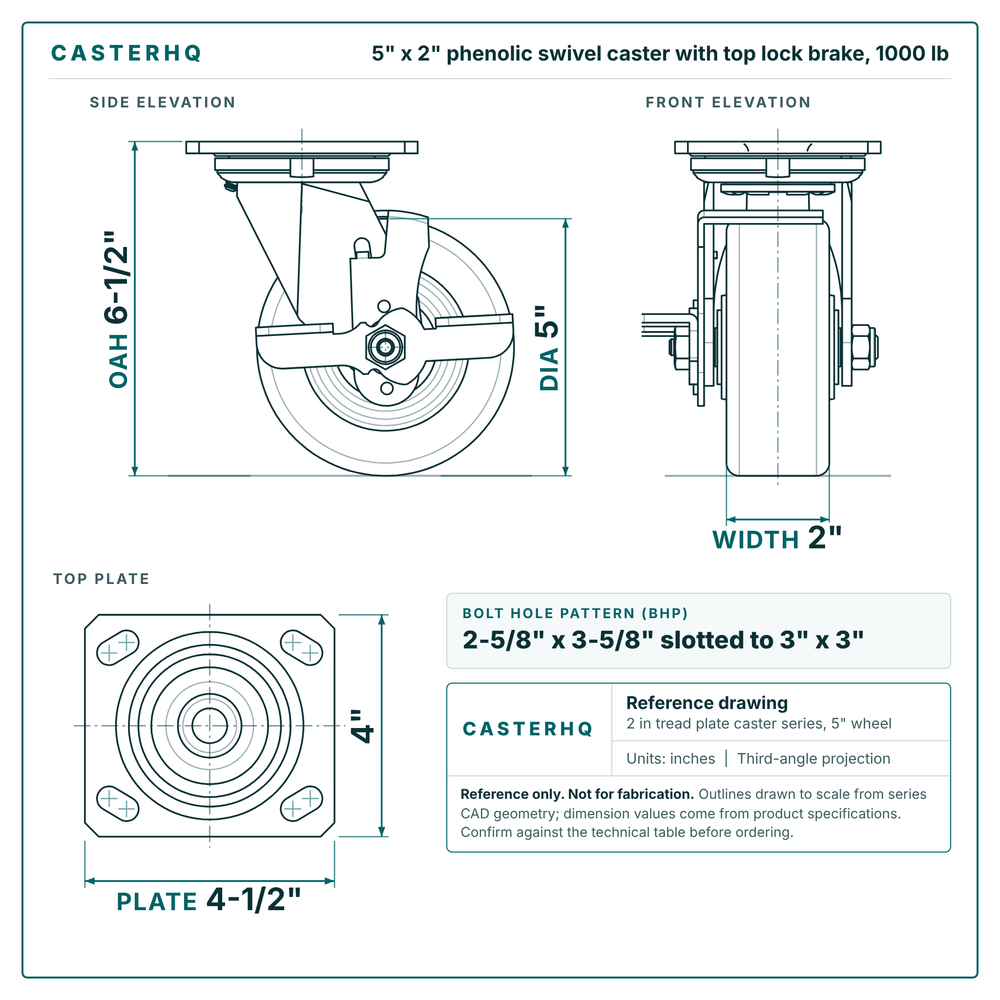

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → | |
| 1000 lbs | 5" × 2"Phenolic | Swivel with Brake + brake | 6-1/2" | $210.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | 6-1/2" | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Semi-Steel | Rigid | 6-1/2" | $31.00 | View → |
