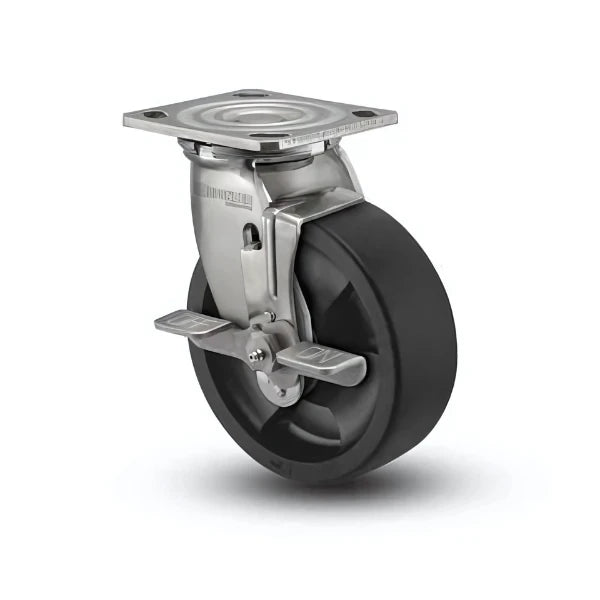

The 5" x 2" Stainless Hi-Temp Nylon Precision Ball Bearing Top Lock Caster is engineered for optimal performance in demanding high-temperature environments. Featuring a robust stainless steel construction combined with a precision nylon wheel, this caster delivers exceptional durability and resistance to wear and corrosion. The integrated top lock mechanism provides enhanced stability, ensuring that your equipment remains securely in place during operation. With a plate size of 4" x 4.5", this caster easily attaches to a variety of equipment, offering both versatility and reliability. Experience smooth mobility and superior performance with this high-quality caster, designed to meet the rigorous demands of industrial applications.
Choose the 5" x 2" Stainless Hi-Temp Nylon Precision Ball Bearing Top Lock Caster for unparalleled reliability and exceptional performance in high-temperature environments. Its precision engineering and convenient top lock design make it the perfect choice for heavy-duty applications, ensuring that your equipment remains mobile and stable even under challenging conditions. Invest in a caster that combines durability, performance, and ease of use, meeting the highest standards of quality.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 5" x 2" Stainless Hi-Temp Nylon Precision Ball Bearing Top Lock Caster is engineered to deliver exceptional performance in challenging environments. With its robust construction and innovative features, this caster is designed to support heavy loads while maintaining smooth mobility. It is perfect for applications requiring high-temperature resilience and reliability.
This caster is ideal for various industrial applications, including:
The 5" x 2" Stainless Hi-Temp Nylon Precision Ball Bearing Top Lock Caster is a reliable choice for professionals seeking durability, safety, and performance in high-temperature environments. Its advanced features ensure that your equipment remains mobile and stable, even in the most demanding conditions. With a 3-year warranty and compliance with RoHS and NSF standards, you can trust that this caster meets the highest quality requirements.
This Colson D4.05109.835 5" x 2" Nylon Caster with Wheel Lock Brake – 4" x 4.5" Plate is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

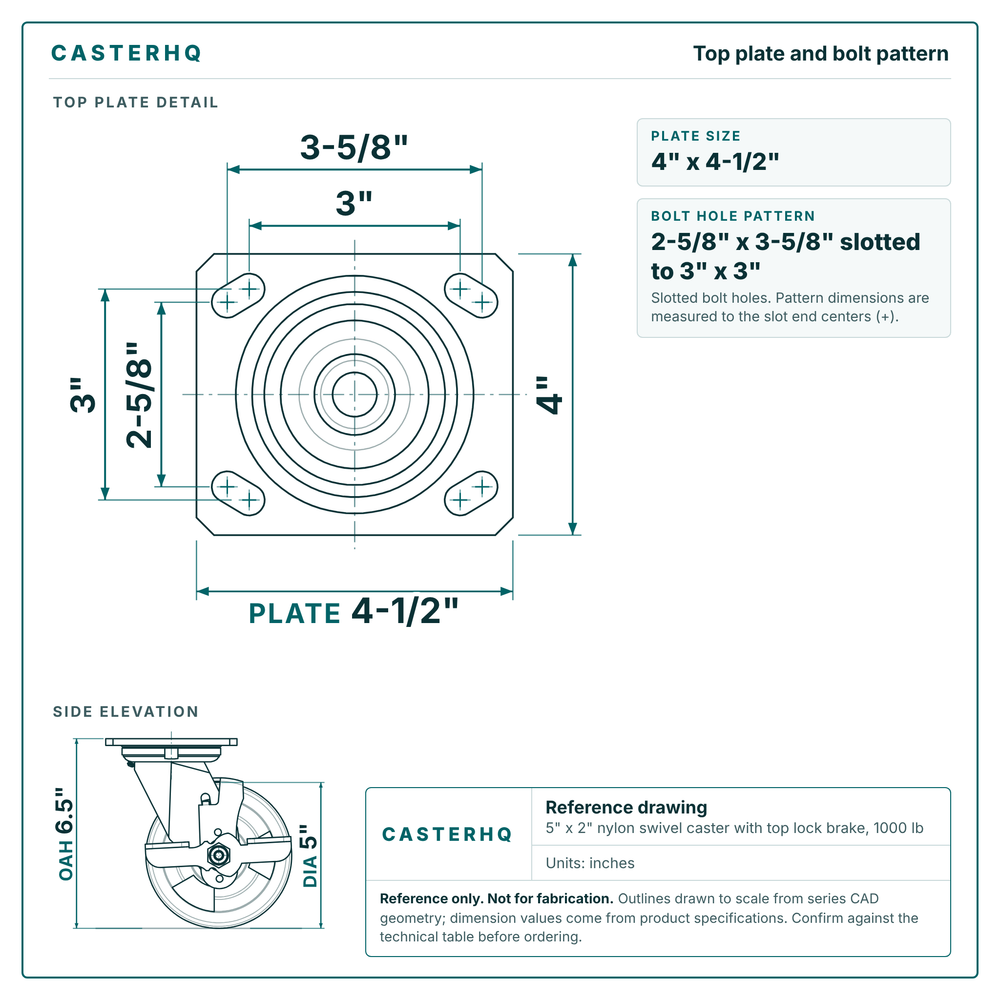

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 480°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$214.00
| Identification | |
|---|---|
| Part Number / SKU | D4.05109.835-HTBLK-BRK7-SS |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6.5" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-1/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Nylon |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 75-80 Shore D |
| Bearing Type | Pedestal Precision Ball Bearing |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | Up to 480°F |
| Warranty | 3 Years |
| Compliance | |
| Buy American | Yes |

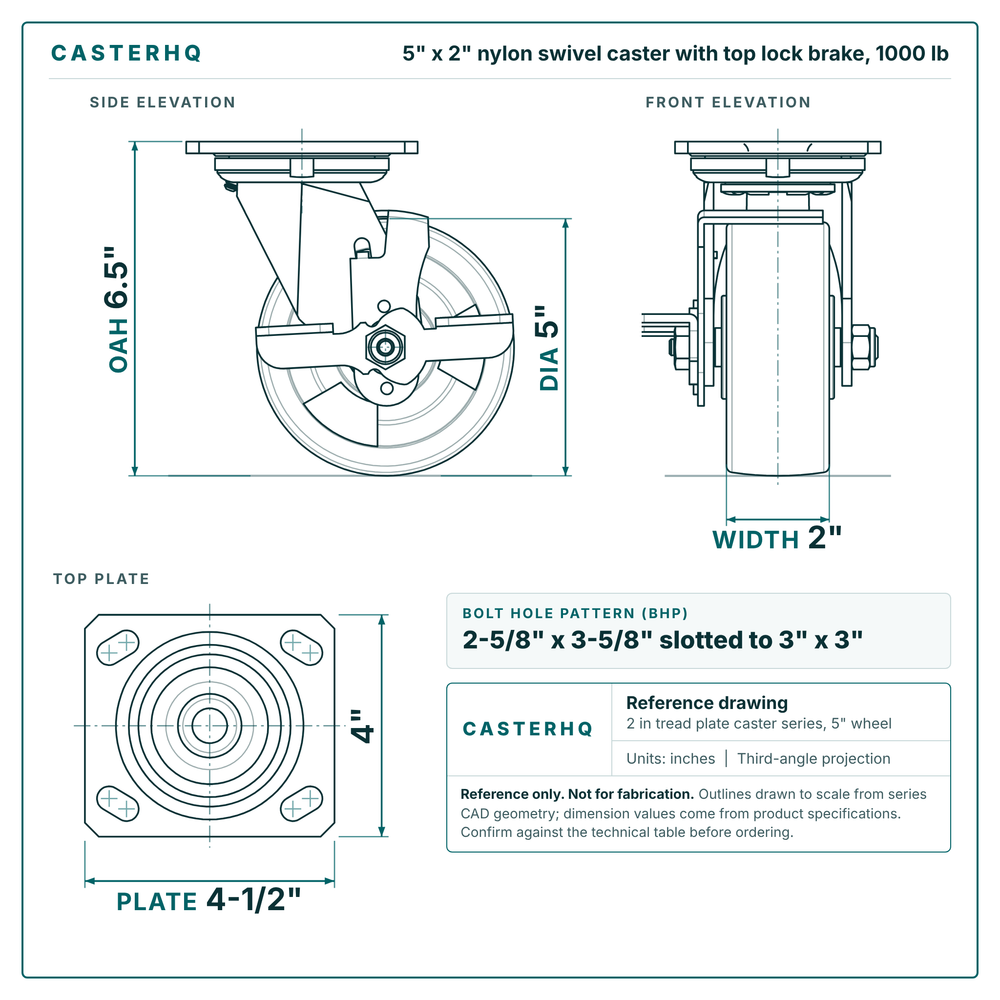

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → | |
| 1000 lbs | 5" × 2"Nylon | Swivel with Brake + brake | 6.5" | $214.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | 6-1/2" | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Semi-Steel | Rigid | 6-1/2" | $31.00 | View → |
