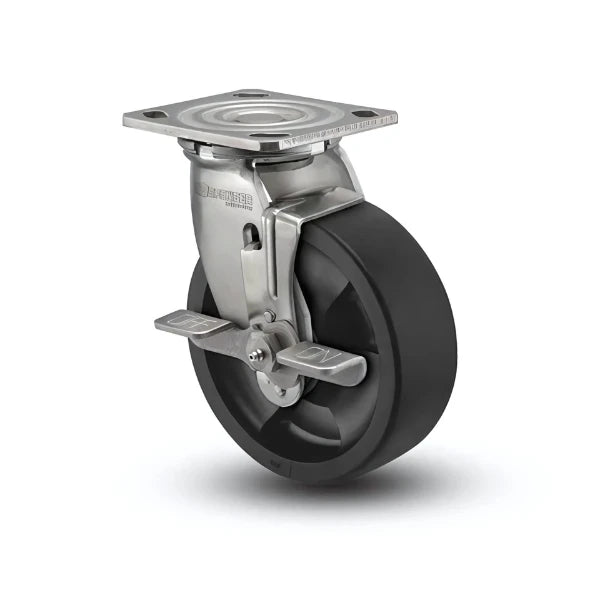

The 5" x 2" Stainless Hi-Temp Nylon Roller Bearing Top-Lock Caster is engineered for superior performance in challenging environments. Crafted from durable stainless steel and high-temperature nylon, this caster offers exceptional resistance to heat, wear, and corrosion. The top-lock mechanism ensures secure positioning, allowing for safe and stable operation. With a robust 4" x 4.5" plate, it provides excellent stability and reliable attachment to various equipment. This caster is ideal for industrial settings where mobility and durability are essential.
Elevate your operations with the 5" x 2" Stainless Hi-Temp Nylon Roller Bearing Top-Lock Caster. Its robust construction, high-temperature resistance, and secure top-lock feature make it a reliable choice for demanding applications. Invest in quality and safety by selecting a caster that guarantees performance and longevity in high-stress environments.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 5" x 2" Stainless Hi-Temp Nylon Roller Bearing Top-Lock Caster (Model: D4.05109.839 HTBLK BRK7 SSWB29) is engineered for exceptional performance in demanding environments. Constructed from high-quality stainless steel and hi-temp nylon glass-filled material, this caster offers superior durability and resistance to extreme temperatures, making it a perfect choice for industrial applications. Whether you need reliable mobility in factories, warehouses, or workshops, this caster is designed to meet the toughest demands while ensuring user safety and comfort.
Investing in the 5" x 2" Stainless Hi-Temp Nylon Roller Bearing Top-Lock Caster ensures that your equipment operates efficiently and safely. The durable construction not only enhances the lifespan of the caster but also reduces maintenance costs over time. With its robust design and high load capacity, this caster is the perfect solution for transporting heavy machinery and equipment within your facility.
Moreover, the caster’s design is compliant with RoHS standards and is recognized as an NSF component (excluding thread guards), ensuring safety and reliability in food handling and industrial applications. The three-year warranty provides added assurance, making this caster a smart investment for your operations.
Whether you’re looking to upgrade your existing equipment or need a reliable solution for new installations, the 5" x 2" Stainless Hi-Temp Nylon Roller Bearing Top-Lock Caster is engineered to deliver performance and durability. With its advanced features and robust construction, this caster is designed to enhance your operational efficiency and safety.
This Colson D4.05109.839 5"x2" Hi-Temp Nylon Stainless Caster with Wheel Lock Brake is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

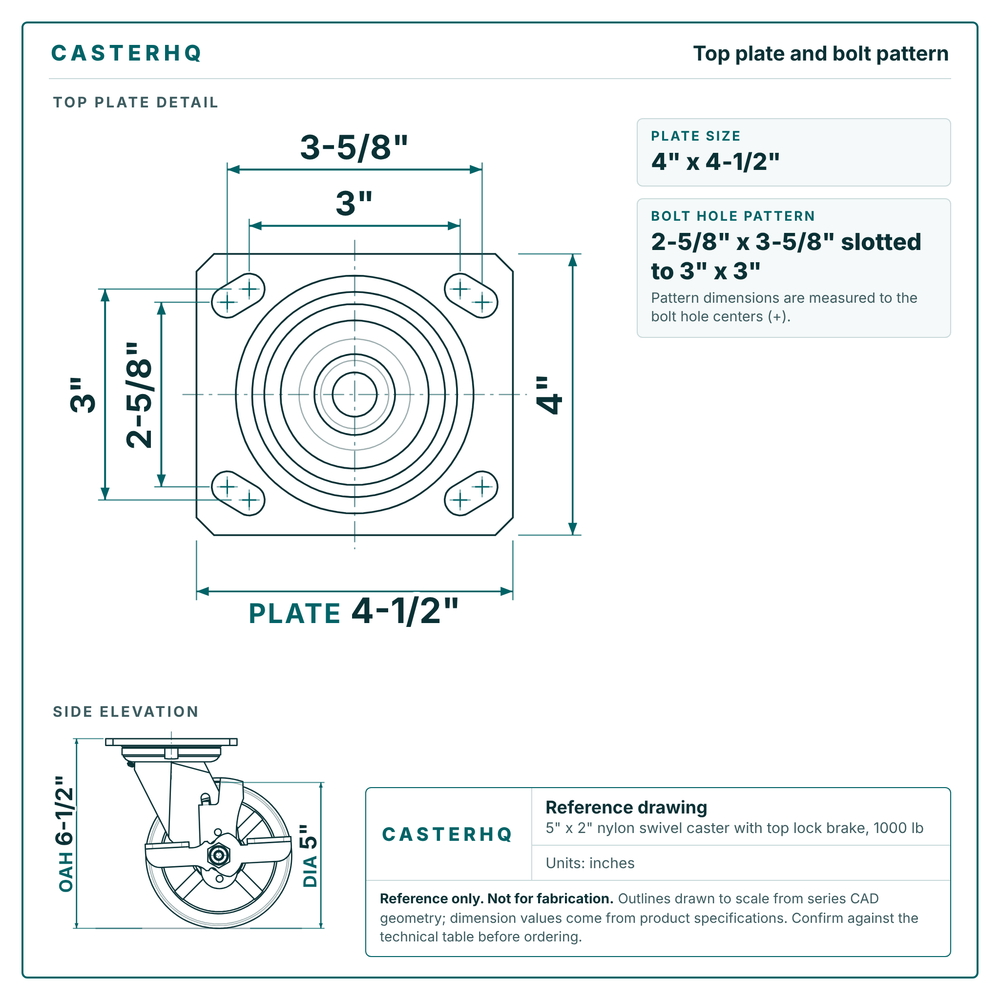

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 350°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Treat published load capacity as a continuous working limit, not a one-time peak. Divide total loaded cart weight (product + rack + fixtures) by the number of casters that share the load, then size so that working load per caster stays at or below about 75% of the rated capacity (a common ~25% margin). On four-wheel oven racks, uneven floors and thermal growth can shift load to two or three casters; if your process routinely parks on imperfect floors, engineer for three-caster support rather than perfect four-way share. Confirm ratings at your process temperature — heat softens many wheel compounds and can lower usable capacity versus room-temperature catalog numbers.
Bypass standard polyurethane when continuous or cyclic wheel temperatures exceed the urethane compound’s published service range (often well below typical bake / washdown-after-heat zones). Spec glass-filled nylon or phenolic (or other high-temp tread systems on the PDP) when racks enter ovens, proofers, or wash tunnels where tread softening, bond failure, or flat spots would appear with PU. Match the wheel to the hottest surface the tread sees, including residual heat after exit, and verify chemical exposure (cleaners, fats, steam) against the material notes on this product. When in doubt, ask for the temperature and duty cycle — we will confirm whether this SKU or a high-temp alternate is the right call.
A traditional kingpin clamps the swivel assembly through a single axial fastener. Repeated side thrust from towing, tugger lines, or AGV path corrections loads that pin and the raceway faces in ways ordinary cart steering does not. Over time that shows up as elongated kingpin holes, brinelled races, or loose swivels. Kingpinless (or forged integrated) raceways distribute thrust through a continuous race path instead of relying on that central pin — better suited when side loads are planned into the duty cycle. Oven-rack and high-temp lines still need the correct wheel material first; upgrade the swivel construction when towing or powered side loads are part of the application, not only when heat is.
$217.00
| Identification | |
|---|---|
| Part Number / SKU | D4.05109.839-HTBLK-BRK7-SSWB29 |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6-1/2" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-1/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Nylon |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 75-80 Shore D |
| Bearing Type | Roller Bearing |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | Up to 350°F |
| Warranty | 3 Years |
| Compliance | |
| Conformity | RoHS compliant; NSF component (less thread guards). |
| Buy American | Yes |

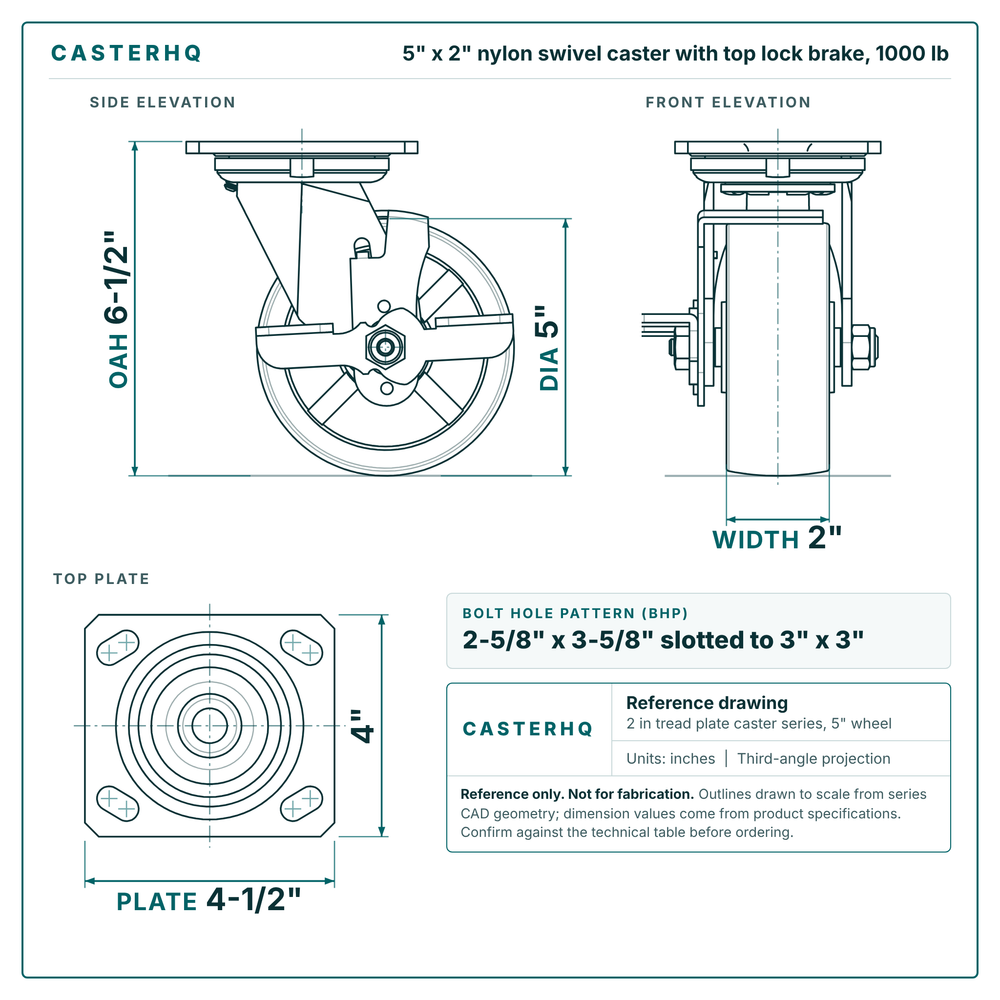

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → | |
| 1000 lbs | 5" × 2"Nylon | Swivel with Brake + brake | 6-1/2" | $217.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | 6-1/2" | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Semi-Steel | Rigid | 6-1/2" | $31.00 | View → |
