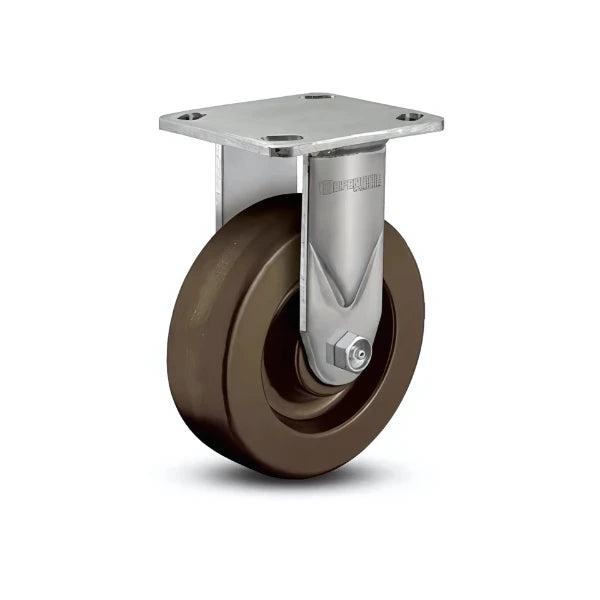

The 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Rigid Caster with 4" x 4.5" Plate (D4.05108.331 HT SS) is built to withstand extreme industrial conditions. With its stainless steel construction and high-temperature-rated Phenolic Delrin Bearing, this rigid caster delivers smooth, reliable performance even in heat-intensive environments. The non-swiveling design ensures stability while the 4" x 4.5" mounting plate simplifies installation and maintenance. This caster is engineered for heavy-duty applications in industries such as manufacturing, automotive, and food processing where high heat, durability, and load-bearing are essential.
We stand behind the quality and performance of the 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Rigid Caster with 4" x 4.5" Plate (D4.05108.331 HT SS). Each caster undergoes rigorous testing to ensure it meets the highest standards of durability and heat resistance. Perfect for demanding environments, this caster provides reliable service in high-temperature conditions. Backed by our commitment to quality, you can trust this product to enhance your operations with long-lasting, reliable performance.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Overview: The 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Rigid Caster with a 4" x 4.5" mounting plate (model D4.05108.331 HT SS) is engineered to meet the demands of high-temperature industrial applications. Crafted from durable stainless steel, it provides outstanding corrosion resistance and durability, making it suitable for use in harsh environments such as manufacturing, food processing, automotive, and more.
The caster’s rigid design provides superior stability and control, especially when precise directional movement is required. With no swivel mechanism, this rigid caster ensures that equipment moves in a straight line, making it ideal for use in industrial applications where straight-line motion is essential.
The axle, made from ½" diameter 304 stainless steel zerk axle, offers increased strength and durability, ensuring that this caster can handle heavy loads with ease. The axle is designed to withstand the demands of tough industrial settings and high-traffic areas.
This caster is RoHS compliant and NSF certified (excluding thread guards), making it an ideal choice for environments that require adherence to strict safety and environmental standards, such as food processing or other regulated industries. It also comes with a 3-year warranty, ensuring that you receive a high-quality, long-lasting product backed by reliable customer support.
Ideal for a wide range of industrial and commercial uses, the 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Rigid Caster is perfect for:
When choosing a caster for demanding applications, it’s essential to prioritize durability, temperature resistance, and smooth performance. The 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Rigid Caster delivers on all fronts, making it a reliable choice for heavy-duty, high-temperature environments. Its corrosion-resistant stainless steel construction and high-performance Phenolic Hi-Temp wheel ensure long-lasting functionality in the most challenging conditions, offering you the peace of mind that your equipment will remain operational and efficient.
This Colson D4.05108.331 HT SS 5" x 2" Phenolic Rigid Stainless Caster is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a High Temp Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

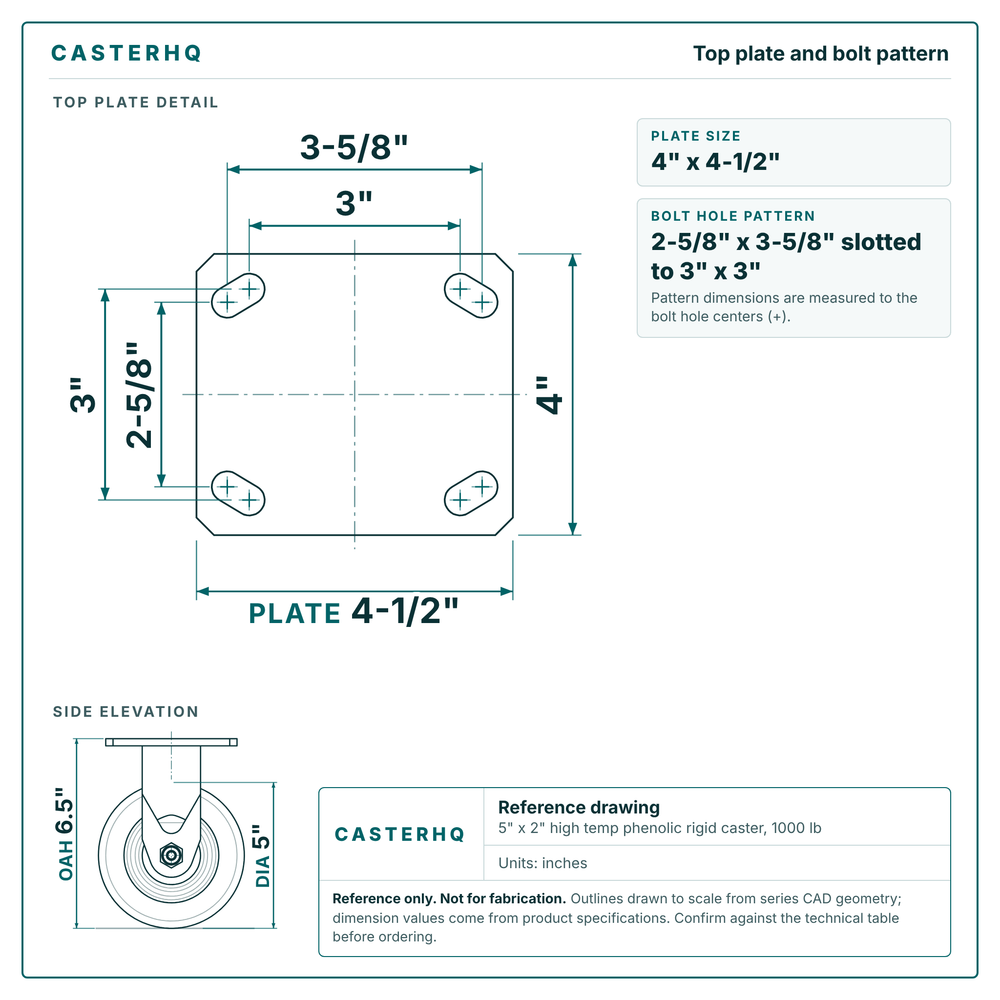

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 350°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The High Temp Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$154.00
| Identification | |
|---|---|
| Part Number / SKU | D4.05108.331-HT-SS |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 1000 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6.5" |
| Rig Type | Rigid |
| Brake | No Brake |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | High Temp Phenolic |
| Wheel Core Material | Phenolic |
| Wheel Color | Brown |
| Bearing Type | Delrin |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| The swivel bearing path in the horn; the kingbolt is the center pivot pin.Raceway / Swivel ConstructionThe swivel bearing path in the horn; the kingbolt is the center pivot pin. | Rigid, no raceway |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | Up to 350°F |
| Warranty | 3 Years |
| Compliance | |
| Conformity | RoHS compliant; NSF component (less thread guards) |
| Buy American | Yes |

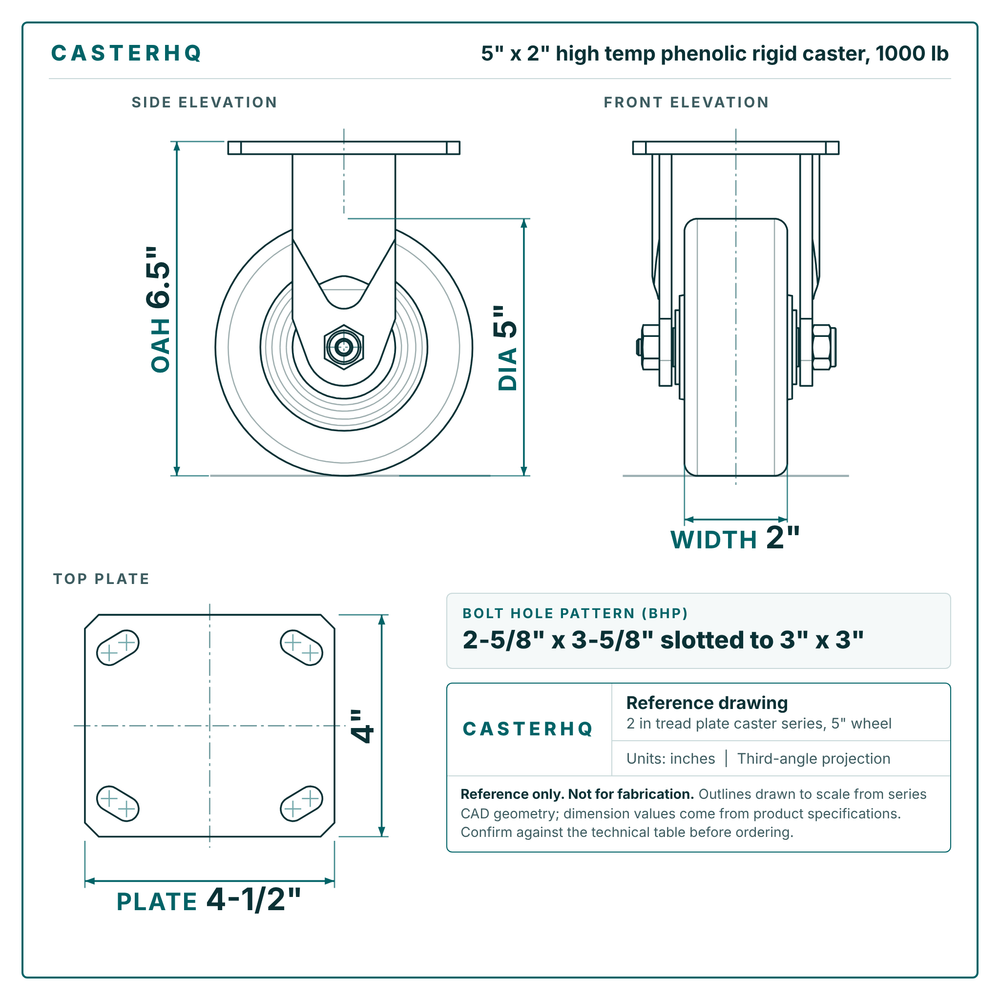

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $51.00 | View → | |
| 1000 lbs | 5" × 2"High Temp Phenolic | Rigid | 6.5" | $154.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | 6-1/2" | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Semi-Steel | Rigid | 6-1/2" | $31.00 | View → |
