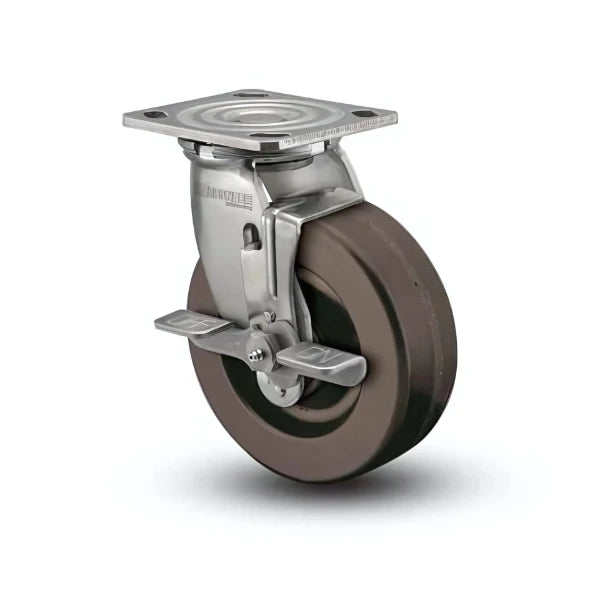

The 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Side-Lock Caster with 4" x 4.5" Plate (D4.05109.331 HT BRK7 SS) is engineered to deliver superior performance in high-temperature environments. Constructed with stainless steel and Hi-Temp Phenolic materials, this caster offers exceptional heat resistance, making it an excellent choice for heavy-duty industrial applications. Its Delrin Bearing ensures smooth movement, while the side-lock mechanism secures the caster in place for added stability and safety. The 4" x 4.5" mounting plate allows for easy installation, providing versatility and reliability in demanding settings where heat, corrosion, and durability are crucial.
Our 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Side-Lock Caster with 4" x 4.5" Plate (D4.05109.331 HT BRK7 SS) is rigorously tested to meet the highest industry standards. Designed for extreme conditions, this caster ensures durability and long-lasting performance in high-temperature and industrial environments. Each product is backed by our commitment to quality, providing dependable service and customer support to meet your needs in demanding applications. We are confident in the value this product brings, ensuring satisfaction and reliable performance.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Side-Lock Caster with 4" x 4.5" Plate (Model: D4.05109.331 HT BRK7 SS) is specifically designed to excel in high-temperature environments while offering robust performance in industrial applications. Constructed from durable stainless steel and high-temperature phenolic material, this caster is built to withstand temperatures ranging from -40°F to 600°F, making it an ideal choice for environments requiring high resistance to heat and corrosion.
This caster is ideal for use in a variety of industrial, commercial, and high-temperature environments. It’s particularly suited for:
Our 5" x 2" Stainless Hi-Temp Phenolic Delrin Bearing Side-Lock Caster is tested to meet rigorous performance standards and is designed to provide reliable service in demanding environments. We stand behind our products with a comprehensive 3-year warranty and offer dependable customer support to assist with any inquiries or issues you may have. When you purchase from us, you can be confident that you’re getting a durable and high-performance product backed by years of expertise and a commitment to quality.
This D4.05109.331 HT BRK7 SS 5" x 2" Phenolic Stainless Side-Lock Caster is rated to 1000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a High Temp Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

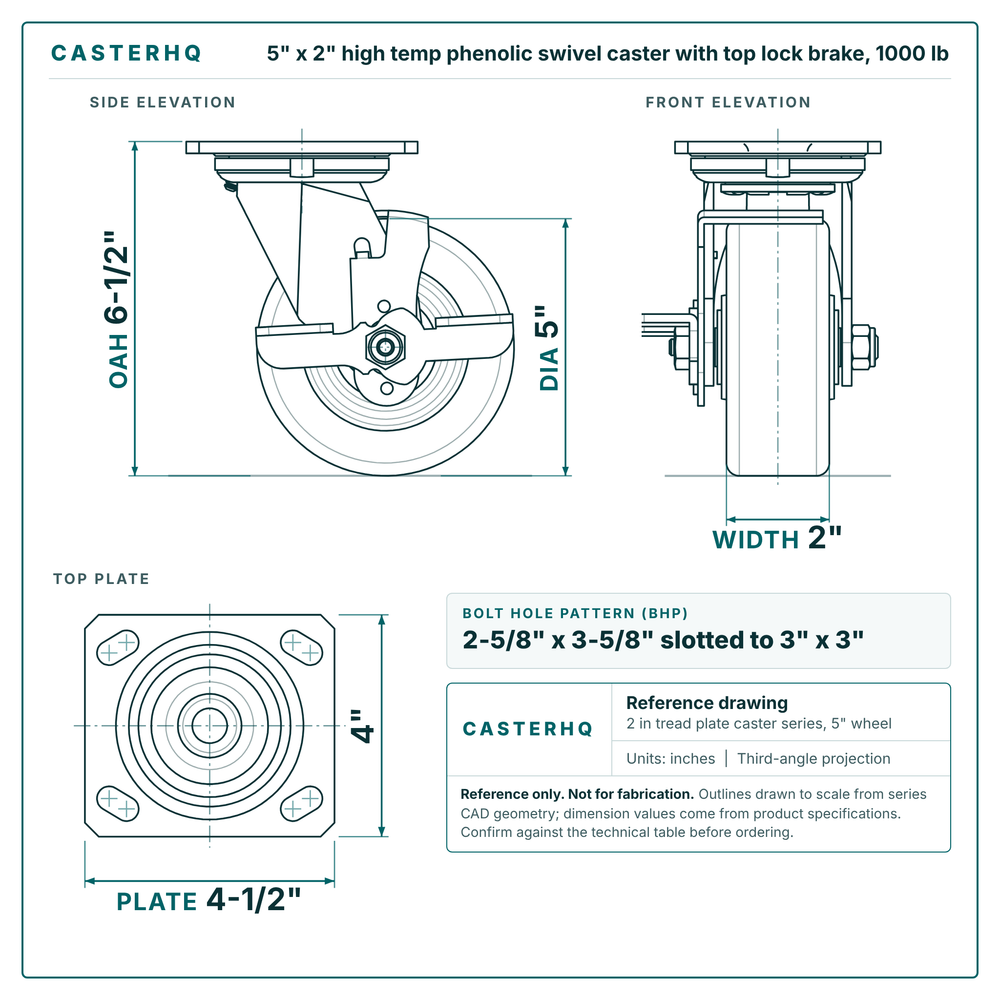

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The High Temp Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$251.00
| Identification | |
| Brand | colson header |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Brake |
| Load & Performance | |
| Wheel Capacity | 1000 lbs |
| Temp Range | -40°F to 600°F |
| Brake Type | Side Lock Brake |
| Materials & Finish | |
| Wheel Material | High Temp Phenolic |
| Wheel Core Material | Phenolic |
| Frame Material | Stainless Steel |
5" x 2" Phenolic Rigid Caster – 1000 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 1000 lbs · Direct fit
$20
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 750 lbsLighter duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 800 lbsLighter duty | 5" × 2"Nylon | Swivel | — | $28.00 | View → | |
| 1000 lbs | 5" × 2"High Temp Phenolic | Swivel with Brake + brake | 6-1/2" | $251.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsSame capacity | 5" × 2"Phenolic | Rigid | — | $20.00 | View → |
| 1000 lbsSame capacity | 5" × 2"Cast Iron | Rigid | 6-1/2" | $31.00 | View → |
