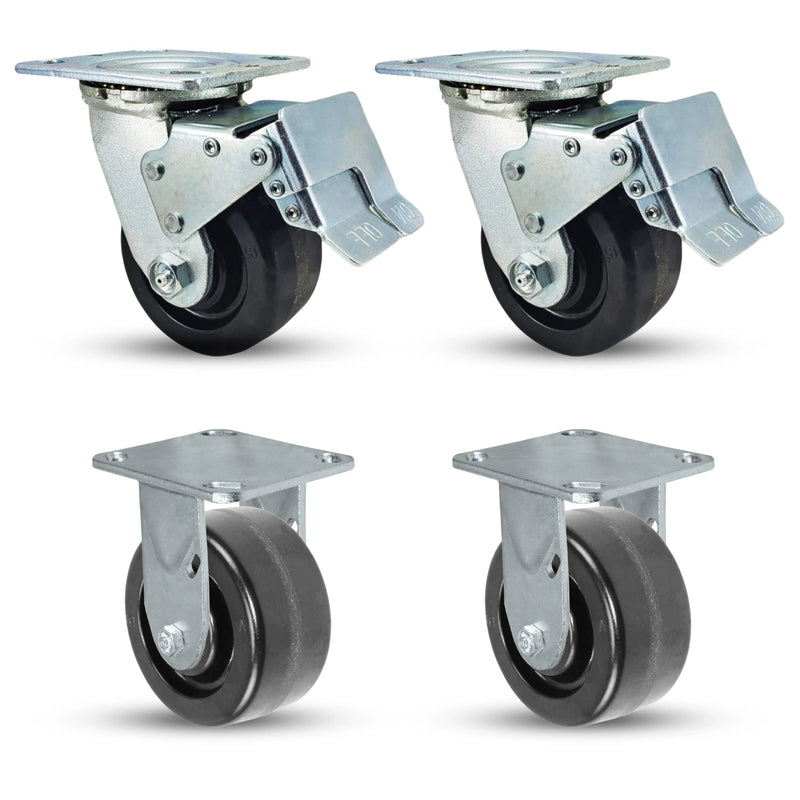

Introducing our high-performance 5-inch by 2-inch Total Lock Caster Set, ideal for a wide range of applications. This set boasts a remarkable 3,200 lbs total capacity, combining two total locking casters with two rigid casters. Each caster features a durable black phenolic wheel, ensuring optimal performance in both stationary and mobile configurations.
Our total locking casters feature dual pedal metal brakes, conveniently located for easy access. This efficient locking mechanism is perfect for environments where quick stability is crucial, especially on inclines.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 5" x 2" Total Lock Caster Set is expertly designed for both mobility and stability in industrial and warehousing settings. With a total weight capacity of 3,200 lbs, this set includes two total locking casters and two rigid casters, each featuring high-quality phenolic wheels. The total locking system ensures complete immobility when required, making it ideal for tasks that demand precision and stability.
Each total locking caster is equipped with a user-friendly dual pedal metal brake, easily accessible and efficient for securing your setup. The brake's trailing position allows for quick engagement and reliable stability, especially on inclines or uneven surfaces.
Constructed with durable phenolic wheels, the casters are non-marking and capable of handling heavy loads without compromising floor integrity. This makes them suitable for a variety of applications, from mobile workstations to welding tables, in diverse settings like workshops and healthcare facilities.
The versatility of the 5" x 2" Total Lock Caster Set extends its application to various environments, ensuring smooth operation and longevity. The bright zinc finish offers corrosion resistance and a clean appearance, while the NSF listing and approval guarantee compliance with stringent public health standards. Each caster is designed to support up to 800 lbs, making it a heavy-duty solution for demanding applications.
This 5" x 2" Phenolic Total Lock Caster Set – 3,200 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$123.00
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | Up to 250°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
5" x 2" Polyurethane Rigid Caster – 750 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 750 lbs · Direct fit
$20
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 500 lbsLighter duty | 5" × 2"Gray Rubber | Rigid | 6-1/2" | $27.00 | View → | |
| 750 lbsLighter duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 800 lbs | 5" × 2"Phenolic | Swivel with Total Lock Brake + brake | 6-1/2" | $123.00 | Viewing | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsHeavier duty | 5" × 2"Phenolic | Rigid | — | $20.00 | View → |
| 1000 lbsHeavier duty | 5" × 2"Cast Iron | Rigid | 6-1/2" | $31.00 | View → |
