PRODUCT CODE: 110AN05228SL
SKU: 110AN05228SL
Wheel Type: Kingpinless Ergonomic Wheel
Profile: Swivel Caster with Lock
Load Capacity: 1000 lb
Mounting Plate: 4" x 4.5"
Fastening: 4 1/2" x 4" top plate
Mount Height: 6.5 inches
Swivel Radius: 3.88 inches
Got questions? Our Caster Experts are here weekdays 8 am - 5 pm. Get expert advice for your project needs.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

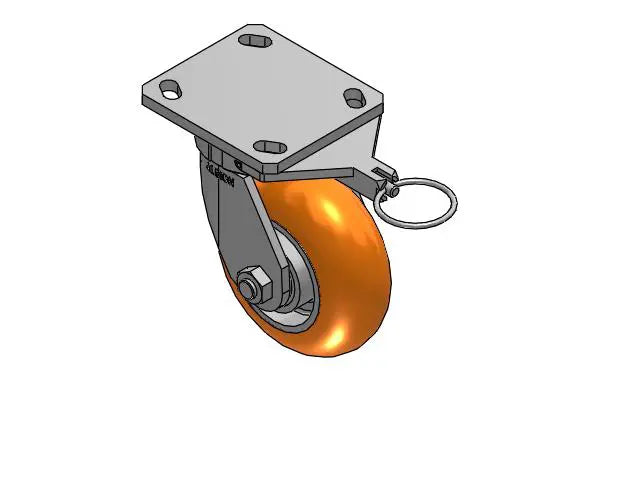

Product Overview: The Kingpinless 5"x2" MAX-Efficiency Orange Caster is designed for high performance in demanding environments. Its kingpinless construction eliminates weak points, making it an ideal choice for heavy-duty applications. The orange ergonomic wheel ensures smooth and efficient movement while reducing strain.
Durability: Constructed with high-durability polyurethane on steel, this caster is built to withstand harsh conditions and heavy loads, providing long-lasting performance with minimal maintenance.
Versatility: The 4"x4.5" mounting plate allows for easy installation on various types of equipment, making it a versatile solution for industrial and commercial use. The caster’s compact design and swivel lock feature offer enhanced maneuverability and stability.
Applications: Perfect for use in warehouses, factories, and other heavy-duty environments where reliable mobility and durability are crucial. Ideal for carts, dollies, and other equipment requiring a high load capacity and smooth movement.
Installation: Features a user-friendly mounting plate with a 4 1/2" x 4" top plate, ensuring secure and stable attachment to various surfaces. The swivel lock mechanism provides additional control and safety during use.
$185.00

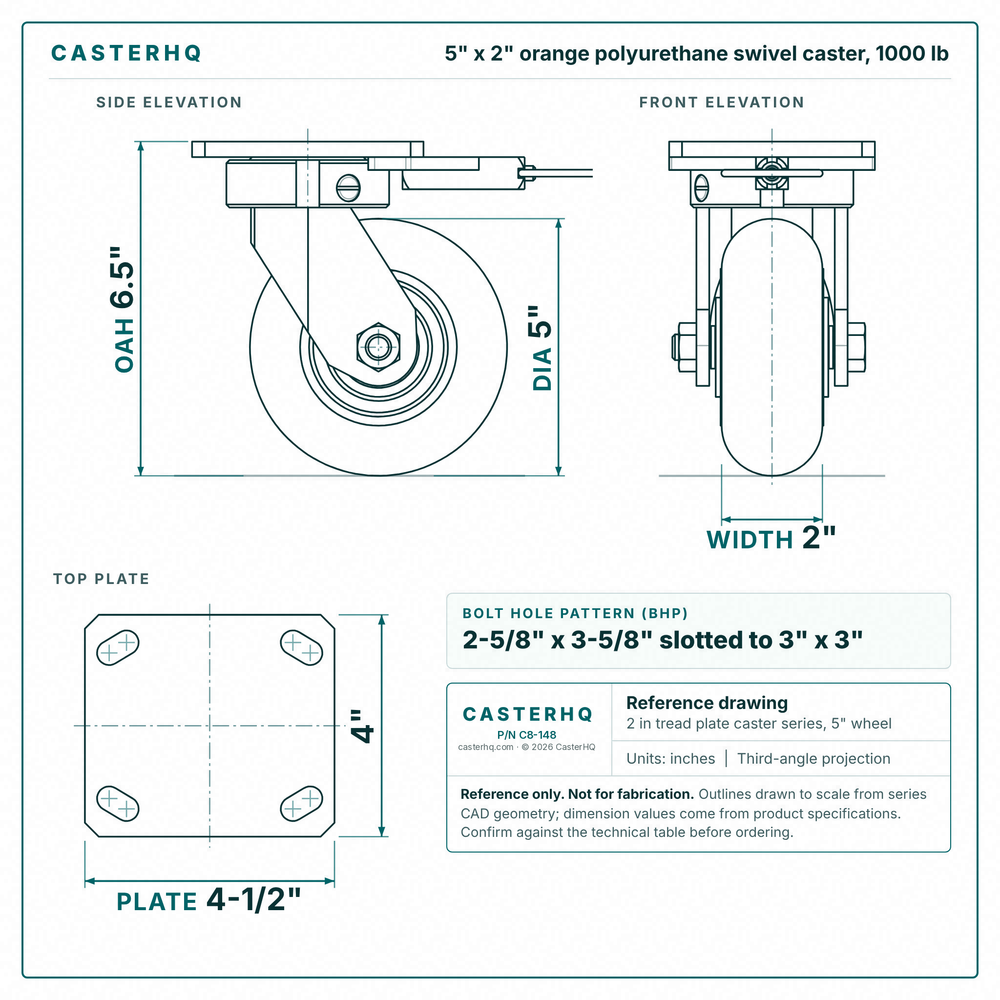

| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Wheel Capacity | 1000 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Polyurethane |
| Wheel Core Material | Steel |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Rig Type | Swivel |
| Brake Type | No Brake |
